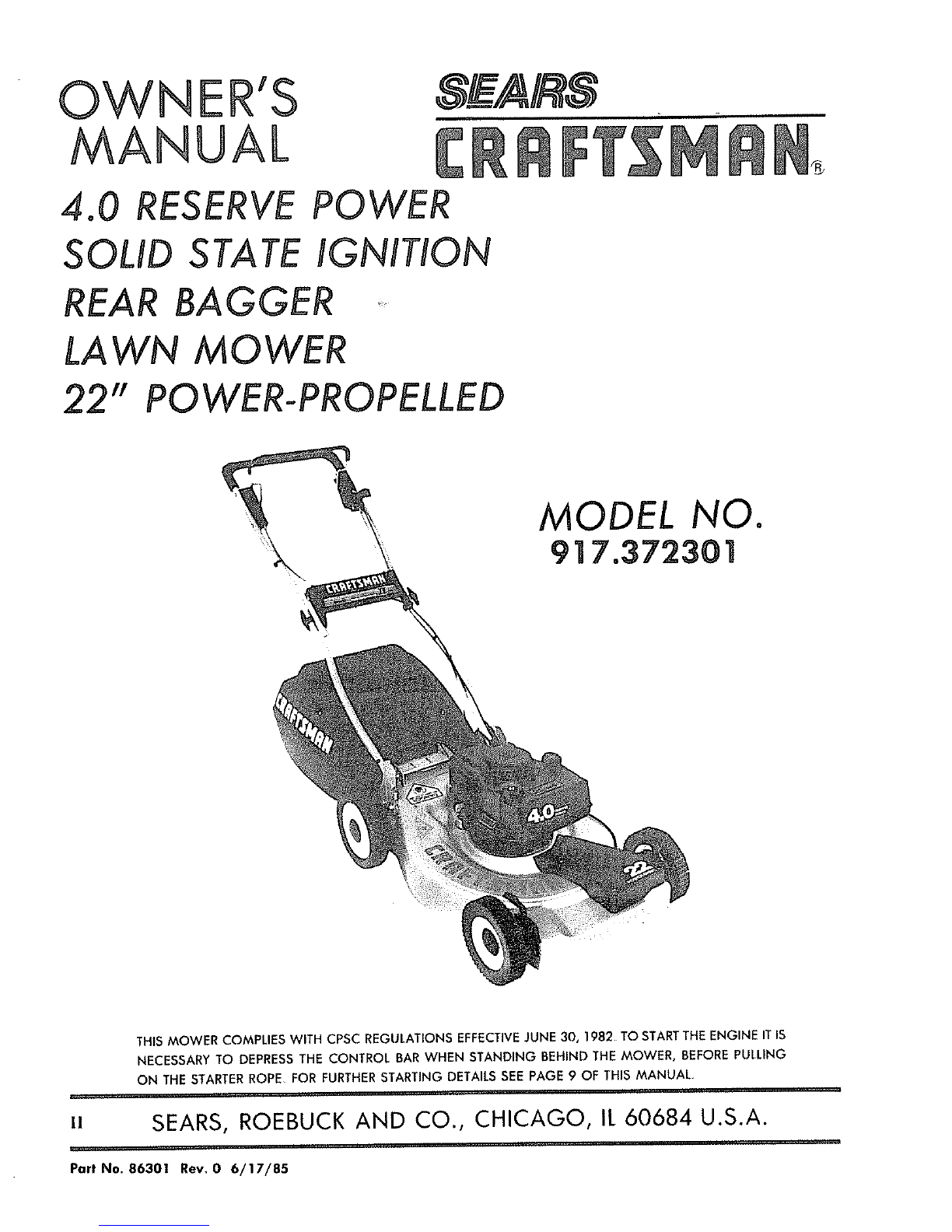

OWNER'S

MANUAL

4.0 RESERVE

SOLID STATE

REAR BAGGER

LAWN M0 WER

22"

POWER

IGNITION

POWER-PROPELLED

MODEL NO.

917.372301

THIS MOWER COMPLIES WITH CPSC REGULATIONS EFFECTIVE JUNE 30, 1982 TO START THE ENGINE IT IS

NECESSARY TO DEPRESS THE CONTROL BAR WHEN STANDING BEHIND THE MOWER, BEFORE PULLING

ON THE STARTER ROPE, FOR FURTHER STARTING DETAILS SEE PAGE 9 OF THIS MANUAL

u SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.

#ll., ..

Part No. 86301 Rev, 0 6/17/85

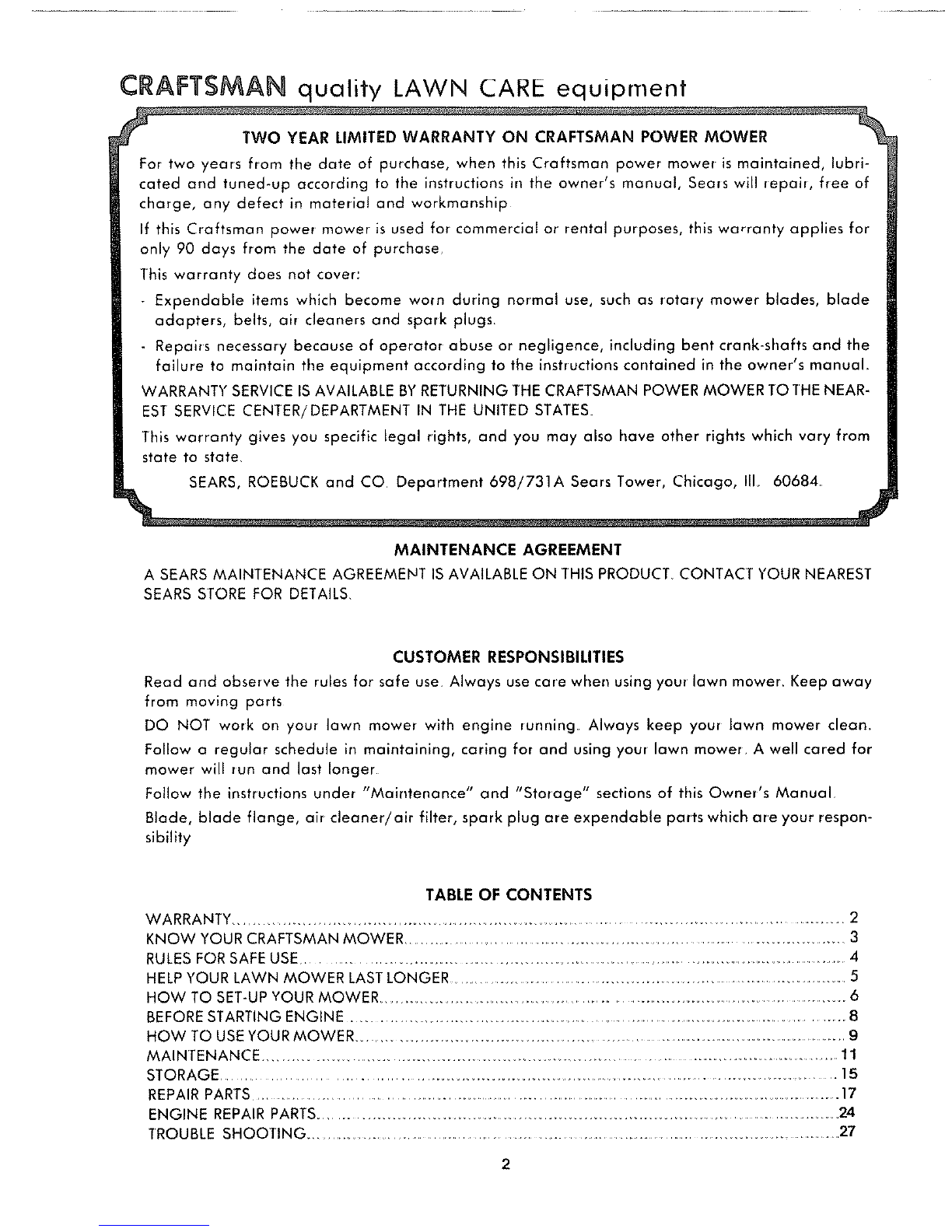

CRAFTSMAN quality LAWN CARE equipment

TWO YEAR LIMITED WARRANTY ON CRAFTSMAN POWER MOWER

Far two years from the date af purchase, when this Craftsman power mower is maintained, lubri-

cated and tuned-up according to the instructions in the owner's manual, Sears will repair, free of

charge, any defect in material and workmanship

If this Craftsman power mower is used for' commercial or rental purposes, this warranty applies far

only 90 days from the date of purchase,

This warranty does not cover:

-Expendable items which become worn during normal use, such as rotary mower blades, blade

adapters, belts, air cleaners and spark plugs

- Repairs necessary because af operator abuse or negligence, including bent crank-shafts and the

failure to maintain the equipment according to the instructions contained in the owner's manual

WARRANTY SERVICE ISAVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAR-

EST SERVICE CENTER/DEPARTMENT IN THE UNITED STATES_

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state_

SEARS, ROEBUCK and CO. Department 698/731A Sears Tower, Chicago, IlL 60684

MAINTENANCE AGREEMENT

A SEARS MAINTENANCE AGREEMENT IS AVAILABLE ON THIS PRODUCT CONTACT YOUR NEAREST

SEARS STORE FOR DETAILS_

CUSTOMER RESPONSIBILITIES

Read and observe the rules for safe use. Always use care when using your lawn mower. Keep away

from moving parts

DO NOT work an your lawn mawer with engine running Always keep your lawn mower clean.

Follow a regular schedule in maintaining, caring for and using your lawn mower, A well cared for

mawer will run and last longer

Follow the instructions under "Maintenance" and "Storage" sections of this Owner's Manual

Blade, blade flange, air cleaner/air filter, spark plug are expendable parts which are your respon-

sibility

TABLE OF CONTENTS

WARRANTY ................................................................................................................................. 2

KNOW YOUR CRAFTSMAN MOWER ............................................................................................ 3

RULES FOR SAFE USE................................................................................................................ 4

HELP YOUR LAWN MOWER LAST LONGER ........................................................................................ 5

HOW TO SET-UP YOUR MOWER ................................................................................................... 6

BEFORE STARTING ENGINE ...................................................................................................... 8

HOW TO USE YOUR MOWER ............................................................................................................ g

MAINTENANCE ............................................................................................................................... 11

STORAGE ........................................................................................................................... 15

REPAIR PARTS........................................................................................................................................ 17

ENGINE REPAIR PARTS............................................................................................................ 24

]"ROUBLE SHOOTING ................................................................................................................................... 27

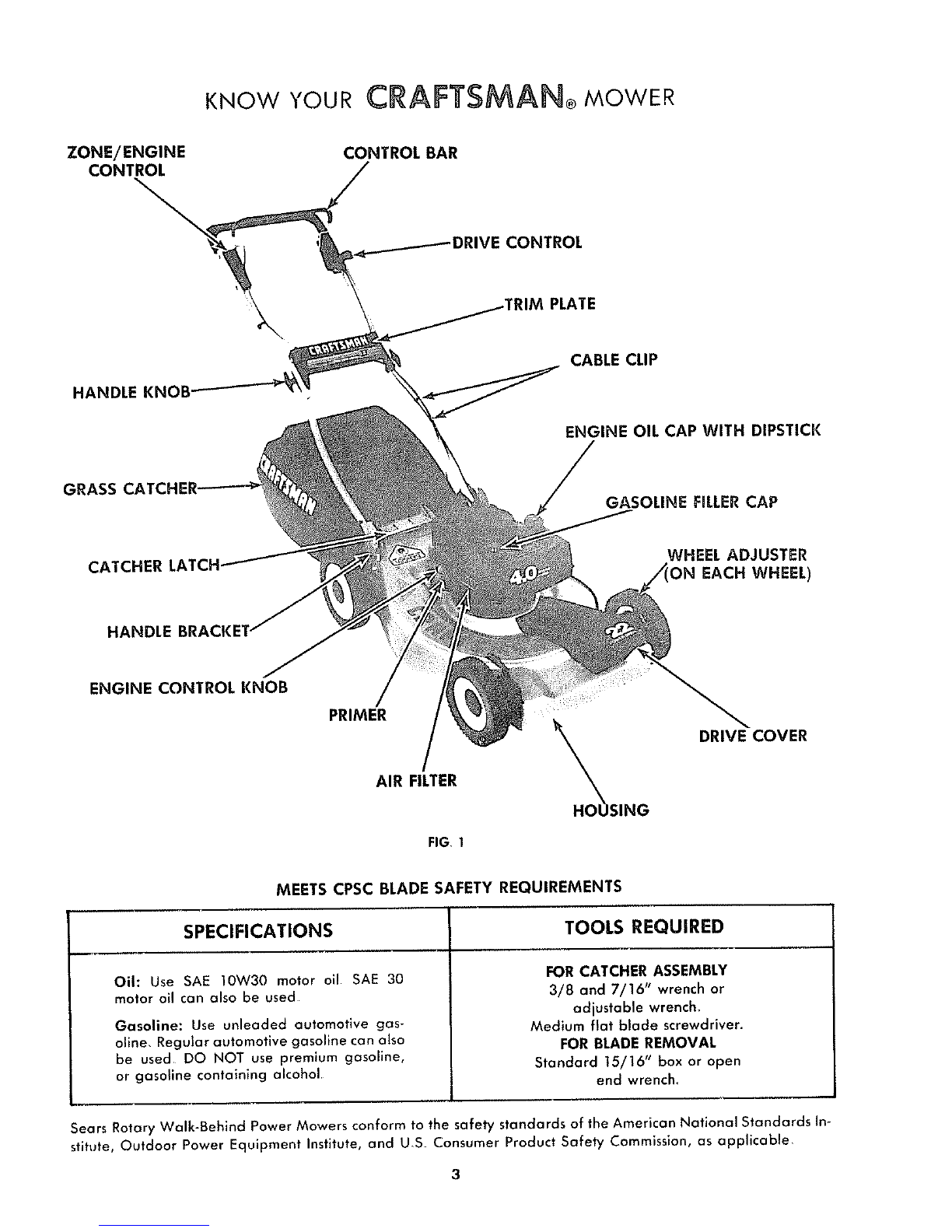

KNOW YOUR CRAFTSMAN MOWER

ZONE/ENGINE

CONTROL CONTROL BAR

CONTROL

HANDLE KNOB

\PLATE

CABLE CLIP

ENGINE OIL CAP WITH DIPSTICK

GRASS GASOLINE FILLER CAP

CATCHER LATCI" WHEEL ADJUSTER

ON EACH WHEEL)

HANI

ENGINE CONTROL KNOB

PRIMER

AIR FILTER

FIG I

H_O SING

DRIVE COVER

MEETS CPSC BLADE SAFETY REQUIREMENTS

SPECIFICATIONS TOOLS REQUIRED

Oil: Use SAE 10W30 motor oil SAE 30

motor oil can also be used

Gasoline: Use unleaded automotive gas-

oline, Regular automotive gasoline can also

be used DO NOT use premium gasoline,

or gasoline containing alcohol

FOR CATCHER ASSEMBLY

3/8 and 7/16" wrench or

adiustable wrencM

Medium flat blade screwdriver.

FOR BLADE REMOVAL

Standard 15/16" box or open

end wrench_

Sears Rotary Walk-Behind Power Mowers conform to the safety standards of the American National Standards In-

stitute, Outdoor Power Equipment Institute, and U_S Consumer Product Safety Commission, as applicable,

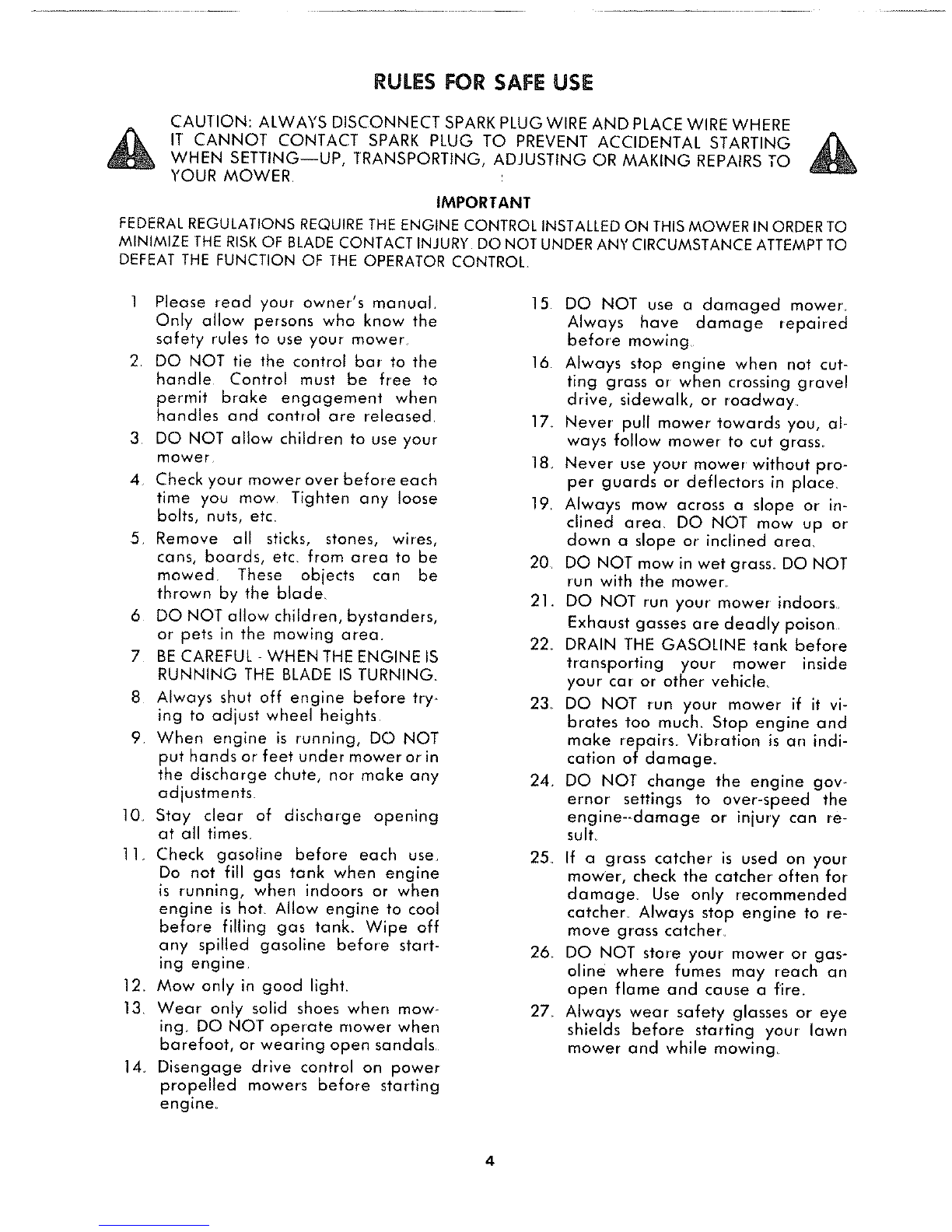

RULES FOR SAFE USE

CAUTION: ALWAYS DISCONNECT SPARK PLUG WIRE AND PLACE WIRE WHERE

I1 CANNOT CONTACT SPARK PLUG TO PREVENT ACCIDENTAL STARTING

WHEN SETTING--UP, TRANSPORTING, ADJUSTING OR MAKING REPAIRS TO

YOUR MOWER.

IMPORTANT

FEDERAL REGULATIONS REQUIRE THE ENGINE CONTROL INSTALLED ON THIS MOWER IN ORDER TO

MINIMIZE THE RISK OF BLADE CONTACT INJURY DO NOT UNDER ANY CIRCUMSTANCE ATTEMPTTO

DEFEAT THE FUNCTION OF THE OPERATOR CONTROL

1 Please read your owner's manual,

Only allow persons who know the

safety rules to use your mower

2 DO NOT tie the control bar to the

handle Control must be free to

permit brake engagement when

handles and control are released,

3 DO NOT allow children to use your

mower

4_ Check your' mower over before each

time you mow Tighten any loose

bolts, nuts, etc_

5. Remove all sticks, stones, wires,

cans, boards, etc. from area to be

mowed. These objects can be

thrown by the blade.

6 DO NOT allow children, bystanders,

or pets in the mowing area_

7 BE CAREFUL- WHEN THE ENGINE IS

RUNNING THE BLADE IS TURNING_

8 Always shut off engine before try_

ing to adjust wheel heights

9When engine is running, DO NOT

put hands or feet under mower' or in

the discharge chute, nor make any

adjustments_

10_ Stay clear of discharge opening

at all times,

11_ Check gasoline before each use_

Do not fill gas tank when engine

is running, when indoors or when

engine is hal Allow engine to cool

before filling gas tank_ Wipe off

any spilled gasoline before start-

ing engine

12_ Mow only in good light_

13 Wear only solid shoes when mow-

ing, DO NOT operate mower when

barefoot, or wearing open sandals

14_ Disengage drive control on power

propelled mower's before starting

engine_

15 DO NOT use a damaged mower'.

Always have damage repaired

before mowing

16 Always stop engine when not cut-

ting grass or when crossing gravel

drive, sidewalk, or roadway.

17_ Never pull mower towards you, al-

ways follow mower to cut grass_

18. Never use your mower without pro-

per guards or deflectors in place.

19. Always mow across a slope or in-

clined area. DO NOT mow up or

down a slope or inclined area,

20. DO NOT mow in wet grass_ DO NOT

run with the mower

21. DO NOT run your' mower indoors.

Exhaust gasses are deadly poison

22_ DRAIN THE GASOLINE tank before

transporting your mower inside

your car or other vehicle.

23 DO NOT run your mower if it vi-

brates too much Stop engine and

make repairs. Vibration is an indi-

cation of damage.

24. DO NOT change the engine gow

ernor settings to over-speed the

engine-Ldamage or' injury can re-

sult_

25 If a grass catcher is used on your

mower, check the catcher often for

damage_ Use only recommended

catcher_ Always stop engine to re-

move grass catcher_

26_ DO NOT store your mower or gas-

aline where fumes may reach an

open flame and cause a fire.

27_ Always wear safety glasses or eye

shields before starting your lawn

mower and while mowing

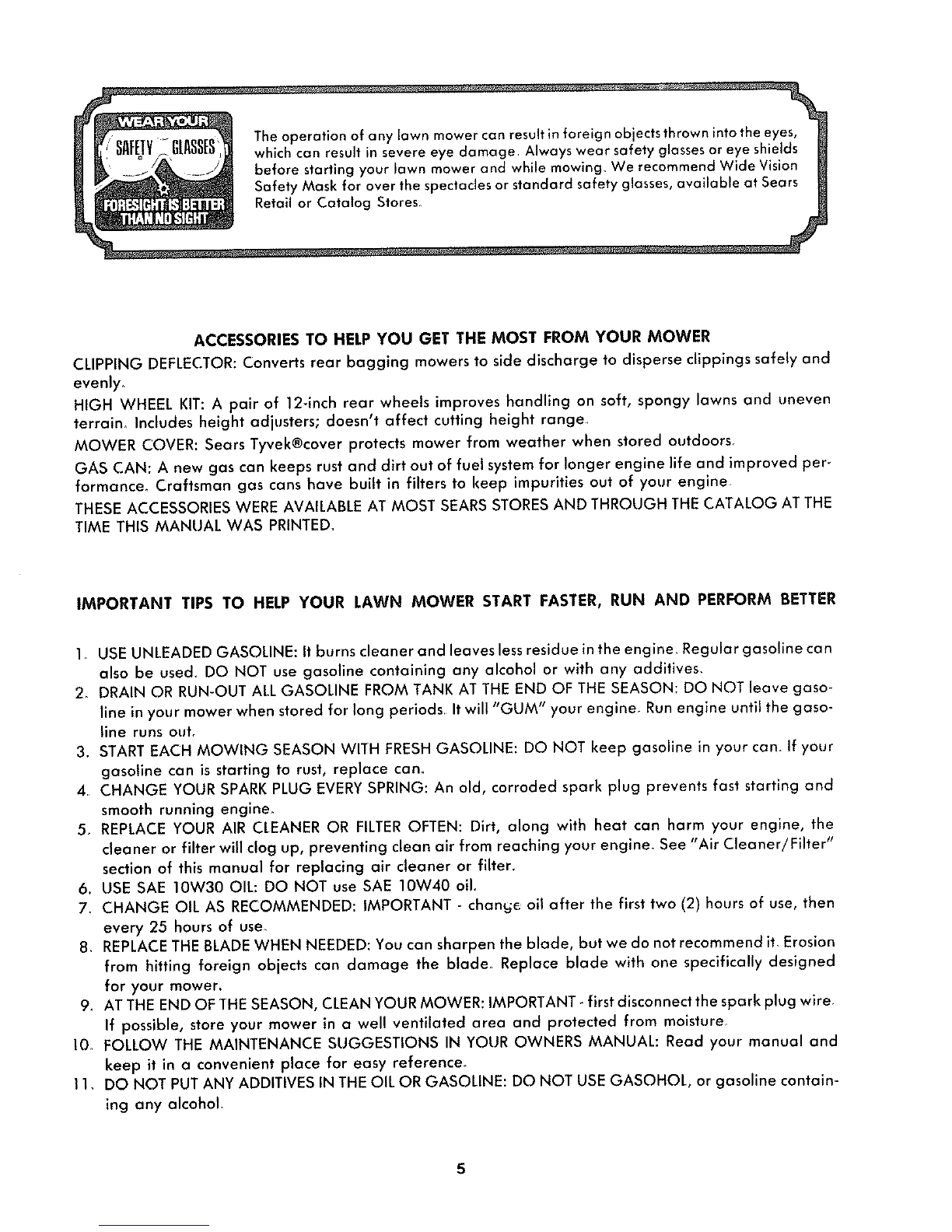

The operation of any lawn mower can result in foreign objects thrown into the eyes,

which can result in severe eye damage Always wear safety glasses or eye shields

before starting your lawn mower and while mowing, We recommend Wide Vision

Safety Mask for over the spectacles or standard safety glasses, available at Sears

Retail or Catalog Stores_

ACCESSORIES TO HELP YOU GET THE MOST FROM YOUR MOWER

CLIPPING DEFLECTOR: Converts rear bagging mowers to side discharge to disperse clippings safely and

evenly_

HIGH WHEEL KIT: Apair of 12_inch rear wheels improves handling on soft, spongy lawns and uneven

terrain_ Includes height adjusters; doesn't affect cutting height range,

MOWER COVER: Sears Tyvek®cover protects mower from weather when stored outdoors_

GAS CAN: A new gas can keeps rust and dirt out of fuel system for longer engine life and improved per_

formance_ Craftsman gas cans have built in filters to keep impurities out of your engine

THESE ACCESSORIES WERE AVAILABLE AT MOST SEARS STORES AND THROUGH THE CATALOG AT THE

TIME THIS MANUAL WAS PRINTED.

IMPORTANT TIPS TO HELP YOUR LAWN MOWER START FASTER, RUN AND PERFORM BETTER

1_ USE UNLEADED GASOLINE: It burns cleaner and leaves less residue in the engine. Regular gasoline can

also be used. DO NOT use gasoline containing any alcohol or with any additives.

2_ DRAIN OR RUN-OUT ALL GASOLINE FROM TANK AT THE END OF THE SEASON: DO NOT leave gaso-

line in your mower when stored for long periods It will "GUM" your engine. Run engine until the gaso-

line runs out.

3. START EACH MOWING SEASON WITH FRESH GASOLINE: DO NOT keep gasoline in your can. If your

gasoline can is starting to rust, replace can.

4 CHANGE YOUR SPARK PLUG EVERY SPRING: An old, corroded spark plug prevents fast starting and

smooth running engine.

5. REPLACE YOUR AIR CLEANER OR FILTER OFTEN: Dirt, along with heat can harm your engine, the

cleaner or filter will clog up, preventing clean air from reaching your engine. See "Air Cleaner/Filter"

section of this manual for replacing air cleaner or filter.

6. USE SAE 10W30 OIL: DO NOT use SAE 10W40 oik

7. CHANGE OIL AS RECOMMENDED: IMPORTANT - chan_j_ oil after the first two (2) hours of use, then

every 25 hours of use,

8, REPLACE THE BLADEWHEN NEEDED: You can sharpen the blade, but we do not recommend it. Erosion

from hitting foreign objects can damage the blade Replace blade with one specifically designed

for your mower.

9. AT THE END OF THE SEASON, CLEAN YOUR MOWER: IMPORTANT- first disconnect the spark plug wire,

If possible, store your mower in a well ventilated area and protected from moisture_

10. FOLLOW THE MAINTENANCE SUGGESTIONS IN YOUR OWNERS MANUAL: Read your manual and

keep it in a convenient place for easy reference°

11. DO NOT PUT ANY ADDITIVES IN THE OIL OR GASOLINE: DO NOT USE GASOHOL, or gasoline contain-

ing any alcohol

Your lawn mower has been completely assembled at the factory, except for the grass catcher and grass

catcher ftame, To set-up and attach grass catcher, follow the steps under "GRASS CATCHER".

The following parts are included not assembled:

1Grass Catcher Frame

1Grass Catcher Top

1Grass Catcher Bottom

1 Hardware Package

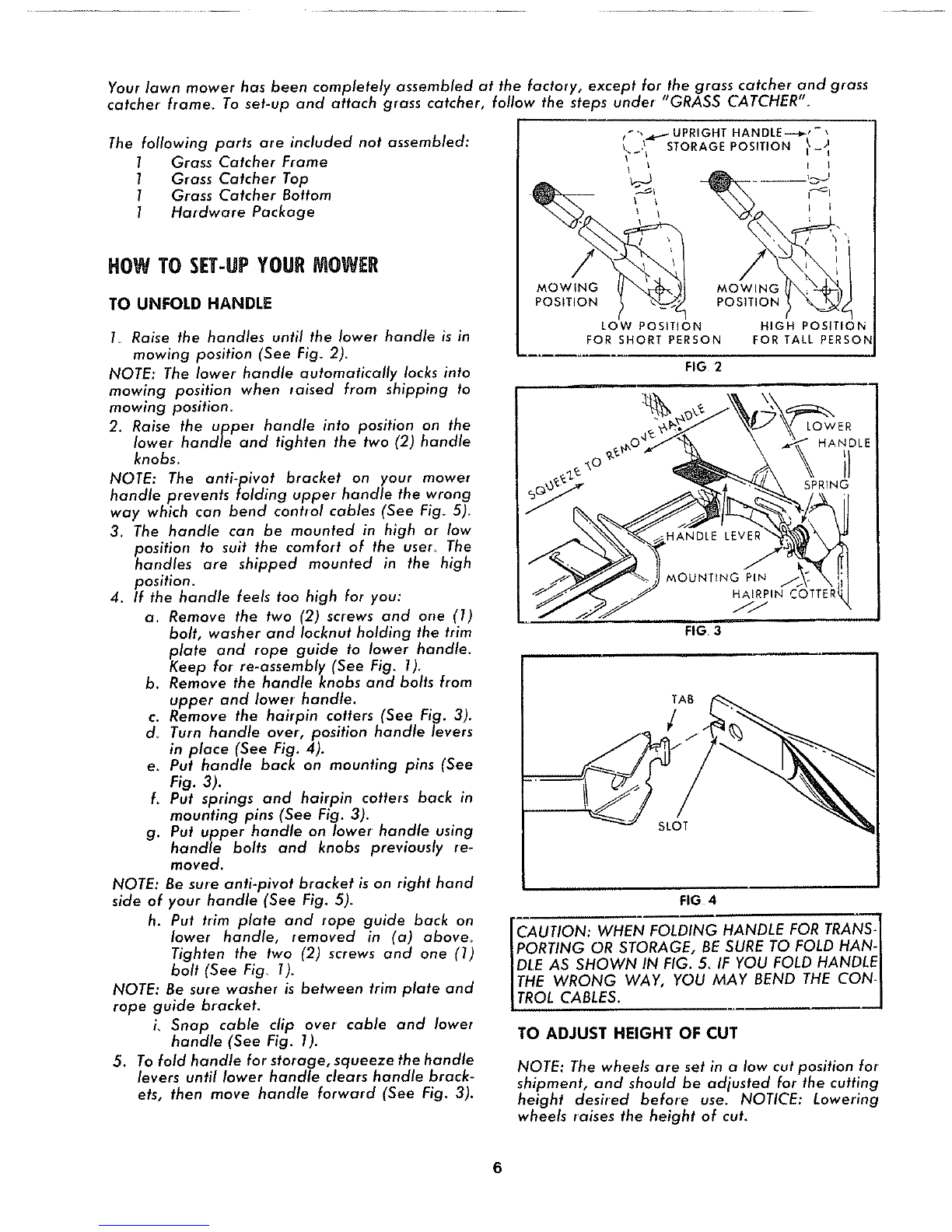

HOW TO SET-UPYOURMOWER

TO UNFOLD HANDLE

I_ Raise the handles until the lower handle is in

mowing position (See Fig° 2)_

NOTE: The lower handle automatically locks into

mowing position when raised from shipping to

mowing positiom

2. Raise the upper handle into position on the

lower handle and tighten the two (2) handle

knobs_

NOTE: The anti-pivot bracket on your mower

handle prevents folding upper handle the wrong

way which can bend control cables (See Fig_ 5)_

3_ The handle can be mounted in high or low

position to suit the comfort of the uset_ The

handles are shipped mounted in the high

position.

4. If the handle feels too high for you:

a_ Remove the two (2) screws and one (I)

bolt, washer and Iocknut holding the trim

plate and rope guide to lower handle.

Keep for re-assembly (See Fig. 1)_

b. Remove the handle knobs and bolts from

upper and lower' handle.

c. Remove the hairpin cotters (See Fig. 3).

d_ Turn handle over, position handle levers

in place (See Fig. 4).

e_ Put handle back on mounting pins (See

Fig.3).

fo Put springs and hairpin cotters back in

mounting pins (See Fig. 3)_

g. Put upper handle on lower handle using

handle bolts and knobs previously re-

moved.

NOTE: Be sure anti-pivot bracket is on right hand

side of your handle (See Fig. 5)_

h. Put trim plate and rope guide back on

lower handle, removed in (a) above_

Tighten the two (2) screws and one (1)

bolt (See Fig_ l)o

NOTE: Be sure washer is between trim plate and

rope guide bracket.

i, Snap cable clip over cable and lower

handle (See Fig_ 1).

5. To fold handle for storage, squeeze the handle

levers until lower handle cleats handle brack-

ets, then move handle forward (See Fig. 3).

MOWING

POSITION MOWING

POSITION

LOW POSITION

FOR SHORT PERSON HIGH POSITION

FOR TALL PERSON

FIG 2

llll,

LOWER

HANDLE

SPRFNG

MOUNTING PIN

HAIRPIN COTTER

///

FIG,3

FIG 4

CAUTION: WHEN FOLDING HANDLE FOR TRAN_-

PORTING OR STORAGE, BE SURE TO FOLD HAN-I

DLE AS SHOWN IN FIG. 5. IF YOU FOLD HANDLEI

THE WRONG WAY, YOU MAY BEND THE CON- I

TROL CABLES. J

TO ADJUST HEIGHT OF CUT

NOTE: The wheels are set in a low cut position for

shipment, and should be adjusted for the cutting

height desired before use. NOTICE: Lowering

wheels raises the height of cut.

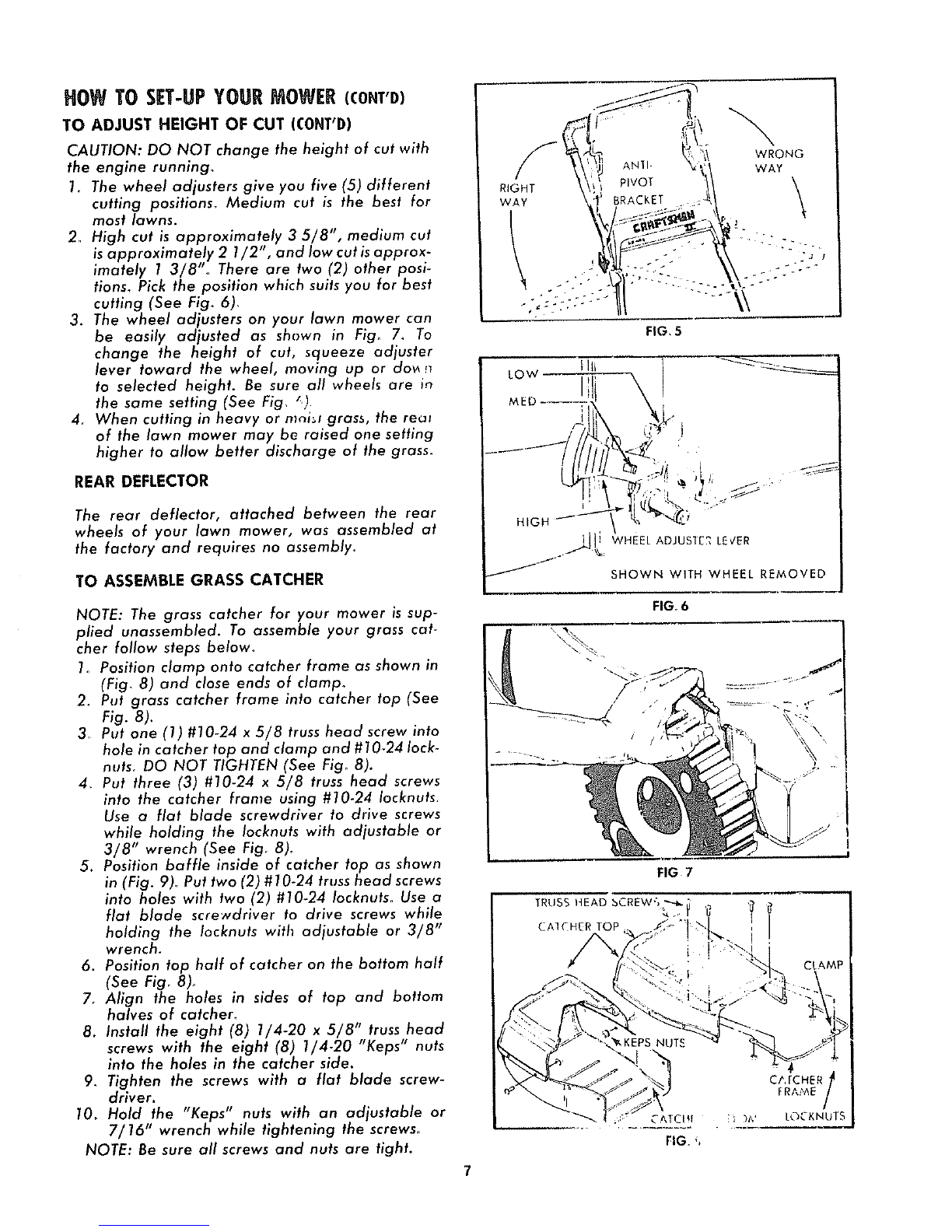

HOW TO SET-UPYOUR MOWER(CONT'D)

TO ADJUST HEIGHT OF CUT (CONT'D)

CAUTION: DO NOT change the height of cut with

the engine running°

1_ The wheel adjusters give you five (5) different

cutting positions, Medium cut is the best for

most lawns.

2, High cut is approximately 3 5/8", medium cut

is approximately 21/2", and low cut is approx-

imately 1 3/8"o There are two (2) other post.

tions_ Pick the position which suits you for best

cutting (See Fig. 6),

3. The wheel adjusters on your lawn mower can

be easily adjusted as shawn in Fig, 7_ To

change the height of cut, squeeze adjuster

lever toward the wheel, moving up or do_ n

to selected height. Be sure all wheels are in

the same setting (See Fig, _)

4, When cutting in heavy or mni_l grass, the re_

of the lawn mower may be raised one setting

higher to allow better discharge of the grass.

REAR DEFLECTOR

The rear deflector, attached between the rear

wheels of your lawn mower, was assembled at

the factory and requires no assembly.

TO ASSEMBLE GRASS CATCHER

NOTE: The grass catcher for your mower is sup_

plied unassembled. To assemble your grass cat-

cher follow steps below,

1. Position clamp onto catcher frame as shown in

(Fig, 8) and close ends of clamp°

2_ Put grass catcher frame into catcher top (See

Fig. 8).

3, Put one (1) #10-24 x5/8 truss head screw into

hole in catcher top and clamp and #10-24 lock-

nuts, DO NOT TIGHTEN (See Fig_ 8).

4, Put three (3) #10-24 x5/8 truss head screws

into the catcher frame using #10.24 Iocknuts_

Use a flat blade screwdriver to drive screws

while holding the Iocknuts with adjustable or

3/8" wrench (See Figr 8).

5. Position baffle inside of catcher top as shown

in (Fig. 9). Put two (2) #10-24 truss head screws

into holes with two (2) #10-24 Iocknuts. Use a

flat blade screwdriver to drive screws while

holding the Iocknuts with adjustable or 3/8"

wrench.

6. Position top half of catcher on the bottom half

(See Fig, 8)°

7, Align the holes in sides of top and bottom

halves of catcher,

8. Install the eight (8) 1/4-20 x 5/8" truss head

screws with the eight (8) 1/4-20 "Keps" nuts

into the holes in the catcher side.

9_ Tighten the screws with aflat blade screw-

driver.

10_ Hold,the "Keps" nuts wdh" an adjustable or

7/16 wrench while tightening the screws.

NOTE: Be sure all screws and nuts are tight.

RIGHT

WAY

FIG, 5

_jl WHEEL ADJUS1E2 LEVER

SHOWN WITH WHEEL REMOVED

FIG. 6

FIG 7

TRUSS HEAD bCREW_ _ "

CATCHER TOP

FIG fl

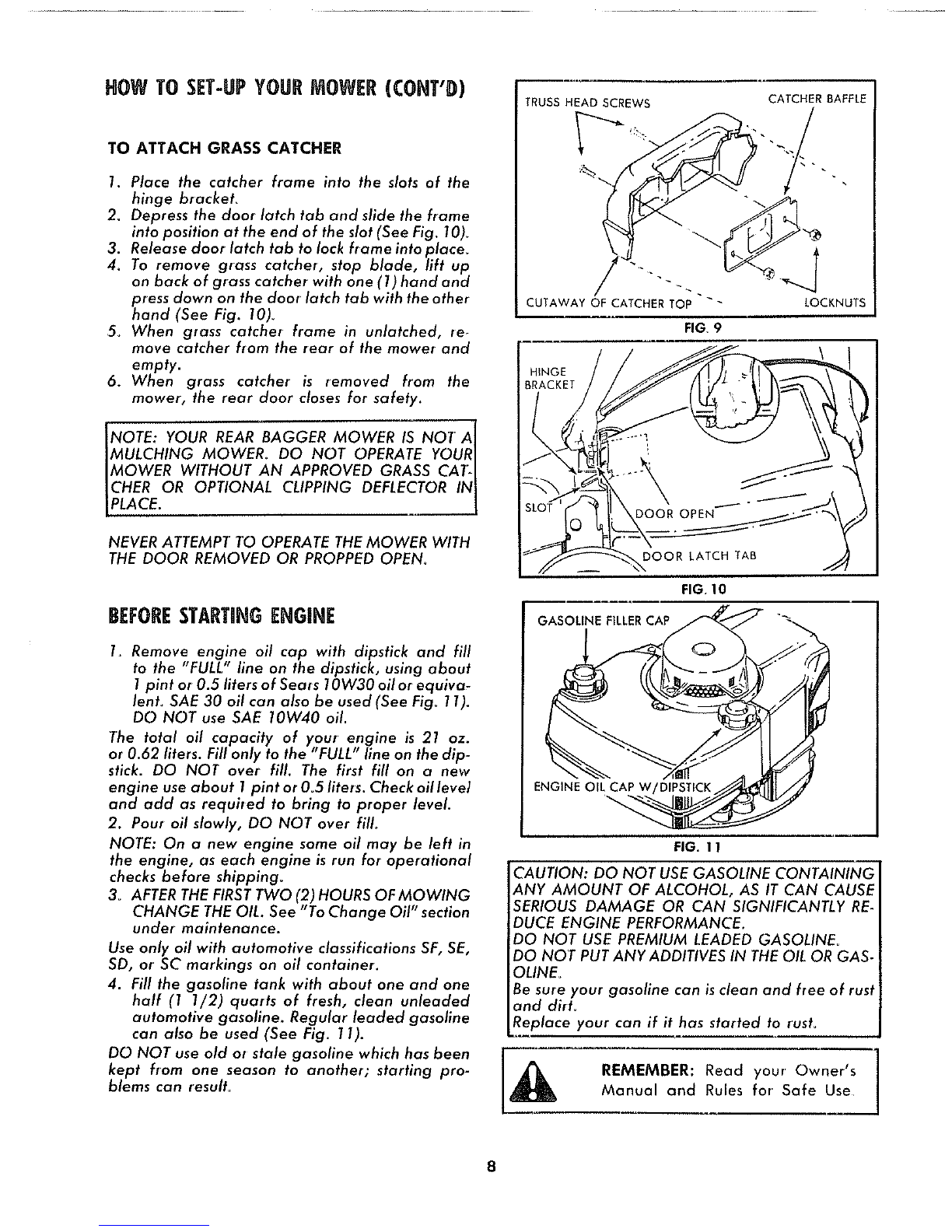

HOW TO SET-UPYOURMOWER (CONT'D)

TO ATTACH GRASS CATCHER

1. Place the catcher frame into the slots of the

hinge bracket,

2. Depress the door latch tab and slide the frame

into position at the end of the slot (See Fig_ 10).

3. Release door latch tab to lock flame into place_

4, To remove grass catcher, stop blade, lift up

on back of glass catcher with one (1) hand and

press down on the door latch tab with the other

hand (See Fig. 10)_

5o When grass catcher frame in unlatched, ie-

move catcher from the rear of the mowel and

empty.

6. When grass catcher is removed from the

mower, the rear door closes for safety.

NOTE: YOUR REAR BAGGER MOWER IS NOT' AI

MULCHING MOWER_ DO NOT OPERATE YOURI

IMOWER WITHOUT AN APPROVED GRASS CAT /

ICHER OR OPTIONAL CLIPPING DEFLECTOR INJ

IPLACE. J

NEVER ATTEMPT' TO OPERATE THE MOWER WITH

THE DOOR REMOVED OR PROPPED OPEN°

BEFORESTARTaNGENGINE

1_ Remove engine oil cap with dipstick arrd fill

to the "FULL" line on the dipstick, using about

1 pint or 0.5 liters of Sears 10W30 oil or equiva-

lenh SAE 30 oil can also be used (See Fig_ 11).

DO NOT use SAE 10W40 oil.

The total oil capacity of your engine is 21 oz.

or 0.62 liters. Fill only to the "FULL/' line on the dip-

stick. DO NOT over fill. The first fill on a new

engine use about 1 pint or 0°5 liters. Check oil levet

and add as required to bring to proper level.

2. Pour oil slowly, DO NOT over fill.

NOTE: On a new engine some oil may be left in

the engine, as each engine is run for operational

checks before shipping_

3_ AFTER THE FIRST TWO (2) HOURS OF MOWING

CHANGE THE OIL. See "To Change Oil" section

under maintenance.

Use only oil with automotive classifications SF, SE,

SD, or' SC markings on oil container.

4. Fill the gasoline tank with about one and one

half (1 1/2) quarts of fresh, clean unleaded

automotive gasoline. Regular leaded gasoline

can also be used (See Fig. 11).

DO NOT use old or stale gasoline which has been

kept from one season to another; starting pro-

blems can result_

TRUSS HEAD SCREWS CATCHER BAFFLE

CUTAWAY OF CATCHER TOP " LOCKNUTS

FIG 9

HINGE

BRACKET

DOOR LATCH TAB

FIG. 10

GASOLINE FILLER CAP

ENGINE OIL CAP W/DIPSTICK

FIG. 1 1

CAUTION: DO NOT USE GASOLINE CONTAINING

ANY AMOUNT OF ALCOHOL, AS IT CAN CAUSE

SERIOUS DAMAGE OR CAN SIGNIFICANTLY RE_

DUCE ENGINE PERFORMANCE,

DO NOT USE PREMIUM LEADED GASOLINEu

DO NOT PUT ANY ADDITIVES IN THE OIL OR GAS-

OLINE_

Be sure your gasoline can is clean and free of rust

and dirt°

Replace your can if it has started to rust_

REMEMBER: Read your Owner's

Manual and Rules for Safe Use

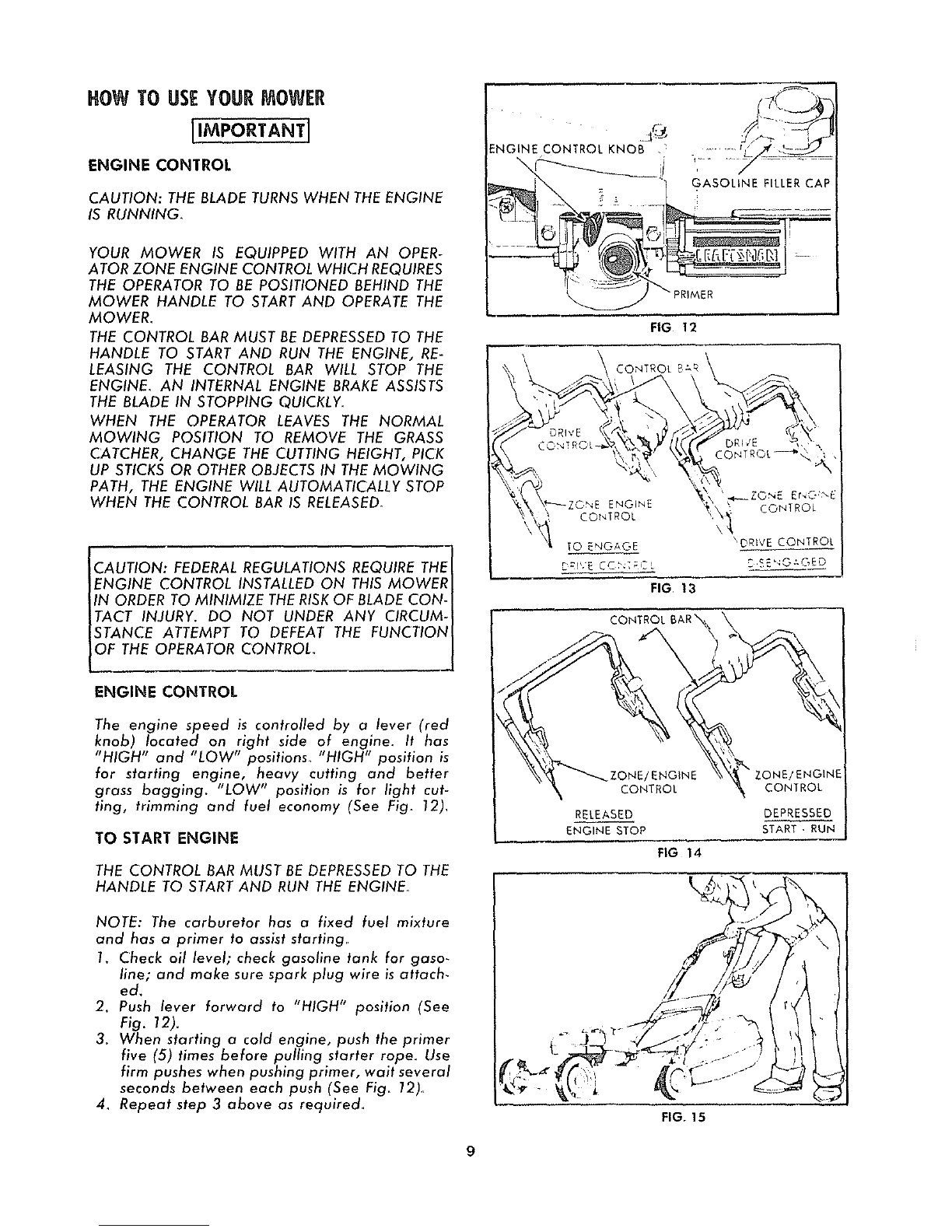

HOW TO USEYOUR MOWER

[IMPo.TA.TI

ENGINE CONTROL

CAUTION: THE BLADE TURNS WHEN THE ENGINE

IS RUNNfNG_

YOUR MOWER IS EQUIPPED WITH AN OPER-

ATOR ZONE ENGINE CONTROL WHICH REQUIRES

THE OPERATOR TO BE POSITIONED BEHIND THE

MOWER HANDLE TO START AND OPERATE THE

MOWER.

THE CONTROL BAR MUST BE DEPRESSED TO THE

HANDLE TO START AND RUN THE ENGINE, RE-

LEASING THE CONTROL BAR WILL STOP THE

ENGINE, AN INTERNAL ENGINE BRAKE ASSISTS

THE BLADE IN STOPPING QUICKLY.

WHEN THE OPERATOR LEAVES THE NORMAL

MOWING POSITION TO REMOVE THE GRASS

CATCHER, CHANGE THE CUTTING HEIGHT, PICK

UP STICKS OR OTHER OBJECTS IN THE MOWING

PATH, THE ENGINE WILL AUTOMATICALLY STOP

WHEN THE CONTROL BAR IS RELEASED,

CAUTION: FEDERAL REGULATIONS REQUIRE THE

ENGINE CONTROL INSTALLED ON THIS MOWER

IN ORDER TO MINIMIZE THE RISK OF BLADE CON-

TACT INJURY. DO NOT UNDER ANY CIRCUM-

STANCE ATTEMPT TO DEFEAT THE FUNCTION

OF THE OPERATOR CONTROL

ENGINE CONTROL

The engine speed is controlled by a lever (red

knob) located on right side of englne_ It has

"HIGH" and "LOW" positions "HIGH" position is

for starting engine, heavy cutting and better

grass bagging. "LOW" position is for light cut-

ting, trimming and fuel economy (See Fig° 12),

TO START ENGINE

THE CONTROL BAR MUST BE DEPRESSED TO THE

HANDLE TO START AND RUN THE ENGINE_

NOTE: The carburetor has afixed fuel mixture

and has aprimer to assist starting

1, Check oil level; check gasoline tank for gaso-

line; and make sure spark plug wire is attach,

ed.

2. Push lever forward to "HIGH" position (See

Fig. 12).

3. When starting a cold engine, push the primer

five (5) times before pulling starter rope_ Use

firm pushes when pushing primer, wait several

seconds between each push (See Fig, 12)o

4, Repeat step 3 above as required_

!NGINE CONTROL KNOB •: ....... _L_

_ = "1 GASOLINE FILLER CAP

PRIMER

FIG 12

C%E ENGINE

CONTROL

Ergo :_E

CONTROL

1O ENGAGE DRIVE CONT Ol

FIG 13

ENGINE

CONTROL

RELEASED

ENGINE STOP

FIG 14

CONTROL

DEPRESSED

START, RUN

FIG,15

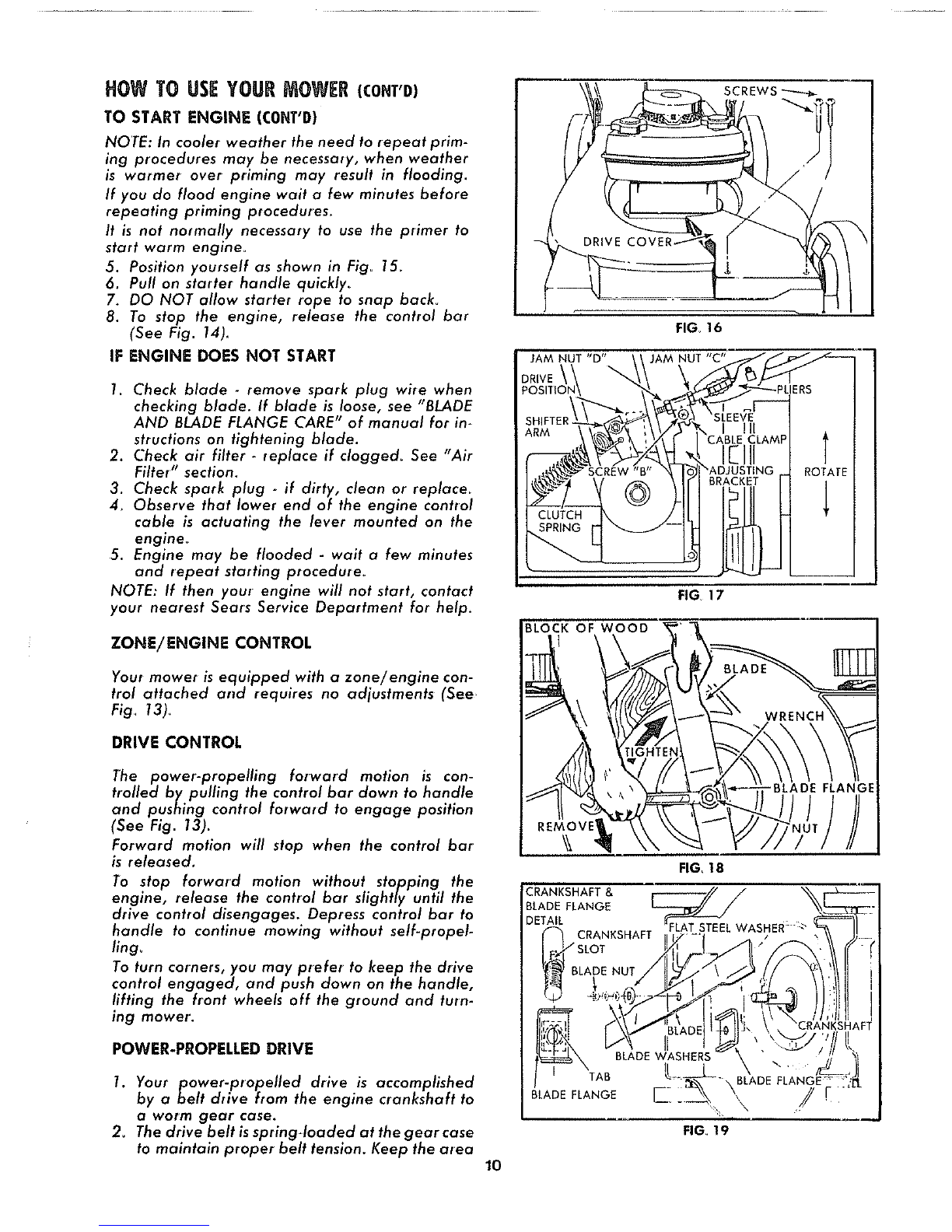

HOW1'0 USEYOURMOWER(CONT'O)

TO START ENGINE (CONT'D)

NOTE: In cooler weather the need to repeat prim_

ing procedures may be necessary, when weather

is warmer over priming may result in flooding.

If you do flood engine wait a few minutes before

repeating priming procedures_

It is not normally necessary to use the primer to

start warm engine°

5. Position yourself as shown in Fig_ 15_

6. Pull on starter handle quickly°

7_ DO NOT allow starter rope to snap back°

8. To stop the engine, release the control bar

(See Fig. 14).

IF ENGINE DOES NOT START

1. Check blade -remove spark plug wire when

checking blade. If blade is loose, see "BLADE

AND BLADE FLANGE CARE" of manual for in*

structions on tightening blade.

2. Check air filter -replace if clogged_ See "Air

Filter" section.

3_ Check spark plug -if dirty, clean or replace_

4_ Observe that lower end of the engine control

cable is actuating the lever mounted on the

engineL

5. Engine may be flooded -wait a few minutes

and repeat starting procedure.

NOTE: If then your engine will not start, contact

your nearest Sears Service Department for' help.

ZONE/ENGINE CONTROL

Your mower is equipped with a zone/engine con-

trol attached arrd requires no adjustments (See

Fig_ 13).

DRIVE CONTROL

The power-propelling forward motion is con-

trolled by pulling the control bar down to handle

and pushing control forward to engage position

(See Fig. 13).

Forward motion will stop when the control bar

is released.

To stop forward motion without stopping the

engine, release the control bar slightly until the

drive control disengages. Depress control bar to

handle to continue mowing without self-propel-

ling.

To turn corners, you may prefer to keep the drive

control engaged, and push down on the handle,

lifting the front wheels off the ground and turin

ing mower'.

POWER-PROPELLED DRIVE

1. Your power-propelled drive is accomplished

by abelt drive from the engine crankshaft to

a worm gear case.

2_ The drive belt isspring-loaded at the gear case

to maintain proper belt tension. Keep the area

SCREWS

FIG_ 16

JAM NUT"D" JAM NUT"C"

FIG 17

BLOCK OF WOOD

FIG_ 18

FIG 19

Tabla de contenidos

Otros manuales de Cortacésped de Craftsman

Craftsman

Craftsman 917.376390 Manual de usuario

Craftsman

Craftsman ZTS 7500 Manual de usuario

Craftsman

Craftsman 917.376483 Manual de usuario

Craftsman

Craftsman 917.271555 Manual de usuario

Craftsman

Craftsman 917.272066 Manual de usuario

Craftsman

Craftsman 917.286460 Manual de usuario

Craftsman

Craftsman EZ3 917.377282 Manual de usuario

Craftsman

Craftsman EZ3 917.270912 Manual de usuario

Craftsman

Craftsman Rotary Lawn Mower 917.379120 Manual de usuario

Craftsman

Craftsman 917.272463 Manual de usuario

Craftsman

Craftsman EZ3 917.256543 Manual de usuario

Craftsman

Craftsman 917.28607 Manual de usuario

Craftsman

Craftsman 917.374951 Manual de usuario

Craftsman

Craftsman 917.389270 Manual de usuario

Craftsman

Craftsman 917.388954 Manual de usuario

Craftsman

Craftsman 917.376781 Manual de usuario

Craftsman

Craftsman 3One 917.384150 Manual de usuario

Craftsman

Craftsman 917.388127 Manual de usuario

Craftsman

Craftsman 917.377521 Manual de usuario

Craftsman

Craftsman 917.377961 Manual de usuario

Craftsman

Craftsman 917.379431 Manual de usuario

Craftsman

Craftsman 27709 Manual de usuario

Craftsman

Craftsman 917.376062 Manual de usuario

Craftsman

Craftsman 917.272160 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario

Stihl

Stihl RMA 443 PV Manual de usuario
