Owner's Manual

i(RRFTSMRNq

Permanently Lubricated

Single Stage

Portable

AIR COMPRESSOR

Model No.

919.165570

•Safety Guidelines

•Assembly

•Operation

•Maintenance

•Service and Adjustments

•Troubleshooting

•Repair Parts

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

A00844 Rev. 0 12/07/03

WARRANTY ................................................ 2

SPECIFICATION CHART ..................................... 3

SAFETY GUIDELINES ...................................... 3-8

GLOSSARY ................................................ 9

ACCESSORIES ............................................. 9

DUTY CYCLE .............................................. 9

ASSEMBLY ............................................... 10

INSTALLATION .......................................... 11-12

OPERATION ............................................ 13-15

MAINTENANCE ......................................... 16-17

SERVICE AND ADJUSTMENTS ............................ 18-19

STORAGE ................................................ 20

TROUBLESHOOTING GUIDE .............................. 21-23

REPAIR PARTS ......................................... 24-27

ESPAI_IOL .............................................. 28-49

NOTES/NOTAS ............................................ 50

REPAIR PROTECTION AGREEMENTS ......................... 51

HOW TO ORDER REPAIR PARTS ...................... back cover

ltl__1;| ;[_I_ hi"

FULL ONE YEAR WARRANTY AIR COMPRESSOR

If this CRAFTSMAN Air Compressor fails due to a defect in material or

workmanship within one year from the date of purchase, Sears will at its

option repair or replace it free of charge. Contact your nearest Sears Service

Center (1-800-4-MY-HOME ®)to arrange for repair, or return the Air

Compressor to the place of purchase for replacement.

If this Air Compressor is used for commercial or rental purposes, this warrant

applies for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

A00844 2* ENG

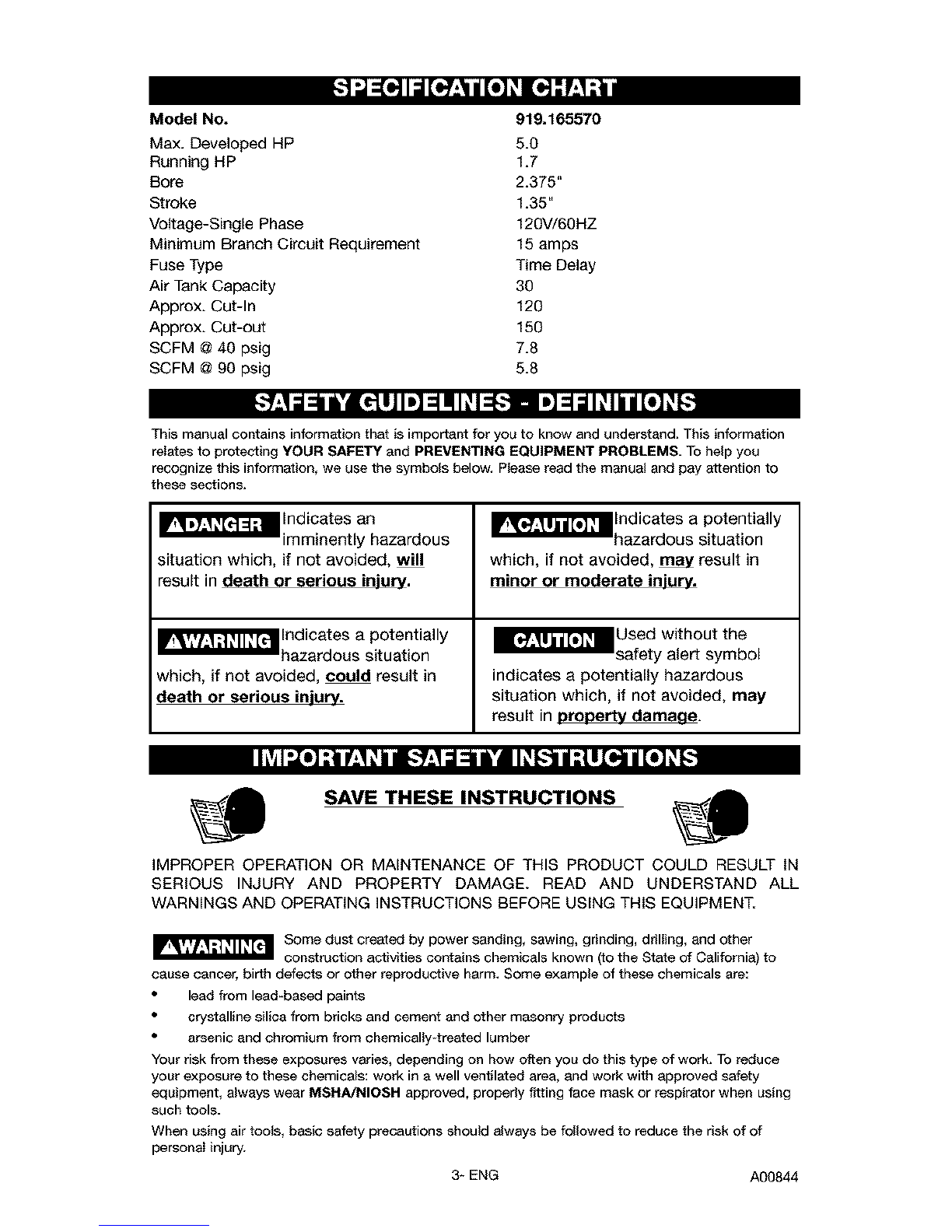

Model No. 919.165570

Max. Developed HP 5.0

Running HP 1.7

Bore 2.375"

Stroke 1.35"

Voltage-Single Phase 120V/60HZ

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity 30

Approx. Cut-In 120

Approx. Cut-out 150

SCFM @40 psig 7.8

SCFM @ 90 psig 5.8

[.'-Yzl=_ li'l_l] Im]=1III#I=[_'].,Im]=1=I#lil II[o_]_:]

This manual contains information that iS important for you to know and understand. This information

relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you

recognize this information_ we use the symbols below. Please read the manual and pay attention to

these sections.

_ Indicates an

imminently hazardous

situation which, if not avoided, will

result in death or serious in iury.

_'f_'_'_lndicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

_l_'T_lndicates a potentially

hazardous situation

which, if not avoided, _ result in

minor or moderate injury.

_Used without the

safety alert symbol

indicates a potentially hazardous

situation which, if not avoided, may

result in orooertv damaae.

Ih_l_o]-'tpL+_+hnlb"Y.'_l_*'4 _[IP.[-:-]ljt,ttl_o,]njl[o_]P.[-.+

SAVE THESE INSTRUCTIONS

IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN

SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL

WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

Some dust created by power sanding, sawing, grinding, drilling, and other

construction activities contains chemicals known (to the State of California) to

cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:

lead from leed-based paints

crystalline silica from bricks and cement and other masonry products

arsenic and chromium from chemicalty4reated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well ventilated area, and work with approved safety

equipment, always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using

such tools.

When using air tools, basic safety precautions should always be followed to reduce the risk of of

personal injury.

3- ENG A00844

I1_I_o];]lL"_ +Ill [,,'9'-'I_1_ i'dl I+F,,,_11_o _+]L_,[,,I

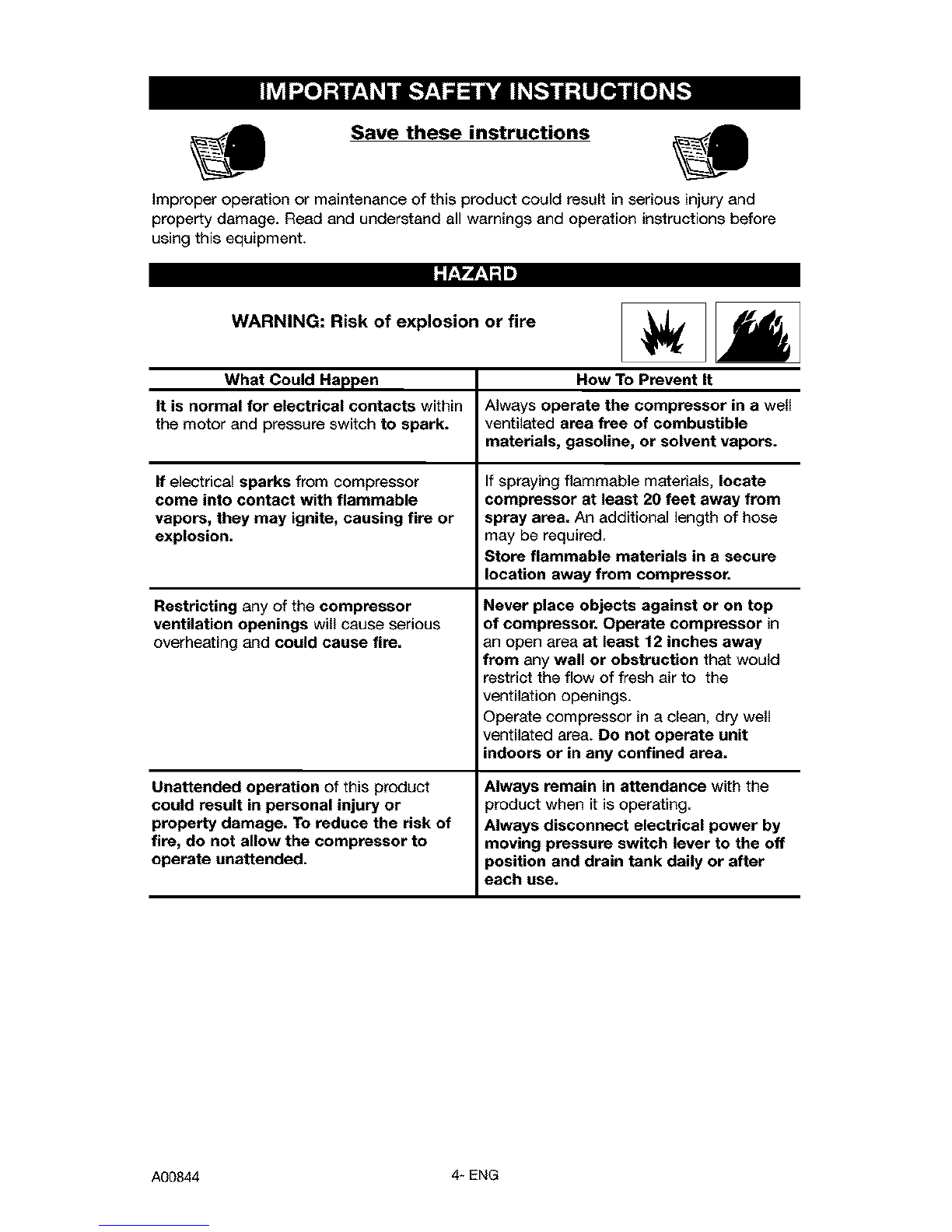

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

,I;1"1.,I;I n

WARNING: Risk of explosion or fire

What Could Happen

tt is normal for electrical contacts within

the motor and pressure switch to spark.

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the dsk of

fire, do not allow the compressor to

operate unattended.

How To Prevent It

Always operate the compressor in a wall

ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. De not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

A00844 4* ENG

WARNING: Risk of Bursting

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

What Could Happen

Failure to properly drain

condensed water from tank,

causing rust and thinning of the

steel tank.

How To Prevent It

Drain tank daily or after each use. If

tank develops a leak, replace it

immediately with a new tank or replace

the entire compressor,

Modifications or attempted repairs

to the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control

tank pressure.

Excessive vibration can weaken

the air tank and cause rupture or

explosion

Never drill into, weld, or make any

modifications to the tank or its

attachments.

4. The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

cart cause them to explode or fly apart,

and could result in serious injury.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor to

inflate small low pressure objects such

as children's toys, footballs,

basketballs, etc.

,I;1"1'.I;1=

WARNING: Risk from Flying Objects

WHAT CAN HAPPEN HOWTO PREVENT IT

The compressed air stream can cause

soft tissue damage to exposed skin and

can propel dirt, chips, loose particles,

and small objects at high speed,

resulting in property damage or personal

injury.

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

compressor,

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

5* ENG A00844

WARNING: Risk of Electrical Shock

WHAT CAN HAPPEN

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used properly

it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury or

death by electrocution,

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

HOW TO PREVENT IT

Never operate the compressor outdoors

when it is raining or in wet conditions,

Never operate compressor with

protective covers removed or damaged,

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection,

,I;1"1'.I;1=

WARNING: Risk to Breathing

WHAT CAN HAPPEN

The compressed air directly from your

compressor is not safe for breathing

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful vapors

and poisons.

HOW TO PREVENT IT

Air obtained directly from the compressor

should never be used to supply air for

human consumption, In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials you

are spraying, Use a NtOSH/MSHA

approved respirator designed for use

with your specific application.

A00844 6* ENG

WARNING: RISK OF BURNS

WHAT CAN HAPPEN

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns,

HOW TO PREVENT IT

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

,I;1"1'.I;1=

WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN

Moving parts such as the pulley, flywheel,

and belt can cause serious injury if they

corn into contact with you or your

clothing.

Attempting to operate compressor with

damaged or missing parts or attempting

to repair compressor with protective

shrouds removed can expose you to

moving parts and can result in serious

injury,

HOW TO PREVENT IT

Never operate the compressor with

guards or covers which are damaged or

removed.

Any repairs required on this product

should be performed by authorized

service center personnel.

,I;1"1'.I;1=

WARNING: RISK OF FALLING

WHAT CAN HAPPEN

Aportable compressor can fall from a table,

workbench or roof causing damage to the

compressor and could result in serious

injury or death to the operator.

HOW TO PREVENT IT

Always operate compressor in a stable secure

position to prevent accidental movement of the

unit. Never operate compressor on a roof or

other elevated position. Use additional air

hose to reach high locations.

,I;1"1'.I;1=

WARNING: RISK OF SERIOUS INJURY OR PROPERTY

DAMAGE WHEN TRANSPORTING COMPRESSOR

(Fire, Inhalation, Damage to Vehicle Surfaces)

WHAT CAN HAPPEN

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result. Oil leaks will damage

carpet, paint or other surfaces in vehicles

or trailers.

HOW TO PREVENT IT

Always place compressor on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove compressor from vehicle

immediately upon arrival at your

destination.

7÷ ENG A00844

WARNING: RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

HOW TO PREVENT IT

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor_

Keep operating area clear of all persons,

_ets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

_roduct.

Equip area of operation with a fire

extinguisher.

DO not operate machine with missing,

broken, or unauthorized parts.

A00844 8* ENG

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; aunit of measure of air

delivery.

PSlG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor is

off, air tank pressure drops as you

continue to use your accessory.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure at

which the motor automatically

restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts off, protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

=In Line Filter

•Tire Air Chuck

• Quick Connector Sets (various

sizes)

• Air Pressure Regulators

• Oil Fog Lubricators

• Air Hose: 1/4", 3/8" or 1/2" I.D. in

various lengths

Refer to the selection chart located

on the unit to select the tools this unit

is capable of powering.

ml_Tujnj_[e,_ q=1

This air compressor pump is capable

of running continuously. However, to

prolong the life of your air

compressor, it is recommended that a

50%-75% average duty cycle be

maintained; that is, the air

compressor pump should not run

more than 30-45 minutes in any given

hour.

9- ENG A00844

Contents of Carton

1 - Air Compressor

2- Wheels

2 - Shoulder Bolts, 3/8

2- Hex Nuts, 3/8

2- Rubber Bumpers

2 - Screws, 1/4-20 x .75"

Tools Required for Assembly

1 - 9/16" socket or open end wrench

1 - 1/2" socket or open end wrench

Unpacking

1. Remove all packaging leaving

the air compressor on the pallet.

2. Remove and discard the (4)

screws holding the air

compressor to the pallet.

Assemble Wheels

It will be necessary

to brace or support

one side of the air compressor

when installing the wheels because

the compressor will have a

tendency to tip.

1. Attach wheels with shoulder

bolts and nuts as shown.

Rubber

Feet

Nut

Wheel Shoulder

Bolt

It may be

_[_=_|h /[o]_1 necessary to brace

or support one side of the air

compressor when removing the

pallet because the air compressor

will have a tendency to tip.

3. Carefully remove the air

compressor from the pallet.

2. Tighten securely. NOTE: The air

compressor will sit level if the

wheels are properly installed.

The wheels and

handle do not

provide adequate clearance,

stability or support for pulling the

unit up and down stairs or steps.

The unit must be lifted, or pushed

up a ramp.

Assemble Rubber Feet

1. Attach rubber feet with the

screws provided as shown in

previous figure.

2. Tighten securely.

A00844 10_ ENG

Tabla de contenidos

Idiomas:

Otros manuales de Compresor de aire de Craftsman

Craftsman

Craftsman 919.167362 Manual de usuario

Craftsman

Craftsman 919.167812 Manual de usuario

Craftsman

Craftsman 16953 Manual de usuario

Craftsman

Craftsman 919.152142 Manual de usuario

Craftsman

Craftsman 919.167802 Manual de usuario

Craftsman

Craftsman 919.165190 Manual de usuario

Craftsman

Craftsman 921.169130 Manual de usuario

Craftsman

Craftsman 919.153090 Manual de usuario

Craftsman

Craftsman 919.727321 Manual de usuario

Craftsman

Craftsman 921.16472 Manual de usuario

Craftsman

Craftsman 16636 - 5 Gal. Air Compressor Manual de usuario

Craftsman

Craftsman 919.165511 Manual de usuario

Craftsman

Craftsman 919.195412 Manual de usuario

Craftsman

Craftsman 919.167700 Manual de usuario

Craftsman

Craftsman 919.184160 Manual de usuario

Craftsman

Craftsman 919.724123 Manual de usuario

Craftsman

Craftsman 919.167362 Manual de usuario

Craftsman

Craftsman 919.724500 Manual de usuario

Craftsman

Craftsman 919.195410 Manual de usuario

Craftsman

Craftsman 919.727130 Manual de usuario

Craftsman

Craftsman 919.724571 Manual de usuario

Craftsman

Craftsman 919.167243 Manual de usuario

Craftsman

Craftsman 921.16476 Manual de usuario

Craftsman

Craftsman Craftsman 919.153011 Manual de usuario

Manuales populares de Compresor de aire de otras marcas

Sparmax

Sparmax DC-25XR Manual de usuario

KAESER

KAESER M122 Manual de usuario

GMC

GMC GAC1500 Manual de usuario

Briggs & Stratton

Briggs & Stratton Air Compressor Manual de usuario

Fini

Fini F3GST2TK Manual de usuario

Industrial Air

Industrial Air CP1580325 Manual de programación

Campbell Hausfeld

Campbell Hausfeld RP3300 Guía de inicio rápido

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manual de usuario

Hitachi

Hitachi EC99S Manual del operador

Parkside

Parkside PKO 270 A1 Manual de usuario

Sullair

Sullair 185 Manual de usuario

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manual de usuario

Ferm

Ferm CRM1046 Manual de usuario

BE AC153 Manual de usuario

RIDGID

RIDGID OF25150A Manual de usuario

Johnson Controls

Johnson Controls QUANTUM LX Manual

Sears

Sears Craftsman 919.167463 Manual de usuario

Ring Automotive

Ring Automotive RAC700 Manual de usuario
