Owner's Manual

I CRRFTSMRN°I

Permanently Lubricated

Single Stage

Portable

AiR COMPRESSOR

• Safety Guidelines

• Assembly

•Operation

• Maintenance

• Service and Adjustments

• Troubleshooting

•Repair Parts

CAUTION" Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

D26015 Rev. 3 8/19/02

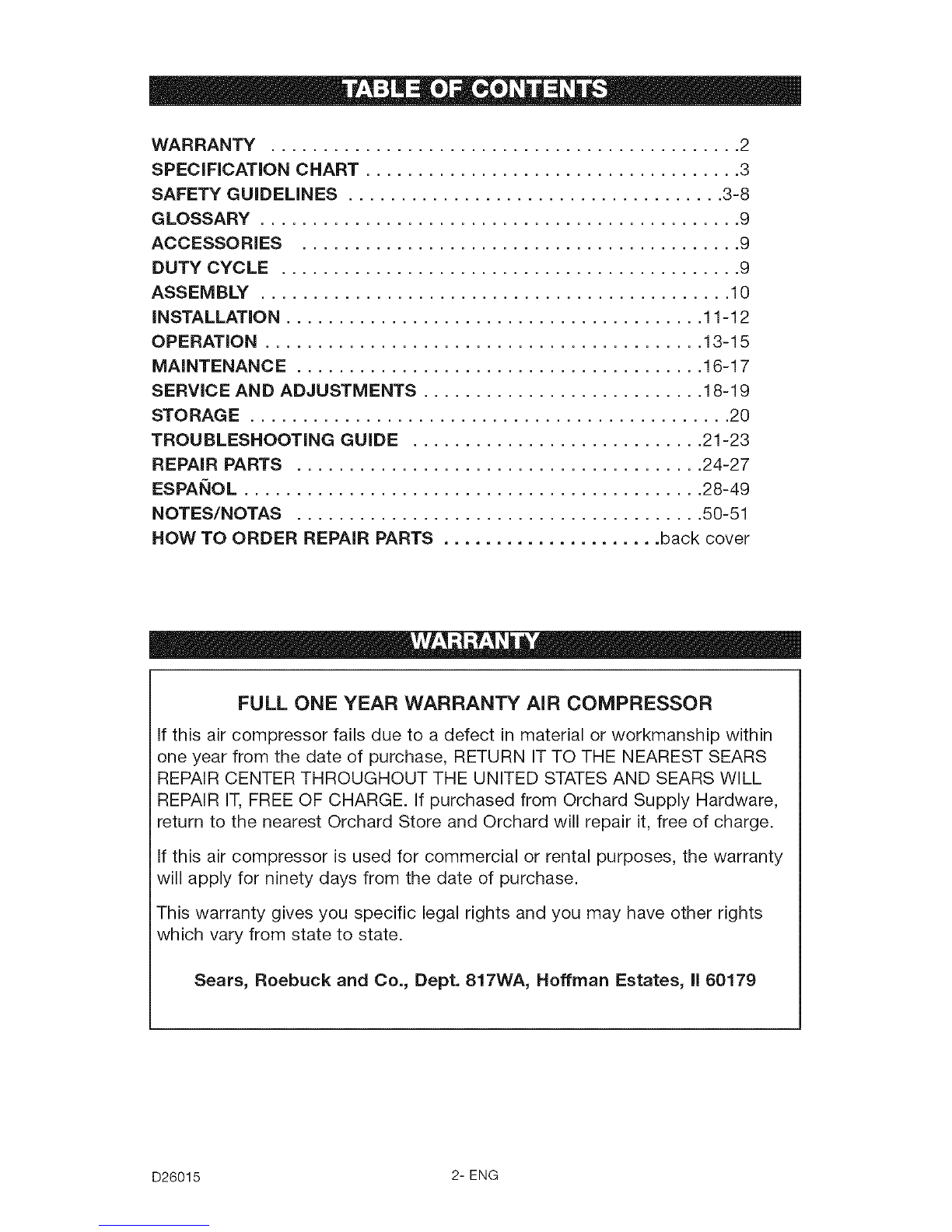

WAR RANTY ............................................. 2

SPECiFiCATiON CHART .................................... 3

SAFETY GUiDELiNES .................................... 3-8

GLOSSARY .............................................. 9

ACCESSORIES .......................................... 9

DUTY CYCLE ............................................ 9

ASSEMBLY ............................................. 10

iNSTALLATiON ........................................ 11-12

OPERATION .......................................... 13-15

MAINTENANCE ....................................... 16-17

SERVICE AND ADJUSTMENTS ........................... 18-19

STORAGE .............................................. 20

TROUBLESHOOTING GUIDE ............................ 21-23

REPAIR PARTS ....................................... 24-27

ESPA_IOL ............................................ 28-49

NOTES/NOTAS ....................................... 50-51

HOW TO ORDER REPAIR PARTS ..................... back cover

FULL ONE YEAR WARRANTY AIR COMPRESSOR

If this air compressor fails due to a defect in material or workmanship within

one year from the date of purchase, RETURN IT TO THE NEAREST SEARS

REPAIR CENTER THROUGHOUT THE UNITED STATES AND SEARS WILL

REPAIR IT, FREE OF CHARGE. If purchased from Orchard Supply Hardware,

return to the nearest Orchard Store and Orchard will repair it, free of charge.

If this air compressor is used for commercial or rental purposes, the warranty

will apply for ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffrnan Estates, II 60179

D26015 2- ENG

Model No. 919=165510

Max. Developed HP 6

Bore 2.375"

Stroke 1.35"

Voltage-Single Phase 120V/60HZ/1 PH

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity 30

Approx. Cut-In 120

Approx. Cut-out 150

SCFM @ 40 psig 8.6

SCFM @ 90 psig 6.4

This manual contains information that is important for you to know and understand. This information

relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you

recognize this information, we use the symbols below. Please read the manual and pay attention to

these sections.

lndicates an

imminently hazardous

situation which, if not avoided, wil_

result in death or serious in'_.

_lndicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious in_

lndicates a potentially

hazardous situation

which, if not avoided, _ result in

minor or moderate injuJ3&

_Used without the

safety alert symbol

indicates a potentially hazardous

situation which, if not avoided, may

result in p__perty damagA.

QSAVE THESE iNSTRUCTiONS _Q

IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN

SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL

WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

Some dust created by power sanding, sawing, grinding, drilling, and other

construction activities contains chemicals known (to the State of California) to

cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:

e lead from lead-based paints

e crystalline silica from bricks and cement and other masonry products

e arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well ventilated area, and work with approved safety

equipment, always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using

such tools.

When using air tools, basic safety precautions should always be followed to reduce the risk of of

personal injury.

3- ENG D26015

_t Save these instructions _O

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

What Could Happen

it is normal for electrical contacts within

the motor and pressure switch to spark.

WARNING: Risk of explosion or fire

How To Prevent it

Always operate the compressor in a well

ventilated area free of combustible

materials, gasoline, or solvent vapors.

if electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk of

fire, do not allow the compressor to

operate unattended.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

D26015 4- ENG

WARNING: Risk of Bursting I_1

Air Tank: The following conditions could lead to a weakening of the tank, and result

in aviolent tank explosion and could cause property damage or serious injury.

What Could Happen

Failure to properly drain

condensed water from tank,

causing rust and thinning of the

steel tank.

2. Modifications or attempted repairs

to the tank.

3. Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control

tank pressure.

4. Excessive vibration can weaken

the air tank and cause rupture or

explosion

ATTACHMENTS &ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent it

Drain tank daily or after each use. If

tank develops a leak, replace it

immediately with a new tank or replace

the entire compressor.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor to

inflate smaU low pressure objects such

as children's toys, footballs,

basketballs, etc.

WARNING: Risk from Flying Objects _>_

WHAT CAN HAPPEN HOW TO PREVENT iT

The compressed air stream can cause

soft tissue damage to exposed skin and

can propel dirt, chips, loose particles,

and small objects at high speed,

resulting in property damage or personal

injury.

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

5- ENG D26015

WARNING: Risk of Electrical Shock

WHAT CAN HAPPEN HOW TO PREVENT iT

Your air compressor is powered by Never operate the compressor outdoors

electricity. Like any other electrically when it is raining or in wet conditions.

powered device, if it is not used properly Never operate compressor with

it may cause electric shock, protective covers removed or damaged.

Repairs attempted by unqualified

personnel can result in serious injury or

death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

WARNING: Risk to Breathing

WHAT CAN HAPPEN HOW TO PREVENT iT

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful vapors

and poisons.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

Work in an area with good cross

ventilation. Read and foUow the safety

instructions provided on the label or

safety data sheets for the materials you

are spraying. Use a NIOSH/MSHA

approved respirator designed for use

with your specific application.

D26015 6- ENG

WARNING: RISK OF BURNS I ,_.,_ I

WHAT CAN HAPPEN HOW TO PREVENT iT

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: RiSK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT iT

Moving parts such as the pulley, flywheel, Never operate the compressor with

and belt can cause serious injury if they guards or covers which are damaged or

com into contact with you or your removed.

clothing.

Attempting to operate compressor with Any repairs required on this product

damaged or missing parts or attempting should be performed by authorized

to repair compressor with protective service center personnel.

shrouds removed can expose you to

moving parts and can result in serious

injury.

WARNING: RiSK OF FALLING

WHAT CAN HAPPEN HOW TO PREVENT IT

A portable compressor can falmfrom a table, Always operate compressor in a stabme secure

workbench or roof causing damage to the position to prevent accidental movement of the

compressor and coumd result in serious unit. Never operate compressor on a roof or

injury or death to the operator, other elevated position, Use additional air

hose to reach high mocations.

WARNING: RiSK OF SERIOUS iNJURY OR PROPERTY

DAMAGE WHEN TRANSPORTING COMPRESSOR

(Fire, Inhalation, Damage to Vehicle Surfaces)

WHAT CAN HAPPEN

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result. Oil leaks will damage

carpet, paint or other surfaces in vehicles

or trailers.

HOW TO PREVENT IT

Always place compressor on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove compressor from vehicle

immediately upon arrival at your

destination.

7- ENG D26015

WARNING: RiSK OF UNSAFE OPERATION [_,[

WHAT CAN HAPPEN HOW TO PREVENT IT

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at a[[ times.

Never defeat the safety features of this

product.

Equip area of operation with afire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

D26015 8- ENG

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSIG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-in Pressure: While the motor is

off, air tank pressure drops as you

continue to use your accessory.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure at

which the motor automatically

restarts is called "cut-in" pressure.

Cut=Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts off, protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

This unit is capable of powering the following Accessories. The accessories are

available through the current Power and Hand Tool Catalog or full-line Sears

stores.

Accessories

• In Line Filter

Tire Air Chuck

Quick Connector Sets (various

sizes)

Air Pressure Regulators

• Oil Fog Lubricators

• Air Hose: 1/4", 3/8" or 1/2" I.D. in

various lengths

Refer to the selection chart located

on the unit to select the tools this unit

is capable of powering.

Air compressors should be operated

on not more than a 50% duty cycle.

This means an air compressor that

pumps air more than 50% of one

hour is considered misuse, because

the air compressor is undersized for

the required air demand. Maximum

compressor pumping time per hour is

30 minutes.

9- ENG D26015

Contents of Carton

1 - Air Compressor

2- Wheels

1 - Hose Wrap

2 - Self Tapping Screws,

1/4-20 x 1.25

2 - Shoulder Bolts, 3/8-16 x 3.40

2 - Hex Nuts, 3/8-16

2 - Rubber Bumpers

2 - Screws, 1/4-20 x .75

Tools Required for Assembly

1 - 9/16" socket or open end wrench

1 - 1/2" socket or open end wrench

1 - 3/8" socket or standard

screwdriver

Unpacking

1. Remove all packaging leaving

the air compressor on the pallet.

2. Remove and discard the (4)

screws holding the air

compressor to the pallet.

it may be

necessary to brace

or support one side of the air

compressor when removing the

pallet because the air compressor

will have atendency to tip.

3. Carefully remove the air

compressor from the pallet.

Assemble Hose Wrap

1. Line up two bolt holes in saddle

with holes in hose wrap as

shown.

2. install the self tapping screws

through hose wrap and saddle.

3. Tighten securely. Be sure not to

over-tighten.

Hose

Wrap

DO NOT use hose

wrap as a handle to

push, pull, or lift air compressor.

Assemble Wheels

Rubber

, Screw

Nut Wheel Shoulder Bolt

it will be necessary

to brace or support

one side of the air compressor

when installing the wheels because

the compressor will have a

tendency to tip.

Attach wheels with shoulder

bolts and nuts as shown.

Tighten securely. NOTE: The air

compressor will sit level if the

wheels are properly installed.

The wheels and

handle do not

provide adequate clearance,

stability or support for pulling the

unit up and down stairs or steps.

The unit must be lifted, or pushed

up a ramp.

Assemble Rubber Feet

1. Attach rubber feet with the

screws provided as shown in

previous figure.

2. Tighten securely.

D26015 10- ENG

Tabla de contenidos

Idiomas:

Otros manuales de Compresor de aire de Craftsman

Craftsman

Craftsman 919.167210 Manual de usuario

Craftsman

Craftsman 919.727350 Manual de usuario

Craftsman

Craftsman 921.153620 Manual de usuario

Craftsman

Craftsman 921.166430 Manual de usuario

Craftsman

Craftsman 919.153090 Manual de usuario

Craftsman

Craftsman 919.165190 Manual de usuario

Craftsman

Craftsman 919.167320 Manual de usuario

Craftsman

Craftsman 919.167620 Manual de usuario

Craftsman

Craftsman 919.152390 Manual de usuario

Craftsman

Craftsman 919.167260 Manual de usuario

Craftsman

Craftsman 919.184160 Manual de usuario

Craftsman

Craftsman 919.165612 Manual de usuario

Craftsman

Craftsman 919.165380 Manual de usuario

Craftsman

Craftsman 919.152144 Manual de usuario

Craftsman

Craftsman 921.165720 Manual de usuario

Craftsman

Craftsman 218.10012 Manual de usuario

Craftsman

Craftsman 919.167220 Manual de usuario

Craftsman

Craftsman 919.165360 Manual de usuario

Craftsman

Craftsman 919.72413 Manual de usuario

Craftsman

Craftsman 919.7243 Manual de usuario

Craftsman

Craftsman 919.167551 Manual de usuario

Craftsman

Craftsman 919.165370 Manual de usuario

Craftsman

Craftsman 16781 - Professional 80 Gal. Vertical Air... Manual de usuario

Craftsman

Craftsman 919.72427 Manual de usuario

Manuales populares de Compresor de aire de otras marcas

Sparmax

Sparmax DC-25XR Manual de usuario

KAESER

KAESER M122 Manual de usuario

GMC

GMC GAC1500 Manual de usuario

Briggs & Stratton

Briggs & Stratton Air Compressor Manual de usuario

Fini

Fini F3GST2TK Manual de usuario

Industrial Air

Industrial Air CP1580325 Manual de programación

Campbell Hausfeld

Campbell Hausfeld RP3300 Guía de inicio rápido

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manual de usuario

Hitachi

Hitachi EC99S Manual del operador

Parkside

Parkside PKO 270 A1 Manual de usuario

Sullair

Sullair 185 Manual de usuario

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manual de usuario

Ferm

Ferm CRM1046 Manual de usuario

BE AC153 Manual de usuario

RIDGID

RIDGID OF25150A Manual de usuario

Johnson Controls

Johnson Controls QUANTUM LX Manual

Sears

Sears Craftsman 919.167463 Manual de usuario

Ring Automotive

Ring Automotive RAC700 Manual de usuario
