1.1 Safety Warnings
Your safety is important to us. Please read this information
before using your cooktop.
1.2 Installation
1.2.1 Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply
before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and
mandatory.
• Alterations to the domestic wiring system must only be
made by a qualified electrician.
• Failure to follow this advice may result in electrical shock
or death.
1.2.2 Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
1.2.3 Important safety instructions
• Read these instructions carefully before installing or using
this appliance.
• No combustible material or products should be placed on
this appliance at any time.
• Please make this information available to the person
responsible for installing the appliance as it could reduce
your installation costs.
• In order to avoid a hazard, this appliance must be installed
according to these instructions for installation.
• This appliance is to be properly installed and earthed only
by a suitably qualified person.
• This appliance should be connected to a circuit which
incorporates an isolating switch providing full
disconnection from the power supply.
• Failure to install the appliance correctly could invalidate
any warranty or liability claims.
1. Foreword
2
• This appliance is not intended for use by persons(including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
• Warning: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock, for hob surfaces
of glass-ceramic or similar material which protect live
parts.
• A steam cleaner is not to be used.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
• Do not use a steam cleaner to clean your cooktop.
• After use, switch off the hob element by its control and do
not rely on the pan detector.
• The appliance is not intended to be operated by means of
an external timer or separate remote-control system.
• Danger of fire: do not store items on the cooking surfaces.
CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
3
WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in a fire.
• WARNING: The appliance and its accessible parts become
hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
• WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a fire
blanket.
CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
Danger of fire: do not store items on the cooking surfaces.
• WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
1.3 Operation and maintenance
1.3.1 Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the
cooktop surface should break or crack, switch the
appliance off immediately at the mains power supply (wall
switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or
maintenance.
• Failure to follow this advice may result in electrical shock
or death.
1.3.2 Health Hazard
• This appliance complies with electromagnetic safety
standards.
• However, persons with cardiac pacemakers or other
electrical implants (such as insulin pumps) must consult
with their doctor or implant manufacturer before using this
appliance to make sure that their implants will not be
affected by the electromagnetic field.
• Failure to follow this advice may result in death.
4
1.3.3 Hot Surface Hazard
• During use, accessible parts of this appliance will become
hot enough to cause burns.
• Do not let your body, clothing or any item other than
suitable cookware contact the Induction glass until the
surface is cool.
• Keep children away.
• Handles of saucepans may be hot to touch. Check
saucepan handles do not overhang other cooking zones
that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and
scalds.
1.3.4 Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed
when the safety cover is retracted. Use with extreme care
and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.
1.3.5 Important safety instructions
• Never leave the appliance unattended when in use.
Boilover causes smoking and greasy spillovers that may
ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit
cards, memory cards) or electronic devices (e.g.
computers, MP3 players) near the appliance, as they may
be affected by its electromagnetic field.
• Never use your appliance for warming or heating the
room.
• After use, always turn off the cooking zones and the
cooktop as described in this manual (i.e. by using the
touch controls). Do not rely on the pan detection feature to
turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit,
stand, or climb on it.
• Do not store items of interest to children in cabinets above
the appliance. Children climbing on the cooktop could be
seriously injured.
5
• Do not leave children alone or unattended in the area
where the appliance is in use.
• Children or persons with a disability which limits their
ability to use the appliance should have a responsible and
competent person to instruct them in its use. The
instructor should be satisfied that they can use the
appliance without danger to themselves or their
surroundings.
• Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other
servicing should be done by a qualified technician.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across
the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning
agents to clean your cooktop, as these can scratch the
Induction glass.
• This appliance is intended to be used in household and
similar applications such as: -staff kitchen areas in shops,
offices and other working environments; -farm houses; -by
clients in hotels, motels and other residential type
environments; -bed and breakfast type environments.
• WARNING: The appliance and its accessible parts become
hot during use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
Congratulations on the purchase of your new Induction Hob.
We recommend that you spend some time to read this
Instruction / Installation Manual in order to fully understand
how to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep
this Instruction / Installation Manual for future reference.
6
2. Product Introduction

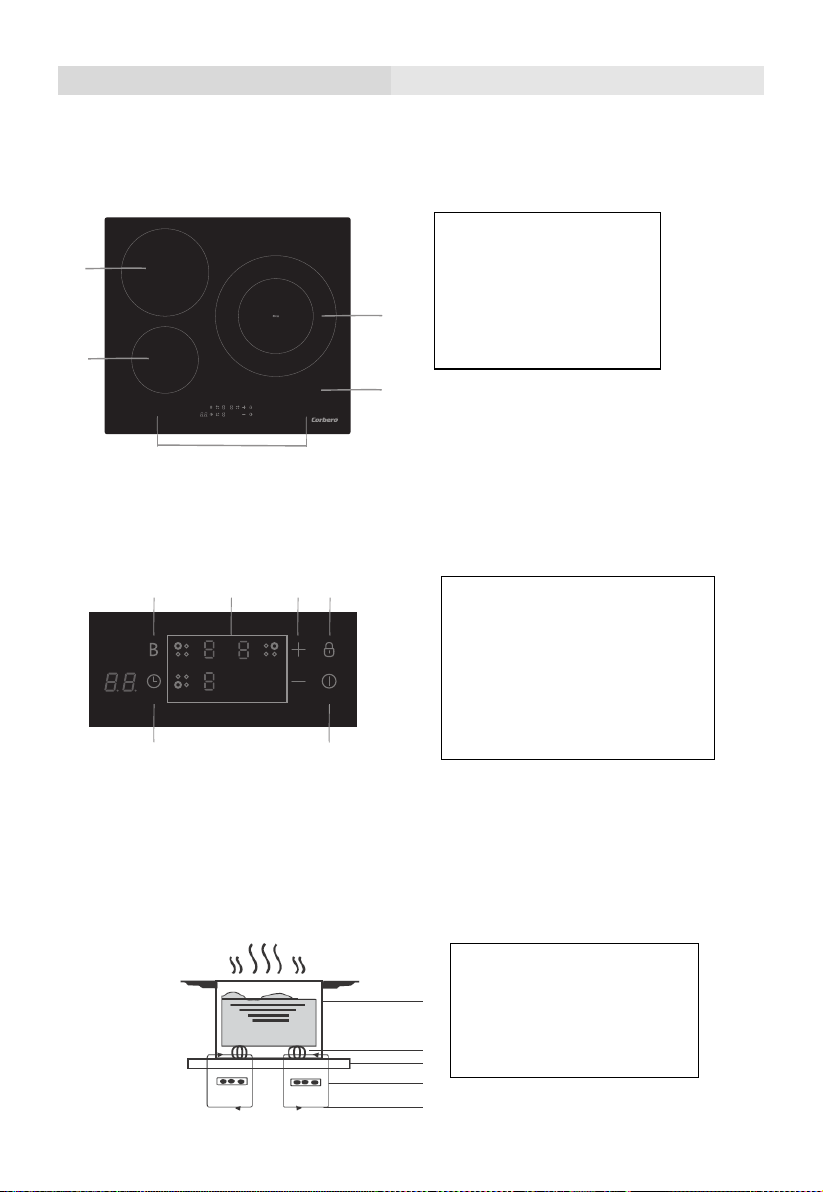

2.1 Top View
2.2 Control Panel
2.3 Working Theory
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by
electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating
the glass surface. The glass becomes hot only because the pan eventually warms it up.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
4. Glass plate
6. ON/OFF control
1. On/Off control
2. Timer control
3. Boost
4. Heating zone selection controls
5. Power / Timer regulating key
6. Keylock control
2
5
3
4
1
21
3 654
1. Max. 1300/1500 W zone
5. Control panel
2. Max. 2300/2600 W zone
3. Max. 2600/3000 W zone
7
2.4 Before using your New Induction Hob
Read this guide, taking special note of the ‘Safety Warnings’ section.
Remove any protective film that may still be on your Induction hob.
2.5 Technical Specification
Cooking Hob
Cooking Zones
3 Zones
Supply Voltage
220-240V~ 50Hz or 60Hz
Installed Electric Power
Product Size L×W×H(mm)
590X520X62
Building-in Dimensions A×B (mm)
560X490
Weight and Dimensions are approximate. Because we continually strive to improve our products we
may change specifications and designs without prior notice
3. Operation of Product
3.1 Touch Controls
The controls respond to touch, so you don’t need to apply any pressure.
Use the ball of your finger, not its tip.
You will hear a beep each time a touch is registered.
Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth)
covering them. Even a thin film of water may make the controls difficult to operate.
3.2 Choosing the right Cookware
•Only use cookware with a base suitable for induction cooking.
Look for the induction symbol on the packaging or on the bottom
of the pan.
•You can check whether your cookware is suitable by carrying out a magnet test.
Move a magnet towards the base of the pan. If it is attracted, the pan is suitable
for induction.
•If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
•Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper
without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
CCIM3FBS310
6600W
8
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the
cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a
slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be
less than expected. Pot less than 140 mm could be undetected by the hob. Always centre your pan on
the cooking zone.
Always lift pans off the Induction hob –do not slide, or they may scratch the glass.
3.3 How to use
3.3.1 Start cooking
Touch the ON/OFF control for three seconds. After power
on, the buzzer beeps once, all displays show “–” or “– –”,
indicating that the induction hob has entered the state of
standby mode.
Place a suitable pan on the cooking zone that you wish to
use.
•Make sure the bottom of the pan and the surface of the
cooking zone are clean and dry.
Touching the heating zone selection control ,and an
indicator next to the key will flash
9

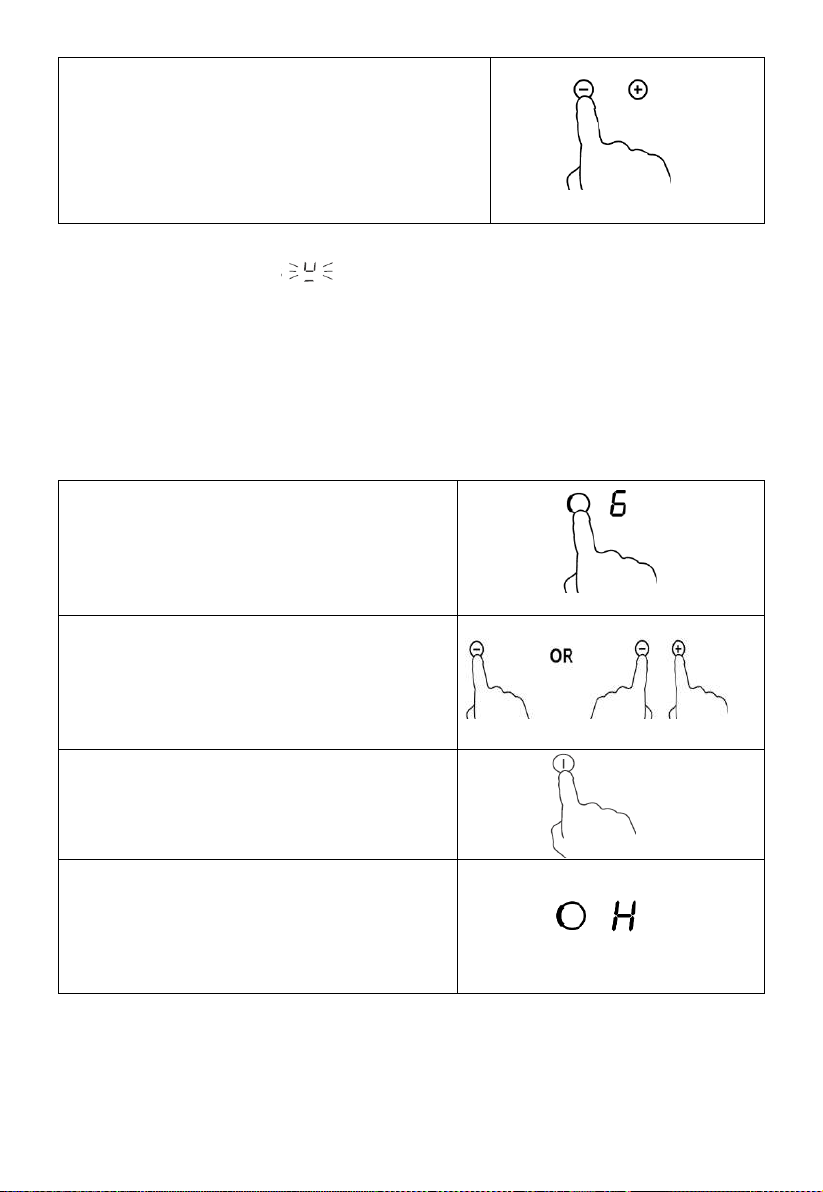

Select a heat setting by touching the “-”or “+” control.
•If you don’t choose a heat setting within 1 minute, the
Induction hob will automatically switch off. You will need to
start again at step 1.
•You can modify the heat setting at any time during
cooking.
If the display flashes alternately with the heat setting
This means that:
•you have not placed a pan on the correct cooking zone or,
•the pan you’re using is not suitable for induction cooking or,
•the pan is too small or not properly centered on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minute if no suitable pan is placed on it.
3.3.2 Finish cooking
Touching the heating zone selection control that you
wish to switch off
Turn the cooking zone off by scrolling down to “0” or
touching “-” and “+” control together. Make sure the
display shows “0”.
Turn the whole cooktop off by touching the ON/OFF
control.
Beware of hot surfaces
H will show which cooking zone is hot to touch. It
will disappear when the surface has cooled down to
a safe temperature. It can also be used as an energy
saving function if you want to heat further pans, use
the hotplate that is still hot.
10
Tabla de contenidos
Idiomas:
Otros manuales de Quemador de CORBERO
CORBERO
CORBERO CCV3HL60 Manual de usuario
CORBERO
CORBERO CCH429X Manual de usuario
CORBERO
CORBERO CCV V3 Manual de usuario
CORBERO
CORBERO CCV BR 6450 Manual de usuario
CORBERO
CORBERO CCV3IN60 Manual de usuario
CORBERO
CORBERO HSG-PF320SX-1 Guía
CORBERO
CORBERO KNG-PF320SGB Guía
CORBERO
CORBERO CPCGM 5F 5021 N Manual de usuario
CORBERO
CORBERO CCVV420 Manual de usuario
CORBERO
CORBERO KNG-PF320SGB-1 Guía
CORBERO
CORBERO CPCGM 4F 4021 N Manual de usuario
CORBERO
CORBERO CPCGM5F5021N Manual de usuario
CORBERO
CORBERO CCI BR 6004 Manual de usuario
CORBERO
CORBERO CPCG601X Manual de usuario
CORBERO
CORBERO CCVM301D Manual de usuario
CORBERO
CORBERO CCIM5F900FZ Manual de usuario
CORBERO
CORBERO CCHEV840MX Manual de usuario
CORBERO
CORBERO CCIM3FBS320 Manual de usuario
CORBERO
CORBERO CCVM400 Manual de usuario
CORBERO
CORBERO CCIG321 Manual de usuario
