VRT101

VR Storage Tub – holds 10 all-in-one headsets

Assembly Guide

VRT101_2019_A

Check out our other products online at

www.copernicused.com

Electrical

Component

Warranty

Year

Tub

Warranty

Year

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

Warning! Hazard Risks!

This product is to be used under the supervision of an adult.

Indoor Use

Only

This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture. The internal components are not sealed from the environment.

Read your power strip electrical specifications. Only plug in devices that are approved for use with this

power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another

power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in

for more than 72 consecutive hours. Turn off power strip before unplugging.

Power Strip

Specifications

Do not install or use the electrical components of this unit during a lightning storm.

Electrical Shock

In its unassembled state, this product contains parts that can be hazardous to small children. This

product should be assembled by an adult.

Small

Parts

Ensure that any cables extending across the floor to your product are properly bundled and marked to

avoid tripping or falling which may lead to personal injury.

Cable Trip

Hazard

Climb Hazard

Do not climb on, hang from or suspend objects from any components of your product unless otherwise

specified.

Read the electrical specifications of any electronic equipment you are using with your Copernicus

products. Failure to read these specifications and follow their instructions could result in damage to your

equipment or personal injury.

Electronic

Equipment

Adult

Supervision

Please read the warnings below for important safety information regarding your product. Failure to

read these warnings or to follow the instructions below could result in personal injury or damage to

your product that could void your warranty.

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

Axle

(31083)

Before beginning, you should have:

Additional tools required:

VR Storage Tub – holds 10 all-in-one headsets

VRT101

Adjustable wrench

2x OR 11mm or 7/16” wrench

2x +14mm or 9/16” wrench

Hardware

Actual Size

Contents - Box 1

In Box 1

Tub

Wheel

(410048)

Padlock

(430440)

Key

3/8” Flat Washer

(430197)

3/8” Lock Nut

(430122)

1/4-20 x 1/2” Hex Head Screw

(4302041)

1/4-20 Lock Nut

(430101)

Headset Insert

(23245)

Headset Insert Bottom

(23246)

10x

Cable Hook

(34091)

10 Port USB Hub

(255144)

Power Adapter

(255146)

Hook & Loop

Straps

(43321)

10x

Mounting Bracket

Power Cord

USB A - USB B Data Transfer Cable

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

This symbol denotes a 2-Person Task. For safety, please ensure that there are the

suggested number of people working on steps displaying this symbol.

Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close

attention. The symbol denotes a step needing extra attention to ensure it is done

correctly.

The star symbol highlights an advisory note.

Watch for These Helpful Symbols

Before You Begin

As You Assemble the Unit

Lay out and identify all of the included parts.

The hardware has been packed in bulk.

Read the assembly guide over once to familiarize yourself with them.

Please note that in its unassembled state, this product contains parts that can be

hazardous to small children. This product should be assembled by an adult.

Follow the steps in sequence.

Before beginning each step, find the part(s) that you need for that step.

Pay attention to the labels on the parts; they are there to help direct you at certain stages.

The title of each step states what you will be doing. Review the text and the pictures as you build

the unit.

2-Person Task

Tips for Assembly

Customer Service - FAQ’s

For missing parts and other issues regarding this product:

Please call Copernicus Customer Service, where we will be happy to help.

1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.

Email our Tech Support Service at [email protected]

Need Tech Support?

Have a Question?

Email our Tech Support Service

www.copernicused.com

Check out some of our

other great products!

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

Insert axle through holes in tub

12Fasten wheels onto axle

NOTE:

Fasten both wheels onto axle at the same time using

two wrenches to prevent axle from spinning.

Remove Foam Insert

Actual Size: You will need: (Not to Scale)

14mm or 9/16” wrench

Install Wheels onto Tub

3/8” Flat Washer

Actual Size: You will need: (Not to Scale)

2Tub

Axle

Wheel

3/8” Lock Nut

Adjustable wrench

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

Install Cable Hook onto Tub

Actual Size:

Cable Hook

You will need: (Not to Scale)

C1/4-20 x Lock Nut

D1/4-20 x 1/2” Hex Head Screw

Adjustable wrench

11mm or 7/16” wrench

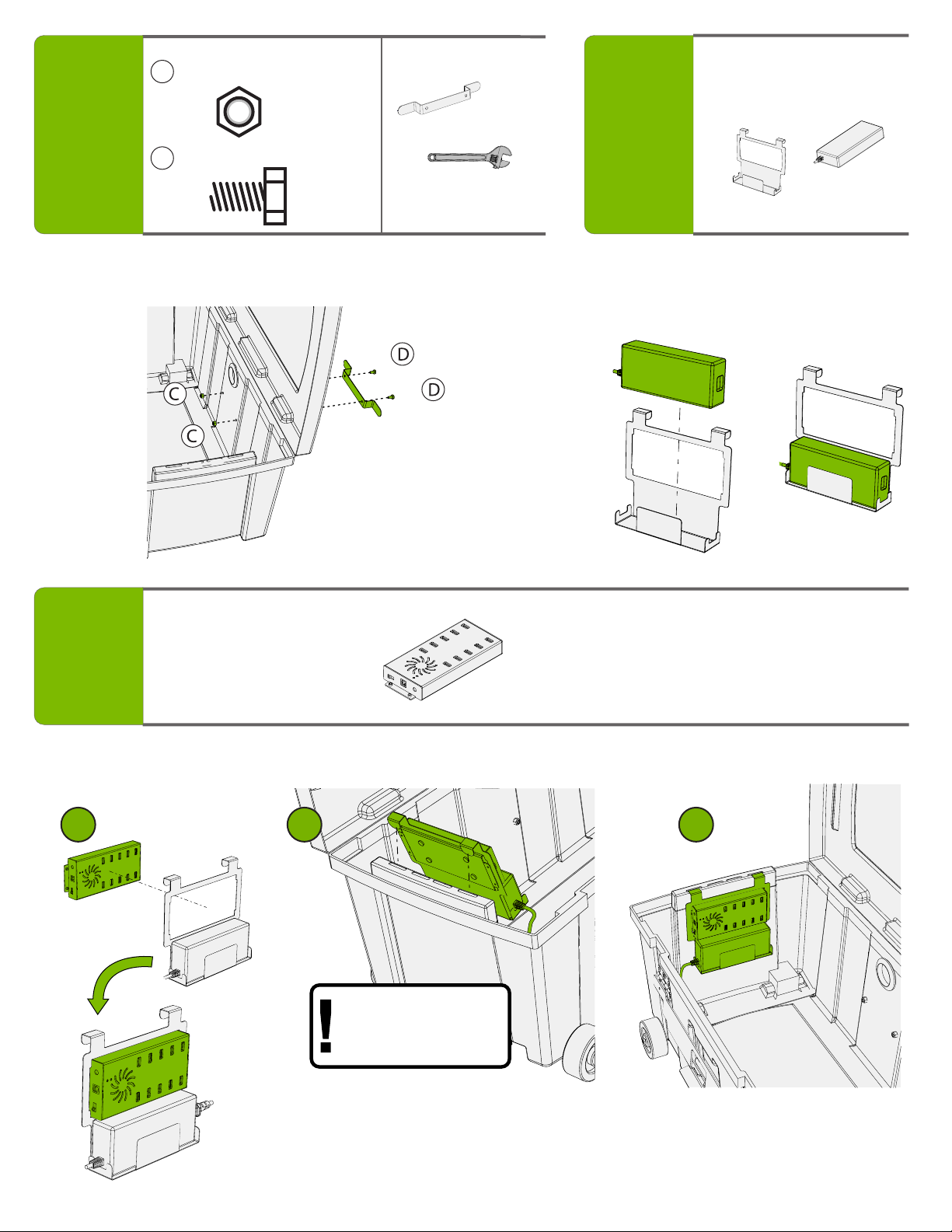

5You will need: (Not to Scale)

Insert USB Hub into Mounting Bracket and Attach to Tub Wall

10 Port USB Hub

USB hub MUST be

held in place when

installing bracket.

1 2

Power Adapter

Insert Power Adapter into

Mounting Bracket

4You will need: (Not to Scale)

Mounting

Bracket

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

Connect USB and Power Adapter Cables and Wrap Around Cable Hooks

Insert Foam Insert and Bottom Pieces

You will need: (Not to Scale)

Headset Insert Bottom

10x

Wrap power

cable around

cable hook.

2Connect

power cable

into power

adapter.

1Plug power adapter cable

into USB Hub

Power Cord

Headset Insert

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

Setup cables

Keep cables tidy by bundling

extra cable length with the

hook-loop straps provided.

Hook & Loop

Straps

10x

You will need: (Not to Scale)

1Insert first headset and plug

in charging cable.

2Insert second headset and plug

in charging cable.

3Repeat for remaining headsets

in row.

4Repeat for all remaining headsets.

USB A - USB B Data Transfer Cable

This data transfer cable is provided with the

USB Hub. It is used to synchronize some

devices.

Refer to your device’s setup guide to find out if

this cable is required by your device.

VRT101 - Version A - Released April 23, 2019 - Copernicus Educational Products Inc.

You will need: (Not to Scale)

Lock Robotics Storage Tub

Padlock

Key

Close and latch Tub Lid

Insert Padlock through Locking Plate and Tub and lock with Keys

2Swing Locking Plate up to cover latches
