COP-USA CD28IR-IP Manual de usuario
Wireless P2P Cellphone Camera
Chapter 1 Features
●P2P (peer to peer) technology, without annoying IP settings simply fill out the
ID number can be obtained surveillance video.
●Cellphone view allow you remote viewing from anywhere anytime
●Support iPhone、Android
●Wi-Fi compliant with wireless standards IEEE 802.11b/g;
●Suport Pan/Tilt control up and down,rotation, auto-cruise from different
angles (Pan:355°& Tilt:120°);
●Auto IR-LED illumination for night vision (up to 10 metres);
●Nice blue indicator light ;
●Two-way audio, New voice technology, support cellphone intercom（distance：
20-30m）;
●Two-dimensional code scanning functions.
Chapter 2 Installation
2.1
1) First: connect the camera with hub, switch or router by Cat.5 straight-through
cable or cross-over cable with standard RJ-45 interface.
2) Second: connect the camera with power supply by the adaptor supplied (DC5V,
2A).
Caution: Please ensure that the adaptor matches with the electricity (Input: AC 110V
or 220V, Output: 5V DC/2A).
2.2 Interface
Chapter 3 Access from Smartphone
3.1 Smartphone must have a data service（WIFI/GPRS/3G）
3.2 Install software on your Smartphone
Android：Acquire software from CD.

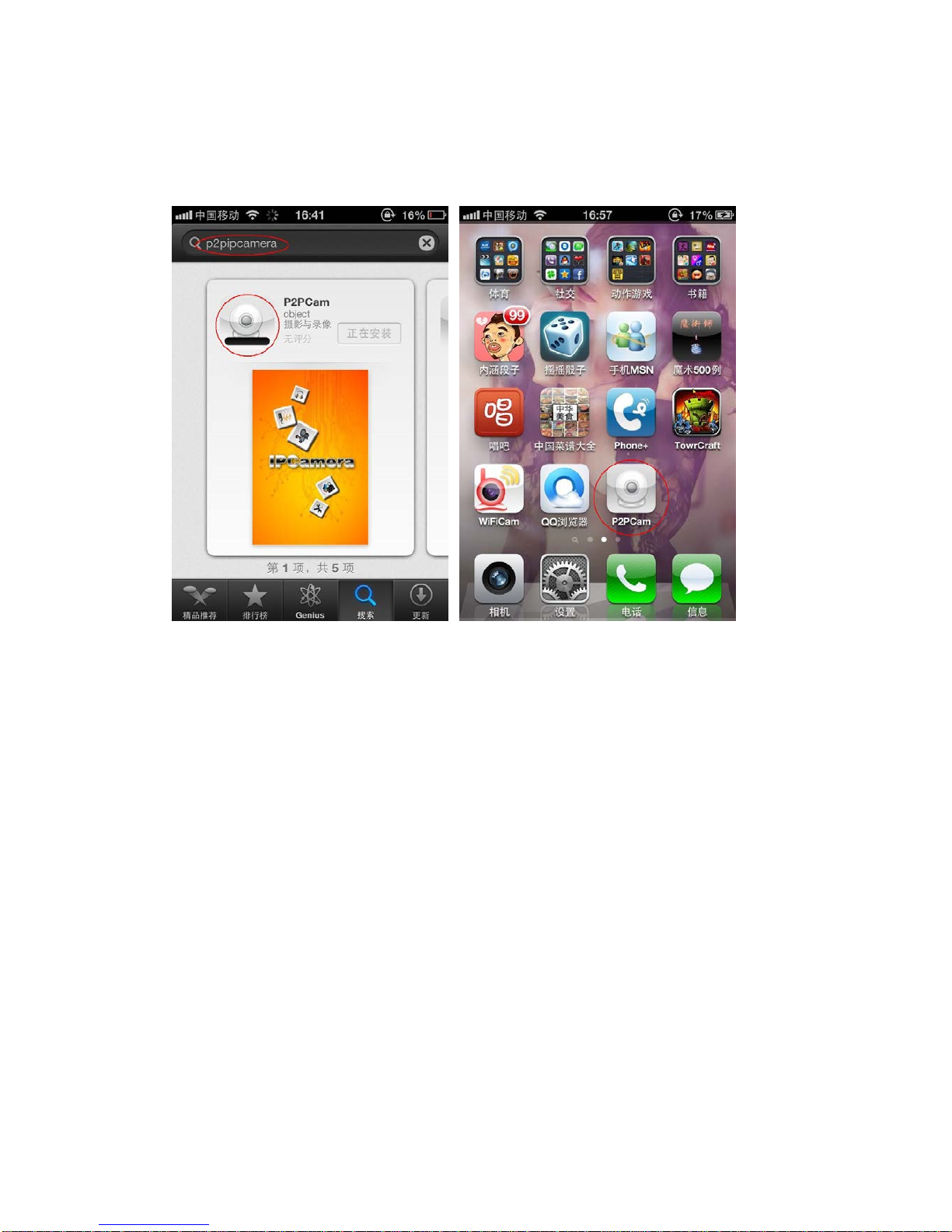

Iphone：Acquire “P2Pipcamera” from App Store.
3.3Add Camera:
“Add Camera” click “+”
Enable users to edit camera ID, user's name and password setting and the
change of equipment alias .
“Scan”Two-dimensional code scanning acquire camera ID.
3.4 Device list.
3.5 Function：
snapshot
speaker/mic （can not be open at the same time）
birghtness/contrast
restore the default
resolution : VGA（640×480）QVGA（320×240）
ratio
cruise
Flip /Mirror
close
touch screen to control PTZ
Chapter 4 PC Software Instruction
4.1 Find “DeviceClient.msi” in the CD and run it like below pic.
4.2
Click "Browser" to select setup path(default path "C:\Program Files\object\Device
Client "),then click "Next" like below pic.
4.3 Click "Next",then go the below pic.
4.4 Click "Finish" to end the setup,at the time it will come up this icon in the desktop
“ ”.
4.5 Click“System—Device list”
4.6 Add a lan camera :
Open search tools,click “search”
IP acquisition：
①Confirmed that the device is turned on and connected to the network
normal.
②LAN or PC support DHCP（Dynamic IP allocation），because the
camera's factory settings dynamically IP, LAN or PC does not open DHCP, occurs
not search the camera IP.
Double click IP address，,then go the below pic，“OK”.
4.7 Add a remote camera：
click“add”， then go the below pic:
Device：The names of equipment, which can help you identify different devices, for
examples, you can type the names based on the location of the equipment.
User：Usually the default is "admin";
Pwd：he default of password is usually as " ",
Video：According to the machine model selection（model 5030:mjpeg）
P2P：
DID：camera ID（search in lan）
Click "OK" to end the setup.
4.8 paly Video
drag （Device name）play video
