Cookology CEI1100BK Manual de usuario

CEI1100BK

Cooker hood

Instruction manual

CONTENT

1……………………………………….Notice

2……………………………………….Feature

3………………………………………..Installation

4………………………………………..Notice of installation

5………………………………………..Safety Warning

6…………………………………………Speed adjustment

7…………………………………………Maintenance

8…………………………………………Abnormity and Solution

1.Notice

This appliance can be used by

children aged from 8 years and above

and persons with reduced physical,

sensory or mental capabilities or lack

of experience and knowledge if they

have been given supervision or

instruction concerning use of the

appliance in a safe way and

understand the hazards involved.

Children shall not play with the

appliance. Cleaning and user

maintenance shall not be made by

children without supervision

If the supply cord is damaged, it must

be replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

The instructions shall state the

substance of the following:

– there shall be adequate ventilation

of the room when the range hood is

used at the same time as appliances

burning gas or other fuels (not

applicable to appliances that only

discharge the air back into the room);

– the details concerning the method

and frequency of cleaning;

– there is a fire risk if cleaning is not

carried out in accordance with the

instructions;

– do not flambé under the range hood;

– CAUTION: Accessible parts may

become hot when used with cooking

appliances.

The installation instructions shall

include the substance of the

following:

– the air must not be discharged into a

flue that is used for exhausting fumes

from appliances burning gas or other

fuels (not applicable to appliances

that only discharge the air back into

the room);

– the minimum distance between the

supporting surface for the cooking

vessels on the hob and the lowest part

of the range hood. (When the range

hood is located above a gas appliance,

this distance shall be at least 65 cm.

– regulations concerning the

discharge of air have to be fulfilled.

The installation instructions for range

hoods with accessible metallic

enclosures of class II construction

shall include details that indicate the

location and maximum permitted

lengths for any fixing or mounting

screw or other fixing device that

penetrates into the range hood to

attach an accessory such as a facia or

duct fitting.

Where fixing or mounting screws, or

other fixing devices are used, that

penetrate into the range hood with an

accessible metallic enclosure of class

II construction, to attach an accessory,

the instructions shall indicate the

required location of these screws or

fixing devices and include the

substance of the following warning.

Warning: Failure to install the screws

or fixing device in accordance with

these instructions may result in

electrical hazards

2. Feature

1. The cooker hood uses high quality materials, and is made with a

streamlined design.

2. Equipped with a large power low noise electric motor and

centrifugal leaf, it produces strong suction, low noise, non stick grease

filter and easy to clean.

3. With the isolated low voltage circuit board control, 4vAC input, the

lights are therefore safer.

4. Special wind tunnel construction and oil collector design, free dirt

will be absorbed in a second.

3. Installation

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should

mount the half-parts to its body. The images only show an example of

how to mount the V-flap,the outlet may be various according to different

models and configuration.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6

• a pin 3 should be top oriented;

• the axis 4 should be inserted in the holes 5 on body;

• repeat all the operations for the 2nd half-part

INSTALLATION

1. Before installation, turn the unit off and unplug it from the outlet.

2. The cooker hood should not be placed at a distance of no more than

150cm from the cooking surface for the best performance. Refer to Pic

3. The ceiling must can bear at least 120KGs weight, and the thickness of

the ceiling must be ≥30MM.

4. According to the size shown on pic 2, drill 14pcs φ8mm holes on the

ceiling once the installation height is determined,14pcs explode screws(or

14pcs of ST6*40mm big flat screws+14pcs wall plugs) will be used to fix

the two hanging board on the ceiling.( see pic. 3)

5. Calculate the length of the angle iron(refer to pic 4/5),then 32pcs of

M4*10 screws and M4 nut with gasket will be used to connect the angle

iron into the adjustable angle iron bracket. (Make sure the overlap length

of angle iron cannot less than 36mm)

6. As pic 7 shown, choose the direction of the outlet①/②/③/④

(Unscrew the 8pcs machine silk from cabinet housing and rotate it by

90°/180°/270° to choose the direction of the outlet, then screw the 8 pcs

machine silk to fix the housing well;install the expansion pipe to the

outlet(refer to pic 8).

7. As pic 9 shown, connect the 4 adjustable angle iron bracket with the

housing by 8pcs M4*12mm machine silk screw, next refer to pic 10/11,

lift up the housing, use 8pcs M4*12mm machine silk screw and M4 nut

with gasket to fix the housing onto the 2 hanging board, meanwhile, pull

the expansion pipe outside.(Note: The expansion pipe must be fixed on

the housing firmly.)

8. After installing the housing to the hanging board, use cross screwdriver

or straight screwdriver to adjust the screw of the angle iron bracket, direct

the housing level position and height till it is suitable. Adjust method:

Adjust rang of the angle iron bracket is 0-25mm, clockwise twist the

screw of the 4 angle iron bracket, slightly move the housing upwards;

meanwhile, anticlockwise twist the screw of the angle iron bracket,

slightly move the housing downwards. Use the cross screwdriver to screw

the safety screw tightly after the level position and height is

suitable.(Refer to pic 12)

Tabla de contenidos

Otros manuales de Campana de ventilación de Cookology

Cookology

Cookology HICYL351BK Manual de usuario

Cookology

Cookology PREM900BK Manual de usuario

Cookology

Cookology TEL600SS/A Manual de usuario

Cookology

Cookology CEI1100SS Manual de usuario

Cookology

Cookology CDD600BK Manual de usuario

Cookology

Cookology VER601BK Manual de usuario

Cookology

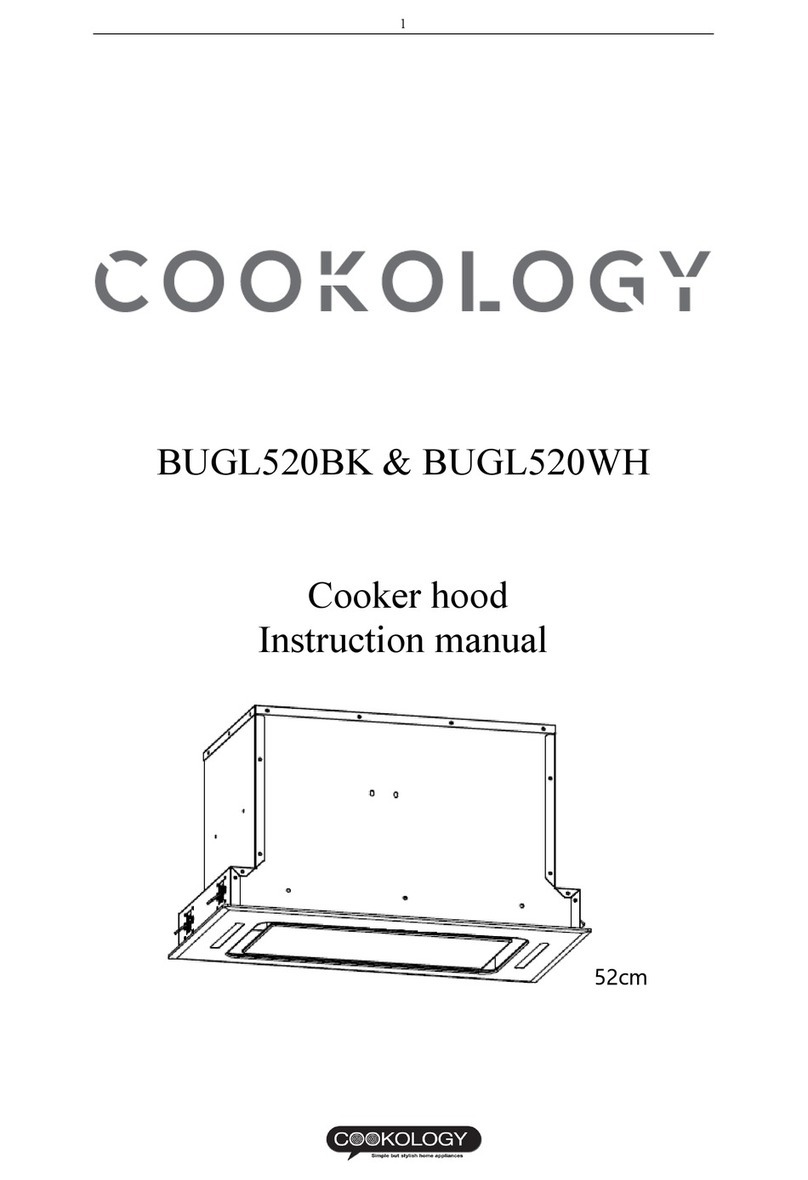

Cookology BUGL520BK Manual de usuario
