Convaid Carrot 3 Manual de usuario
Instruction Manual
!
CARROT 3 BOOSTER SEAT - CHILD RESTRAINT SYSTEM
For Children with Special Needs
Read all instructions
before using this
restraint system.
WARNING
2
CARROT 3 CHILD RESTRAINT SYSTEM
The Carrot 3 Booster Seat is an extended version of the standard Carrot 3 child
restraint system. The Carrot 3 Booster Seat offers a larger conguration to meet
the needs of children that require additional seat growth that is not available on
the standard Carrot 3. Always consult your doctor to make sure that this restraint
system is suitable for your child.
Your child’s safety is very important to us. To ensure that your restraint system is
installed correctly, please read all the instructions in this manual before using. If you
require additional assistance, please call Convaid at (888) 266-8243.
Sole importer in Americas:
Convaid
2830 California Street
Torrance, CA 90503
Phone: 888-266-8243 • 310-618-0111
Fax: 310-618-2166
Table of Contents
Warnings .......................................................................................................... 3
Safety Information............................................................................................ 5
Important Notes ............................................................................................. 5
Certication .................................................................................................. 6
Features............................................................................................................. 7
Installation......................................................................................................... 8
Standard Installation ..................................................................................... 8
Functions .......................................................................................................... 9
Head Support Adjustment ............................................................................... 9
Depth Adjustment........................................................................................... 9
Forward / Backward Positioning .................................................................... 9
Head-Pillow Adjustment ................................................................................. 9
Shoulder Support ........................................................................................... 10
Shoulder Width Adjustment.......................................................................... 10
Shoulder Straps Comfort Pads .................................................................... 10
3
Table of Contents
Backrest ...........................................................................................................11
Backrest Height Adjustment ..........................................................................11
Backrest Extensions 4” (100mm)..................................................................11
3D Body Balance Pads .................................................................................11
4-Point H-Harness .......................................................................................... 12
Harness Buckle............................................................................................ 12
Accessories ................................................................................................... 14
Support Tray ................................................................................................ 14
Seat Wedge................................................................................................. 14
Securing Your Child ...................................................................................... 15
Warning........................................................................................................ 17
Warning........................................................................................................ 17
Care and Maintenance ................................................................................... 19
Cover Removal............................................................................................. 19
Upholstery, Cushions, Pillow & Pads ........................................................... 19
Harness Buckle............................................................................................ 19
Harness Strap ............................................................................................. 19
Product Dimensions....................................................................................... 20
Warranty ......................................................................................................... 20
Limited Five Year Warranty .......................................................................... 21
Warranty Limitations .................................................................................... 22
Limitations of Damages ............................................................................... 22
Limited Warranty .......................................................................................... 22
4
• Recommended for use with children who have outgrown the Carrot 3 car
seat. Suggested guidelines are children who weigh more than
79lbs (36kg) and less than 165lbs (75kg) with height between
4.5ft (140cm) and 5.7ft (175cm). It has been successfully crash tested.
• Use in forward-facing only.
• Never alter construction of the Carrot 3 Booster Seat child, unless
specially authorized in the instruction manual.
• Adjust the belts provided with this child seat so they t snugly around your
child. A snug strap should not allow any slack or twist. It does not press on
the child’s skin or push the child’s body into an unnatural position.
• Secure child restraint system with the upper and lower xing straps to the
vehicle’s seat, and always use vehicle’s lap shoulder 3-point safety
belts as well.
• Fasten the harness 4-point of the child restraint system as well as
the vehicle’s lap shoulder 3-point safety belt to secure your child in
a rm position.
• Follow all the instructions on this child restraint system and in this
instruction manual.
• Use this child restraint system only with vehicles provided with lap
shoulder 3-point safety belts approved by ECE regulation No.16 or other
equivalent standards.
• The rigid items and plastic parts of the child restraint system must be
located and installed in away so they don’t become trapped by a movable
seat or in a door of the vehicle.
• To prevent injury due to hidden damage, discontinue use of a child
restraint system that has been in any type of car crash.
• This child restraint system must be used with the cover.
!WARNING !
DEATH or SERIOUS INJURY can occur
5
• The child restraint system cover should only be replaced with the one
recommended by the manufacturer.
• This instruction manual should be stored in the pocket on the back of the
child restraint system.
• This child restraint system is not for use in the home, in boats, or other
non-certied applications.
• The back seat of vehicle is the safest location for a properly installed child
restraint system. Please comply with safety standards set in your vehicle
owner’s manual, to ensure your child’s safety.
• Secure this child restraint system seat even when it is not occupied. In a
crash, an unsecured child seat may injure vehicle occupants.
• When using in a vehicle with airbags, refer to your vehicle’s owner’s manual
for child restraint system installation instructions and precautions.
• Never use the adjuster strap to lift or carry this child restraint system. Doing
so will cause damage to the harness adjuster and webbing. Always carry
this child restraint system by its shell.
• Do not take the child restraint system apart or attempt to take apart the
harness and the straps from the child seat. Do not remove the buckles
and / or the buckle tongues from the harness or the straps. They cannot
be reattached after removal. If reassembled incorrectly, the child restraint
system may not perform optimally.
• The primary protection for occupants of a vehicle in a collision is the body
of the vehicle itself; a child restraint system will not protect a child when a
vehicle is seriously impacted. However, correctly installed, a child restraint
system will substantially improve chances for survival in most crashes.
Make sure all users fully understand proper use of this child restraint
system in a vehicle.
!WARNING !
DEATH or SERIOUS INJURY can occur
6
Safety Information
Important Notes
• Make sure that the child restraint system is properly secured with the provided
upper and lower xing straps, and harness is properly adjusted around the
child each time the child restraint system is used.
• Adjust the harness to accommodate and t the occupant’s clothing.
• Cover the child restraint system when vehicle is parked in direct sunlight.
Parts could become very hot and could burn the occupant.
• Store child restraint system in a safe place when not in use. Avoid placing
heavy objects on top of it.
• Never leave occupant unattended in a vehicle, even for a short period of time.
• Do not, except as described in this manual, attempt to disassemble any part
of the child restraint system or change the way its harness or vehicle’s seat
belts are used.
• Do not leave loose objects (e.g. books, bags, etc.) in the back of a vehicle; in
the event of a sudden stop, loose objects could potentially causing
serious injuries.
• Do not leave folded vehicle seats unlatched. In the event of a sudden stop, a
loose seat back could prevent the child restraint system from protecting the
occupant as it should.
• Do not use anything to raise the child restraint system off the vehicle seat
except as described in this manual. In a crash, the child restraint system
could slide and may not protect the occupant.
• Do not allow children to play with this child restraint system.
• It is recommended that the child restraint system is used in an upright
positioning only.
7
Safety Information
!
!
WARNING!
This child restraint system must only be used in
forward facing position.

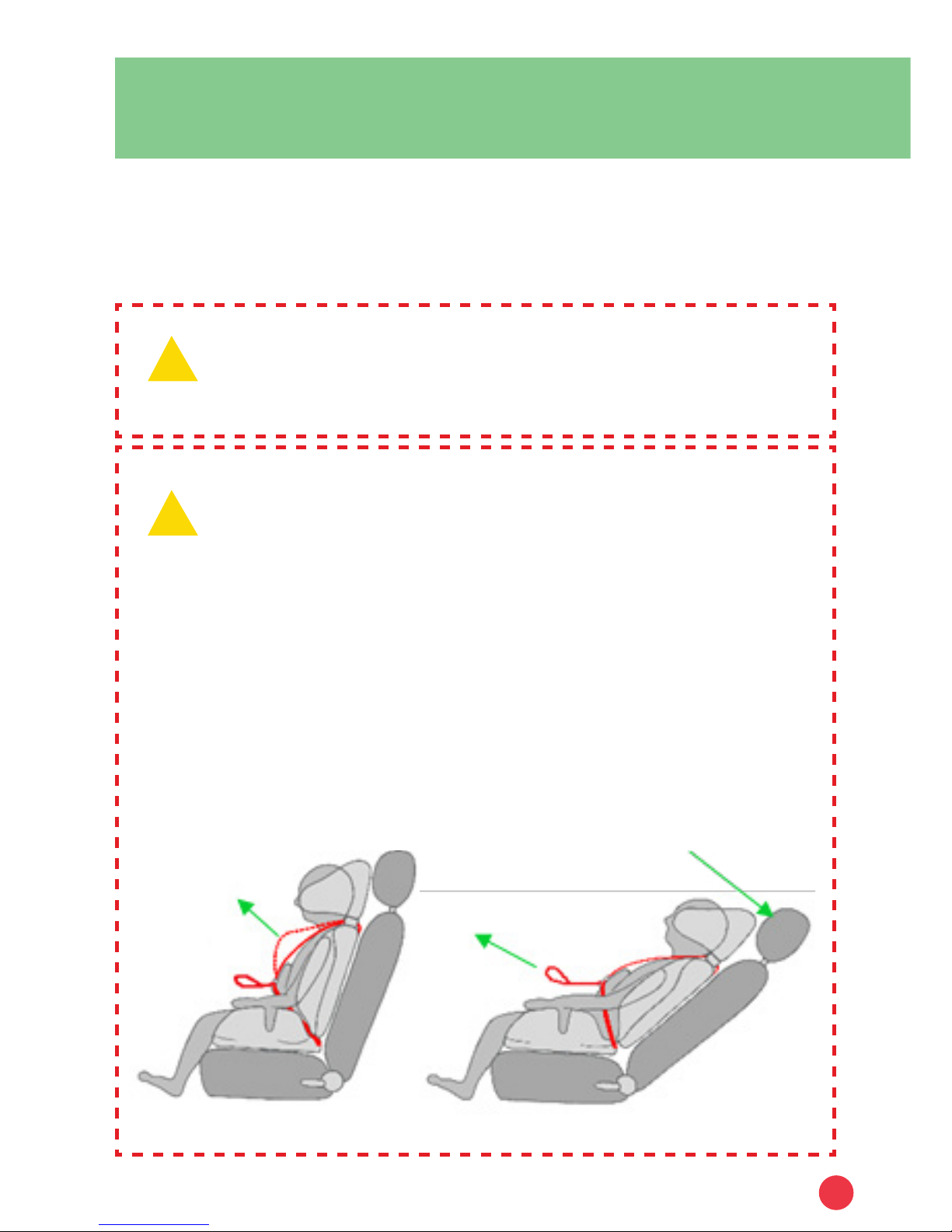

WARNING!
When you recline the back, you must release and loosen
the harness straps rst, then after reclining the back,
re-tighten the harness. Reclining the back without
loosening the harness may cause bodily injury or choking.
Certication
• This child restraint system is designed for occupants who weigh more
than 79lbs (36kg) and less than 165lbs (75kg).
Recline
Re-tighten
Loosen
8
Features
Head Pillow
Comfort Pads
Booster Seat
4-Point
Harness Strap Table Feet
Receiver
Backrest
Shoulder
Protector Wing
Head-Support
Head-Support
Fixing Strap
Vehicle’s Belt Path
Metal Yoke
Backrest Release
(D-shape) Ring
Instruction Manual
(in pocket)
Lower Fixing Strap
9
Installation
Instructions
Fixing Straps
1. Install the xing straps at the upper and lower
parts of the child restraint system.
2. Secure the child restraint system’s head
support using the head support xing strap,
and use the lower xing strap to secure the
child restraint system to vehicle’s seat.
3. Attach the buckles, and snugly t the child
restraint system seat into the vehicle seat while
pulling both adjuster straps tightly to remove
all slack. Ensure the child restraint system is
tightly secured (Fig. A and B).
4. Verify all connectors are secure and that the
child restraint system is secure.
5. When installing the child restraint system onto
the passenger seat, avoid potential airbag
impact by moving the passenger seat as far
back as possible.
6. When you install the child restraint system to
a bench-seat you may nd that the xing strap
is too short, in this instance, you may x child
seat by using the strap vertically (Fig. C).
7. If you have difculty securing the child restraint
system, please contact the distributor or
the retailer where you purchased this child
restraint system for consulting.
FIG.A
FIG.B
FIG.C
10
Installation
IMPORTANT:
Adjustment of the Head-Support position
(forward / backward) requires xing tools. Contact
and ask your dealer for adjustment assistance.
Functions
Head Support
Head Support Adjustment
The Head-Support Depth can be adjusted forward or
backward by 0.6” (15 mm) increments to provide a
better t and added protection for the occupant.
To Adjust: Pull out the Head-Support from the main
body, and remove screws on each side at the bottom
(Fig. A).
Move the Head-Support to selected position, and
reinsert the screws (Fig. B).
Note: Standard setting is at center position.
Head Pillow Adjustment
The Head Pillow can easily be adjusted to
the most favorable position to the user.
FIG.A
FIG.B
