Contro l4 AVM-TUN1-B Manual de usuario
Multi Tuner

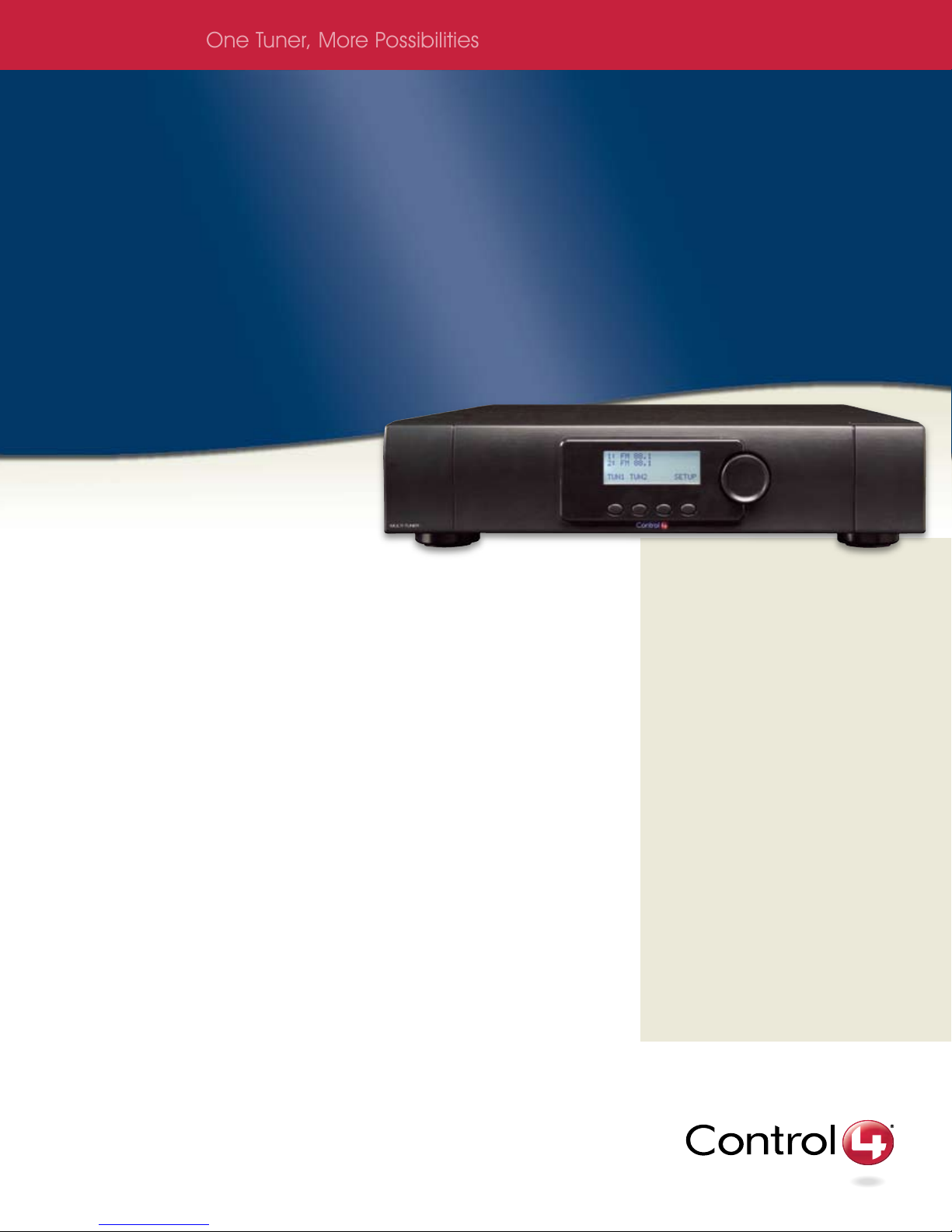

With dual AM/FM tuners and an XM®option, the Control4®Multi Tuner
unleashes the full power of traditional radio and new satellite radio technology.
Choose from two sources of local AM and FM stations as well as more than 100
commercial-free XM programs. With the Multi Tuner, it’s as easy as the push of a
button on a Control4 Touch Screen, Keypad, or System Remote Control. This
versatile component simultaneously satises the listening needs of everyone in
the house, wherever they are.
It’s all part of the Control4 vision. We bring the benets of a truly automated
home to more people with solutions that are affordable, easy to install and
designed to adapt to any home or lifestyle.
One Tuner, More Possibilities
Features and Benets
Tune into the afternoon football game
from the garage while your kids listen
to pop FM upstairs, or catch your fa-
vorite talk radio program in the kitchen
while the XM country music program
plays on the patio.
Pure Radio Power
• Triple tuning capability — Seamlessly sends out up to three audio streams, including two
AM/FM streams and an optional XM satellite radio stream.
• Multi zone versatility — Handle all your family’s radio needs simultaneously with one component.
• XM enabled — Subscribe to more than 100 channels of commercial-free satellite radio.
• Virtually unlimited station “presets” — Users can program a list of favorites.
• Data rich — Incorporating RDS support for FM, the Multi Tuner can display the station name,
the music genre, the song title, and more.
Simple Easy-to-Use Design
• Compact rack size — Rack-mountable component integrates easily with other audio equipment.
• Control4 network integration — Immediately controllable and easily updateable from Control4
Keypads, Touch Screens, and on-screen interfaces.
• Single point of control — One simple LCD interface controls up to three separate radio streams.
Affordable For Every Customer
• Surprisingly affordable — Costs much less than other controllable multiple tuners with double
or triple congurations.
• Only one component needed — No need to buy multiple tuners or receivers to send radio
throughout the house.
Control4 • 11734 South Election Road • Salt Lake City, Utah 84020 • p: 801.523.3100/1.888.400.4070 • f: 801.523.3199 • www.control4.com
Model Number
• AVM-TUN1-B
• AVM-TUN1X-B
Tuner
• Dual AM/FM Tuners
• FM Antenna: F-type coaxial, 75 Ohm impedance
• Usable Sensitivity:
FM: maximum 30 dB S/N at 20 dBuV at the antenna input
AM: 30 dB S/N at 16 dBuV at the antenna input
• FM Stereo separation: 40 dB
• S/N Ratio
FM: 68 dB
AM: 54 dB at 30% modulation
• FM THD = 0.15% typical
• Optional XM Tuner
Inputs/Outputs
• AM Antenna: AM loop antenna (antenna included)
• FM Antenna: (1) F-type coaxial Impedance: 75 ohms (antenna included)
• XM Antenna: with optional with XM tuner (antenna included with XM option)
• Audio Out L/R: 1 line-level audio output per tuner, RCA
Display
• 4 line backlit LCD display
Communications
• Wireless ZigBee™ (802.15.4) mesh networking
• Ethernet 10/100base-T, RJ45 jack
Power Requirements
• 100-120 / 200-240 VAC, 0.34/0.17 A, 60/50 Hz
Dimensions
• H x W x D: 3.5” x 17” x 15.9” (89mm x 432mm x 404mm)
• Weight: 9.9 lbs (6.6 kg)
Technical Specications
In addition to the Multi Tuner, Control4
offers:
Multi Tuner
©2007 Control4. All rights reserved. Control4 and the Control4 logo are registered trademarks. All other trademarks are property of their respective owners. C4-CSP-1
Control4 • 11734 South Election Road • Salt Lake City, Utah 84020 • p: 801.523.3100/1.888.400.4070 • f: 801.523.3199 • www.control4.com
Media Controller — Ultimate home
audio and home automation control.
Multi-Channel Amplier — State of the
art 16 channel digital amplier.
Home Theater Controller — Intelligent
home theater control.
Related Control4 Products
