UNDERCOUNTER

REFRIGERATORS

Utilizing Environmentally Safe, CFC-free R-134a Refrigerant

Standard Features

•Unique Field Assembled, Bottom Mounted Ventilation

System Designed to Allow Cabinets to be Flush Against a Wall or

Built into a Counter to Conserve Space

•Modern State-of-the-Art Styling

•Performance Rated Refrigeration System Utilizing Environmentally

Safe R-134a Refrigerant

•Unique Airflow Distribution Keeps Product at Uniformly Constant

Temperatures

•Easily Serviceable Back Mounted Compressor

•2" Non-CFC Polyurethane Foam Insulation

•Spring Loaded, Self-Closing Door

•Magnetic Snap-In Gasket

•3 5/8" Casters

•Heavy-Duty, Epoxy-Coated Steel Shelves

•Interior Hanging Thermometer

•Cabinet Construction Consisting of Stainless Steel Exterior &

Interior

•Non-Corrosive, Plasticized Fin Evaporator Coil

•Completely Enclosed, Vented & Removable Case Back

•Automatic, Energy Saving, Non-Electric Condensate Disposal

•Field Rehingeable doors

•Meets ADA Height Requirements

•10ft. Cord & Plug Attached

Models Available

•DLUC27-SS

•DLUC48-SS

•DLUC60-SS

•DLUC72-SS

DLUC27-SS

DLUC48-SS

Optional Features & Accessories

•Remote Models - R •Electric Condensate

•Additional Shelves •Single Overshelf

•Door Locks •Double Overshelf

REFRIGERATION SYSTEM

The self-contained refrigeration system is rear mounted,

concealed behind a removable louvered cover. Full-length

front air grille allows for even air circulation to condensing

unit. A "Performance Rated", air-cooled, hermetically

sealed, capillary type refrigeration system is installed in

each model. Plasticized finned coil and air circulating fans

are contained within an easily accessible rear mounted

housing. Our unique airflow design allows the cabinet to be

enclosed on both sides or to be mounted flush against a

wall. Our refrigeration system, fully charged with R-134a

refrigerant, is designed to maintain 38° - 40° Fahrenheit

while operating with an unrestricted air supply in an ambient

temperature of 100° Fahrenheit. All condensate water is

directed to a non-electric condensate vaporizer located in

the compressor compartment, thus no plumbing is required.

A strict quality assurance team inspects all materials and

components to certify that each model conforms to the most

exacting standards. All models are performance tested for

a minimum of 16 hours prior to crating.

CABINET CONSTRUCTION

All materials are of top quality and are assembled under

rigid supervision conforming to strict quality assurance

requirements. Case is of all metal welded construction

and is internally supported and braced for rigid unit con-

struction. Exterior cabinet back and bottom are heavy

gauge galvanized steel.

Cabinet design eliminates overlapping panels with raw

edges. Interior corners are rounded with a ¼" radius for

cleaning ease. All cabinet joints and seams are vapor-

tight sealed. An easily removable anti-sweat door

heater, concealed by a non-metallic, non-conductive,

high impact thermal breaker strip, eliminates condensa-

tion build-up on case front.

INSULATION

All cabinet walls, top, and bottom have high density,

foamed-in-place, non-CFC polyurethane insulation.

SHELVING

Shelves are designed for heavy-duty use with

.306" diameter frame and brace members and

.140" diameter fill wires spaced ¾" apart.

Shelves are welded steel and epoxy-coated for a

durable, long, rust-free service life.

DOOR CONSTRUCTION

Door shells are constructed of heavy-gauge

stainless steel and are internally braced and ure-

thane-foam-insulated for rigidity. Door corners

are of welded construction and polished.

Replaceable snap-in door gaskets are self adjust-

ing, heavy-duty, magnetic type. Door handles

and hinges are chrome-plated and non-corrosive.

Hinges are spring loaded, heavy duty, self-clos-

ing.

DLUC305

REFRIGERATORS

A Division of National Refrigeration & A/C Products, Inc.

539 Dunksferry Road Bensalem, PA 19020

(800) 523-7138 Fax: (215) 244-9579

www.continentalrefrigerator.com

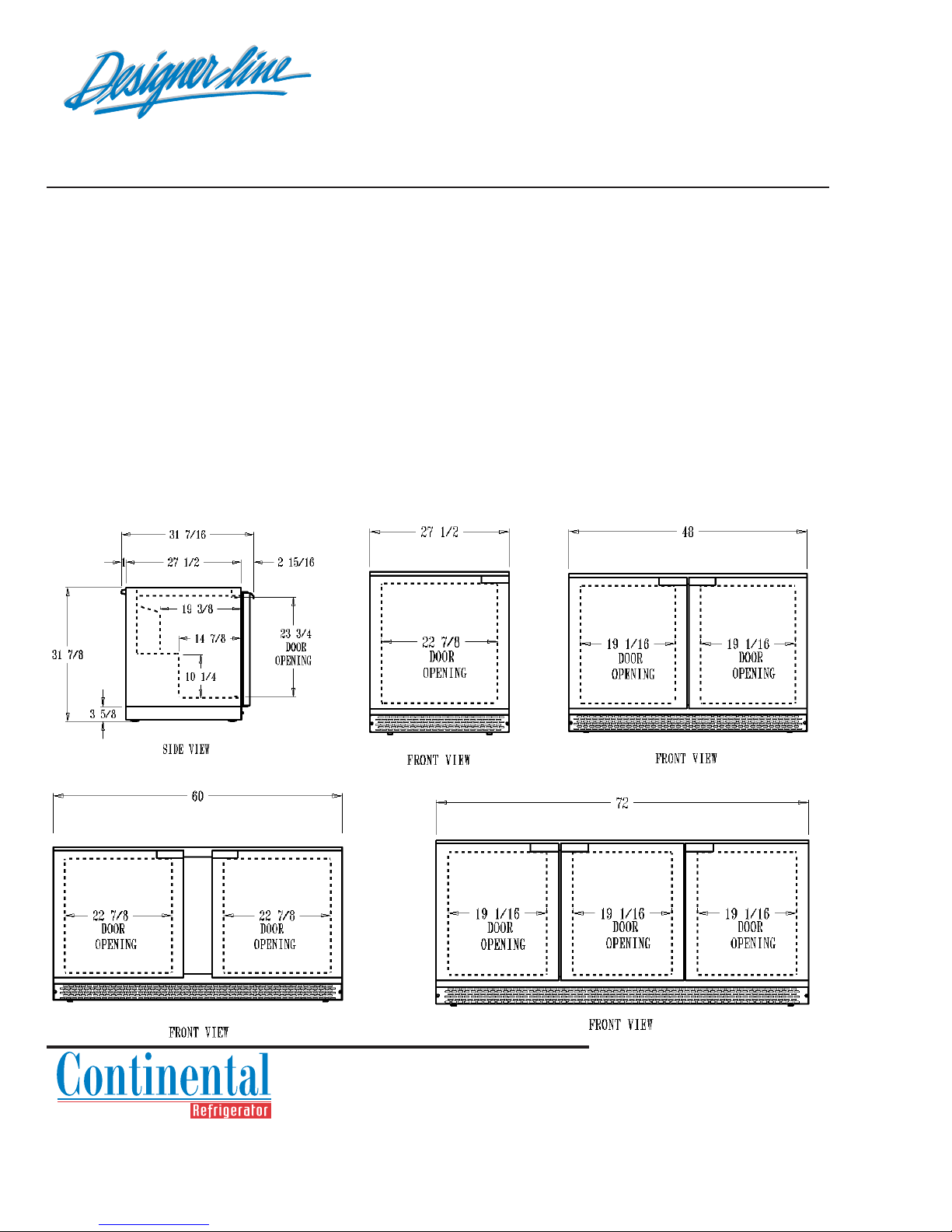

DIMENSIONAL DATA

Net Capacity (cu. ft.) 7.4 13.4 17.0 20.6

Width, Overall (in.) 271/448 60 72

Depth, Overall (Incl. Hdls.) (in.) 317/16 317/16 317/16 317/16

Height, Overall (Inc. casters)(in.) 3161/64 3161/64 3161/64 3161/64

No. of Shelves 1 2 2 3

Shelf Area (sq. ft.) 3.5 6.8 8.1 10.2

No. of Doors 1 2 2 3

Condensing Unit Size (H.P.) 1/51/51/41/4

Refrigerant R-134a R-134a R-134a R-134a

Cabinet Electrical

115/60/1 115/60/1 115/60/1 115/60/1

Amps 6.1 7.1 7.6 8.6

No. of Fans 2 3 3 4

Shipping Weight (lbs.) 180 263 300 333

Shipping Height (in.) 431/4431/4431/4431/4

Shipping Length (in.) 353/455 681/4801/4

Shipping Depth (in.) 371/4371/4371/4371/4

SPECIFICATIONS DLUC27-SS DLUC48-SS DLUC60-SS DLUC72-SS
