DaVinci Touch Panels Installation Guide
Revision 1.4 DaVinci Touch Panel Installation Guide 2
Table of Contents
1. Introduction …................................................................................ 3
2. Warning ........................................................................................... 3
3. Installation procedures …................................................................ 4
3.1. Electrical Wires connection …..................................................... 4
3.2 Mounting the switch to the wall …................................................. 7
3.3 Attaching glass panel …................................................................. 7
4. Installation distance for multiple switches....................................... 8
5. Specification …................................................................................ 10
6. Conformity ….................................................................................. 10
Revision 1.4 DaVinci Touch Panel Installation Guide 3
1. Introduction
This is the installation manual of the DaVinci touch panels devices. It describes installation and
operation procedures for the DaVinci electrical touch switches.
This manual is intended for installers that plan to install the products in homes or offices.
2. Warnings
DANGER OF ELECTROCUTION
The DaVinci Switches panel is designed to operate in home electrical installation. Faulty
connection or use may result in fire or electric shock.
All works on the device may be performed only by a qualified and licensed electrician. Observe
national regulation.
Even when the device is turned off, voltage may be present at its terminals. Any maintenance
introducing changes into the configuration of connections or the load must be always perform
with disconnected voltage (disable the fuse or the breaker).
CAUTION
Applied load and the device itself may be damaged if type and values of applied load are
inconsistent with the device specification!
Connect only according to the diagram presented in the manual. Incorrect connection may cause
risk to health, life or material damage.
The device is designed for installation in wall switch box. The switch box and electrical
connectors must be compliant with the relevant national safety standards.
Electrical system of the building must be protected with an over current protection (fuse
breaker) with a value not higher than 10A.
Revision 1.4 DaVinci Touch Panel Installation Guide 4
3. Installation Procedure
For installation DaVinci switch panel follow the steps below:
Electrical Wires Connection.
Mounting the switch to the wall.
Attaching the glass panel.
See instruction below.
3.1 Electrical Wires connection
1. 6 outputs Light connection diagram
Neutral
Line
Bridge
X X
Figure 1: Touch panel installation diagram
L1 L2 L3 L4 L5 L6
10A
See Figure 3A
See Figure 3A
Revision 1.4 DaVinci Touch Panel Installation Guide 5

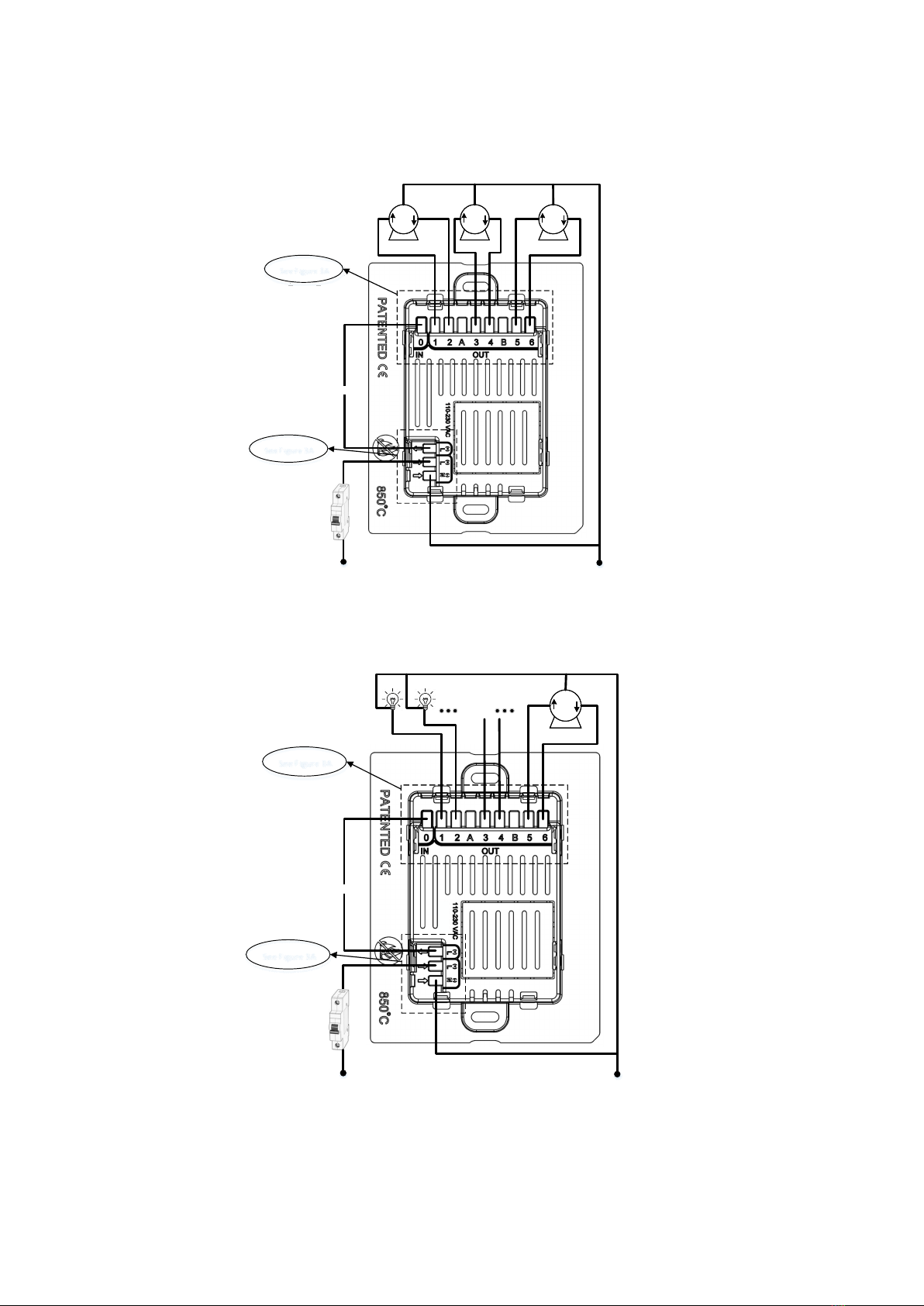

2. 3 motors connections diagram
NeutralLine
Bridge
X X
Figure 2: Touch panel installation diagram
M
N
M
N
M
N
M
N
M
N
M
N
10A
See Figure 3A
See Figure 3A
3. Mixed connection diagram Lamps and Motors
NeutralLine
Bridge
X X
Figure 3: Touch panel installation diagram
M
N
M
N
10A
MIX
See Figure 3A
See Figure 3A
Revision 1.4 DaVinci Touch Panel Installation Guide 6
Input source for relays
Max 10A
Relay1
7A
Relay1
7A
Relay2
7A
Relay2
7A
Relay3
7A
Relay3
7A
Relay4
7A
Relay4
7A
Relay5
7A
Relay5
7A
Relay6
7A
Relay6
7A
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6
Bridge source for relays
Max 10A
Neutral
Line in
100-270 VAC 50/60Hz
Max 10A
All outputs current
shall be Max 10A
Figure 3A: Wiring instruction
Line out
Revision 1.4 DaVinci Touch Panel Installation Guide 7
3.2 Mounting the switch to the wall
The switch panel can be mounted to the wall in two ways vertical or horizontal in each
installation vertical or horizontal must be sure that the sign UP is at the up side see
diagram below:
Figure 4: Mounting in wall direction diagram
This sign must be up
3.3 Attaching glass panel
The trimmed corner indicate the
orientation for attaching the glass panel
to the switches
Figure 5: Attaching glass panel diagram
Revision 1.4 DaVinci Touch Panel Installation Guide 8

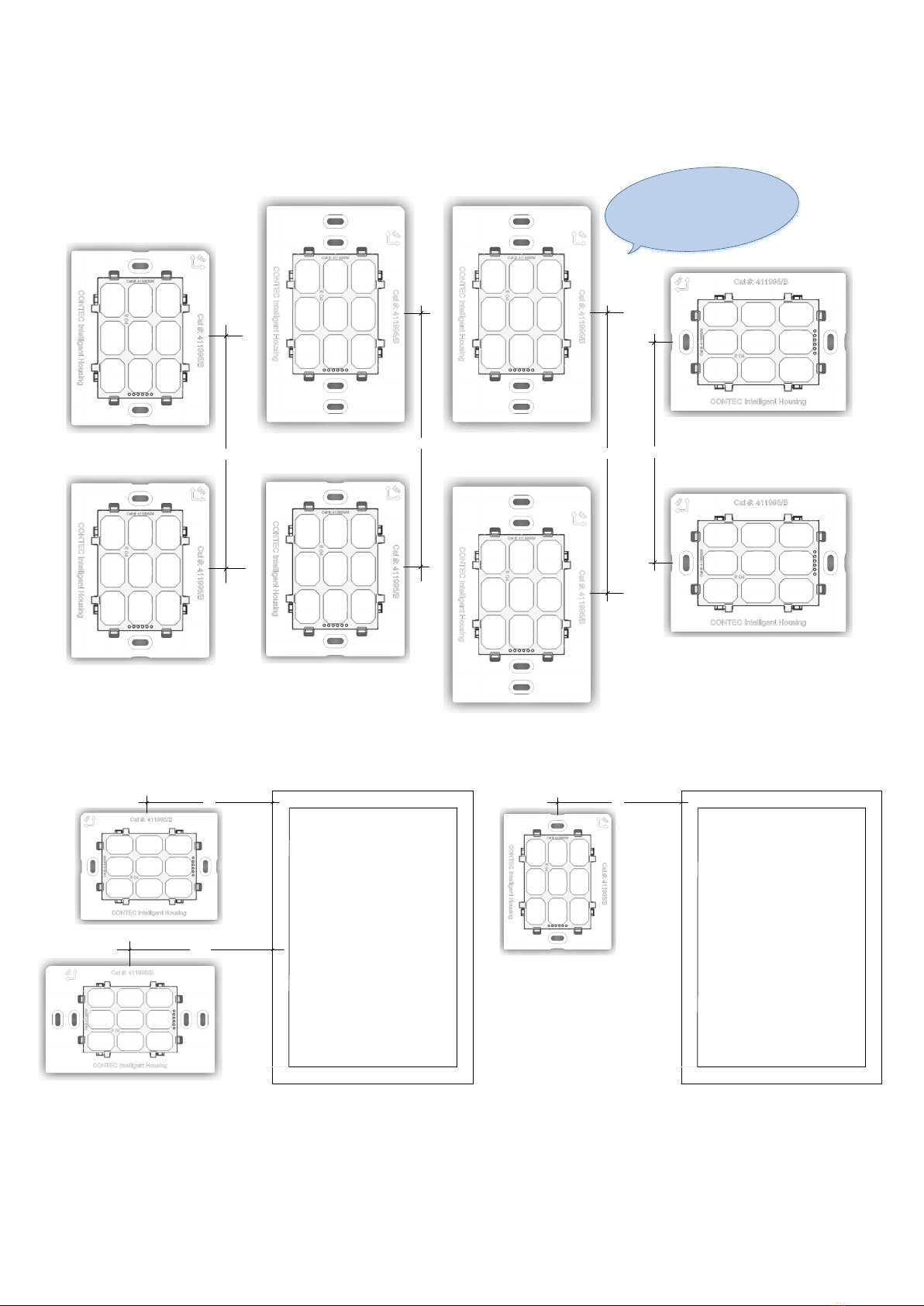

4. Installation distance for multiple switches
When installing closed multiple switches shall take care to the minimal distance between the
switches see the diagrams below:
1. Distance between switches side-by-side installation
13cm
3 or 4 module Vertical 3 or 4 module Vertical
15cm
3 module Horizontal 3 module Horizontal
16.5cm
3 module Horizontal 4 module Horizontal
18cm
4 module Horizontal 4 module Horizontal
Note:
Our recommendation between the
panels center will create a space of
3cm between the glasses.
Revision 1.4 DaVinci Touch Panel Installation Guide 9
2. Distance between switches one above the other installation
3 module Vertical
3 module Vertical
15cm
4 module Vertical
3 module Vertical
16.5cm 4 module Vertical
18cm
3 or 4 module Horizontal
3 or 4 module Horizontal
4 module Vertical
13cm
Note:
Our recommendation between the
panels center will create a space of
3cm between the glasses.
3. Distance between switches and object
Object it could be:
Door window end of wall etc...
9cm
10.5cm
4 module Horizontal
3 module Horizontal
Object it could be:
Door window end of wall etc...
8cm
3 or 4 module Vertical
Revision 1.4 DaVinci Touch Panel Installation Guide 10
5. Specification
Power Supply: 100-270V AC, 50/60/Hz
Operating Temperature: 0 – 45 C
Rated load current for each output: 7A - lamps and resistive loads
2A - inductive loads
Rated load current for all 6 outputs: 10A Max
6. Conformity
DaVinci touch panels switches are designed in compliance with the following European
directives:
RoHS 2011/65/EU
EMC: 2004/108/EC
R&TTE: 1999/5/EC
IEC 60669-1:1998
IEC 60669-2-1:2002
LVD 2006/95/EC
EN 60669-1:1999
EN 60669-2-1:2004
