Die Walküre Turntable
& LT-1 Linear tangential tonearm
Warnings
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not insert anything into the equipment through the ventilation holes.
Do not handle the mains lead with wet hands.
No naked flame sources, such as lighted candles, should be placed on the
equipment.
Die Walküre Turntable package contents
1. Top cover
2. Plinth
3. Platter
4. Strobe Disc
5. DC12V power supply
6. DC motor speed controller
7. Arm-base part
8. Arm-base
9. Feet
10. Lubrication oil
11. Screw
12. Allen wrench
13. Cable for speed controller
14. Belt
2
Assembling the Turntable
Open the box and take out the turntable plinth.
The bottom of the plinth has 3 holes for feet.
Note: When using LT-1 tonearm, in order to ensure LT-1 stability in the
horizontal direction, it’s better not let the feet in these holes. Put the feet on
the corner.
3
Installing the top cover.
Fill the bearing with lubrication oil supplied to a level of approx 1mm above the
bottom bearing.
4

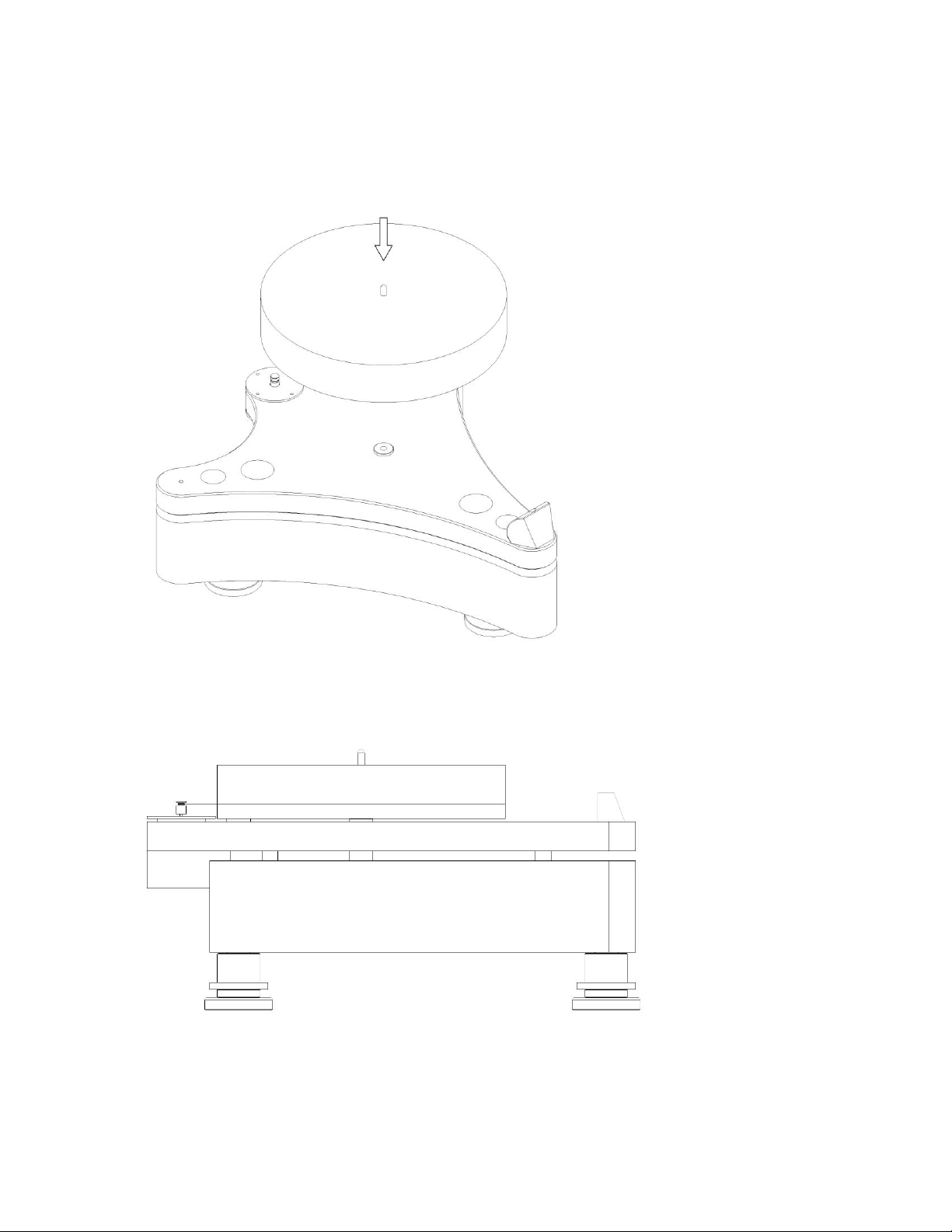

Installing the platter.
Hold it level over the bearing housing, locate it carefully and gently lower it until it
seats fully over the bearing.
Take out one of the drive 'belts' and run it round the motor spindle and then round
the platter.
5
Connecting the speed controller to the DC motor socket safely.
Connecting the DC12V power supply.
From lift to right is: power on/off switch, 33/45 speed selection switch, speed
adjustment knob.
Put the Strobe Disc on the platter, and adjust the speed controller knob to get the
33.3rpm or 45rpm. The corresponding circle on Strobe Disc will display stable
stripes.
6
LT-1 package contents
The consonance LT-1 tonearm is delivered in specially designed packaging to
ensure its safe transport. Please check the contents as shown in picture below
and in the list at the bottom of this page:
1. sliding rail
2. VTA adjustment
3. arm lifter
4. headshell
5. counterweight
6. airtube connector
7. groud connector
8. RCA connector
9. arm base for
Die Walküre
10. protractor
11. Level
12. 1.5mmallen wrench
13. 3mm allen wrench
14. pump
15. Separators
16. airtube
7
Fixing and Adjustment
1. Carefully remove the arm from the package and put the sliding rail through the
air bearing sleeve, and fix it on the bracket with the M6x20 screw.
2. Fix the arm base on the bracket.
8
3. Use M6x35 screw to fix the tonearm on the turntable.
9
4. Remove the pump from the package. Follow the picture, make sure it use the
airtube to connect with the water separator and tonearm. Then turn on pump. If
the installation is correct, barometer will show 0.04MPa. Make sure the air bearing
move is very smooth.
10
5. Mount the counterweight and the cartridge. Use the stylus guage adjust the
cartridge tracking force.
6. Put the protractor on the spindle of turntable. Let the straight line and the edge
of the cartridge is parallel. Move the headshell until the tip fall the black spots .Fix
the screw on the top of headshell.
