Compaq RA8000 Manual de usuario

RAID Array 8000/ESA12000 Fibre Channel

Storage Subsystem for SGI IRIX

Quick Setup Guide

AA–RFBHA–TE 387398-001

2Quick Setup Guide

In this Quick Setup Guide we tell you how to create an

initial hardware configuration for both the

Compaq

StorageWorks RAID Array 8000 Fibre Channel Storage

Subsystem

and the

Compaq StorageWorks Enterprise

Storage Array 12000 Fibre Channel Storage Subsystem

(the “RA8000/ESA12000 storage subsystem” or the

“storage subsystem”).

To create this configuration you will:

• Install Storage Building Blocks (SBBs) and Program

Cards in the RA8000/ESA12000 storage subsystem

cabinet;

• Install a fibre channel adapter in the server;

• Connect the fibre channel adapter to the storage

subsystem HSG80 controller via a fibre channel hub;

• Connect the StorageWorks Command Console

(SWCC) client PC to the HSG80 controller to act as

a maintenance terminal;

• Turn on the ac power to the storage subsystem;

• Install StorageWorks Software on the SGI server.

EK–SMCPR–UG. A01 (387404-001) for information

about selecting a location.

The instructions for installing and connecting storage

subsystem components are given for the SW370

pedestal, but apply equally to other Compaq cabinet

options.Depending on the storage subsystem you have

ordered, you might have to install the storage subsystem

in a cabinet and connect the cache module to a cache

battery. Refer to the

User’s Guide

for more information.

NOTE

You can find complete instructions for unpacking and

installing the RA8000/ESA12000 storage subsystem in

the User’s Guide and in the RA8000/ESA12000 HSG80

Solution Software V8.3 for SGI IRIX Installation

Reference Manual, AA–RFBKA–TE (387399–001).

RA8000/ESA12000 Storage subsystem User’s Guide

• Install the (SWCC) Client Graphical User Interface;

• Configure a Storageset;

• And reboot the storage system.

Before you start these steps follow the instructions on the

shipping container to unpack the RA8000/ESA12000

storage subsystem.Then move the storage subsystem to

the operating location you have selected. Refer to the

BeforeYou Begin

Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 3

Install the PCMCIA Card in the HSG80

Controller

• Remove the ESD cover from the controller PCMCIA

slot.

• Insert the PCMCIA card in the controller slot.

• Replace the ESD cover over the controller slot.

Install the SBBs in the RA8000/ESA12000

Storage Subsystem Cabinet

• Insert an SBB into the shelf guide slots and slide the

SBB into the shelf until the mounting tabs snap into

place.

• For optimum SCSI bus distribution, install the SBBs

from left-to-right and from bottom-to-top.

• Repeat the steps if you have two controllers.

InstalltheSBBsandProgram Cards

4Quick Setup Guide

Turn Off the Server

• Shut down the operating system running on your

server.

• Turn off the power to the server and all attached

peripherals.

• Disconnect power cables from the server.

Insert the Adapter in the SGI Server

• Open the server to gain access to the expansion slots.

• Insert the adapter in an empty PCI or XIO expansion

slot.

• Secure the adapter in the slot with the screw provided.

NOTE:Your adapter might not look like this.

Install the Fibre Channel Adapter

Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 5

• Connect one end of the SGI Media Interface Adapter

(X–F–OE–KIT) to the SGI fibre channel host adapter;

connect the other end to the fibre channel hub.

• Connect one end of a fibre channel cable to host port

1 on the HSG80 controller; connect the other end to

the fibre channel hub.

Be sure to install a GBIC–SW module on the hub

end of each cable.

The following page illustrates the

adapter-to controller connections

for the four possible configurations:

• single controller, one host adapter

• single controller, two host adapters

• dual controller, one host adapter

• dual controller, two host adapters

Connect the Fibre Channel Adapter to the Storage Subsystem Controller

6Quick Setup Guide

Single Controller, One Host Adapter

Single Controller, Two Host Adapters

Dual Controller, One Host Adapter

Dual controller, Two Host Adapters

Connect the Fibre Channel Adapter to the Subsystem Controller (Cont’d)

HOST

ADAPTER

Optical

Interconnect

SHR-1187-98.AI

HUB 1

HUB 2

HOST

ADAPTER 1

HOST

ADAPTER 2

Optical

Interconnect

Optical

Interconnect

SHR-1189-98AI

HUB 1

HUB 2

HOST

ADAPTER 1

HOST

ADAPTER 2

Optical

Interconnect

Optical

Interconnect

SHR-1188-98AI

HOST

ADAPTER

Optical

Interconnect

SHR-1186-98AI

Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 7

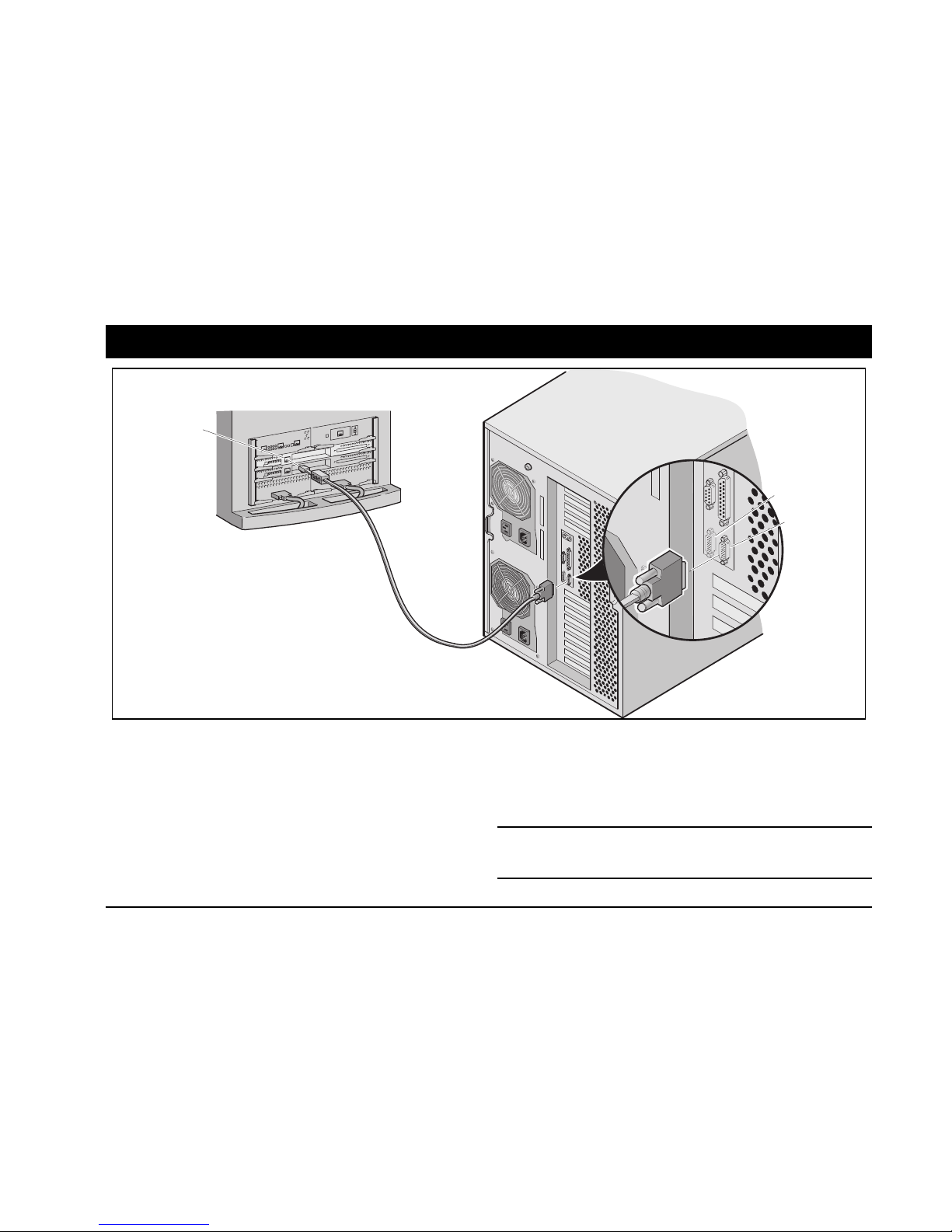

Connect the PC to the HSG80 Controller to

Provide for a Maintenance Terminal

• Connect the RJ12 connector on the communications

cable to the maintenance port on the HSG80 controller.

• Connect the 9-pin serial connector on the communica-

tions cable to either the COM1 or COM2 port on the

PC that will be used for the SWCC client.

NOTE

Make a note of the serial port you use;you need to know

it when you set up your communication program and

configure the controller.

MAINTENANCE

PORT

COM PORT 2

COM PORT 1

Connect the PC as a MaintenanceTerminal

8Quick Setup Guide

Connect the Hub to an AC Power Outlet

• Connect one end of the hub ac power cord to the hub.

• Connect the other end of the ac power cord to an ac

outlet.

Turn on the Storage Subsystem Power

• Connect one end of the storage subsystem cabinet ac

power cord to the cabinet ac receptacle.

• Connect the other end of the power cord to an ac

outlet.

• Push in the “1” side of the cabinet ac power switch.

• When the RESET LED on the HSG80 controller blinks

at a rate of once per second the storage subsystem is

ready to operate.

AC POWER

SWITCH

FUSE

RECEPTACLE

Turn on the Subsystem Power

Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 9

• At the

HSG80>

prompt

Type: SET THIS_CONTROLLER PORT_1_AL_PA=71

SET THIS_CONTROLLER PORT_2_AL_PA=72

Type: SET THIS_CONTROLLER PORT_1_PROFILE=PLDA

SET THIS_CONTROLLER PORT_2_PROFILE=PLDA

Type: SET THIS_CONTROLLER PORT_1_TOPOLOGY=LOOP_HARD

SET THIS_CONTROLLER PORT_2_TOPOLOGY=LOOP_HARD

Type: SET THIS_CONTROLLER SCSI_VERSION=SCSI-2

SET THIS_CONTROLLER SCSI_VERSION=SCSI-2

Type: SET THIS_CONTROLLER COMMAND_CONSOLE_LUN

Type: RESTART OTHER

RESTART THIS

Install the SWCC Client

• Insert the storage subsystem CD–ROM in the

CD–ROM drive.

• Run

File Manager

or Windows

Explorer

• Navigate to the folder

drive_letter:\SWCC\Client

• Choose

Intel client

; then double–click on

Setup

• When the setup wizard appears, follow the instructions

to complete the installation.

HSG80 Controller Setup

• Using a serial communications program on your PC,

connect to the HSG80 using the COM port connected

in Step 4.

• Select a baud rate of 9600.

Install StorageWorksCommand Console (SWCC) Client on the PC

10 Quick Setup Guide

Turn on the SGI Server

• Connect ac power to the SGI server and boot the IRIX

operating system.

Install the Storageworks Software

• Insert the storage subsystem CD–ROM in the

CD–ROM drive.

• Mount the CD–ROM with the command

mount –t iso9660 –r /dev/rdsk/dks0d7vol /mnt

(Note:The name of dks0d7vol might be different on

your system.)

• Create a directory in which the file archive can be

loaded

mkdir /tmp/hsg80

• Change to the directory

cd /tmp/hsg80

• Extract the file archive with the command

tar xvf /mnt/agent/sgi/stm_sgi.tar

• Execute the installation script

./stgwks_sgi.sh

StorageWorks and Command Console Agent

Installation and Configuration Menu

StorageWorks Options:

- - - - - - - - - - -

1) Install Storageworks software

2) StorageWorks Maintenance

Agent Options:

- - - - - - -

3) Install Agent

4) Agent Maintenance

Q) Quit

• Choose option 1) in the

Installation

menu to install the

StorageWorks software.

• Choose option 3) in the

Installation

menu to install the

Comand Console Agent. Follow the text-based prompts

and enter appropriate information using Table 2–2,

Section 2.1.3 of the

RA8000/ESA12000 HSG80

Solution Software V8.3 for SGI IRIX Installation

Reference Manual.

Install the StorageWorks Software on the SGI Host System
