Commax DR-2PN Manual de usuario

DOOR STATION DR-2PN

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

1. Introduction ................................................... 3

2. Important Safeguards ................................... 4

3. Overview........................................................ 5

4. Wiring & Installation ....................................... 7

5. Package......................................................... 8

6. Specifications................................................. 9

Contents

Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the

unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided

below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.

Model No. Serial No.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the use to the presence of uninsulated

“

“dangerous Voltage”

”

within the product’s enclose that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the

literature accompanying the appliance

CAUTION: To reduce the risk of electrix shick, do not remove cover(or back) no user-serviceable

part sinside refer servicing to quaured service personnel

caution

Rosk of electric shock

do not open

1. Introduction

▲

Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following

conditions:

ⓐwhen the power is damaged.

ⓑif liquid has been spiled or objects have hallen into the unit

ⓒif the equipment has been exposed to rain or water.

ⓓif the equipment has beem dropped or otherwise damaged.

ⓔwhen the equipment exhibits a distinct change in performance- this indicates a need for service.

▲

Water and Moisture: Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundru tub, in a wet basement, or near

a swimming pool, and the like.

▲

Accessories: The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any mounting of the manufacture’s

insturctions, and should use a mounting accessory recommended by the manufacturer.

▲

Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts

that could result in a fire or electric shock. Never spill liquid of any kind on the product.

▲

Lightning: For added protection for this product before a lihgtning storm, or when it is left un attached and un used for long periods of time, unplug it from

the wall outlt and disconnect the other system. This will prevent damage to the product due to lightming and power-line surges. If you live in an

ared heavily prone to lightning stoms, it is recommended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge

protectors to protect your appliance system from possiple damage

2. Important Safeguards

3. Overview

Front side Back side

①

Speaker : Delivers voice to a vistor

②LED Lamp

③Call Button : Calls the resident

④

MIC : Delivers voice from a vistor

⑤

Mounting Holes

⑥

Wires : Connect with the phone in the residence

1. Fix product by adjusting the holes on the wall

and hanging[FIG-1]

2. Connect the wire to the door phone by adjust-

ing polariry as shown on the figure

(#1:RED/ #2:BLUE )

3. Fix by using bolts and a wrench and put in a

rubber cap

4. Wiring & Installation

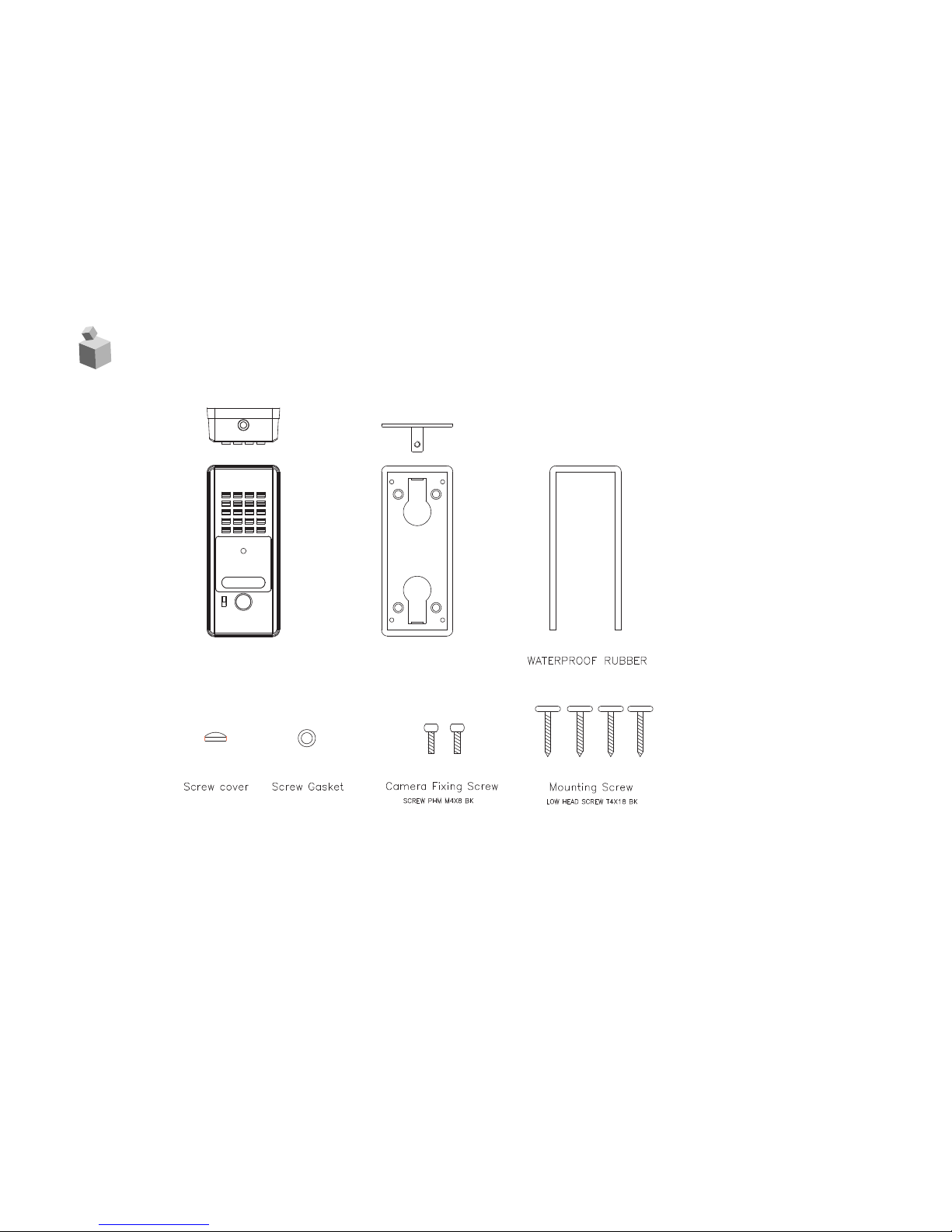

5. Package

6. Specification

DR-2PN

Communication method

Rated voltage

Wiring Method

Operation Teperature

External Dimensions(mm)

Weight(g)

Full Duplex

9V (supplied from the DOOR PHONE)

DOOR PHONE 2-wire system

-10℃~ +40℃

50.2(W)×118(H)×52(D)mm

300g

specification

Model

Printed In Korea / 2011.07.105

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
