Comfee CDC22P4AWW Manual de usuario

Please read this manual carefully

before using your dishwasher,

and keep it for future reference.

MODEL CDC22P4AWW

)UHHPRQWKV

HxWHQVLRQRIWKH

RULJLQDOOLPLWHGZDUUDQW\

SHULRG6LPSO\WH[WD

SLFWXUHRI\RXUSURRIRI

SXUFKDVHWR



7KHZDUUDQW\H[WHQVLRQLVIRUWKH

WKUHHPRQWKVLPPHGLDWHO\IROORZLQJ

WKHFRPSOHWLRQRIWKHSURGXFW¶V

RULJLQDOZDUUDQW\SHULRG

QUICK USER GUIDE

Starting A Wash

1Discard scraps

Scrape large food particles off and

remove any foreign objects.

2Load dishes carefully

For better washing result, place the

dishes properly avoiding any contact

or overlapping between them.

3Check spray arm

Ensure there are no items blocking

the spray arm from rotating.

Add detergent

65 Set up program and function

Choose the proper program and

function.

Start washing

Inside Outside

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using your dishwasher, follow basic

precautions, including the following

a) Read all instructions before using the dishwasher.

b) Use the dishwasher only for its intended function.

c) Use only detergents or wetting agents recommended

for use in a dishwasher and keep them out of the reach

of children.

d) When loading items to be washed

1) Locate sharp items so that they are not likely to

damage the door seal;

2) Load sharp knives with the handles up to reduce the

risk of cut-type injuries.

e) Do not wash plastic items unless they are marked 

dishwasher safe or the equivalent. For plastic items not

so marked, check the manufacturers recommendations.

NOTE: This statement may be omitted for an appliance

that employs a heating element that is located or

guarded such that melted plastic items are not likely to

contact it.

f) Do not touch the heating element during or I

mmediately after use.

g) Do not operate your dishwasher unless all enclosure

panels are properly in place.

h) Do not tamper with controls.

I) Do not abuse, sit on, or stand on the door or dish

rack of the dishwasher.

j) To reduce the risk of injury, do not allow children to

play in or on a dishwasher.

k) Under certain conditions, hydrogen gas may be

produced in a hot-water system that has not been used

for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.

If the hot-water system has not been used for such a

period, before using the dishwasher turn on all

hot-water faucets and let the water flow from each for

several minutes. This will release any accumulated

hydrogen gas. As the gas is flammable, do not smoke

or use an open flame during this time.

l) Remove the door to the washing compartment when

removing an old dishwasher from service or discarding it.

m) This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

supervision.

SAVE THESE INSTRUCTIONS

WARNING

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock. Check

with a qualified electrician or service representative if

you are in doubt whether the appliance is properly

grounded.

Do not modify the plug provided with the appliance,

if it will not fit the outlet, have a proper outlet installed

by a qualified electrician.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a

malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least

resistance for electric current. This appliance is equipped

with a cord having an equipment-grounding conductor

and a grounding plug.

The plug must be plugged into an appropriate outlet

that is installed and grounded in accordance with all

local codes and ordinances.

For disposing of package and the appliance

please go to a recycling centre. Therefore

cut off the power supply cable and make

the door closing device unusable.

Cardboard packaging is manufactured from

recycled paper and should be disposed in the waste

paper collection for recycling.

By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the

environment and human health, which could otherwise

be caused by inappropriate waste handling of this

product.

For more detailed information about recycling of this

product, please contact your local city office and your

household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted

municipal waste. Collection of such waste separately for

special treatment is necessary.

DISPOSAL

PRODUCT DESCRIPTION

To get the best performance from your dishwasher, read all operating instructions

before using it for the first time.

IMPORTANT:

Part Names

Front

Back

Drain pipe

interface

Inlet pipe interface

Power cable

Top of inner tank

Lower spray arms

Filter

Detergent

adding receptacle

Middlesprayarm

Suction pipe

interface

Upper basket Lower basket

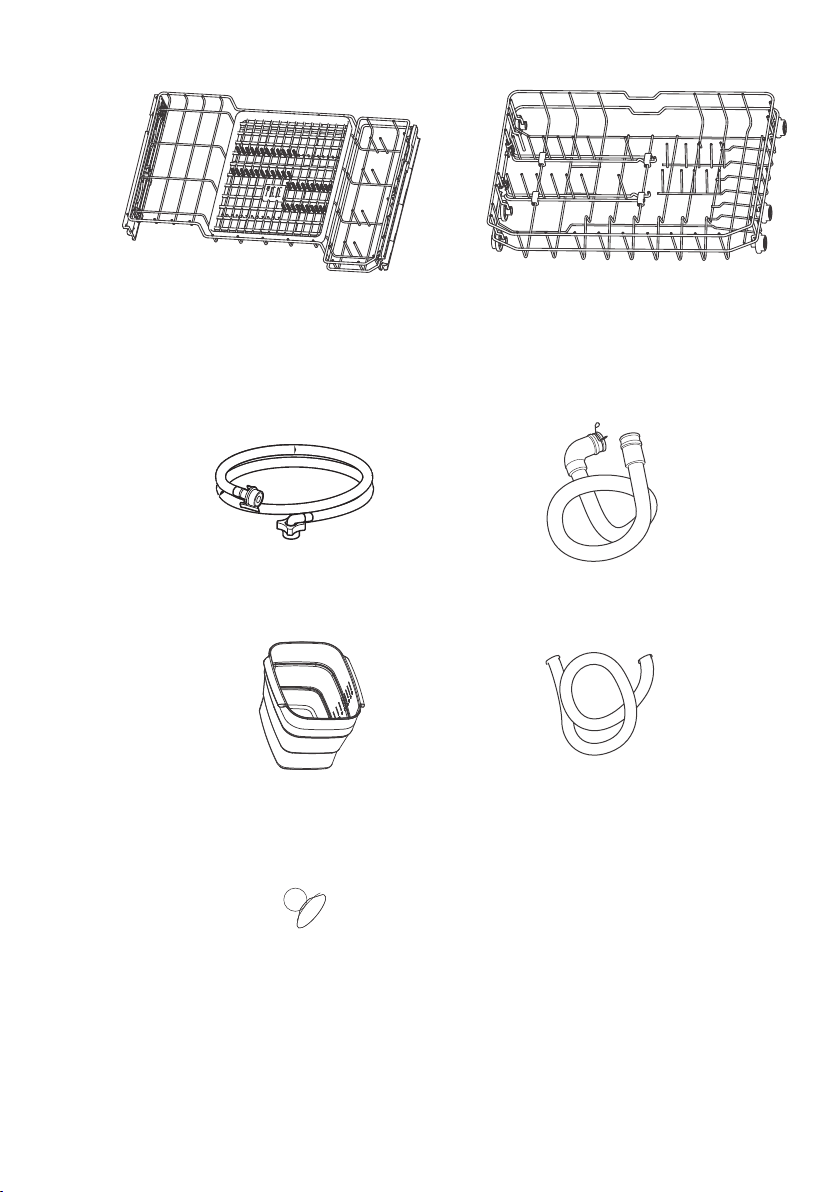

List of accessories(PROVIDED)

Drain-pipe ( X1 )

Inlet pipe ( X1 )

Bucket Pipe ( X1 )

Suction Cup ( X1 )

Water Supply Bucket (X1)

Control Panel

Power

1Press this button to turn on your dishwasher, the screen will

light up.

Press these buttons to select the appropriate washing program,

the selected program icon will light up.

2Cycles

NORMAL

For soiled dinner dishes and silverware. normally

Use to sanitize your dishes and glassware.

HYGIENE

58MIN WASH

For soiled loads that need quick wash.lightly

RAPID

A shorter wash for lightly soiled loads that do not need drying.

SELF CLEANING

This program provides an effective cleaning of the dishwasher

itself.

HEAVY

For hard-to-clean, heavily soiled dishes, pots and pans.

CHILD LOCK

This option allows you to lock the buttons on the control panel,

so children cannot accidently start the dishwasher by pressing

the buttons on the panel. Only the Power button remains active.

To lock or unlock the buttons on the control panel, press and

hold the button for 3 seconds.

1 2 3 45

3Options

DELAY

Press the button to increase the delay start time. Delay a cycle for

up to 24 hours in one-hour increments.

START-Press this button to start the dishwasher, the lamp will keep

light when the dishwasher is running.

-If you need to pause a cycle in process, open the door PAUSE

slightly and wait a few seconds until the wash action stop.

And the lamp will be blinking.

-Press and hold Start/Cancel button for 3 seconds to CANCEL

cancel a cycle when the dishwasher is running.

4Start/Cancel

AUTO OPEN

The dishwasher door opens automatically at the end of the

program, which improves the drying performance.

Press the button for 3 seconds to select this function.

Screen

WATER FAUCET

If you use a tap to get in the water, the   indicator is lit, it

means the water faucetclosed.

If you use the self-priming pump to get in the water, the  

indicator is blinking, it means that there is shot of water in the

bucket. The machine will enter into a pause state.Please add

enough water to the bucket and press the Start/Cancel button.

The machine will continue to run.

Displays the remaining time and delay time, program

error codes etc.

3Options
