Combi EGGSHOCK Manual de usuario
Combi Child Car Seat
THE S ISOFIX EGGSHOCK
Before Use
Using Each Part
Installing to and
Uninstalling from
the Vehicle
User Manual
This product is an ISOFIX child car seat for specific vehicles,
and is certified according to the UN R129/03 standard.
●This product can be installed to vehicle seats approved
for installation of ISOFIX child car seats.
However, this does not mean that this child car seat can
be installed to any vehicle seat equipped with ISOFIX
anchors (bars). When using the child car seat, always
check the vehicle compliance and check the user manual
of the vehicle.
●Applicable child height and weight: Heights up to 105 cm or
weights up to 19.0 kg．
For the safety of the child, please read this user manual
carefully before use and use the child car seat properly.
To avoid causing stress to the child, avoid continuous
long-time usage and give the child a break from the
child car seat about once every hour.
● Store this user manual in the storage pocket of the
base cover.
Maintenance and
Other
Do not use forward facing before the child’s age exceeds
15 months or before the child’s height exceeds 76cm.
DANGER
CAUTION
Before Use
1
Before Use
Before Use …………………………………………… 2
Name of parts ………………………………………… 3
Use conditions ………………………………………… 7
Applicable vehicle seats ……………………………… 9
Inapplicable vehicle seats ……………………………10
For safe use of the child car seat ……………………11
Using Each Part
Using the reclining function …………………………17
Rotating the seat ………………………………………18
Installing and removing the seat ……………………19
Adjusting the baby shoulder belt position …………21
Seating the child ………………………………………23
Unseating the child ……………………………………26
Installing to and Uninstalling from the Vehicle
Preparation of installation …………………………… 27
Installing to the Vehicle ……………………………… 29
Checklist after installation …………………………… 32
Uninstalling from the vehicle ………………………… 33
Maintenance and Other
Using the inner cushion ……………………………… 35
Using the canopy ……………………………………… 37
Attaching and removing the covers ………………… 40
Maintenance method ………………………………… 43
Storage and disposal ………………………………… 44
Contents
Before Use
2
Thank you for purchasing this Combi child
car seat.For the safety of the child, please
read this user manual carefully before use
and use the child car seat properly.
The child car seat is designed to reduce
injury to the child in case of traffic accident,
etc. However, there is no guarantee that the
child car seat can completely protect the
child from injury. A child using the child
car seat must be accompanied by an adult.
Labels
The descriptions in this manual use the labels DANGER,
WARNING and CAUTION to indicate important items for
safe and proper use of the child car seat. These are very
important items that indicate the potential consequences
if not followed properly, and are categorized according to
the level of severity. Always make sure to follow these items.
Before Use
Label Label contents
DANGER
Improper handling will result in imminent
risk of death or serious injury.
WARNING
Improper handling may result in death or
serious injury.
CAUTION
Improper handling may result in injury or
damage to property.
Useful hints for using the child car seat.
<Use of the second-hand product>
·DO NOT use the product with unknown use
history, especially the product with unknown
accident history.
·If there are cracks, large scratches, or loose
fasteners on the product, do not use it. Strong
impacts may be caused due to a collision or
drop of the product.
Before Use
3
Name of parts
Check that all parts are present before use.
Store the receipt (proof of purchase) together with this manual.
Package contents
※This manual uses simplified illustrations to help
users easily understand operation and handling,
and there may be slight differences from the
actual product.
Main body Inner cushion
Base cover
User manual
(this manual)
ISOFIX insertion guide
Canopy
Before Use
4

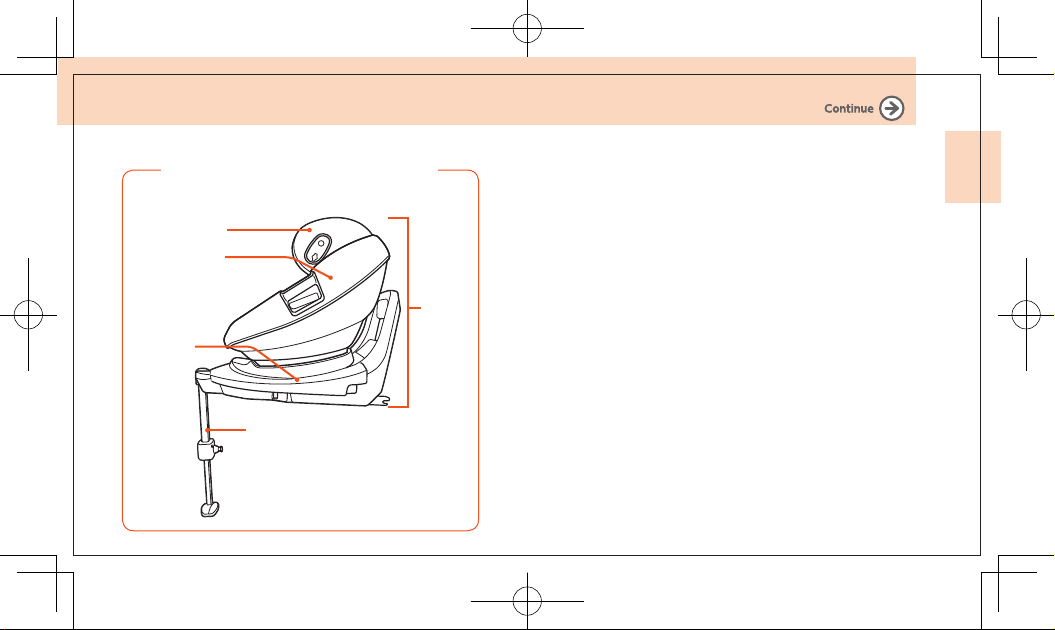

Supporting leg
Base
Seat
Main
body
Head guard
The terms“ main body,”“ seat,”“ head
guard,” “base,” and “supporting leg”
refer to the parts shown below.
Before Use
5
Name of parts
Front
Length adjustment button
Supporting leg base
Insert tongue
Buckle
Reclining adjustment
lever
Head guard adjustment
lever
Baby belt
adjustment
button
Adjustment belt
Revolving
release
lever
Before Use
6
Side Back
Product name/
Lot No. sticker
Base cover
User manual
storage pocket
Seat release lever
Connector adjustment lever
Connector
Lock release
button
Connector
release lever
Before Use
Rearward Facing (installation facing rearward relative to driving direction)
Applicable child height Use conditions for inner cushion
Height 40cm Height 87cm Height from 40cm to less than 65cm
Always use.
Height from
65cm to 87cm
Do not use.
Baby shoulder belt position
Adjust the baby shoulder
belt so that it is at or below the
shoulder height.
This section describes how to determine the installation direction and use the inner cushion according to the child’s height.
Same
Below
Above
7
Use conditions
Be sure to attach
the inner cushion
correctly and
make it fit the
child's body
completely
before use.
WARNING
Forward facing (installation facing forward relative to driving direction)
Applicable child height Use conditions for inner cushion
Age 15 months old and
height 76cm or more
Height 105cm or less
or weight 19.0 kg or less
Do not use.
Baby shoulder belt position
Adjust the baby shoulder belt
so that it is at or slightly above
the child’s shoulder height.
Do not use forward facing before the
child’s age exceeds 15 months or
before the child’s height exceeds 76cm.
DANGER
Same
Below
Above
Before Use
8
Before Use
9
Applicable vehicle seats
This child car seat can be installed to vehicle seats
approved for installation of ISOFIX child car seats.
However, this does not mean that the child car seat
can be installed to any vehicle equipped with ISOFIX
anchors (bars).
When using the child car seat, always check the vehicle
compliance and check the user manual of the vehicle
to make sure the ISOFIX size classes noted below are
supported.
ISOFIX anchoring system
ISOFIX anchors are metal fixtures (bars) provided
between the vehicle backrest and seat in order
to install an ISOFIX child car seat. The name and
position may differ according to the vehicle, so always
check the user manual of the vehicle.
Child car seat facing Anchors
Rearward facing R1, R2, R3
Forward facing F3
ISOFIX size classes of this product
ISOFIX
anchor (bar)
※While using forward facing, it may not be suitable to all vehicles
for installation unless the backrest is the most upright.
