Codesoft TM-15 Series Manual de usuario
Rev.A
TM-15 Series
Touch Screen LCD Monitors
USER’s GUIDE
The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be reproduced,translated to another language
or stored in a retrieval system, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission. Windows is a registered
trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective
holders.
The test results show that this device meets the FCC rules. Those limits are set to protect
residential areas from the devices with harmful emission. This device will produce, use and
radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use
this device might produce harmful interference with radio communication. Not withstanding
the foregoing, it does not guarantee that this type of harmful interference does not occur in
some special installations. The interference caused by this device to the reception of radio
or television signals may be veried by turning it on and off. Any changes or modications to
this TFT LCD would void the user’s authority to operate this device.
Table of Contents
Usage Notice
Precautions............................................................................................................................. 1
Introduction
About TM-15 Series................................................................................................................ 2
Touch Screen for TM-15 ......................................................................................................... 3
Package Overview ................................................................................................................. 4
Installation
Product Overview ................................................................................................................... 5
Front View ........................................................................................................................ 5
Bottom View (Without Stand) ........................................................................................... 5
Kensington Security Slot ........................................................................................................ 6
VESA Mount for Your Monitor................................................................................................. 7
Start Your Installation.............................................................................................................. 8
Connecting the Display (Figure 10.1)..................................................................................... 9
(Figure 10.1).................................................................................................................... 10
Remove the Deskstand .........................................................................................................11
User Controls
Front Panel Controls............................................................................................................. 12
How to Use the OSD Menus ................................................................................................ 13
On-Screen Display Menus.................................................................................................... 14
Appendix
Troubleshooting.................................................................................................................... 15
Warning Signal ..................................................................................................................... 16
No Signal........... ..............................................................................................................16
Going to Sleep................................................................................................................. 16
Out of Range ................................................................................................................... 16
Product Dimensions ............................................................................................................. 17
Compatibility Modes ............................................................................................................. 18
Touch Screen Driver Installation........................................................................................... 19
Optional Calibration Tool Install ........................................................................................ 19
Driver Install Instructions .................................................................................................. 20
Usage Notice
! Warning - To prevent the risk of re or shock hazards, do not expose
this product to rain or moisture.
! Warning - Please do not open or disassemble the product as this may
cause electric shock.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit.
Do:
• Turn off the product before cleaning.
• Touch screen surface may be cleaned using a soft clean cloth moistened with mild window
glass commercial cleaners or 50/50 mixture of water and isopropylalcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not going to be used for an
extended period of time.
Don’t:
• Do not touch the LCD Display screen surface with sharp or hard objects.
• Do not use abrasive cleaners, waxes or solvents for your cleaning.
• Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
1
Introduction
About TM-15 Series
The TM-15 Series is a 15" at panel screen with an active matrix, thin-lm transistor (TFT)
liquid crystal display (LCD).
This unit is to be used as commercial and light industrial equipment only.
Features include:
• Direct Analog signal input
• Active matrix TFT LCD technology
• 1024 x 768 XGA resolution
• 15" viewable display area
• 31.47 ~ 60.02 KHz horizontal scan
• 56 ~ 75 Hz high refresh rate
• 0.297mm x 0.297mm pixel pitch
• Auto adjustment function
• Multilingual OSD user control
• Kensington security slot
• 100 mm VESA mount
• Removable base for exible mounting solutions.
• 5-wire resistive touch screen with USB controller.
2
3
Touch Screen for TM-15
• 5-wire resistive touch screen for nger and stylus input
• Surface: Anti-glare treatment
• Interface: USB controller
• Transmittance: 82%±5%
• Driver: Windows® 7, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux,
Apple®Mac OS
4
Package Overview
LCD Display Power Cord VGA Signal Cable
USB Cable ( A to B) Quick Start GuideTouch Driver CD
DC Power Supply
Installation
Product Overview
• Front View
• Bottom View (Without Stand)
5
DC IN
USB
POWER SWITCH
VGA
Kensington Security Slot
The monitor can be secured to your desk or any other xed object with Kensington lock
security products. The Kensington lock is not included.
6
VESA Mount for Your Monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard
which denes a physical mounting interface for at panel monitors, and corresponding with
the standards of at panel monitor mounting devices, such as wall and table arms. The VESA
mounting interface is located on the back of your monitor.
To mount the monitor on an UL-listed certied swing arm or other mounting xture, follow the
instructions included with the mounting xture to be used.
! Warning!
Please select the proper screws!
The distance between the back cover surface and the bottom of the screw hole
is 11 mm. Please use four M4 screws diameter with proper length to mount your
monitor.
Please note: the mounting stand must be able to support at least 11 lbs ( 5Kg).
7

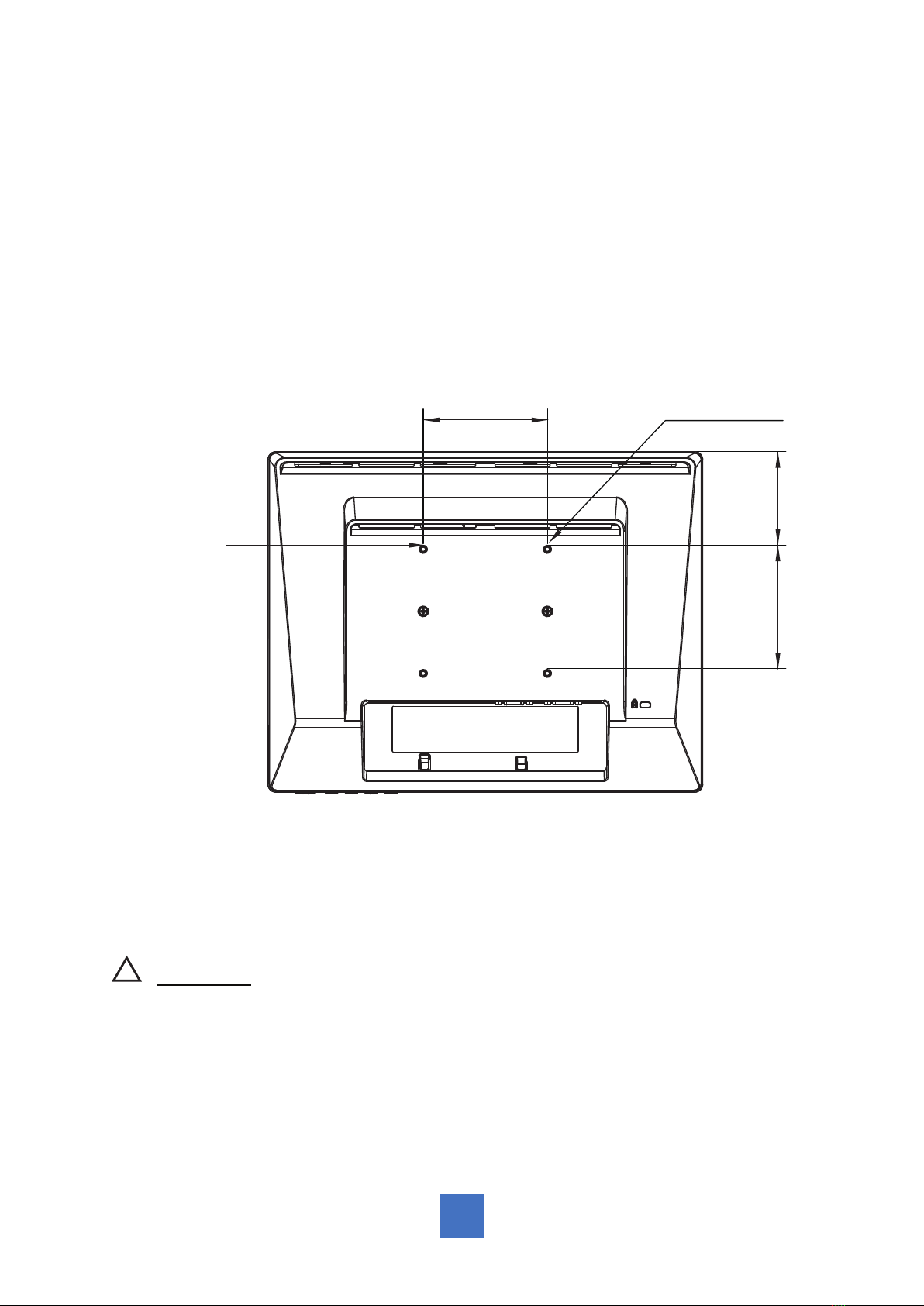

VESA
Mounting
Interface
100.0
Slots (x4)
100.0 75.0
