Coby CSTV-130 Manual de usuario

Wireless TV Speaker

Altavoz de TV inalámbrico

User Manual Manual de Usuario

CSTV-130

EN ... 01

...

In the box

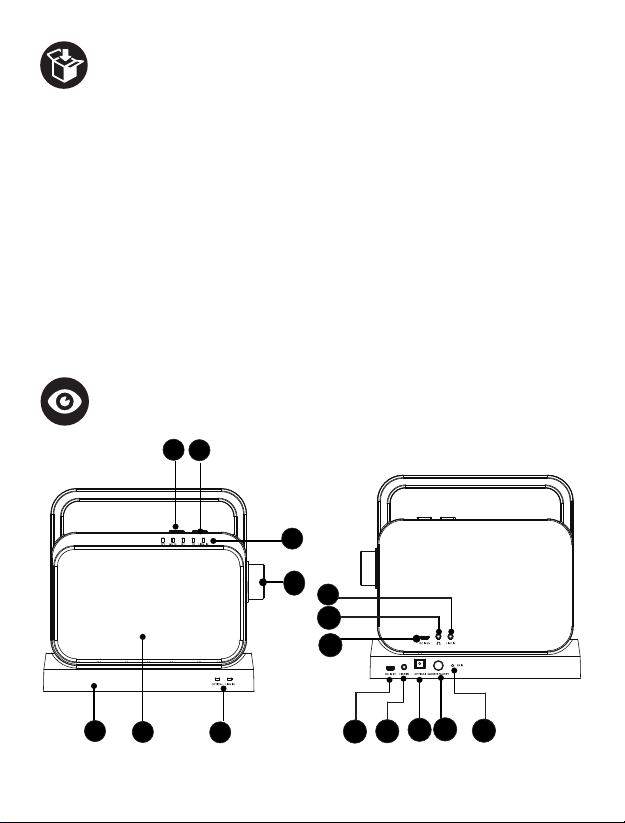

Overview

• 1 x CSTV-130 Wireless TV Speaker

• 1 x Speaker Dock

• 1 x AC Power Adapter

• 1 x RCA Cable

• 2 x Micro USB Cable

• 1 x Optical Cable

• 1 x AUX Cable

• 1 x User Manual

12 14 15

EN 1

Dock

TV Speaker

Dock LED Indicators - Indicates status of the Dock.

Power/Volume Knob - Turns the Speaker on/o and adjusts

volume level.

Speaker LED Indicators - Indicates status of the Speaker,

including 5 LEDS to indicate battery status, Mute Mode, Blue-

tooth mode, TV mode, Aux In mode.

Mode Button (Speaker) - Press repeatedly to toggle between

the Speaker’s Bluetooth mode, TV mode and Aux In mode.

Mute Button - Press to mute or resume sound for playback.

3.5 mm AUX Input Jack (Speaker) - For playing music from

headphone output or AUX Output of another device.

Headphone Output Jack - For listening TV audio with headphones.

Speaker Micro USB Charging Port -

For charging the Speaker.

Dock Power Input Port (Micro USB)-

Power input for the Dock.

3.5 mm AUX Input Jack (Dock) - For playing music from the

headphone output or AUX Output of another device.

Optical Input Port - Alternate connector to TV audio.

Mode/Standby Button (Dock) - Press repeatedly to toggle

between TV Mode and Aux In Mode, press and hold to enter

Standby Mode, the LED Indicator light of the dock will ﬂash

slowly and the speaker sound will be muted. You can press

and hold this button again to resume Speaker sound.

Pair/Unpair button - For manually pairing the Speaker with

the Dock or disconnecting the Speaker with the Dock.

EN 2

Charging your Speaker

Method 1. Connecting to an AC Power source

Step 1. Connect the included power adapter to the USB end of the

included Micro USB cable.

Step 2. Plug the Micro USB end of the connected AC power cable to

the Speaker Micro USB Charging port, or to the Dock Power Input

Port and place the TV Speaker onto the Dock with the two metal pins

aligned.

Step 3. Plug the other end of the power cable to an AC power source

to begin charging.

There are two methods for charging the TV Speaker.

AC power

source

AC power

source

Dock Power

Input Port

Speaker

Micro USB

Charging port

Power

Adapter

(Included)

USB Cable

(Included)

EN 3

Method 2. Connecting to a USB power source

Step1. Connect one end of the included Micro USB Cable to the

Speaker Mirco USB Charging Port, or to

the Dock Power Input Port

(5V, Micro USB Port) and place the TV Speaker onto the Dock.

Step 2. Connect the other end of the cable to a USB power source

to begin charging.

Battery status indication on Speaker LED

Slowly ﬂashing green

Steady red

O

Charging

Fully charged

Low battery power

Dock Power

Input Port

Speaker

Micro USB

Charging port

USB power source

Note: Some TVs come with USB power output port, you can also direct-

ly plug the USB end of the included Micro USB cable into the TV’s USB

port to charge the speaker. Make sure your TV’s USB power output is

5V/1A so that it can power the dock on, refer to your TV’s user manual.

EN 4

Powering On/Off

Pairing your Speaker and the Dock

To power on the Speaker, turn the Power/Volume button clockwise

until you hear a click.

To power o the Speaker, turn the Power/Volume button counter

clockwise until you hear a click.

AUX

1. Power the Speaker on/o

2. Power the Dock on/o

When the Speaker and Dock are both powered on, they will pair

together automatically. If they are successfully paired, you will

hear the sound for the audio playback from the TV speaker while

you connect the dock to an audio source.

EN 5

To power on the dock, connect the supplied charging cable to the

DC 5V Power Jack of the Dock and to an power source. If the Dock

is powered on, the Dock LED Indicator will light up.

To power o the Dock, disconnect the charging cable from the

power source.

To set the Dock to Standby Mode, press and hold the Mode/Standby

Button on the Dock until the Dock LED Indicator slowly ﬂashes.

TV or DVD player

Optical Cable

Rubber

protector nubs

The Optical

Port of the

Dock

Optical Port

Connect to the Optical port of the Dock through an optical cable

Connections

Step 1. Pull out and remove the rubber protector nubs on both ends

of the supplied Optical Cable.

Step 2. Connect the included Optical Cable to the Optical Port of the

Dock and to your TV’s Optical Port.

Step 3. Press the MODE Button on both the Speaker and Dock to sel

ect TV Mode, the TV LED Indicator on both the Speaker and Dock

will turn orange.

Step 4. Make sure the audio settings on your connected TV are set to PCM

or Optical audio format.

Note: If your TV has the sound settings set to Dolby

or another format, your Speaker may not function properly. You must change

the sound output to PCM or Optical audio. Refer to your TV’s user manual.

There are four methods available for connecting the TV speaker, you

can use any of the connection methods listed down to connect the

TV speaker to your desired audio source.

EN 6

RCA Audio

Out Ports

Connect to the Line In port of the Dock through an AUX

cable or AUX+ RCA cable

AUX Cable

RCA Cable

The Line In Port

of the Dock

The Line In Port

of the Dock

Step 1. Connect one end of the included AUX Cable to the Line In (AUX

In) port of the Dock and to the Headphone Output or AUX Out port of

your device (Like your TV, DVD player, smart phone, laptop etc.).

AUX Out

Port

If your TV or DVD player has RCA Audio Out ports, you can use

the included RCA cable (Red colored connector for right audio

channel, white colored connector for left audio channel) to connect

with the AUX cable, as shown in the following ﬁgure below.

EN 7

TV or DVD player

The Line In Port

of the Speaker

Connect to the Line In port of the Speaker through an

AUX cable or AUX+ RCA cable

Step 3. Make sure the audio settings on your connected TV are set

to PCM or Optical audio format.

Step 2. Press the Mode Button repeatedly on the Dock to select

Line In Mode and on the speaker to select TV Mode, the Line In LED

Indicator on the Dock will turn green, the TV LED indicator on the

speaker will turn orange.

AUX Cable

Headphone

Output Port

Smart

phone

Step 1. Connect one end of the included AUX Cable to the Line In (AUX

In) Port of the Speaker and to the Headphone Output or AUX Out port

of your device (Like your TV, DVD player, smart phone, laptop etc.).

EN 8

If your TV or DVD player has RCA Audio Out ports, you can use the

included RCA cable (Red colored connector for right audio channel

port, white colored connector for left audio channel port) to connect

with the AUX cable, as shown in the following ﬁgure below.

RCA Audio Out

Ports

RCA Cable AUX Cable

The Line In Port

of the Speaker

Step 2. Press the Mode Button repeatedly on the Speaker to select

Line In Mode, the Line In LED Indicator on the Speaker will turn green.

Note: When an AUX cable is connected, it will automatically

unpair from any actively paired Bluetooth® device.

EN 9

TV or DVD player
