CNPOS ® USER MANUAL
Content
Introduction.......................................................................................................................................................... 1
Chapter 1 Feature and Performance............................................................................................................... 1
1.1 Print Performance ........................................................................................................................................ 1
1.2 Print Paper .................................................................................................................................................... 2
1.3 Print Font....................................................................................................................................................... 2
1.4 Interface......................................................................................................................................................... 2
1.5 Print Control Commands............................................................................................................................. 3
1.6 Power Supply................................................................................................................................................ 3
1.7 Operation Environment ............................................................................................................................... 3
1.8 Outline Dimension........................................................................................................................................ 3
1.9 Model classification...................................................................................................................................... 3
Chapter 2 Operation Specification ................................................................................................................... 4
2.1 Printer Appearance...................................................................................................................................... 4
2.2 Paper Installation.......................................................................................................................................... 5
2.2.1 Paper Loading................................................................................................................................... 5
2.2.2 Solution to Paper Jam...................................................................................................................... 6
2.3 Interface......................................................................................................................................................... 6
2.3.1 Ethernet Interface............................................................................................................................. 6
Fig.2-2 Ethernet interface ................................................................................................................. 7
2.3.2 USB Interface.................................................................................................................................... 7
2.3.3 Cash Drawer Interface..................................................................................................................... 7
2.3.4 Power Connection............................................................................................................................ 8
2.4 Buttons and Indicators................................................................................................................................. 9
2.5 Power on status.......................................................................................................................................... 11
2.6 Self-test........................................................................................................................................................ 11
2.7 Hexadecimal Printing................................................................................................................................. 12
2.8 Parameter Setting ...................................................................................................................................... 13
2.9 Enter the program upgrade mode............................................................................................................ 14
Appendix A......................................................................................................................................................... 15
CNPOS ® USER MANUAL
1
Introduction
POS890 printer is a new type line thermal printer, it features in fast speed print, low
print noise, high reliability, perfect print quality and ribbon needless, avoiding the
vexation of regular maintenance.
POS890 printer: small in outline dimension, simple operation, and extensive
application, especially suitable for commercial cash register, PC-POS, bank POS
and all kinds of receipts print.
Warning
This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.
Chapter 1 Feature and Performance
1.1 Print Performance
● Print method: direct thermal
● Print paper width: 79.5±0.5mm
● Print density: 8 dots/mm, 576 dots/line
● Print speed: max 220mm/s
● Reliability
(1) Print head life: 100km
Using condition:
＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print
repeatedly
＊Use specified thermal paper
CNPOS ® USER MANUAL
2
(2) Cutter life: 1000,000 cuts
Using condition: less than 30 cuts/minute
● Valid print width: 72mm
1.2 Print Paper
● Thermal paper roll model: TF50KS－E (Japan paper co.ltd)
AF50KS-E (JUJO THERMAL)
● Thermal paper roll: Width－－－ 79.5±0.5mm
Outer Diameter －－－ 80mm (max.)
Inner Diameter－－－13mm (min.)
Thickness －－－ 0.06mm～0.08mm
1.3 Print Font
● ANK Character Set
12×24 dots,1.5（W）×3.00（H）mm
● GB GB2312-80(Chinese):
24×24 dots,3.00（W）×3.00（H）mm.
1.4 Interface
● Ethernet Interface: Normal Ethernet interface.
● USB Interface:USB interface
● Cash Drawer Control
DC24V, 1A, 6-pin RJ-11 socket.
CNPOS ® USER MANUAL
3
1.5 Print Control Commands
● Character print commands: support double-width, double height print of ANK
characters, user-defined characters and Chinese characters, the character line
spacing is adjustable.
● Graphics print commands: support the print of bit-map graphics and download
bit-map graphics with different density
●GS barcode print commands:
support UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93，
CODE128,PDF417,QR code，DATA Matrix code print.
1.6 Power Supply
●DC24V±10％, 2A, A-1009-3P power socket
1.7 Operation Environment
● Operation temperature: 0～50℃; Relative humidity: 10～80％
● Storage temperature: -20～60℃; Relative humidity: 10～90℃
1.8 Outline Dimension
●185(L)mm×150(W) mm×123 (H)mm
1.9 Model classification
Model
Interface
CN-POS890E
Ethernet Interface, USB Interface
CN-POS890US
RS－232C Serial Interface, USB
Interface
CNPOS ® USER MANUAL
5
2.2 Paper Installation
2.2.1 Paper Loading
POS890 adopts 79.5mm±0.5mm width thermal paper roll.
Steps of Loading Thermal Paper are as below:
Hold down the upper cover button on the left side, open the movable upper cover,
draw a certain length of the paper roll, put the paper end on the print head, close the
upper cover and press it downwards lightly.
1. Pay attention to the direction of loading paper,
make the printing surface face to the print head.
2. Please don’t feed or draw the paper forwards or
！Caution!
CNPOS ® USER MANUAL
6
backwards with hands.
3. Keep clean of the print head, avoid to influence
the printing quality.
2.2.2 Solution to Paper Jam
If cutter jam, turn off the power, and turn on again, the cutter will be back to original
position. If paper jam, open the paper strage cover, and take out the paper. If the
cutter can not be back to the original position, open the cover of it, and turn the white
plastic gear by the direction suggestive on the cutter by hand to make the cutter be
back to the original position.
If cutter jam, but hope no loss of data in printer, don’t turn off the power. Get the
cutter back to the original position by the above mentioned method by hand. Then
open the paper cover and take out the paper, close the paper cover. The printer will
recover automatically from Cutting Error.
2.3 Interface
2.3.1 Ethernet Interface

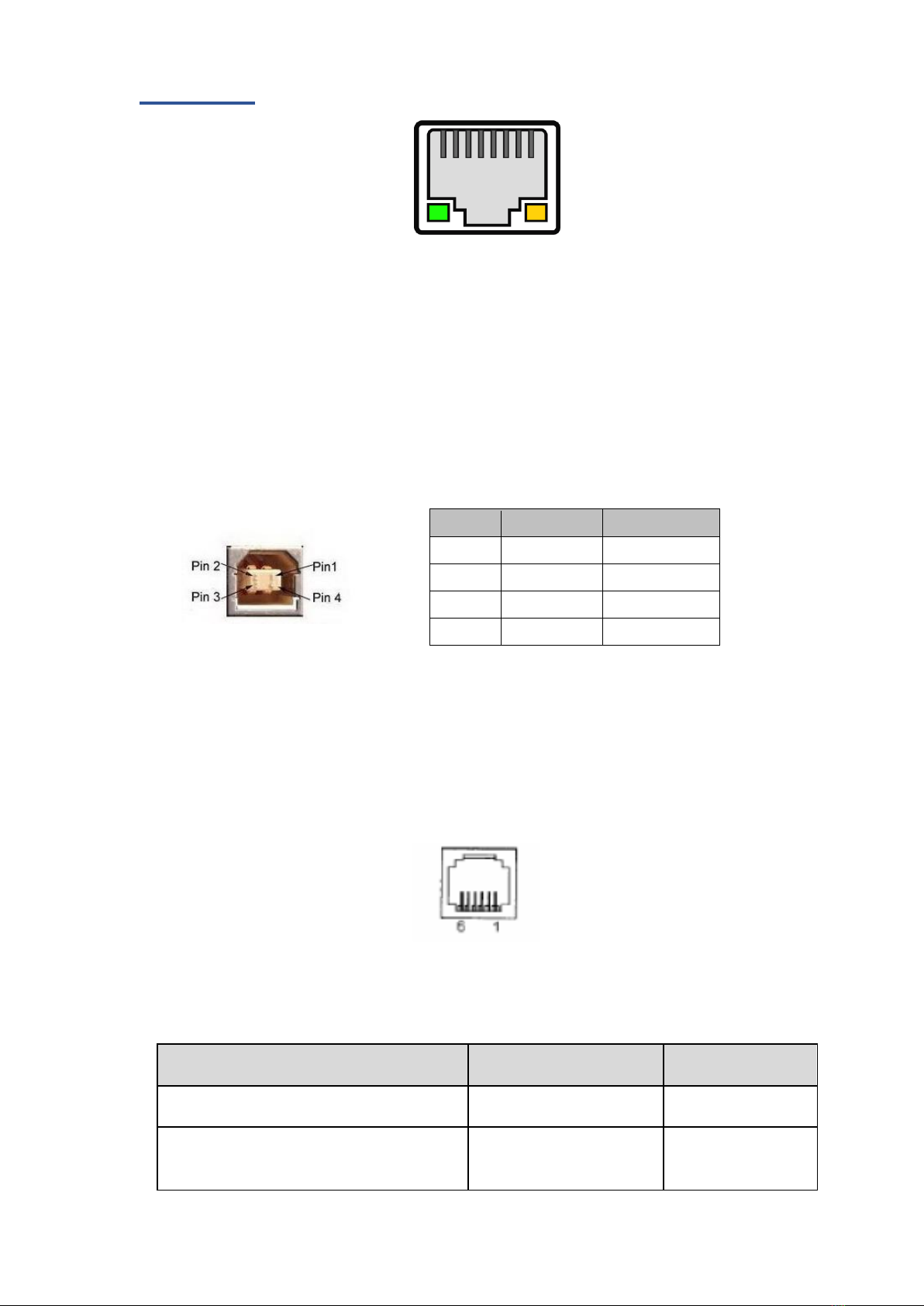

The model with Ethernet interface use RJ45 Network socket. The appearance is as
Fig.2-2 shows:
CNPOS ® USER MANUAL
7
Fig.2-2 Ethernet interface
2.3.2 USB Interface
The standard accessories of POS890 printer includes a Mini USB cable which
connects printer and main device. The USB type belongs to the slave device
type(DEVICE). Pins description of Mini-USB as Fig.2-3 below:
2.3.3 Cash Drawer Interface
The cash drawer interface of POS890 adopts RJ-11 6-pin socket, as Fig.2-5 shows:
Fig.2-4 Cash Drawer Interface
The pin assignment is as below:
Pin No.
Signal
Direction
1
Chassis Ground
——
2
Cash drawer driver
signal 1
Out
Pin
Function
Notes
1
V Bus
Power +5V
2
Data-
Data-
3
Data+
Data-
4
GND
Ground
Fig.2-3 USB interface
CNPOS ® USER MANUAL
8
3
Cash drawer on/off
status signal
In
4
+24VDC
——
5
Cash drawer driver
signal 2
Out
6
Signal ground
——
2.3.4 Power Connection
POS890 uses the external power supply adopter as 24V±10％,2A,
power socket is A-1009-3P model, as Fig. 2-5 shows:
The pin assignment is as below:
Pin No.
Signal
1
+24VDC
2
Ground
3
NC
Fig.2-5 Definition of power socket and pin
