CLIVET WSAT-YSI Manual de usuario

M0NC00002-00

12-20

WSAT-YSi

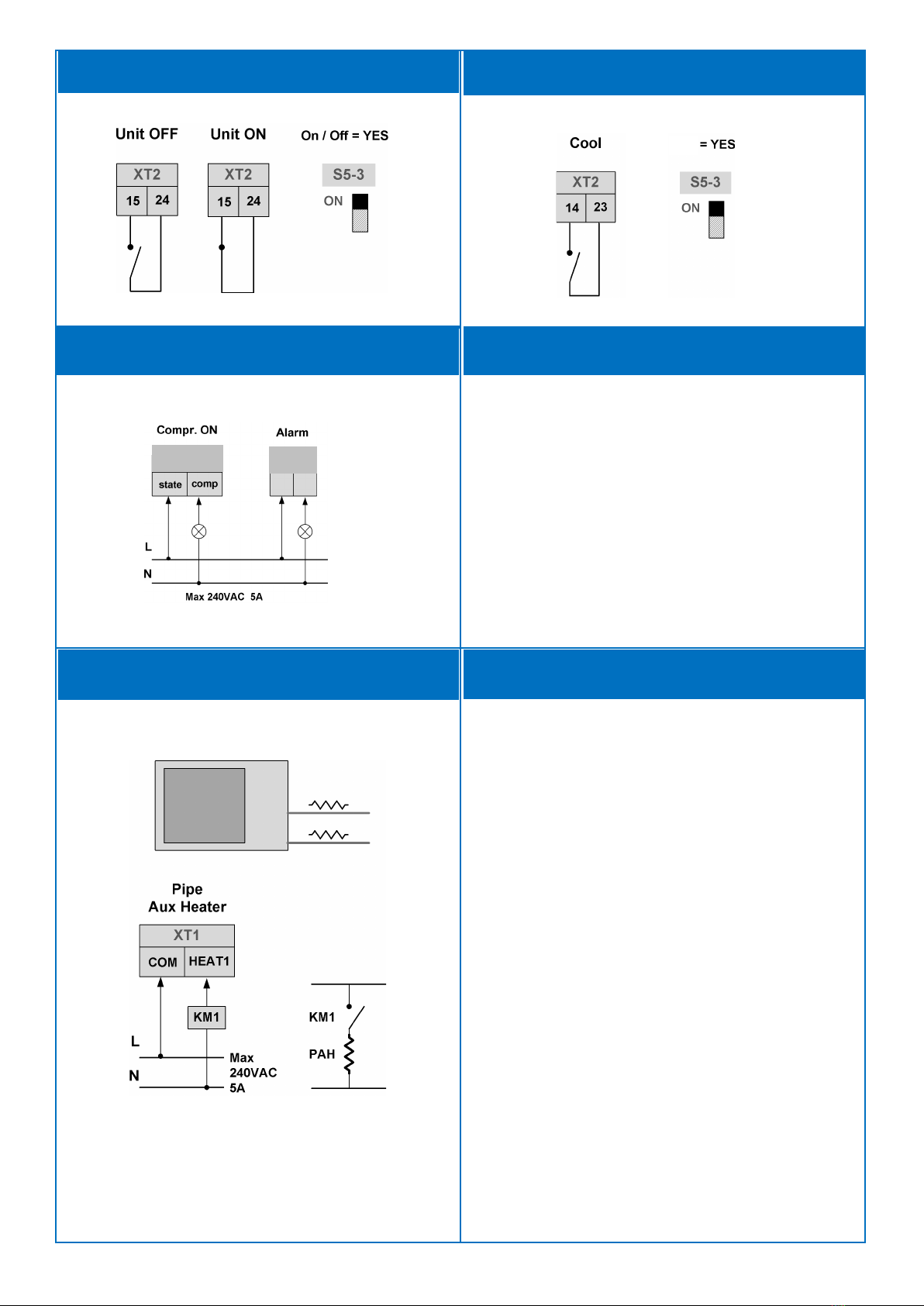

Cool

Anfreeze heater

Signals

Remote On - O

Rapid guide

CN33 CN24

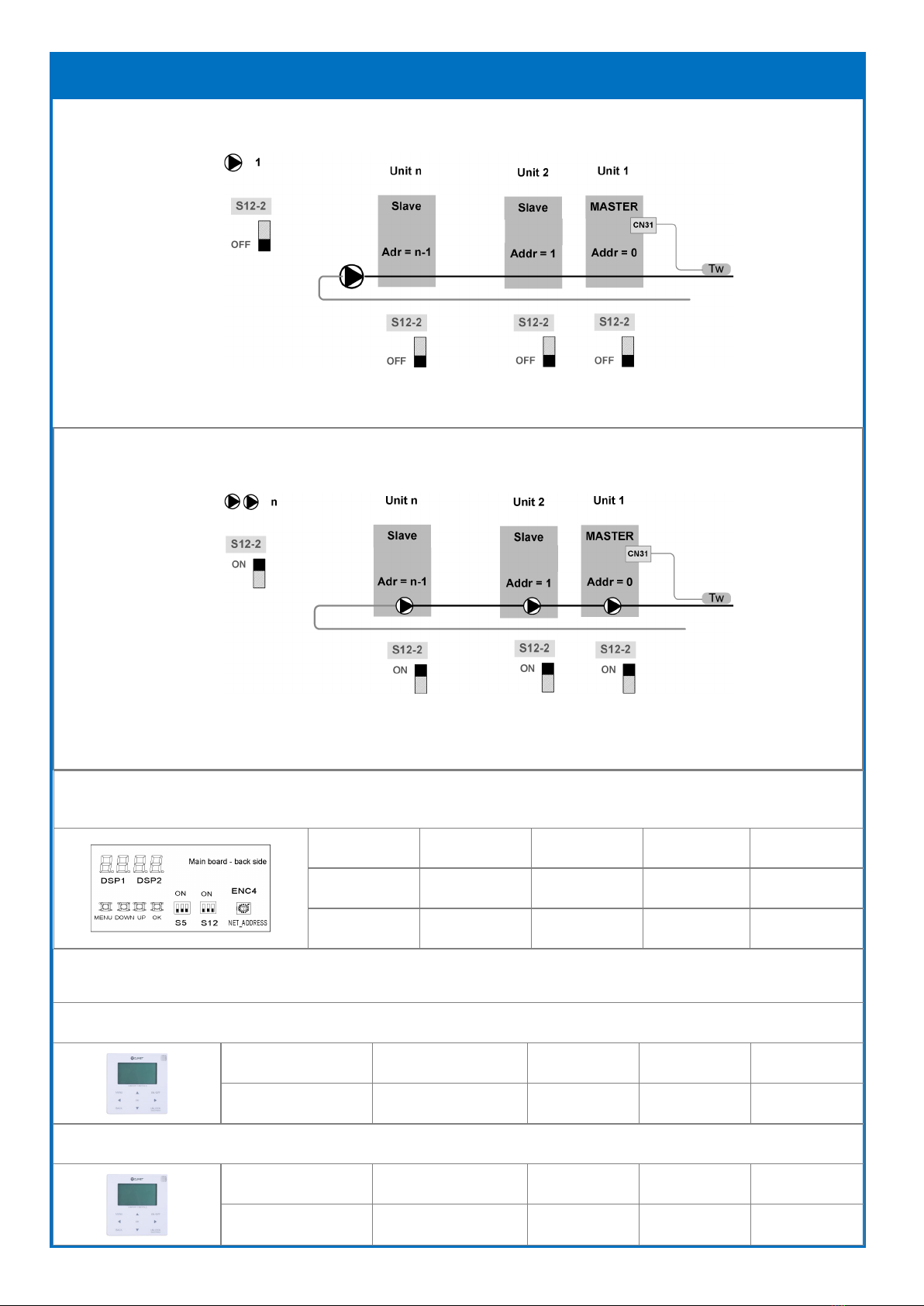

Controller addressing - MENU + ► 3 sec

16 unit max: master unit + 15 slave unit

UNIT 1 - MASTER 2 - Slave 3 - Slave 16 - Slave

Addr. controllo 01215

15 unit max: controller MASTER + 15 unit (1 master + 14 slave)

UNIT Controller master 1 - MASTER 2 - Slave 15 - Slave

Addr. controllo 01215

Modular unit

Unit addressing - ENC4

UNIT 1 - MASTER 2 - Slave 3 - Slave 16 - Slave

Addr. 01215

ENC4 012F

Dear Customer,

We congratulate you on choosing this product

Clivet has been working for years to offer systems able to assure the maximum comfort

for a long time with highly-reliable, efficient, high-quality and safe solutions.

The target of the company is to offer advanced systems, that assure the best comfort

and reduce energy consumption as well as the installation and maintenance costs for

the entire life-cycle of the system.

With this manual, we want to give you information that are useful for all phases: from

reception, installation and use to disposal - so that such an advanced system can

provide the best performances during installation and use.

Best regards and have a good read.

CLIVET Spa

The data contained in this manual is not binding and may be changed by the manufacturer without prior

notice. Reproduction, even partial, is FORBIDDEN. © Clivet S.p.A. - Feltre (BL) - Italia

1Safety considerations 6

2Introduction 10

3Information on refrigerant gas 13

4Before installing 14

5Handling 15

6Selecting the installation site 16

7Installation 19

8Accessing the unit components 21

9Water connections 23

10 Unit in modular configuration 27

11 Electrical connections 29

12 Modbus 35

13 Start-up 40

14 Control 48

15 Troubleshooting 60

16 Maintenance 67

17 Disposal 77

18 Residual risck 78

19 Technical data 80

1 SAFETY CONSIDERATIONS

The precautions in this manual are divided as indicated on the

side.

They are important, so make sure you follow them closely.

Please read these instructions carefully before installing.

Keep this manual handy for future reference.

This unit contains fluorinated gases. For specific information on

gas types and quantities, please refer to the plate found on the

unit.

Please contact your dealer for future assistance.

DANGER



An incorrect installation of equipment or accessories may

provoke electric shocks, short circuits, leaks, fire or other

damages to the equipment. Make sure you only use

accessories provided by the supplier - which are designed

specifically for the equipment - and make sure they are

installed by a professional.



All activities described in this manual must be performed by

authorised technicians. Make sure to wear suitable personal

protection such as gloves and safety goggles while installing

the unit or performing maintenance operations.



Switch off the power switch before touching electrical

components and terminals.



When the service panels are removed, the live parts can easily

be touched by mistake.



Never leave the unit unattended during installation or

maintenance operations while the service panel is removed.



Do not touch the water pipes during and after performing

welding or junction work as the pipes may be very hot and

you may burn your hands. To avoid lesions, wait until the

pipes return to a normal temperature or make sure you are

wearing protective gloves.



Do not touch any switch with wet hands. Touching a switch

with wet hands may lead to electric shock.

WARNING



Maintenance operations must be performed as recommended

by the manufacturer. Maintenance and reparation operations

requiring the assistance from specialized personnel must be

performed under the supervision of the person competent as

regards flammable refrigerants.



Tear and dispose of plastic bags so that children may not

play with them. Children playing with plastic bags risk choking.



Some products use PP packaging straps. Do not pull the

straps or use them to lift or move the product. It may be

dangerous should the straps break.



Dispose safely of packaging material such as nails or other

metal or wooden parts that may cause lesions.



Ask your dealer or qualified personnel to perform installation

operations according to this manual. Do not install the unit

yourself. An incorrect installation may cause water leaks,

electric shock or fire.



Make sure to only use accessories and parts specified for

installation operations. Failing to use specific parts may cause

Meaning of the symbols DANGER,

WARNING, CAUTION and NOTE

DANGER



It indicates a situation of imminent

danger that, if not avoided, will

cause death or serious lesions.

WARNING



It indicates a potentially dangerous

situation that, if not avoided, may

cause death or serious lesions.

CAUTION



It indicates a potentially dangerous

situation that, if not avoided, may

cause slight or moderate injury.

Also used to warn against unsafe

practices.

NOTE



It indicates situation that may

cause accidental damage to the

equipment or property.

water leaks, electric shock, fire or the unit falling from its

support.



Install the unit on a structure that can withstand its weight. An

insufficiently robust structure may lead to the unit falling

causing possible lesions.



Perform installation operations considering the possibility that

strong winds, hurricanes or earthquakes may occur. Incorrect

installation operations may lead to accidents caused by falling

equipment.



Make sure all electrical operations are performed by qualified

personnel in accordance with the law, local regulations and

this manual.



Connect the unit to a separate power supply circuit. An

insufficient capacity of the power supply circuit or incorrect

connections may lead to electric shock or fire.



Make sure to install an additional differential circuit-breaker

against a leakage to earth compliant with the law and local

regulations: omnipolar circuit breaker, at least 3 mm

separation in all poles, residual current device (RCD) with a

rated value not exceeding 30 mA.



Failing to install a differential circuit-breaker may lead to

electric shock and fire.



Make sure all the wiring is safe. Use the specified wires and

make sure terminal connections and wires are protected

against the water, external forces or other phenomena.

Incomplete connections or fixing may cause a fire.



When connecting the power supply, arrange the wires so that

the front panel can be fixed properly. If the front panel is not

in position, it may lead to terminals overheating, electric shock

or fire.



People working or intervening on a cooling circuit must hold a

suitable certification issued by an authorised assessment

centre proving their suitability to handle refrigerants safely in

compliance with a specific assessment recognised by industry

associations.



After installation operations are over, verify that there are no

refrigerant leaks.



Never touch the leaking refrigerant directly, as it may lead to

serious frostbite injuries. Do not touch the refrigerant pipes

during and right after functioning, as they may be hot or cold

depending on the conditions of the refrigerant flowing through

the pipes, compressor and other parts of the cooling circuit.

Burns or frostbite may occur if you touch the refrigerant

pipes. If it is necessary to touch the pipes, wait for them to

return to a normal temperature or wear protective gloves and

clothes.



Do not touch the internal parts (pump, backup heater, etc.)

during and immediately after functioning. Touching internal

parts may cause burns. To avoid lesions, wait until the

internal parts have returned to a normal temperature or, if

touching them is necessary, wear protective gloves.



Do not use other means than those recommended by the

manufacturer to hasten the defrosting or cleaning process.



The equipment must be placed somewhere without continuous

ignition sources (e.g. open flame, a gas-operated device or an

electric heater).



Do not pierce nor burn.

Avvertimento:

Rischio di incendio

Materiali infiammabili



Be aware that refrigerants are odourless.



Place the unit on the ground.



The earth resistance should comply with the law and local

regulations.



Do not connect the earth cable to gas or water mains,

lightning rods or phone earth cables.



Incomplete earthing may cause electrical shocks.

 Gas mains: fires or explosions may occur in case of a gas

leak.

 Water mains: rigid vinyl tubes are not effective.

 Lightning rods or phone earth cables: the electrical threshold

can increase abnormally if hit by lightning.



Install the power supply cable at least one metre from TVs or

radios to prevent interferences or disturbances. Depending on

the type of radio wave, one metre may not be enough to

avoid disturbances.



Do not wash the unit as it may cause electric shocks or fires.



If the power supply cable is damaged, it must be replaced by

the producers, personnel from its assistance network or

qualified personnel.



Do not install the unit in the following places:

 Where there is mineral oil, even in form of vapour. Plastic

parts may deteriorate, disperse and cause water leaks.

 Where corrosive gases (such as sulphurous acid) are

produced.

 Where the corrosion of copper pipes or welded parts may

cause refrigerant leaks.

 Where there are devices emitting electromagnetic waves.

Electromagnetic waves may disturb the control system and

cause malfunctions.

 Where flammable gases may leak, or carbon fibre or

flammable powers may be found in the air or where volatile

flammable materials such as paint thinners or petrol are

handled. These gases may cause a fire.

 Where the air contains high levels of salt, such as the

seaside.

 Where the power supply voltage is subject to fluctuations,

such as in factories.

 On vehicles or ships.

 Where there are acid or alkaline vapours.



Prior to installation, verify if the user’s power supply meets the

unit’s installation requirements (including reliable earthing,

differential circuit-breaker, component size, wire section, etc.). If

the electrical installation requirements are not met, the unit

cannot be installed until the electrical system is rectified.



Before the hydraulic connection and electrical wiring

operations, verify that the installation area is safe and without

hidden dangers such as water, electricity and gas conduits.

CAUTION



Do not touch the fins of the heat exchanger as they may

cause injury.



If installing multiple units in a centralised manner, adjust the

electric load on the various phases. Do not connect multiple

units to the same phase of the three-phase supply.



The following subjects may use the unit if supervised or

instructed on safe usage and capable of understanding the

possible dangers: children who are minimum 8 years old,

people with no experience or knowledge, people with limited

physical, sensory or mental abilities.



Children must not play with the unit.



Cleaning and maintenance operations to be carried out by the

user must not be performed by unsupervised children.



Once the installation is complete, the unit tested and

functioning is normal, instruct the client as regards the use

and maintenance of the unit as indicated in this manual. In

addition, make sure that the manual is suitably kept for future

reference.



DISPOSAL: do not dispose of this product as unsorted waste.

Contact the local authorities for information on the collection

systems available. If electrical equipment is disposed of in

landfills, dangerous substances may infiltrate the waste water

and enter the food chain, harming the health and well-being

of people and animals.

2INTRODUCTION

Saftey

Operate in compliance with safety regulations in force .

Use single protection devices: gloves, glasses, helmet etc.

Manual

The manual provides correct unit installation, use and

maintenance.

It is advisable to read it carefully so you will save time during

operations.

Follow the written indications so you will not cause damages to

things and injuries people.

Preliminaries

Only qualified personnel can operate on the unit, as required by

the regulation in force.

Risk situations

The unit has been designed and created to prevent injures to

people.

During designing it is not possible to plane and operate on all

risk situation.

Read carefully “Residual risk” section where all situation which

may cause damages to things and injuries to people are

reported.

Installation, starting, maintenance and repair required specific

knowledge; if they are carried out by inexperienced personnel,

they may cause damages to things and injuries people.

Intended use

Use the unit only:

 cooling water or a water and glycol mix for air-conditioning

 keep to the limits foreseen in the technical schedule and in

this manual

The manufacturer accepts no responsibility if the equipment is

used for any purpose other than the intended use.

Installation

Outdoor installation

The positioning, hydraulic system, refrigerating, electrics and the

ducting of the air must be determined by the system designer in

accordance with local regulations in force.

Follow local safety regulations.

Verify that the electrical line characteristics are in compliance

with data quotes on the unit serial number label.

Maintenance

Plan periodic inspection and maintenance in order to avoid or

reduce repairing costs.

Turn the unit off before any operation.

Pay particular attention to:

 warnings / prohibitions / danger

indicating particularly important

operations or information, operations

that cannot be done, which compromise

the functionality of the unit or which

may cause damage to things or

persons.

Outdoor installation

Before any work read:



Chapter. MAINTENANCE SAFETY

WARNINGS FOR OPERATIONS ON

UNITS CONTAINING R32

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de CLIVET

CLIVET

CLIVET WiSAN-YME 1 S 2.1 Manual de referencia

CLIVET

CLIVET MSAT-XEE 8.2 Manual de usuario

CLIVET

CLIVET MSRN-XSC3 + CEV-XN Manual de usuario

CLIVET

CLIVET MV6R-XMi Manual de referencia

CLIVET

CLIVET WSAN-XSC3 90.4 Manual de usuario

CLIVET

CLIVET CN-XMi D80 Instrucciones de instalación

CLIVET

CLIVET WiSAN-YSE1 10.1 Manual de usuario

CLIVET

CLIVET WSAT-YES 18.2 Manual de usuario

CLIVET

CLIVET WSAN-YSi R32 Manual de usuario

CLIVET

CLIVET WSAN-XSC3 MF Series Manual de usuario

CLIVET

CLIVET WSN-XIN Series Manual de usuario

CLIVET

CLIVET WSAR-MT-E Manual de usuario

CLIVET

CLIVET CKN-XHE2i 10.1 Manual de usuario

CLIVET

CLIVET WSHN-XEE2 10.2 Manual de usuario

CLIVET

CLIVET WSAR-MT Series Guía

CLIVET

CLIVET WSAN-XES 18.2 Manual de servicio

CLIVET

CLIVET WSAN-XEM 50.4 Manual de usuario

CLIVET

CLIVET WSAN-XIN Series Manual de usuario

CLIVET

CLIVET WBAN 41 Guía

CLIVET

CLIVET WSAN-XEE Series Manual de usuario

CLIVET

CLIVET AQUA SWAN 190 Manual de usuario

CLIVET

CLIVET WSAN-EE 17 Guía

CLIVET

CLIVET Ceiling & Floor-SM2 IF2 53M Series Manual de referencia

CLIVET

CLIVET WiSAN-YEE1 45.4 Manual de usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
