INSTALLATION AND USER MANUAL
ECOFLEX TD
EF02TD
INSTALLATION AND USER MANUAL
ECOFLEX TD
V1REV5EN0922
INSTALLATION AND USER MANUAL
ECOFLEX TD
V1REV5EN0922
1. INTRODUCTION .............................................................................................................. 1
2. GENERAL INDICATIONS................................................................................................. 1
3. TECHNICAL INFORMATION............................................................................................ 3
4. INSTALLATION STEPS.................................................................................................... 5
5. THERMODYNAMIC SOLAR PANEL INSTALLATION ...................................................... 6
6. PLACING ECOFLEX TD................................................................................................... 8
7. CONNECTION BETWEEN ECOFLEX TD AND PANEL................................................. 10
8. HYDRAULIC CONNECTION .......................................................................................... 11
9. ELECTRICAL CONNECTION......................................................................................... 13
10. COMISSIONING. CONTROLLER................................................................................... 14
11. WARRANTY CONDITIONS............................................................................................ 24
INSTALLATION AND USER MANUAL
ECOFLEX TD
1 V1REV5EN0922
1. INTRODUCTION
Thank you for buying a product manufactured by CLIMER TECHNOLOGY. This product has
been manufactured according to the European Quality Standards, incorporates prime grade
materials and its correct working has been tested before it leaves our facilities.
Through this Installation and User Manual, you will be guide towards the correct and safety
installation of the product. It is necessary to carefully read this manual before making any
handling to avoid problems arising from the misuse of the product.
The company CLIMER TECHNOLOGY reserves the right to modify the information included in
this document at any time without prior notice.
2. GENERAL INDICATIONS
2.1. Safety notes
The incorrect or inappropriate use of this product could lead to hazardous situations, causing
damage or injuries to the user, third parties or even to the product itself or material goods.
-The installer has the responsibility to install the minimum safety devices (hydraulic and
electrical) set out in this Manual. In case of failure, the lack of any device may cause
burns or other injuries.
-The installer has the responsibility to inform the user about the function and placement
of the safety devices installed into the device and the installation.
-The water outlet temperature could reach 62 degrees. Do not touch the pipes while
the system is working to avoid any risk of burns.
2.2. Qualification of the installer
Since the installation of the ECOFLEX TD involves handling coolant as well as carry out
welding work, it is needed the technical staff have the official certification that accredits them
as authorized to handle coolants.
The installer must explain the user the application of the product and the use and
management of the unit, and he should provide the user all the documentation supplied
with the equipment.
INSTALLATION AND USER MANUAL
ECOFLEX TD
2 V1REV5EN0922
2.3. Package contents
The ECOFLEX system comprises the following components:
-EF02TD unit
-Thermodynamic panel
-Anchoring elements
-User Manual
2.4. Indications about transport and unpacking the unit
The unit is supplied packed into a wooden pallet properly secured to prevent damage
during transport.
The material that CLIMER TECHNOLOGY uses to the packing are recyclables, so dispose it
in an appropriate container.
Use a forklift or hand pallet truck to transport the unit to the installation site, always
introducing the forks into the bottom of the pallet being careful not to damage the unit.
In case you identify any damage at the time of the reception of the unit, it is mandatory to
register it in the reception note of the transport company, and then, submit the complaint.
For this reason, it is recommended to make a thorough visual inspection of the goods before
signing the reception note.
INSTALLATION AND USER MANUAL
ECOFLEX TD
3 V1REV5EN0922
3. TECHNICAL INFORMATION
3.1. Operating Principle

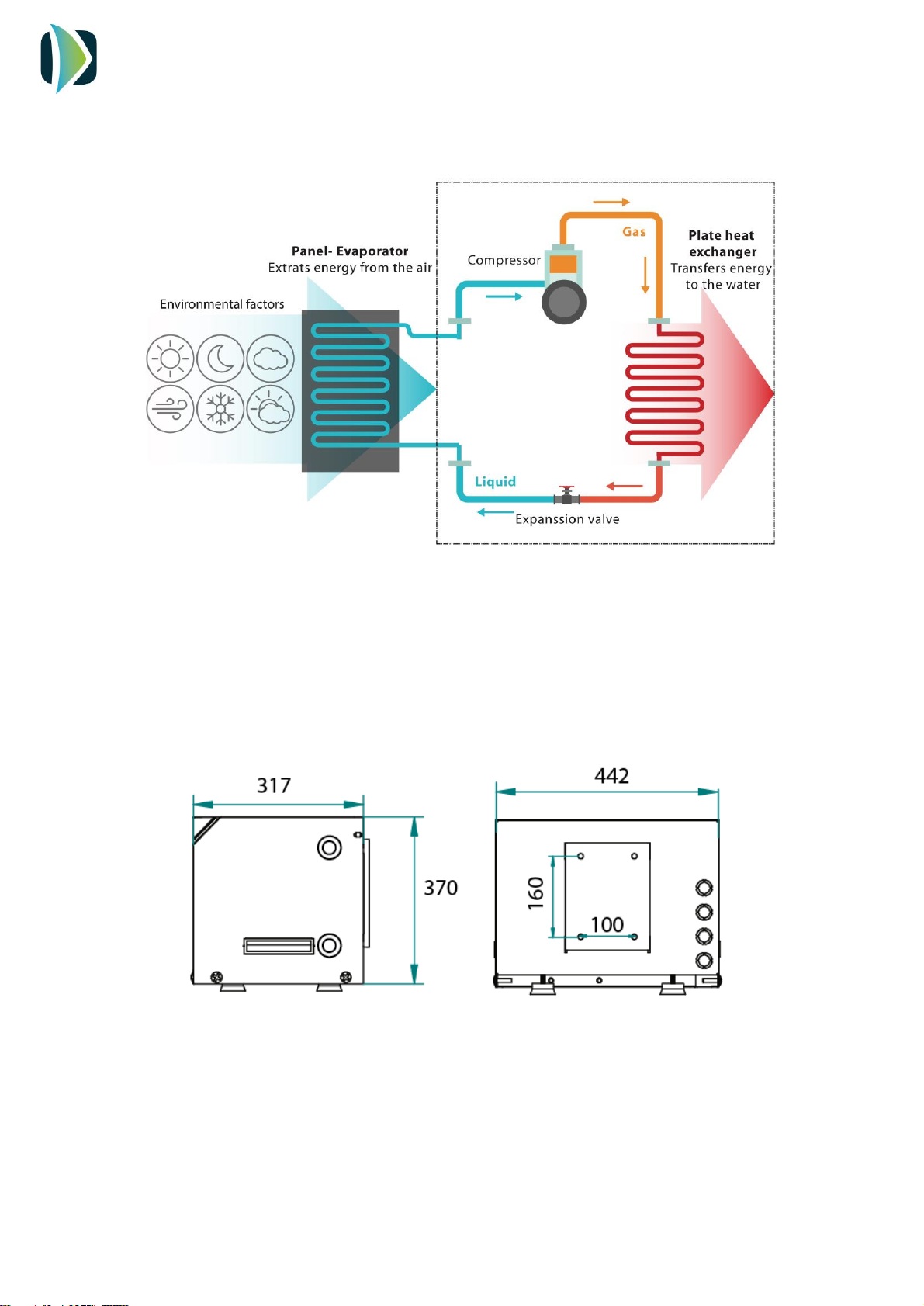

Figure 1. Operating principle
3.2. Dimension drawings
Figure 2. Dimensions
INSTALLATION AND USER MANUAL
ECOFLEX TD
4 V1REV5EN0922
Figure 3. Connections (removing the cover)
Figure 4. Side connections
A: Refrigerant outlet (1/4”)
B: Refrigerant inlet (3/8”)
C: Power supply
D: Temperature probe / Pump connection
E: Cold water inlet, 3/4’’
F: Hot water outlet, 3/4’’
INSTALLATION AND USER MANUAL
ECOFLEX TD
5 V1REV5EN0922
3.3. Technical data
(1) Conditioned by solar radiation and outside temperature
4. INSTALLATION STEPS
Before starting the installation, check the availability of all the necessary components and tools:
-High- and low-pressure manometers
-Vacuum pump
-Scales
-Nitrogen bottle
-Refrigerant quality copper pipe
-Pipe-cutter
-Tube bender
-Pipe expander
-Welder
-Copper Rods (40% Silver)
-Insulating hose
-Drill
-Screwdriver
Model
EF02TD
Heat pump data
Heating capacity range (1), W
1430 –2560
Input power range (1), W
450 –540
Energy Efficiency Class
A
Load profile
L
Maximum temp. HP, °C
55
Refrigerant / Charge, kg
R134A / 1.0
Minimum water flow, L/h
250
Pressure drop (heat exchanger), kPa
2
Water inlet/outlet, inch
3/4
Electric data
Power supply, V/ph/Hz
230/1/50
Maximum power absorbed, W
600
Thermodynamic panel
Number of panels
1
Dimensions, mm
1700 x 800
Maximum operating pressure, bar
10
Refrigerant inlet/outlet, inch
1/4 - 3/8
INSTALLATION AND USER MANUAL
ECOFLEX TD
6 V1REV5EN0922
-Hydraulic installation components
-Electric installation components
Once it has been checked that it is available all the necessary components and tools, the
installer should follow the next steps:
1. Placing and anchoring panel
2. Joining and welding the refrigerant pipes
3. Placing the ECOFLEX TD
4. Joining and welding liquid and suction line between ECOFLEX TD and panel
5. Nitrogen pressure test (maximum10 bar)
6. Vacuum
7. Filling refrigerant installation
8. Hydraulic installation
9. Electric installation
10. Commissioning
11. Adjustment of refrigerant load
5. THERMODYNAMIC SOLAR PANEL INSTALLATION
5.1. Site selection
The choice of the installation site of the thermodynamic panel is a key factor in the final
performance of the unit. For this reason, we recommend following the indications to achieve
the best performance:
-South orientation is indeed the best to take the maximum advantage of solar radiation.
Panel may also have other orientations, but northerly orientation is the worst to receive
solar radiation.
-Inclination: The minimum inclination of the panel is 15º in order to ensure the correct
evaporation of the coolant. It is recommended to install the panel with an inclination
between 45º and 90º.
INSTALLATION AND USER MANUAL
ECOFLEX TD
7 V1REV5EN0922
-Orientation: It is possible to install the panel both in vertical and horizontal position
-Distances to ECOFLEX TD:
The maximum allowed distance from the panel to the ECOFLEX TD is 12 meters.

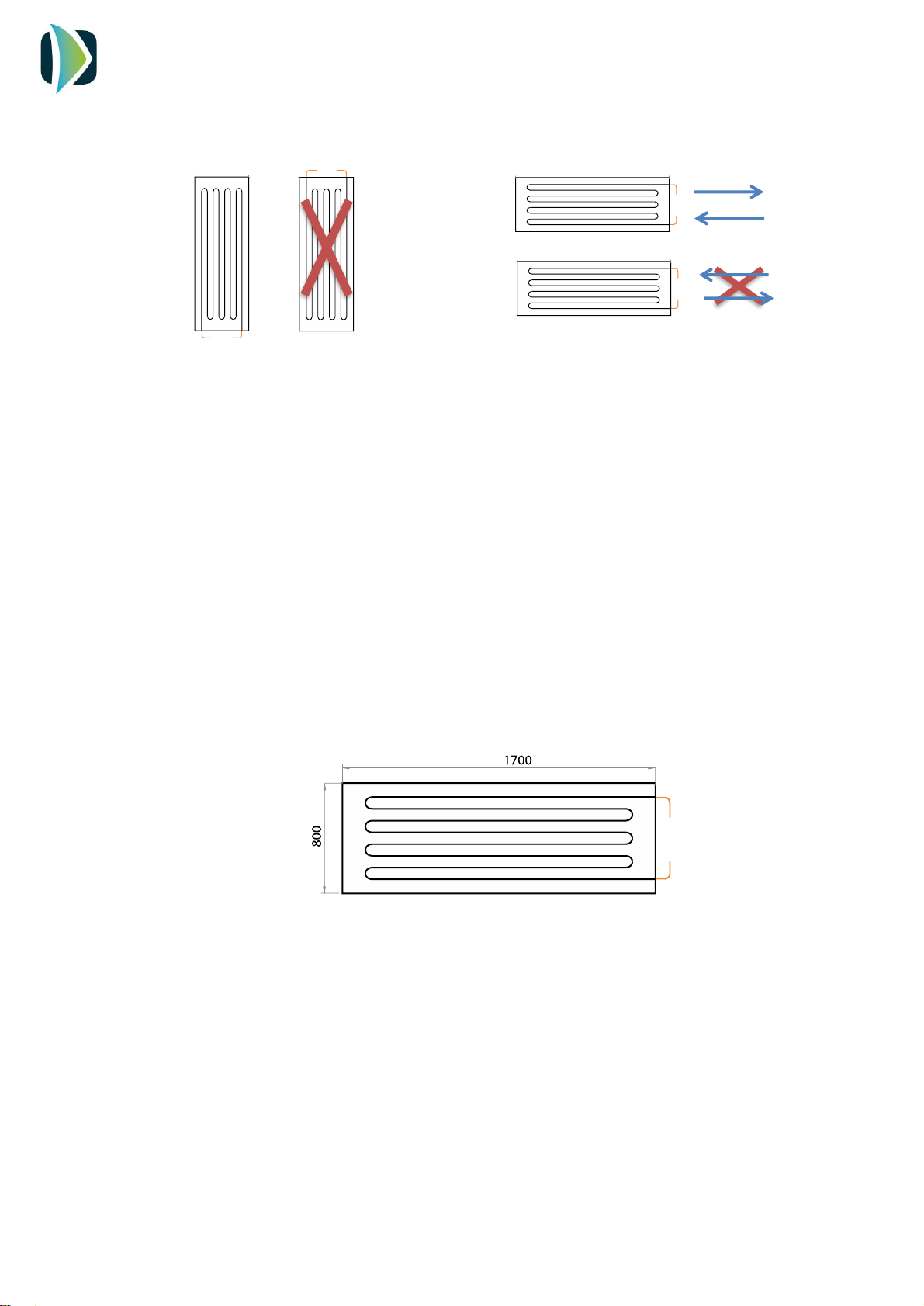

In the picture below is shown the dimensions of the panel:
Figure 5. Side connections
5.2. Anchoring panel
Beside the panel, it is supplied a bag with anchoring elements that contains the following
pieces:
-6 x Aluminium support (L shape)
-6 x Screws M5
-12 x Nuts M5
When the panel is installed in
vertical position, the inlet and
outlet connection shall be always
at the bottom. (It is not allowed to
install the reverse)
If the panel is installed at
horizontal position, refrigerant
inlet pipe should be connected
into the bottom connection.
