Clevertronics LP CFLLED Series Instrucciones de instalación y funcionamiento

1942289 V1.3 15 January 2021

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

4HR: CTP will only test for the 2 hours (first test) and 90 minutes duration. 4 hours testing would only be

facilitated as a Manual Discharge Test.

Zoneworks and DATA Monitored Options

Fittings with part numbers -ZW, -HV, -DATA are fitted with Zoneworks communications modules (nodes).

These fittings are monitored using either Powerline Carrier Technology that utilize the power cable to

provide data communication, RF transceiver modules operating in the ISM band or a dedicated data cable

to/from data routers installed on a dedicated data trunk connected to a central Server (can also be

connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate

testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a single push

of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides a

multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HV, DATA

Commissioned

LED on Solid (Green)

ZW, DATA

Un-commissioned

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off

250mS, red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Supalites with part numbers -DALI are fitted with DALI modules (nodes) that facilitate connection and

integration to 3rd Party Lighting Control Systems. Before installing the -DALI Supalite, please confirm that

the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The Supalite will

be addressed and configured into the control system by the Lighting Control System Commissioning

Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (GREEN)

Emergency Light Test in progress

LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND”

Fitting goes into emergency mode for 10 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network OR a 5/6way

“structured wiring system” lead and plug facilitating the power and DALI connection. DALI connections

are marked as Da Da.

LP™ Supalite LED Emergency Luminaire

Installation & Maintenance Instruction Leaflet

Designed in Australia to comply with the

requirements of AS2293.3: 2005 and AS/NZS

CISPR15: 2011.

NOTE: Standard product codes with this symbol are

enabled with Clevertest Plus capability. Please refer to

the operation guide supplied with the product for details.

Victoria (Head Office & Manufacturing)

Website: www.clevertronics.com.au

Email: [email protected]

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

New South Wales

Phone: +61 2 8805 6400

Fax: +61 2 8805 6444

Queensland

Phone: +61 7 3442 9700

Fax: +61 7 3442 9777

South Australia/Northern Territory

Phone: +61 8 8301 8800

Fax: +61 8 8351 8286

Western Australia

Phone: +61 8 9207 0000

Fax: +61 8 9207 0088

New Zealand

Phone: +64 800 548 448

Models: CFLLED-xx-yy-ww-zz

Testing:

Options:

Manual Test

xx = Blank

Black

zz = BLK

Zoneworks

xx = ZW

15 Minutes Additional ON

time after power resumes

yy = DLY

Zoneworks DATA

xx = DATA

DALI

xx = DALI

4 Hour Battery

ww = 4HR

HIVE

xx = HV

Clevertest

xx = CT (NOTE: Products supplied with the Clevertest Plus Symbol are

activated with Clevertest PLUS capability. Please refer to the operation

guide supplied with the product for details).

Spare Parts:

1550230

BATT: LP 3.2V 6400mAh.200mm lead.Brkt.

1100955

LED Flood LampHeadAss,Cable&Cnnctr,Right

1100954

LED Flood Lamp HeadAss,Cable&Cnnctr,Left

1100956

LED Flood Lamp Head Ass, Cable&Ctr, Left, (For -BLK)

1100957

LED Flood Lamp Head Ass, Cable&Ctr, Right, (For -BLK)

8002953

PCA: xFLLED #CT10142-L9 250-550mA

Important:

It isillegal for anyone, except for a licensed electrician to install or maintain this product. Beforeinstallation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

1942289 V1.3 15 January 2021

Installation:

This CFLLED Surface Mount Non-maintained Emergency can be installed on PLASTER or solid block

walls.

1. Take off the front external cover by inserting a flat blade screwdriver into the slots along the

bottom edge of the fitting.

2. Mark the mounting hole positions on the wall and drill fixing holes

3. Using the appropriate fixing hardware for the wall surface fix the CFLLED to the wall.

4. If hard wiring, remove the flex and plug after removing the internal cover plate over the terminal

block.

5. If hard wiring terminates the 240V, 50Hz supply to the terminals marked A, N & E. The cable

entry hole through the back of the unit is shown in the image below. Install the internal cover

plate over the top of the terminal block.

6. Re-install the External Front Cover by pushing it back into place until it clicks in top and bottom.

7. If using the flex and plug, plug it into a suitable socket (240V, 50Hz).

8. Adjust the LED heads into position. Two screws are provided for each head to move them into

position. The front screw adjusts the L/R position (roll) and the side screw adjusts the U/D (tilt)

position. There is a standard positioning marker on the body representing a 30° roll out and

30° tilt down –this is the position that provides the maximum square area coverage when wall

mounted at 3m

9. If the CTP capabilities are activated, please affix the CTP status label to a visible surface and

Four Segment Marking on the product will include an ‘’F’’ in third segment block.

Networking:

When installing the product on a monitored network, (ZONEWORKS, HIVE, DATA, DALI) simply insert

the relevant Smart Node PCA.

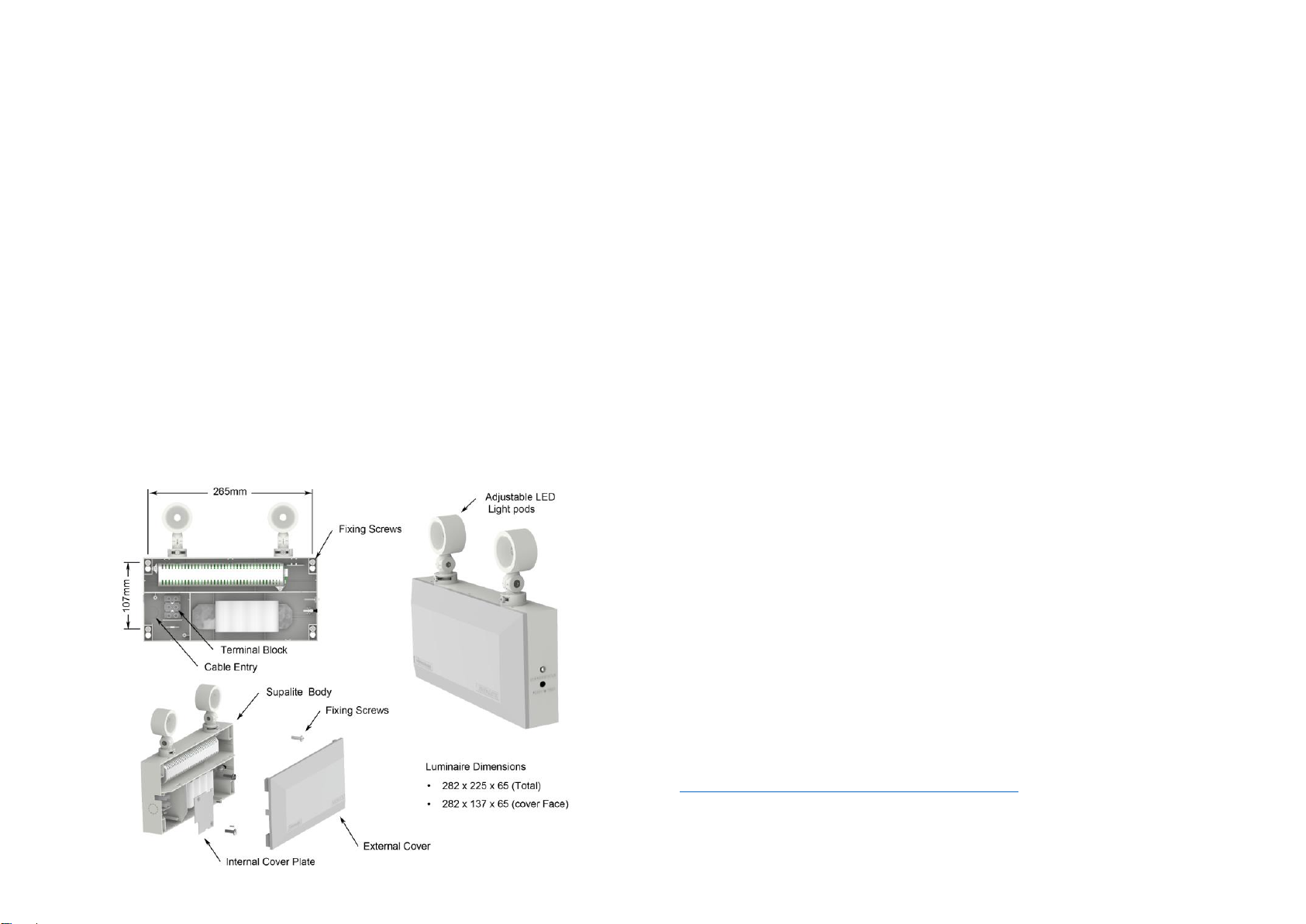

Images and Dimensions:

Testing:

When the CFLLED unit is connected to the un-switched active, it must be allowed to charge the battery

for at least 24 hours. The emergency lamp only illuminates during a power fail. Conduct the following

tests:

•The emergency lamp must illuminate for at least 2 hours after disconnection from the mains. The

results of all tests are required to be recorded in a service logbook, which is to be kept on-site at all

times. If the unit fails to illuminate for the requisite time, remedial action must be taken to repair the

situation and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Below are a list of common problems and their possible causes:

Fault: The Green LED indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected.

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Rated Emergency Lumen Output in accordance with AS2293.1 (refer to

spacing tables for installation positions):

N/A –refer to the IES file when doing computer aided design or request spacing guidance from

Clevertronics.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Lifelight Units, on these circuits, will have their batteries discharged or

“cycled”. The Lithium battery in the Supalite has been selected to give excellent long-life performance in

a controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce through-life

performance and may lead to premature battery failure. Battery warranty claims, as a result of such abuse,

are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

http://clevertronics.com.au/terms-conditions-sale-australia-nz/
