USER MANUAL
www.cleveracoustics.co.uk
CS 69LC - 100V 6” 9W
CS 56LC - 100V 5” 6W
Ceiling Loudspeakers
Order code: CRSP10
Order code: CRSP09
1
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
INPUT VOLTAGE OF 70-100V
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
2
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the loudspeaker cable come into contact with other cables. Handle the loudspeaker
cable and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Do not expose to ammable sources or gases.
• Make sure that the speaker-cable is never crimped or damaged. Check the equipment and
the speaker-cable periodically.
• If the equipment is dropped or damaged, disconnect the supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
The 100V ceiling loudspeakers are designed specically for use in permanent audio
installations, where reliability and premium sound quality are a must. Highly rugged
construction and high efciency design make this loudceiling speaker perfect for continuous
duty applications.
This ceiling loudspeaker is warranted from defects for one year from the date of purchase.
Should your ceiling speaker require service, either within or beyond that warranty period,
please contact your Prolight Dealer.
Please take the time to read this document completely prior to installation of this product.
Features:
• Dual cone woofer for extended upper frequency response
• Low prole design blends into environments
• 3 power taps @ 100V: 3W, 6W and 9W (CS 69LC)
• 3 power taps @ 100V: 1.5W, 3W and 6W (CS 56LC)
• ABS bafe with metal grille
• Spring clip mounting for easy installation
• Supplied with template to aid installation
Cutout size:
3
145mm 170mm
145mm
CS 56LC CS 69LC
170mm
Specications CS 56LC CS 69LC
Input: 70V, 100V 70V, 100V
Power taps @ 100V: 1.5W, 3W, 6W 3W, 6W, 9W
Power taps @ 70V: 0.75W, 1.5W, 3W 1.5W, 3W, 4.5W
Impedance: 1.7kΩ, 3.3kΩ, 6.7kΩ 1.1kΩ, 1.7kΩ, 3.3kΩ
Sensitivity (1W/1m): 89dB (±3dB) 91dB (±3dB)
Maximum SPL (Rated W/1m): 96dB 101dB
Frequency response: 80Hz-18kHz 80Hz-18kHz
Drivers: 5" full range 6" full range
Connections: Flying leads Flying leads
Cutout: 145mmØ 170mmØ
Dimensions: 80 x 170mmØ 80 x 200mmØ
Weight: 0.75kg 0.9kg
Order code: CRSP09 CRSP10
4

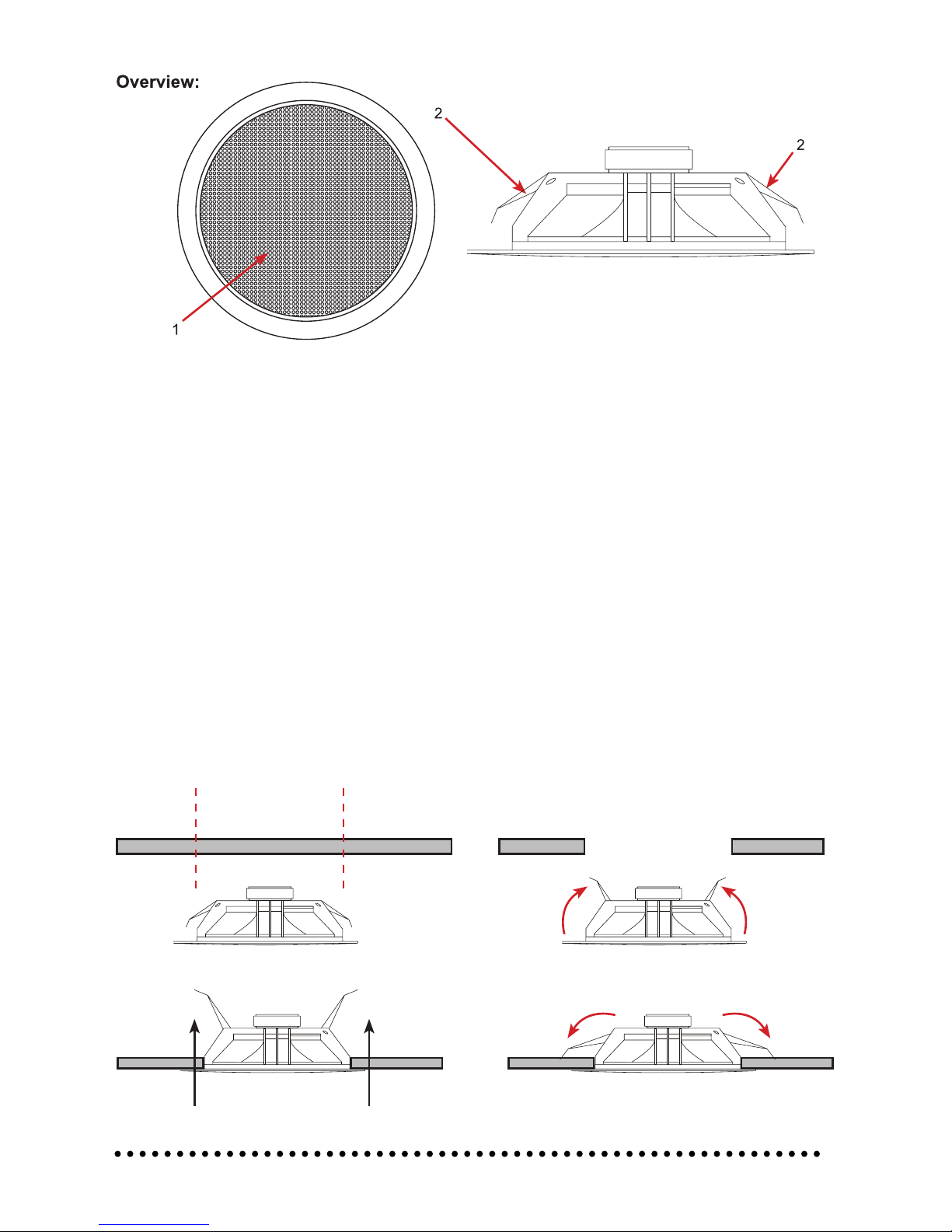

Identication:
1. Loudspeaker grille
2. Spring clips - Use these clips to install and mount the unit into the ceiling.
Ceiling Installation
The ceiling loudspeaker can be installed in a ceiling,
Before installing the loudsspeaker, make sure that the installation area can hold a minimum point
load of 10 times the installations weight.(e.g.12kg x 10 = 120kg point load).
The durability of the installation depends very much on the material used at the installation area
(building material), such as wood, concrete and brick etc.
This is why the xing material must be chosen to suit the ceiling material. Always ask a specialist
for the correct plug/screw combination indicating the maximum load and building material.
145mm / 170mm
cutout
5

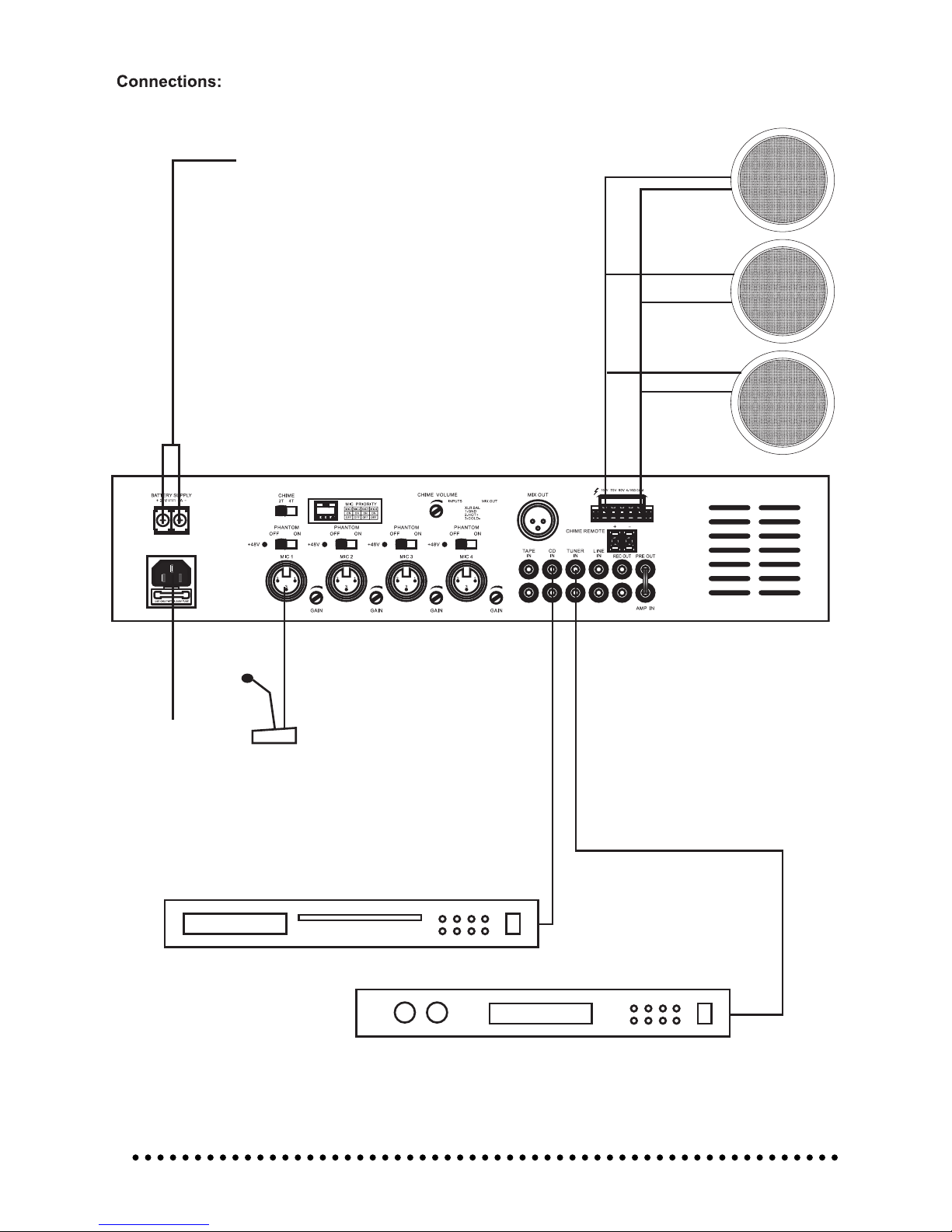

MAINS
CD PLAYER
AM/FM TUNER
24V DC INPUT
(Optional)
MIC 1
6

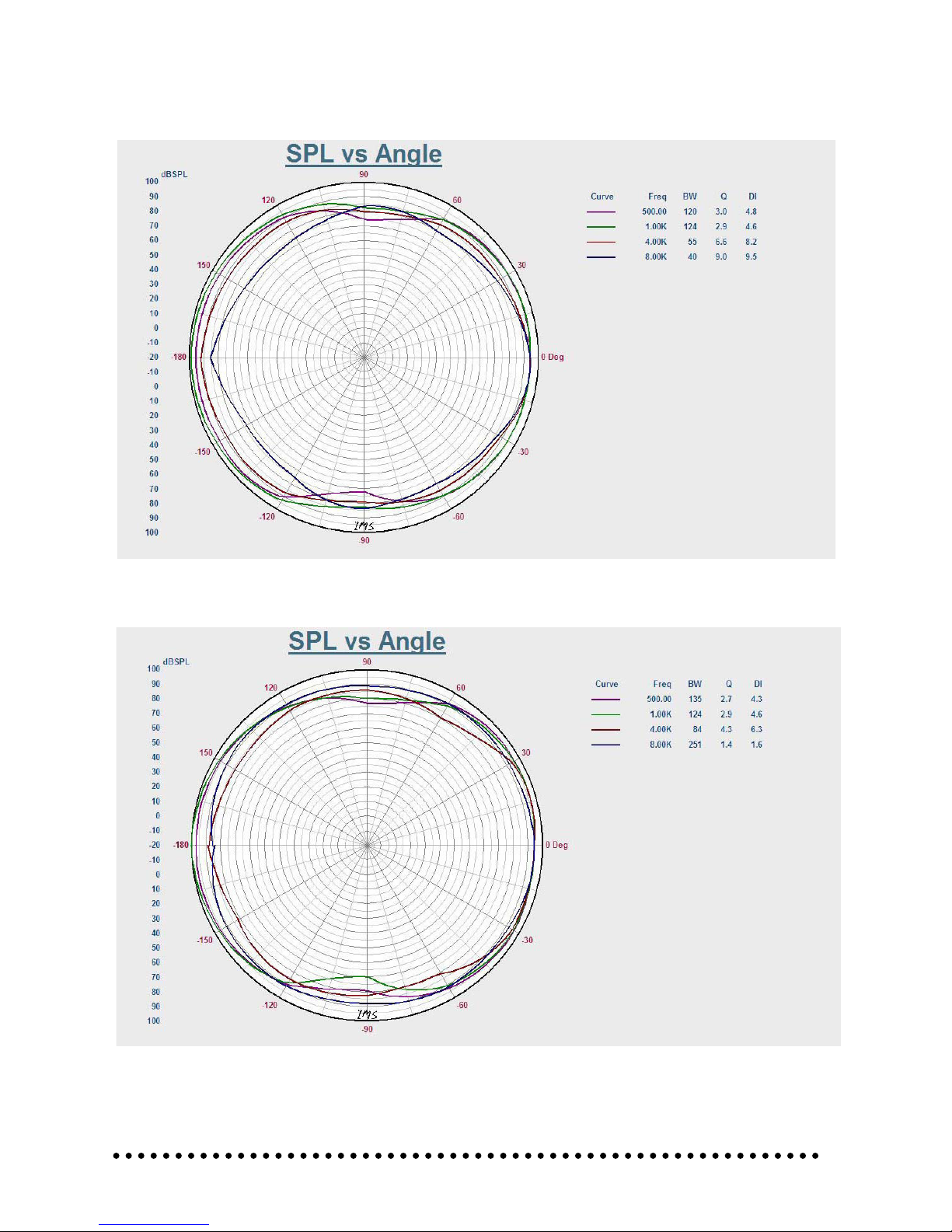

Dispersion characteristics:
CS 56LC
CS 69LC
www.cleveracoustics.co.uk
Cleaning and Maintenance
We recommend a frequent cleaning of the product. Please use a soft lint free and moistened
cloth. Never use alcohol or solvents.
There are no serviceable parts inside the product except for the fuse. Maintenance and service
operations are only to be carried out by authorised dealers.
CAUTION - DANGER TO LIFE
SWITCH OFF AMPLIFIER AND DISCONNECT
THE SPEAKER BEFORE
STARTING MAINTENANCE
