ClearSpan R020B00000F Manual de usuario

Revision date: 02.22.11

is prohibited without permission.

STK# DESCRIPTION

R020B00000F Rafter Kit for 20' Wide

ClearSpan™

20' Wide Rafter Kit with Mounting Feet

Photo may show a building of a different length and width.

2Revision date: 02.22.11

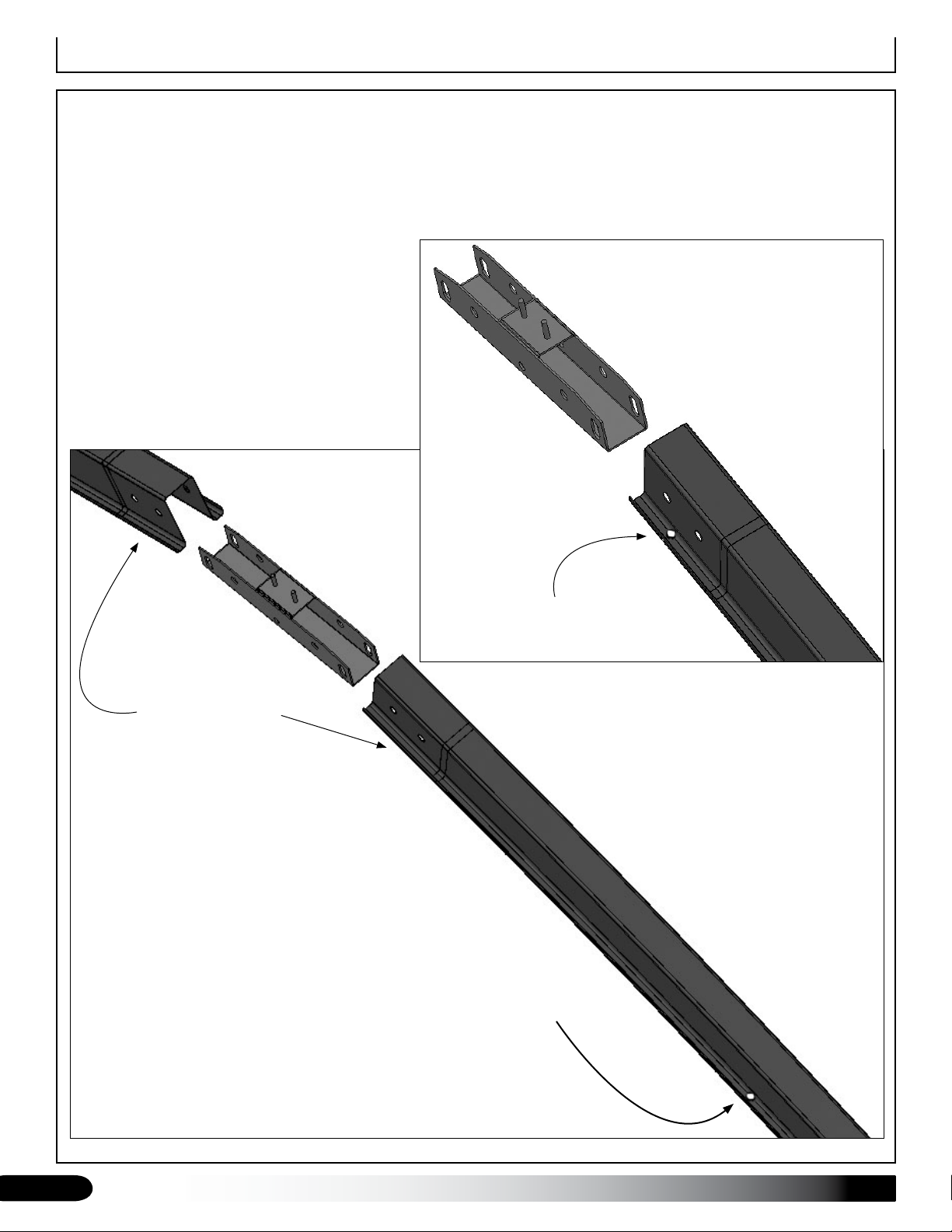

Special Rafter Assembly Instructions

During the assembly of each rafter, position the UPPER end of each rafter segment—this is the end that does not

include the pre-punched purlin mounting holes—to the top of the rafter assembly. Consult the diagrams below and all

rafter diagrams throughout this manual before you begin.

Correct position of rafter segment. Position the purlin

mounting hole as shown when connecting the rafter

segments during the rafter assembly steps.

Insert (above right) shows the incorrect position of

the rafter segment.

INCORRECT POSITION

Lower end of each rafter segment

includes purlin mounting holes.

DO NOT CONNECT THE LOWER

END TO THE CHEVRON.

Upper End

Upper ends do not

include purlin mounting

holes and are positioned

at the top of the rafter

assembly and connected to

the chevron. RAFTER SEGMENT

Chevron

CFG030PINSS03

Chevron

CFG030PINSS03

PURLIN MOUNTING HOLE

FOR THE LOWER PURLIN

LOWER END OF

RAFTER SEGMENT

CORRECT ASSEMBLY

20' RAFTER

Important Information

Revision date: 02.22.11

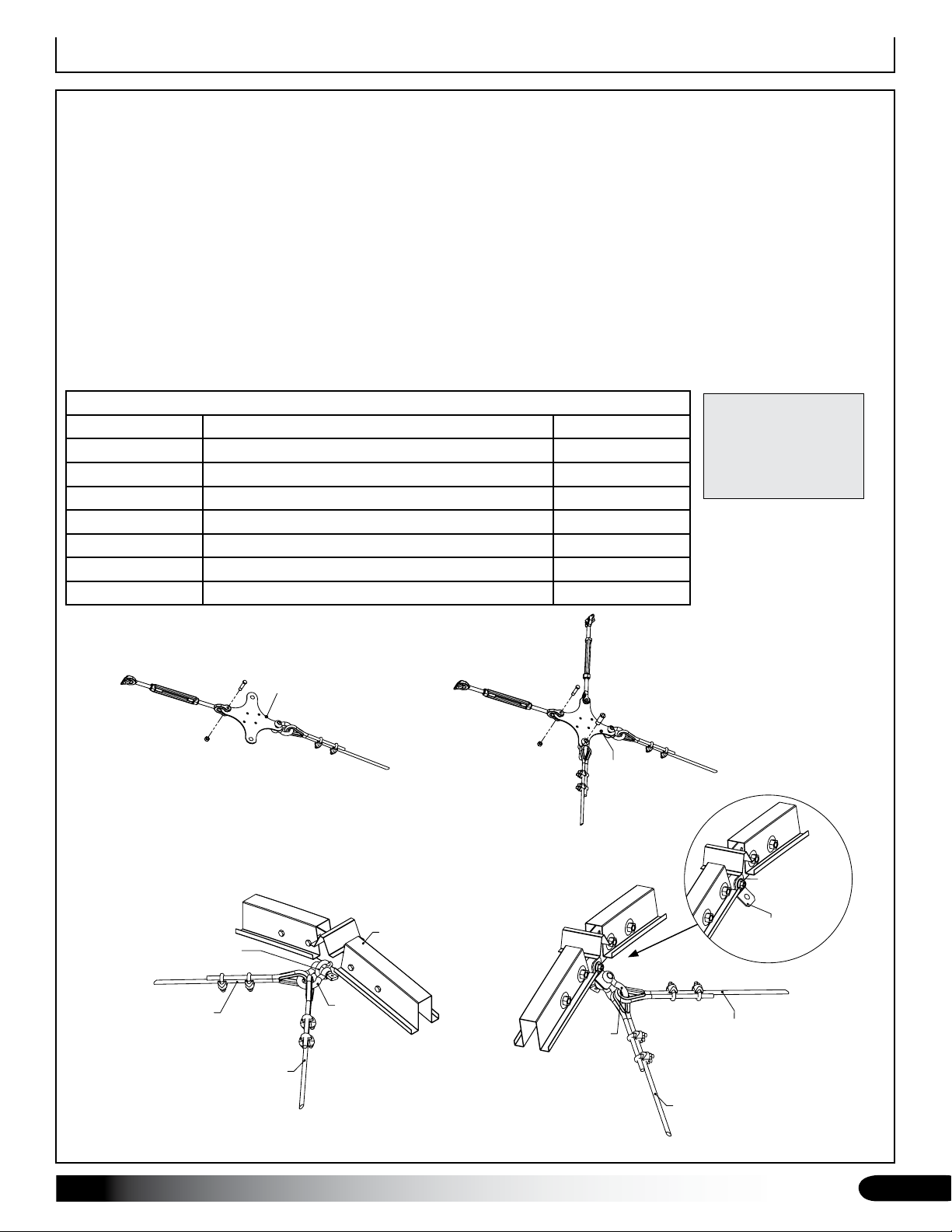

Side Proﬁle Connection Details

When additional rafters are added to a standard building to change the rafter spacing from 6' on-center to 4' on-center,

cable patterns may change for some building lengths. The Side Profile diagrams in this guide show the cable patterns

for buildings with 4' on-center rafter spacing. Use the diagrams for your building during the assembly.

REMEMBER: A standard building has 6' on-center rafter spacing. The diagrams in this guide show frames with 4' on-

center rafter spacing. This 110644 kit is not used when additional rafters are purchased to lengthen the original building.

The diagrams on this page correspond to the details circled on the main Side Profile diagrams found on the remaining

pages. Some details may not apply to some frame lengths. In some instances, the cable bracket shown in Detail A and

Detail B is used to secure two (2) cables or four (4) cables. To secure two (2) cables, use two of the connection points on

the 108874 bracket only. Actual angle of the cable runs may vary from the detail. Consult the Side Profile diagrams.

Use the components contained in the 110644 adaptor kit sent with your building. This kit is used for all building widths

and lengths. Some components may not be needed for your building. Consult the diagrams in this guide to determine

what components of the kit are needed for your building when rafter spacing is 4' on-center.

ATTENTION: REPLACE

THE ORIGINAL STRUT

108872 WITH THE

SHORTER 108871

STRUT INCLUDED IN

THIS ADAPTOR KIT.

108874

CABLE ASSEMBLY

AS2167

(SHACKLE)

DETAIL D

RAFTER

CABLE ASSEMBLY

AS2167

(SHACKLE)

EYE BOLT (108868)

LOCK WASHER(FAMA38B)

3/8" HEX NUT (FALB04B)

DETAIL C

DETAIL B

DETAIL A

108874

FAME08B

(3/8” FLAT WASHER)

108503

(CABLE BRACKET)

Adaptor Kit #110644 contains these parts:

108874 Double Roll Form Cable Connection Plate 2

108868 3/8" Cable Eye Bolt (welded shut) 1

FAME08B 3/8" at washer (zinc) 1

FALB04B 3/8"-16 nut (zinc) 1

FAMA38B 3/8" lock washer (zinc) 1

108503 1/8" steel cable bracket (135 degree) 1

108871 7' Strut 1.66 14g single punch (82") 4

4Revision date: 02.22.11

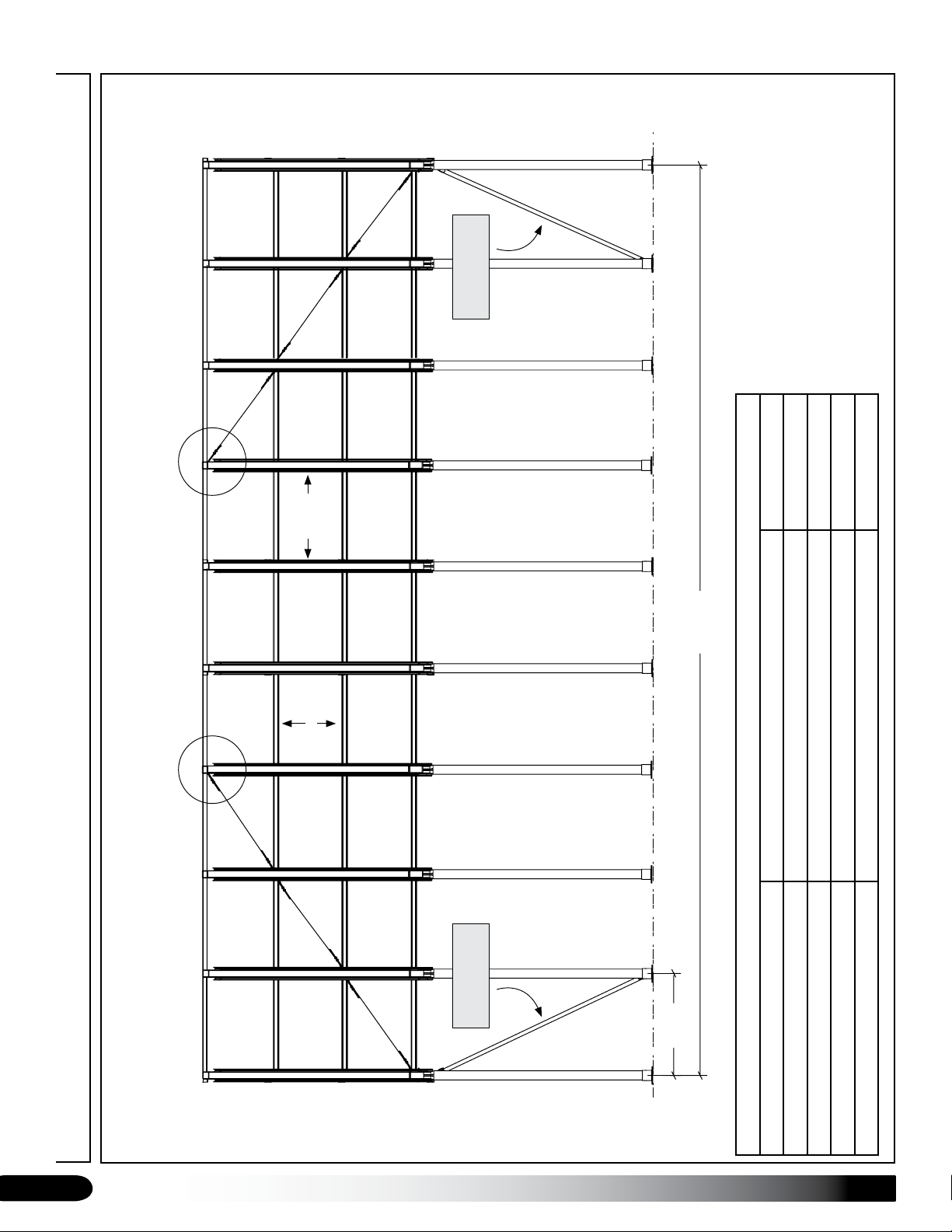

Side Proﬁle - 20' x 36' (4' Rafter Spacing)

ATTENTION: REPLACE THE

ORIGINAL BUILDING STRUT

(108872) WITH THE 108871

STRUT INCLUDED IN THIS KIT.

(on-center)

36'-0"

4'-0"

GROUND LEVEL

108871 Strut

included with kit.

108871 Strut

included with kit.

Rafters

Purlins

ATTENTION: Cable pattern is the same for paneled greenhouse frames where the purlins run on top of the

rafters. Sample frame shows the purlins attached to the underside of the rafters. Your frame may differ.

Use these parts from the 110644 adaptor kit for your 20' x 36' building:

108868 (See Detail C.) 3/8" Cable Eye Bolt (welded shut) 1

FAMA38B (See Detail C.) 3/8" lock washer (zinc) 1

FALB04B (See Detail C.) 3/8"-16 nut (zinc) 1

108871 (See note above.) 7' Strut 1.66 14g single punch (82") 4

Revision date: 02.22.11

Customer Notes
