Clearaudio Emotion SE Manual de usuario

Emotion SE

clearaudio electronic®GmbH

Spardorfer Str. 150 • D-91054 Erlangen • Tel. +49 9131 40300100 • FAX + 49 9131 40300119

www.clearaudio.de • www.analogshop.de • info@clearaudio.de

Version: 1.3_09_2016

User manual

Bedienungsanleitung

Made in Germany

User manual 2 - 16

Bedienungsanleitung 17 - 31

Dear Clearaudio customer,

Congratulation’s to your choice of the

Emotion SE

turntable, a world class turntable, made by Clearaudio

electronic GmbH.

A resonance minimized shape in combination with a stand alone motor unit, guarantees total isolation of

resonances from the turntable chassis, providing the best music reproduction and authentic High End

imaging. A high precision, patented Clearaudio -

CMB-bearing-technology

is completing the analogue

pleasure.

Please read this instruction carefully, to avoid any damages or loss of warranty.

These instructions will help you with an easy setup and guarantee the highest pleasure for a long time.

We wish you a lot of musical enjoyment with your new

Clearaudio

Emotion SE

turntable.

Clearaudio electronic GmbH

Emotion SE

User manual

Bedienungsanleitung

CE-MARKING

Recording und reproduction of any sound-material may require the consent of the creator.

Please acknowledge the information given in the

- Copyright Act 1956,

- Dramatic and Musical Performers Act 1958,

- Performers Protection Acts 1963 and 1972, any more recent legal regulations.

Page / Seite 2 © clearaudio electronic GmbH 2016

The Clearaudio

Emotion SE

meets the regulations concerning electromagnetic disturbance

(EMC) and low-voltage appliances.

Contents

1. Packing overview 4

2. List of components 5 - 6

3. Installation and setup 7 - 14

4. Special information 15

5. Technical data 16

Warranty information 32

Page / Seite 3 © clearaudio electronic GmbH 2016

Emotion SE

User manual

Bedienungsanleitung

1. Packing overview

Page / Seite 4 © clearaudio electronic GmbH 2016

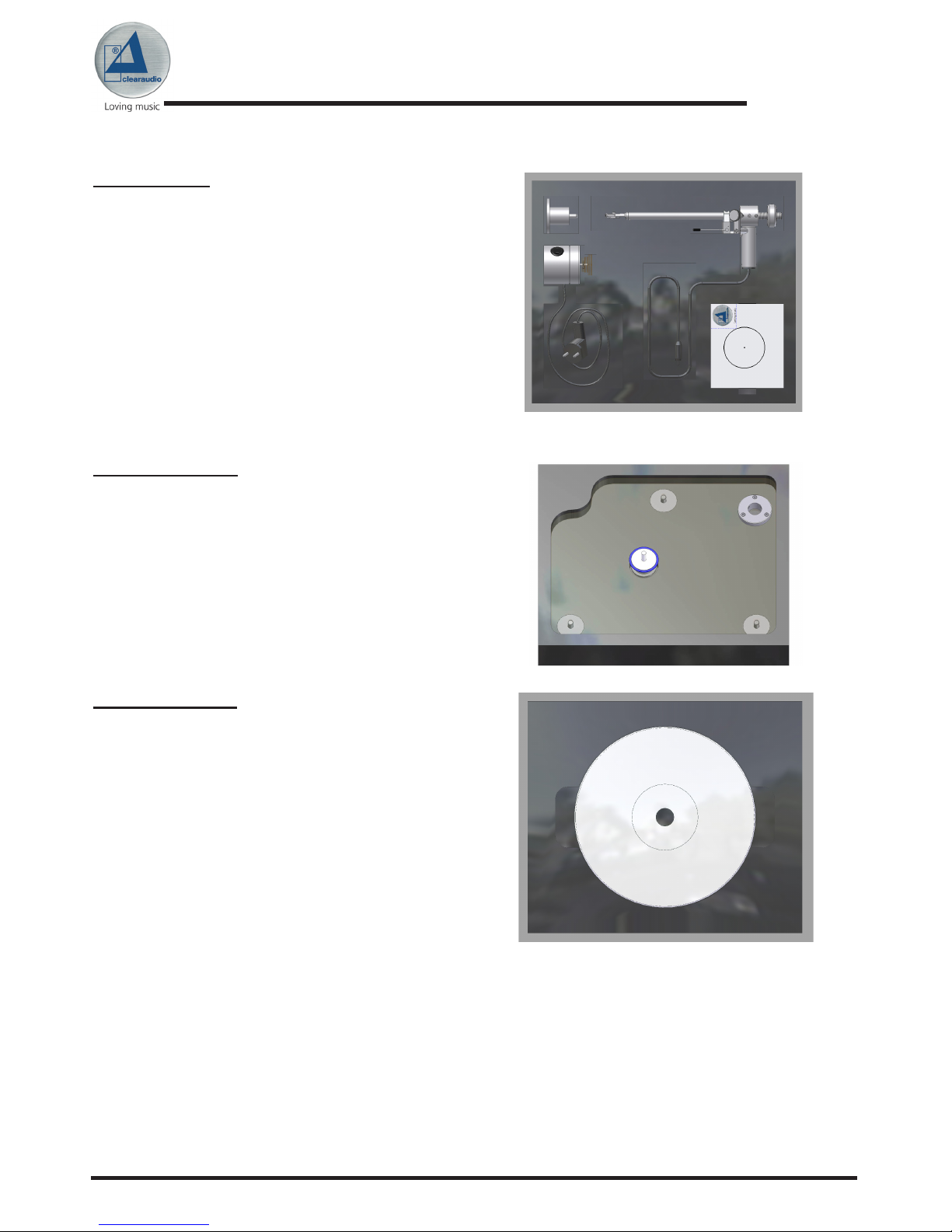

Pic. 1: Packing overview

Emotion SE

User manual

Bedienungsanleitung

1. Layer (top):

Motor-unit, motor-base (not shown)

top of bearing, belt, pulley, ttings and

accessories.

If ordered as package:

Clearaudio Satisfy Carbon tonearm

and/or Clearaudio pickup

2. layer (middle):

Turntable – chassis with

integrated lower bearing part

3. layer (bottom):

Platter

2. List of components

Clearaudio has developed a special and secure turntable packing to prevent your

Emotion SE

turntable

from any transportation damage.

Please store this original packing, in case you need to ship the turntable.

Below you can nd the content of delivery of your Clearaudio

Emotion SE

turntable:

Page / Seite 5 © clearaudio electronic GmbH 2016

Emotion SE

User manual

Bedienungsanleitung

123

1Turntable chassis with mounted lower

bearing part, tonearm base and height

adjustable feets

4Motor drive unit with main lead and

motor base

2Turntable platter 5Acrylic motor pulley

3Bearing (upper part) with adjusted

bearing shaft

6Optional:

Clearaudio

Satisfy Carbon

tonearm

directwired, when ordered as a package

456

Pic. 2.1: List of components

Page / Seite 6 © clearaudio electronic GmbH 2016

Emotion SE

User manua

lBedienungsanleitung

78 9

10 11 12

13 14 15

71 Pair of gloves 13 Screw driver

8Grounding wire for the

Emotion SE

turntable

14 Bearing oil

9 Clearaudio logo, self-adhesive 15 Clearaudio

Smart Stylus Gauge

(without cartridge)

10 Level gauge for the turntable alignment 16 Not shown:

User Manual

11 2 pcs. drive belt (2 x 292 mm) 17 Not shown:

Warranty card, Clearaudio Quality

Certicate and return delivery note

12 3 pcs. hex wrench (sizes: 1.5 / 2.5 / 3) 18 Not shown:

Optional: Clearaudio MM Cartridge

and

Smart Stylus Gauge

, only when

ordered as package

Pic. 2.2: List of components

Page / Seite 7 © clearaudio electronic GmbH 2016

Emotion SE

User manual

Bedienungsanleitung

3. Installation and setup

The setup and installation of the

Emotion SE

is done quickly and very easy.

Please use the white gloves during this procedure, to avoid scratches.

1.)

You should consider a safe and clean working area for the installation, as near as possible to the nal

position of the

Emotion SE

turntable.

First take out the motor and tonearm of the packing. Now you should take out the rst packing layer.

After that you can take out the

Emotion SE

turntable chassis from the next packing layer.

Place the turntable body on a clean underlay.

To avoid any damages to your bearing, the turntable platter should achieve room temperature

before the set up begin (approx. 20 ° Celsius).

2.)

Take the upper bearing part and place it on the lower bearing part, which is already integrated in the

chassis (picture 3).

3.)

Place the platter with both hands carefully onto the bearing.

Through a lightly (!!) up and down movement the platter will slip onto the bearing upper part (picture 4).

Avoid major side force to prevent any damages to the ceramic bearing!

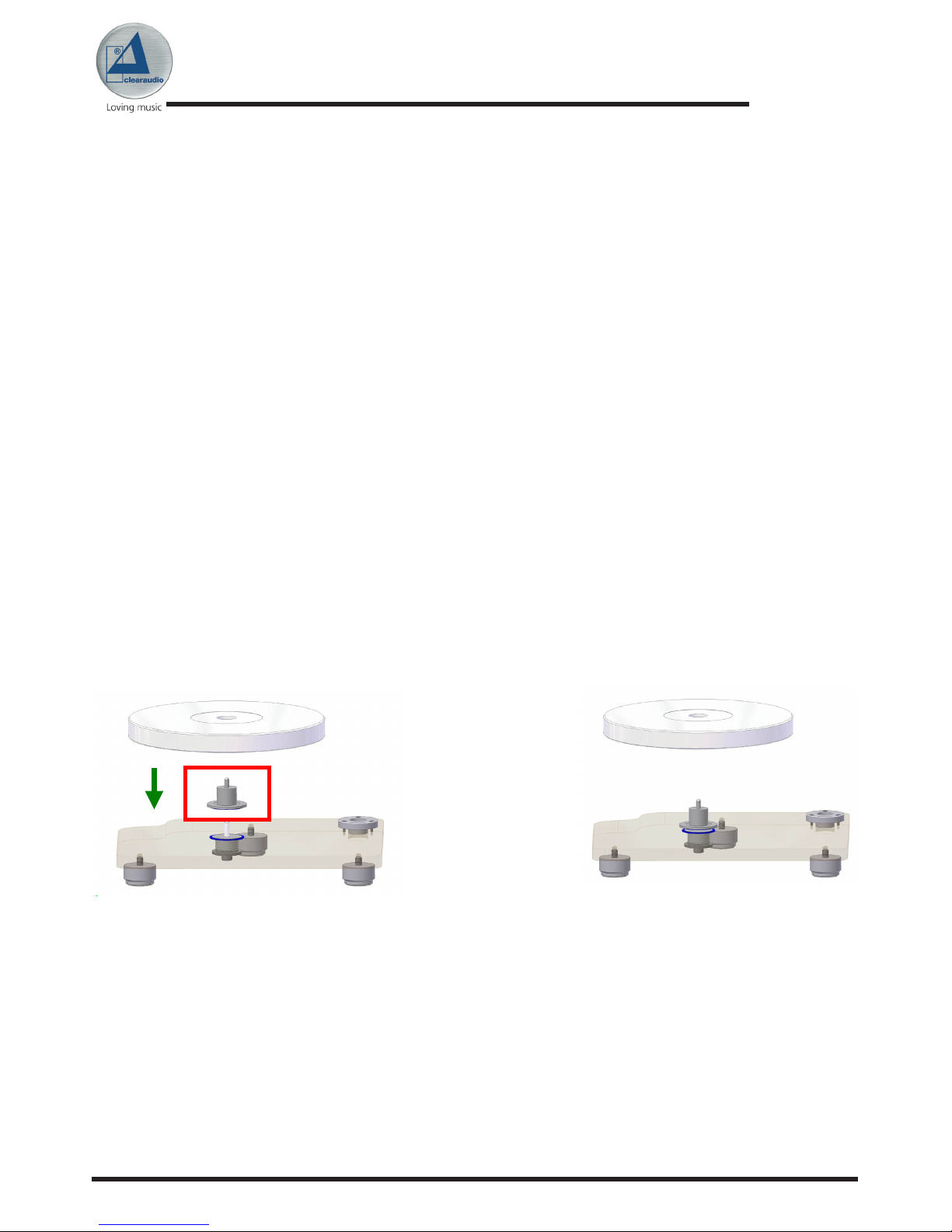

Pic. 3: Placing the bearing Pic. 4: Placing the platter

Make sure with gentle pressure that the platter is applying on the complete surface of the bearing.

Page / Seite 8 © clearaudio electronic GmbH 2016

4. ) Alignment of the turntable

The following adjustment is very important!

Place the Clearaudio

level gauge

on the platter (see Pic. 5) and bring the turntable in level by turning the

corresponding feet in the right direction.

The turntable is in level, when the air bubble in the level gauge is in the center.

Adjust the height of the turntable by turning the feet counter wise with the delivered hex wrench (shown in

picture 6).

Only if the turntable is proper aligned you will receive the best possible sound.

Emotion SE

User manual

Bedienungsanleitung

Pic. 5: Alignment of the turntable

Pic. 6: Height adjustment

Page / Seite 9 © clearaudio electronic GmbH 2016

Emotion SE

User manual

Bedienungsanleitung

The following instructions are for

Emotion SE

packages.

If you use a tonearm and / or cartridge from different manufacturer please follow the instruction manual of

the particular manufacturer.

3.1 Tonearm set-up

1.)

Take the

Satisfy Carbon

tonearm and slide rst the

signal cable and then the tonearm shaft into the

hole of the tonearm base at the right upper corner

of the

Emotion SE

turntable chassis. Please ensure

that the tonearm tube is parallel to the side edge

of the chassis turntable.

Tighten the tonearm only slightly with the provided

hex wrench and screws.

Before you nish the tonearm setup, please

proceed with the cartridge setup.

The correct height adjustment that is going to be used for the tonearm is depending on the cartridge you

install.

2.)

For the next steps, please mount your cartridge on your tonearm (optional as a package: Clearaudio

Satisfy Carbon

tonearm). Please leave the stylus protector on the cartridge.

Use the manufacturer’s instruction manual during this installation procedure and follow the appropriate

instructions.

The headshell wires (cartridge connection leads) are colour coded according to the international standard:

Pic. 7: Setup of the tonearm

Colour code of the

Satisfy Carbon

tonearm wire:

Signal left channel (L+) >> white

Signal ground left channel (L-) >> blue

Signal right channel (R+) >> red

Signal ground right channel (R-) >> green

Please pay attention on every step to avoid any damages to the cartridge!

Now adjust the tracking force of the cartridge.

Please follow the instructions according the manual of the cartridge you use.

If you are using a Clearaudio Moving Magnet cartridge you can adjust the tracking force or the wiring of

the tonearm (about 20 mN), by turning the tonearm`s counter weight on the threaded bolt (backside view

of the tonearm).

Page / Seite 10 © clearaudio electronic GmbH 2016

Emotion SE

User manual

Bedienungsanleitung

3.)

For a more comfortable adjustment, please take the delivered

Smart Stylus gauge

(only in the

Emotion SE

package with tonearm and cartridge) and adjust the tracking force by using the gauge.

Please place the

Smart Stylus gauge

on the platter and put the cartridge on the ne line which is marked

with the recommend tracking force for your cartridge (e.g. Clearaudio MM cartridge 20 mN (2.0 gram)).

Pic. 8: Use of the

Smart Stylus Gauge

✓



tracking force too high!



tracking force too low!

This position of the diamond correlates

to a tracking force of 20 mN (2.0g).

If you would like even more professional set up tools, you can also use other tools like the Clearaudio

Weight Watcher gauge

(Art. No. AC094).

For more information on that, please contact your specialist dealer or directly Clearaudio

www.analogshop.de.

For contact address see page 14.
