Clear One CHAT 150 Manual de usuario
CHAT
™150 Group Speaker Phone
QUICK START GUIDE
TELEPHONE 1.800.283.5936
1.801.974.3760
FAX 1.801.974.3669
EMAIL [email protected]
TECHNICAL SUPPORT
Caution: Read the Safety Information
in the instruction manual
© 2007 ClearOne Communications, Inc. All rights reserved. Information in this document is subject to change without
notice. 800-156-202 Rev. 1.2.
QUICK START GUIDE
CHATTM 150 Group Speaker Phone
1
BEFORE YOU BEGIN
To use your Chat 150 with a telephone, video conferencing device, or
computer, see the appropriate heading in the Table of Contents to locate
the installation instructions.
To use your Chat 150 with telephone or video conferencing device and a
computer at the same time, use the following procedure:
1. Connect your Chat 150 to your telephone or video confer-
encing device (see the appropriate heading in the Table of
Contents to locate the instructions).
2. Connect your Chat 150 to your computer using this Quick
Start Guide (see Connecting Chat 150 to a PC in the Table
of Contents to locate the instructions).
3. Refer to the Chat 150 User’s Manual for detailed instruc-
tions on how to configure and customize your Chat 150 for
use with your computer.
TABLE OF CONTENTS
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connecting Chat 150 to a Telephone. . . . . . . . . . . . . . . . . . . . . . . 2
Connecting Chat 150 to a Video Conferencing Device . . . . . . . . 16
Connecting Chat 150 to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
QUICK START GUIDE
3
CHATTM 150 Group Speaker Phone
2
CONNECTING CHAT 150 TO A TELEPHONE
Perform the following steps to connect your Chat 150 to a telephone:
1. Using the included 25’ ClearOne RJ-45 Chat 150 connection cable,
connect the Chat 150 Phone Breakout Box to your Chat 150 as
shown in the picture to the right.
QUICK START GUIDE
5
CHATTM 150 Group Speaker Phone
4
2. Using the included 2’ ClearOne RJ-9 telephone connection cable,
connect the Chat 150 Phone Breakout Box’s phone jack to your
telephone’s headset jack as shown in the picture to the right.
DO NOT plug the cable into the telephone’s line jack, handset
jack, or to phones other than those listed on your Chat 150
package labeling. Damage to the telephone and/or Chat 150
might occur.
QUICK START GUIDE
7
CHATTM 150 Group Speaker Phone
6
3. If you have a headset that you typically use with your telephone,
connect it to the headset jack on the Chat 150 Phone Breakout Box
as shown in the picture to the right.
QUICK START GUIDE
9
CHATTM 150 Group Speaker Phone
8
4. Slide the correct power supply clip for your country into the included
power supply as shown in the picture to the right. The power supply
may contain a plastic shield that must be removed before inserting
the clip.
QUICK START GUIDE
11
CHATTM 150 Group Speaker Phone
10
5. Using the included power supply, connect the Chat 150 Phone
Breakout Box to a power outlet as shown in the picture to the right.
6. The blue LED indicators on the Chat 150 illuminate, indicating that the
Chat 150 has power.
7. Install the Chat software and configure the Chat 150 for use with your
telephone by clicking on Device Setup. See the Connecting Chat 150
to a PC section of this manual for quick instructions. For detailed
instructions, refer to the Chat 150 User’s Manual.
QUICK START GUIDE
13
CHATTM 150 Group Speaker Phone
12
CHAT 150 Volume Up/Down & MUTE Buttons
Use the Volume Up/Down buttons (indicated by a large dot and a small
dot) to adjust the volume level of the Chat 150. Holding down either but-
ton continuously will change the volume rapidly.
Use the Mute button to mute the Chat 150’s microphone until the Mute
button is pressed again. If you are using the Chat 150 with a PC, you can
also use the Volume Control in Windows, as well as the Chat 150 software
to adjust the volume and mute the microphone.
USING THE CHAT 150
CHAT 150 LED Indicators
The three microphone LED indicators illuminate blue when the Chat 150
microphones are unmuted. The indicators illuminate red when the Chat
150 microphone mute function is active.
The seven volume LED indicators illuminate blue to indicate the current
volume setting--more lights indicate higher volume.
QUICK START GUIDE
15
CHATTM 150 Group Speaker Phone
14
CHAT 150 SOFTWARE
The Chat 150 includes software that has a database of pre-configured
device settings, which allows you to instantly select and apply optimal
audio settings for supported devices. It also allows you to create cus-
tomized audio settings and save them as custom devices. To learn more
about this software, refer to your Chat 150 User’s Manual.
To install the the Chat 150 software, visit http://www.clearone.com/sup-
port/downloads.php?content=main and select Chat 150 from the product
drop-down list. Select the Chat 50/150 Software from the list to download
the most current version of the Chat 150 software. For detailed installation
instructions, refer to your Chat 150 User’s Manual.
>Note: If you do not have internet access on your computer, use the
Chat 150 Installation CD included in the box.
CHAT 150 PHONE BREAKOUT BOX
Press the Headset button on the phone breakout box to send audio from
your phone to your headset connected to the Chat 150 Breakout Box.
This will also disable audio going from the Breakout Box to the Chat 150 -
it is only routed to the headset. The phone breakout box LED indicator illu-
minates green, indicating that headset audio is activated. The Chat 150
LED indicators remain lit, although audio is not routed to the Chat 150
from the Breakout Box (USB audio is still active). Press the Headset but-
ton again to disable headset audio and reactivate audio from the
Breakout Box to the Chat 150.
QUICK START GUIDE
17
CHATTM 150 Group Speaker Phone
16
(
(
)
)
(
(
)
)
CONNECTING CHAT 150 TO A VIDEO
CONFERENCING DEVICE
Perform the following steps to connect your Chat 150 to a video
conferencing device:
1. Using the included 25’ ClearOne RJ-45 Chat 150 connection cable,
connect the Chat 150 VC Breakout Box to your Chat 150 as shown in
the picture to the right.
Otros manuales para CHAT 150
13
Tabla de contenidos
Otros manuales de Teléfono de Clear One
Clear One
Clear One CHATAttach 150 Manual de usuario
Clear One
Clear One CHAT 150 Manual de usuario
Clear One
Clear One CHAT 160 Manual de usuario
Clear One
Clear One Chat 150 VC Manual de usuario
Clear One
Clear One CHAT 60-U Manual de usuario
Clear One
Clear One CHATAttach 170 Manual de usuario
Clear One

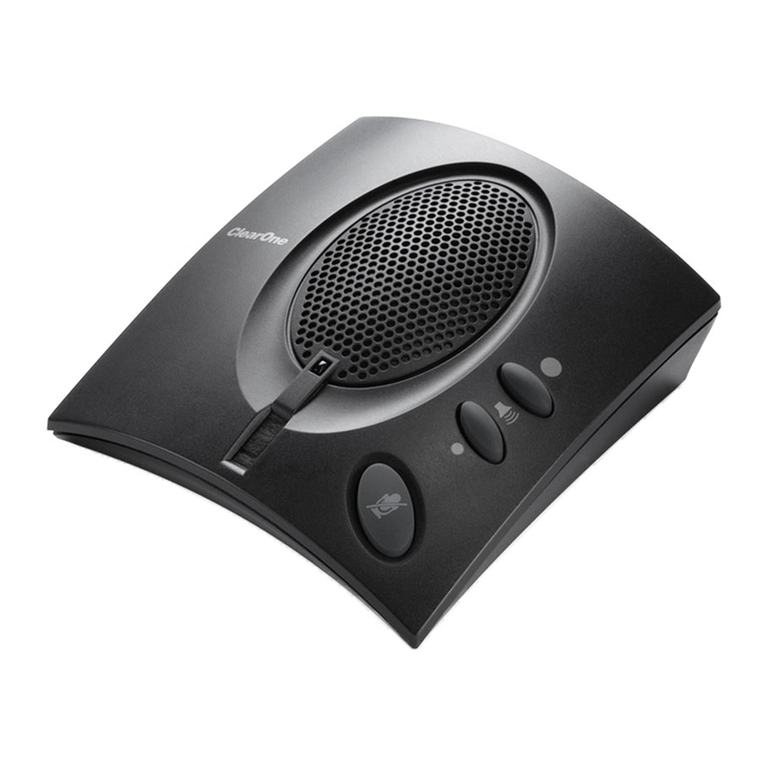

Clear One Chat 50 Manual de usuario
