Claypaky SHARPY PLUS AQUA Manual de usuario

CD3002

INST UCTION MANUAL

ENGLISH

SHARPY PLUS AQUA

INDEX

Page Contents

2 1. Safety information

3 2. Unpacking and preparation

4 3. Installation and start-up

4 3.1 Installing the fixture

4 3.2 Connecting to the mains supply

5 3.3 Connecting the signal control line: DMX / Art-Net

5 3.4 Switching on the fixture and basic setup

7 4. Maintenance

7 4.1 Opening the covers

8 4.2 Periodical cleaning

9 4.3 Effect module removal

11 4.4 Rotating gobos

12 4.5 Battery removal

13 5. Specifications

PELIMINAY

Congratulations on choosing a Claypaky product!

We thank you for your custom.

Please note that this product, as all the others in the

rich Claypaky range, has been designed and made with

total quality to ensure excellent performance and best

meet your expectations and requirements.

SHARPY PLUS AQUA

SAFETY INFO MATION

IMPORTANT: Claypaky recommend you to carefully read and keep the safety information on this product, also

available in digital format at the following link:

www.claypaky.com

Ref: [FIS01Z - Safety Information Sharpy Plus Aqua]

INFO MAZIONI DI SICU EZZA

IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative

a questo prodotto, sempre reperibili in versione digitale al seguente link:

www.claypaky.com

Rif: [FIS01Z - Safety Information Sharpy Plus Aqua]

INFO MATIONEN ZU SICHE HEIT

WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und

aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:

www.claypaky.com

Ref: [FIS01Z - Safety Information Sharpy Plus Aqua]

INFO MACIONES DE SEGU IDAD

IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este

producto. Además, está disponible una versión digital de la misma en el siguiente enlace:

www.claypaky.com

Ref: [FIS01Z - Safety Information Sharpy Plus Aqua]

CONSIGNES DE SÉCU ITÉ

IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à

ce produit, disponibles en version digitale au lien suivant:

www.claypaky.com/download

Réf. : [FIS01Z - Safety Information Sharpy Plus Aqua]

ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ

ВАЖНО: Claypaky рекомендует внимател но прочитат и сохранит инструкцию по технике безопасности

данного изделия, которая всегда доступна в электронном формате по следующей ссылке:

www.claypaky.com

Наименование: [FIS01Z - Safety Information Sharpy Plus Aqua]

1. SAFETY INFO MATION

SHARPY PLUS AQUA

90°

UNLOCKED

LOCKED

PAN Mechanism Lock and elease (every 90°) - Fig. 2

TILT Mechanism Lock and elease (every 45°) - Fig. 3

2 3

Packing contents - Fig. 1

45°

LOCKED

UNLOCKED

2. UNPACKING AND P EPA ATION

Omega bracket

IP 65 connector Wi-fi receiver

Lamp inside

the fixture

SHARPY PLUS AQUA

Ethernet

DMX out Power in

DMX in

Wi-Fi

LCD Display Functional buttons

Connecting and disconnecting power cable - Fig. 6

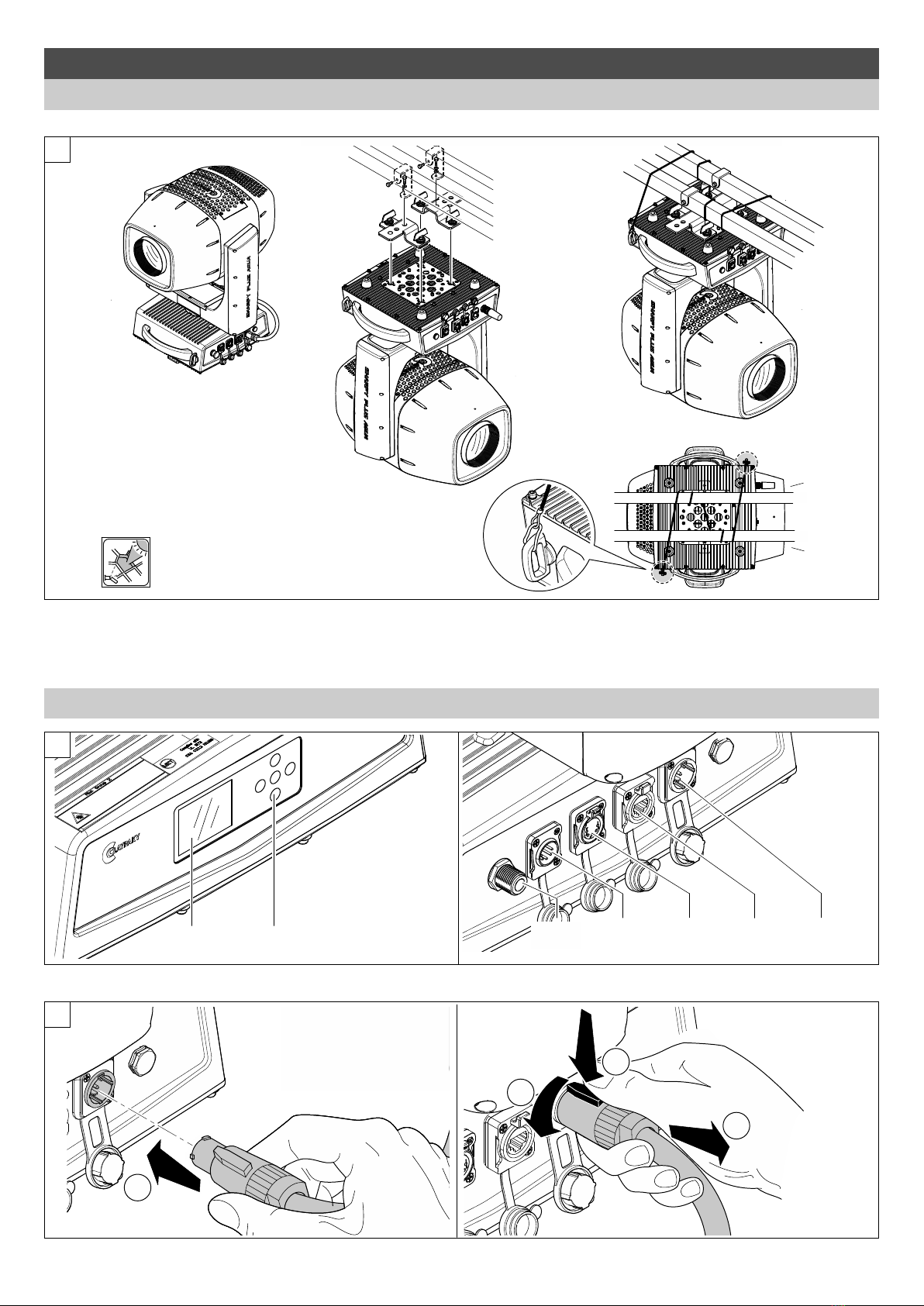

Installing the projector - Fig. 4

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.

WA NING: with the exception o when the projector is positioned on the loor, the sa ety cable must be itted. (Cod. 105041/003 available on request).

This must be securely ixed to the support structure o the projector and then connected to the ixing point o the base.

3. INSTALLATION AND STA T-UP

3.1 Installing the fixture

Light collimation system

This product contains internal light collimation system.

Avoid intense light from any angle.

3.2 Connecting to the mains supply

Control panel - Fig. 5

SHARPY PLUS AQUA

Switching on the projector - Fig. 9

Plug the power connector. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

Model Firmware xxx (Fixture ID) System errors

SHA PY PLUS Version X.X.X Dmx Address xxx E: .........................

AQUA Date - Hour W: .........................

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control

panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two

conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.

During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.

It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the

key will be cancelled.

Dmx Address

Warning Message

Connecting to the control signal line (DMX) - Fig. 8

Use a cable compliant to the EIA RS-485 specifications: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use

microphone cables or other cables with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female

connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.

IMPO TANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the

shield braid and to pin 1 of the connectors.

Connecting to the mains supply - Fig. 7

SIGNAL

SCREEN

DMX512

5 PIN

SIGNAL

Mains

Continue ➔

3.3 Connecting the signal control line: DMX / Art-Net

3.4 Switching on the fixture and basic setup

SHARPY PLUS AQUA

eversal of the display - Fig. 10

To activate this function, press UP

and DOWN

keys simultaneously while the display is in the rest mode. This status will be memorised and

maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

The address can also be set with the projector switched off.

If there is no DMX input signal, the display will show "No signal".

IMPO TANT: If there is no DMX input signal the address displayed blinks.

Functions of the buttons - Using the menu

Setting addresses and options with the projector disconnected

The projector DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.

All that is needed is to press

RIGHT

to momentarily activate the display and thus access the settings. Once the required operations have been

carried out, the display will switch off again after a wait time of 30 seconds.

USING THE MENU:

1) Press LEFT

once – “Main Menu” appears on the display.

2) Use the UP

and DOWN

keys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.

• Option (Option Menu): To set the operating options

• Information (Information Menu): To read the counters, software version and other information.

• Manual Control (Manual control Menu): To trigger the test and manual control functions.

• Test (Test Menu): To check the proper functioning of effects

• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for trained technical personnel.

3) Press

to display the first item in the selected menu.

4) Use the UP

and DOWN

keys to select the MENU items.

Confirms the displayed value, or activates the displayed function, or enters the successive

menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Return to the top level

Commute from units, tens, hundreds, in the "Address" and "Calibration" menù.

DOWN

LEFT

RIGHT

SHARPY PLUS AQUA

WA NING

- IP 65 fixture

- Failure to completely remove power from fixture prior to servicing can lead to serious injury or death.

For additonal service information please contact [email protected]

IMPO TANT

The screws to be removed have rubber sleeve gaskets at the threaded end of the screw. DO NOT LOOSE these. They must be reinstalled when

reassembly is done. If these rubber sleeve gaskets are damaged, they must be replaced with exact original equipment (OE) parts, we also suggest to

replace the rubber sleeve gasket every 2 years.

To maintain IP65 rating each cover has rubber gasket on it. If any rubber gasket is lost or damaged, it must be replaced by an original equipment

(OE) part. We also suggest to replace the rubber sleeve gasket every 2 years.

11 12

Continue ➔

4. MAINTENANCE

4.1 Opening the covers

Upper Side

Lower Side

SHARPY PLUS AQUA

Periodical cleaning - Fig. 13

To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The

frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the

working environment (air humidity, presence of dust, salinity, etc.).

Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended

that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:

•General cleaning of internal parts.

•Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.

•General visual check of the internal components, cabling, mechanical parts, etc.

•Electrical, photometric and functional checks; eventual repairs.

NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration.

4.2 Periodical cleaning

SHARPY PLUS AQUA

Continue ➔

4.3 Effect module removal

Lower side

Extraction of the effect modules - Fig. 14.

IMPO TANT: Grasp the modules using the support structure and not the details which could get damaged.

Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14 and 15 in reverse order.

NOTE:

- Do not disconnect wiring harnesses when the fixture is switched on, to avoid to damage electronic boards.

- Do not switch on the fixture with wiring harness disconnected.

ADJUST

Lamp change - Fig 14.

Take the new lamp out of its package and insert it in the fitting.

WA NING: do not touch the lamp envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it

with a clean, dry cloth.

Lamp adjustment

To adjust the lamp position move the 2 screw as shown in the picture.

WA NING: The lamp must be adjusted with the projector switched o . A ter adjusting, close the e ect covers, switch on the projector and check

that the adjustment has been correctly made. I necessary, switch o the projector, remove the e ects covers and repeat lamp adjustment.

EMA K:

- Lifetime of the lamp will be influenced by the switching cycle.

- After a successful starting, attempt to keep the lamp burning for at least 15 minutes in order to complete the chemical cycle of the

lamp to secure the lifetime.

- After switching-off the lamp wait at least 2 minutes before switching it on again.

SHARPY PLUS AQUA
