Clarke MMA200A Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1221

200A MMA INVERTER WELDER

MODEL NO: MMA200A

PART NO: 6012163

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE MMA (Arc) Welder. Before attempting to

operate the machine it is essential that you read this manual thoroughly and

carefully follow all instructions given. In doing so you will ensure the safety of

yourself and that of others around you, and you can also look forward to the

welder giving you long and satisfactory service.

When unpacking, any damage or deficiency should be reported to your

CLARKE dealer immediately.

PRINCIPLES OF THE MACHINE

MMA (Arc) welding uses a coated consumable electrode (stick) to lay the

weld, therefore an additional welding torch kit is not required. The arc melts

the core of the electrode to produce drop s of molten metal (weld pool) that

cool to create the welded joint. Because of the versatility and simplicity of

MMA welding, it requires less skill and is used primarily to weld iron and steel

(including stainless steel. but nickel and copper can also be welded using this

method.

MAIN DESIGN FEATURES

INVENTORY

The items supplied include the following:

• 1 x MMA Inverter Welder

• 1 x Torch Cable with Electrode Holder

• 1 x Earth Clamp & Cable

• 1 x Combination Wire Brush / Hammer

• 1 x Instruction Manual

ARC-FORCE automatically increases the current to prevent the

electrode sticking when operating with a short arc

length.

HOT START increases the welding current at the beginning of the

welding process.

ANTI-STICK the electrode can be easily withdrawn without it

becoming damaged.

VOLTAGE REDUCTION

SAFETY DEVICE (VRD)

reduces open circuit voltage when not in use to pre-

vent accidental injury

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

SAFETY PRECAUTIONS FOR ALL TYPES OF WELDING

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

GENERAL PRECAUTIONS

BURN PREVENTION

Wear protective clothing - gauntlet gloves designed for use in welding, apron,

and protective shoes. Button shirt collar and pocket flaps and wear cuffless

trousers to avoid entry of sparks and slag. Wear helmet with safety goggles or

glasses with side shields underneath, appropriate filter lenses or plates

(protected by clear glass). This is a MUST for welding (and chipping) to protect

the eyes from radiant energy and spatter. Replace cover glass when broken,

pitted, or spattered. Avoid oily greasy clothing. A spark may ignite them. Hot

metal should never be handled without gloves. First aid facilities and a

qualified first aid person should be available unless medical facilities are close

by for immediate treatment of flash burns of the eyes and skin burns. Ear plugs

should be worn when working overhead or in a confined space. A hard hat

should be worn when others work overhead. Flammable hair preparations

should not be used by persons intending to weld or cut.

NOTE: ALL protective wear incl. masks & head shields MUST comply with

PPE Regulation (EU) 2016/425.

TOXIC FUME PREVENTION

Severe discomfort, illness or death can result from fumes, vapours, heat, or

oxygen enrichment or depletion that welding (or cutting) may produce.

Prevent them with adequate ventilation. NEVER ventilate with oxygen. Lead-,

cadmium-, zinc-, mercury- and beryllium-, bearing materials, when welded (or

cut) may produce harmful concentrations of toxic fumes. Adequate local

exhaust ventilation must be used, or each person in the area as well as the

operator must wear an air- supplied respirator. For beryllium, both must be

used. Metals coated with or containing materials that emit toxic fumes should

not be heated unless coating is removed from the work surface, the area is

well ventilated, or the operator wears an air-supplied respirator. Work in a

confined space only while it is being force ventilated and, if necessary, while

wearing an air-supplied respirator. Vapours from chlorinated solvents can be

decomposed by the heat of the arc (or flame) to form PHOSGENE, a highly

toxic gas, and other lung and eye irritating products. The ultraviolet (radiant)

energy of the arc can also decompose trichloroethylene and

WARNING: AS WITH ALL MACHINERY, THERE ARE CERTAIN HAZARDS

INVOLVED WITH THEIR OPERATION AND USE. EXERCISING RESPECT AND

CAUTION WILL CONSIDERABLY LESSEN THE RISK OF PERSONAL INJURY.

HOWEVER, IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED, OR

IGNORED, PERSONAL INJURY TO THE OPERATOR MAY RESULT.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

perchloroethylene vapours to form phosgene. DO NOT WELD where solvent

vapours can be drawn into the welding atmosphere or where the radiant

energy can penetrate to atmospheres containing even minute amounts of

trichloroethylene or perchloroethylene.

FIRE AND EXPLOSION PREVENTION

Causes of fire and explosion are:

1. Combustibles reached by the arc, flying sparks, hot slag or heated

material;

2. Short circuits.

BE AWARE that flying sparks or falling slag can pass through cracks, along

pipes, through windows or doors, and through wall or floor openings, out of

sight of the goggled operator.

To prevent fires and explosion: keep equipment clean and operable, free of

oil, grease, and (in electrical parts) of metallic particles that can cause short

circuits. If combustibles are in the area, do NOT weld. Move the work if

practicable, to an area free of combustibles.

Avoid working in paint spray rooms, dip tanks, storage areas, ventilators. If the

work cannot be moved, move combustibles away from sparks and heat; or

protect against ignition with suitable fire- resistant covers or shields.

Walls, ceilings, and floor near work should be protected by heat resistant

covers or shields. Fire watcher must be standing by with suitable fire

extinguishing equipment during and for some time after welding or cutting if:

1. appreciable combustibles (including building construction) are within 10m.

2. appreciable combustibles are further than 10m, but can be ignited by

sparks.

3. openings (concealed or visible) in floors or walls can expose combustibles

to sparks.

4. combustibles adjacent to walls, ceilings, roofs or metal partitions can be

ignited by radiant or conducted heat.

After work, check that area is free of sparks, glowing embers and flames. An

empty container that held combustibles or that can produce flammable or

toxic vapours when heated, must never be welded on or cut, unless the

container has first been cleaned. This includes a thorough steam or caustic

cleaning (or a solvent or water washing, depending on the combustible’s

solubility) followed by purging and inerting with nitrogen or carbon dioxide,

and using protective equipment.

Water filling just below the working level may substitute for inerting.

A container with unknown contents should be cleaned (see paragraph

above). Do NOT depend on sense of smell or sight to determine if it is safe to

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

weld or cut. Hollow castings or containers must be vented before welding as

they can explode.

In explosive atmospheres, never weld or cut where the air may contain

flammable dust, gas, or liquid vapours.

ELECTRIC ARC WELDING

Comply with precautions in above and this section. Arc welding, properly

done, is a safe process but a careless operator invites trouble. The equipment

carries high currents at significant voltages. The arc is very bright and hot.

Sparks fly, fumes rise, ultraviolet and infrared energy radiates and work pieces

are hot. The wise operator avoids unnecessary risks and protects himself and

others from accidents.

BURN PROTECTION

The welding arc is intense and visibly bright. It’s radiation can damage eyes,

penetrate lightweight clothing, reflect from light coloured surfaces and burn

the skin and eyes. Skin burns resemble acute sunburn, those from gas -

shielded arcs are more severe and painful.

DON’T GET BURNED! FOLLOW ALL SAFETY PRECAUTIONS!

PROTECTIVE CLOTHING

Wear long sleeved clothing (particularly for gas shielded arc) in addition to

gloves, apron and strong shoes. As necessary, use additional protective

clothing such as leather jacket or sleeves, flameproof apron, and fire-resistant

leggings. Avoid outer garments of untreated cotton. Bare skin protection:

Wear dark substantial clothing, Button collars closed to protect the chest and

neck and button any pockets to prevent entry of sparks.

EYE AND HEAD PROTECTION

Protect eyes from exposure to arc. NEVER look at an electric arc without

protection. Welding helmet or shield containing an appropriate filter plate

(Please refer to the section ‘Welding Shield). Place over face before striking

arc. Protect filter plate with a clear cover plate. Cracked or broken helmet or

shield should NOT be worn; radiation can pass through to cause burns.

Cracked, broken, or loose filter plates must be replaced IMMEDIATELY.Replace

clear cover plate when broken, pitted, or spattered. WE SUGGEST you wear

flash goggles with side shields under the helmet, to give some protection to

the eyes should the helmet not be lowered over the face before an arc is

struck. Looking at an arc momentarily with unprotected eyes (particularly high

intensity gas-shielded arc) can cause a retinal burn that may leave a

permanent dark area in the field of vision. Before welding whilst wearing

contact lenses, seek advice from your optician.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PROTECTION OF NEARBY PERSONNEL

For production welding, a separate, well vented room or enclosed bay is best.

In open areas, surround the operation with low reflective, non- combustible

screens or panels. Allow for free air circulation, particularly at floor level.

Provide face shields for all persons who will be looking directly at the weld.

Others working in the area should wear flash goggles. Before starting to weld,

make sure that screen or bay doors are closed.

TOXIC FUME PREVENTION

Comply with all precautions above.

FIRE AND EXPLOSION PREVENTION

Do not overload arc welding equipment. It may overheat cables and cause a

fire. Loose cable connections may overheat or flash and cause a fire. Never

strike an arc on a cylinder or other pressure vessel. It creates a brittle area that

can cause a violent rupture or lead to such a rupture later under rough

handling.

SHOCK PREVENTION

Exposed live conductors or other bare metal in the welding circuit, or in

unearthed, electrically-LIVE equipment can fatally shock a person whose

body becomes a conductor. DO NOT STAND, SIT, LIE, LEAN ON, OR TOUCH a

wet surface when welding, without suitable protection.

PROTECTION FOR WEARERS OF ELECTRONIC LIFE SUPPORT DEVICES

(PACEMAKERS).

Magnetic fields from high currents can affect pacemaker operation. Persons

wearing pacemakers should consult with their doctor before going near arc

welding or spot welding operations.

PROTECTION AGAINST SHOCK

Keep your body and clothing dry. Never work in damp area without

adequate insulation against electric shock. Stay on a dry duckboard or rubber

mat when dampness or sweat can not be avoided. Sweat, sea water, or

moisture between body and an electrically LIVE part - or earthed metal -

reduces the body surface electrical resistance, enabling dangerous and

possibly lethal currents to flow through the body.

EARTHING THE EQUIPMENT

When arc welding equipment is earthed according to the National Electrical

Code and the workpiece is earthed, a voltage may exist between the

electrode and any conducting object.

Examples of conducting objects include, but are not limited to, buildings,

electrical tools, work benches, welding power source cases, workpieces, etc.

Never touch the electrode and any metal object unless the welding power

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

source is off. When installing, connect the frames of each unit such as welding

power source, control, work table, and water circulator to the building earth.

Conductors must be adequate to carry earth currents safely. Equipment

made electrically LIVE by stray current may shock, possibly fatally. Do not

EARTH to electrical conduit, or to a pipe carrying ANY gas or a flammable

liquid such as oil or fuel.

CABLES

Frequently inspect cables for wear, cracks and damage. IMMEDIATELY

REPLACE those with excessively worn or damaged insulation to avoid possibly

lethal shock from bared cable. Cables with damaged areas may be taped to

give resistance equivalent to original cable. Keep cable dry, free of oil and

grease and protected from hot metal and sparks.

TERMINALS AND OTHER EXPOSED PARTS

Terminals and other exposed parts of electrical units should have insulating

covers secured before operation.

SAFETY DEVICES

Safety devices such as interlocks and circuit breakers should not be

disconnected or shunted out. Before installation, inspection, or service of

equipment, shut OFF all power and remove line fuses (or lock or red-tag

switches) to prevent accidental turning ON of power. Do not open power

circuit or change polarity while welding. If, in an emergency, it must be

disconnected, guard against shock burns, or flash from switch arcing. Always

shut OFF and disconnect all power to equipment. A power disconnect switch

must be available near the welding power source.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PREPARATION OF THE WORKING AREA

The working area must be sufficiently spacious, not humid, and well-ventilated

as to avoid any fumes which develop from the welding process and from

incidental material adhering to the pieces to be welded (oils, paints, tars...)

which may cause danger to the operator.

Avoid welding tanks which may contain flammable residuals.

ADDITIONAL PRECAUTIONS FOR MMA WELDING

1. ALWAYS ensure that there is full free air circulating around the outer casing

of the machine and that the louvres are unobstructed.

2. A welding arc can seriously damage your eyes. Both operator and

spectators must ALWAYS use a proper welding face shield or helmet with

suitable filter lenses. Proper gloves and working clothes should be worn at

all times.

3. ALWAYS remove all flammable materials from the welding area.

4. NEVER remove any of the panels unless the machine is disconnected from

the supply and never use the machine with any of the panels removed.

5. NEVER use or store in a damp environment. DO NOT EXPOSE TO RAIN.

6. NEVER attempt any electrical or mechanical repair unless your are a

qualified technician. If you have a problem with the machine contact your

local CLARKE dealer.

7. ALWAYS keep a fire extinguisher handy (Dry Powder, C02 or BCF, NOT

Water).

8. NEVER continue to weld, if, at any time, you feel even the smallest electric

shock. Stop welding IMMEDIATELY and DO NOT attempt to use the

machine until the fault is diagnosed and corrected.

9. NEVER allow the earth cable or torch to become wrapped around the

operator or any person in the vicinity.

WARNING: ELECTRIC SHOCK CAN BE FATAL. A PERSON QUALIFIED IN FIRST

AID SHOULD ALWAYS BE PRESENT IN THE WORKING AREA. IF PERSON IS

UNCONSCIOUS AND ELECTRIC SHOCK IS SUSPECTED, DO NOT TOUCH

THE PERSON IF HE OR SHE IS IN CONTACT WITH THE WELDER OR CABLES.

DISCONNECT THE WELDER FROM THE POWER SOURCE AND THEN USE FIRST

AID. DRY WOOD, OR OTHER INSULATING MATERIAL CAN BE USED TO

MOVE CABLES, IF NECESSARY, AWAY FROM THE PERSON.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

A comprehensive range of CLARKE safety equipment for use when welding is

available from your local dealer.

Consideration should be given to shielding the supply cable of permanently

installed welding equipment, in metallic conduit or equivalent. Shielding

should be electrically continuous throughout its length.

The shielding should be connected to the welding power source so that good

electrical contact is maintained between the conduit and the welding power

source enclosure.

The welding equipment should be routinely maintained according to the

manufacturer’s recommendations. All access and service doors and covers

should be closed and properly fastened when the welding equipment is in

operation. The welding equipment should not be modified in any way except

for those changes and adjustments covered in the manufacturer’s

instructions. In particular, the spark gaps of arc striking and stabilizing devices

should be adjusted and maintained according to the manufacturers

recommendations.

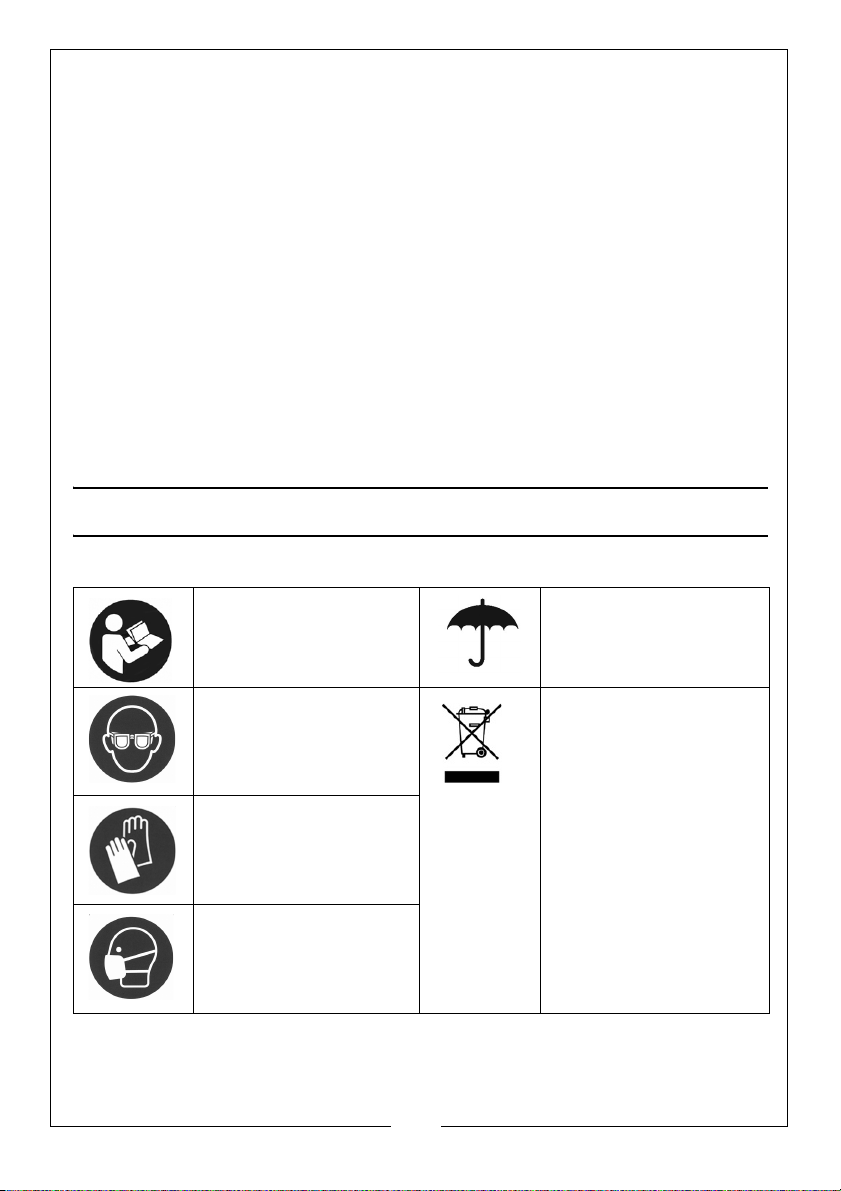

SAFETY SYMBOLS

The following symbols may be displayed on the machine.

Read this instruction

booklet carefully

before use.

Do not expose to rain.

Wear eye protection Recycle unwanted

materials instead of

disposing of them as

waste. All tools,

accessories and

packaging should be

sorted, taken to a

recycling centre and

disposed of in a manner

which is compatible

with the environment.

Wear protective gloves

Wear a dust mask

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTION

CONNECTING TO MAINS POWER

NOTE: This welder is earthed and must only be connected to the mains

with an earth connection. Do not attempt to use it without one.

• This welder is not supplied with a mains electrical plug because at

full capacity it will draw far too much power for a normal domestic

230V mains plug and socket. This welder must not be fitted with a

standard 13A UK plug.

• A high current 230V mains socket or terminal must be installed by a

qualified and accredited professional electrician. A 16A socket and

plug conforming to IEC 60309 is recommended.

• A non-socketed mains connection also requires welder connection

by a qualified and accredited professional electrician. However, a

socketed connection is safer and is recommended so the welder

can be safely isolated when necessary. If directly wired to the mains,

a double pole, double throw isolator switch must be fitted.

• The welder must be connected using a circuit protected by an RCD.

• Please refer to the Specification for details of the maximum current

required by this welder.

If in any doubt, do not attempt to connect or use this welder until a

professional electrician has been consulted.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

If disposing of this product or any damaged components, do not dispose of

with general waste. This product contains valuable raw materials. Metal

products should be taken to your local civic amenity site for recycling of metal

products.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de soldadura de Clarke

Clarke

Clarke CGW1 Manual de usuario

Clarke

Clarke PLASMA KING 25-SI Manual de instrucciones

Clarke

Clarke Fluxcore/MIG 135sg WE6441 Manual de usuario

Clarke

Clarke King 35 Manual de instalación y operación

Clarke

Clarke 195TEC Manual de instalación y operación

Clarke

Clarke ARC Manual de instalación y operación

Clarke

Clarke MIG 152 Manual de instrucciones

Clarke

Clarke King 35N Manual de instalación y operación

Clarke

Clarke 6014011 Manual de instrucciones

Clarke

Clarke MIG165TE Manual de instalación y operación

Clarke

Clarke MMA200 Manual de instrucciones

Clarke

Clarke 90EN Manual de instalación y operación

Clarke

Clarke IMIG100NG Manual de instrucciones

Clarke

Clarke AT101 Manual de instrucciones

Clarke

Clarke EASIARC 110 Manual de instrucciones

Clarke

Clarke EASIARC 200 Manual

Clarke

Clarke weld MMA/TIG120 Manual de instrucciones

Clarke

Clarke MIG 240 Manual de instrucciones

Clarke

Clarke CSW6T Manual de instalación y operación

Clarke

Clarke MIG220TE Manual de instalación y operación

Clarke

Clarke MMA Series Manual de instrucciones

Clarke

Clarke AT162 Manual de instrucciones

Clarke

Clarke Arc/Tig135 Manual de instalación y operación

Clarke

Clarke MIG106 Manual de instrucciones

Manuales populares de Sistema de soldadura de otras marcas

Berner

Berner PLASMACUT 54 Manual de usuario

Pro Spot

Pro Spot PR-155 Manual de usuario

Forney

Forney 210 Manual de usuario

Thermal Arc

Thermal Arc 400S Manual de usuario

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manual de usuario

GYS

GYS PROTIG 201 AC/DC Manual de usuario

TAFA

TAFA 30*8B35 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manual de usuario

ESAB

ESAB Buddy Arc 145 Manual de usuario

CIGWELD

CIGWELD 636804 Guía rápida

Red-D-Arc

Red-D-Arc DC-400 Manual de usuario

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manual de usuario

Elettro

Elettro HI-MIG 3000 SYNERGIC Manual de usuario

WIA

WIA Weldmatic 270 CP132-2 Manual de usuario

Sonics

Sonics H520T Manual de usuario

Miller

Miller Big Blue 400D Manual de usuario

NewArc

NewArc RT2000 Guía de inicio rápido

Hypertherm

Hypertherm powermax1000 Manual de usuario
