USER INSTRUCTIONS

GC1109

FILTER/REGULATORS

Models FR1 & FR2

Part Nos 5100800 / 5100802

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase. This guarantee is invalid if the product is found to have been

abused or tampered with in any way, or not used for its intended purpose.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect

your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. Any

tools, accessories and packaging should be sorted, taken to a

recycling centre and disposed of appropriately.

TECHNICAL SPECIFICATIONS

USER INSTRUCTIONS

This filter/regulator unit is designed to remove up to 95% of foreign matter

from the airline and to set the delivery pressure accurately using the gauge.

IMPORTANT! Any airline lubricator required for motorised air tools must be

fitted downstream of the filter/regulator.

)htdiWxhtpeDxthgieH(smiDA/Omm89x57x091

thgieWgk5.0

retemaideguaGmm24

daerhttroptelnI )2RF(PSB"4/1)1RF(PSB"8/

daerhttropteltuOPSB"4/1x2

)isp09(rab2.6@wolfriamumixaMMFC04

muidemretlifriAnottoC

erusserptelnixaMrab21

erus

serpteltuoxaMrab01

egnareguagerusserPmc/gk2.21-0(isp081-0

The filter/regulator should ideally be connected to a fixed airline, or wall

mounted using the fixing bracket supplied (FR2 only).

Adjust the delivery air pressure as required, by pulling the regulator cap

upwards and then twisting clockwise to increase or anti-clockwise to reduce

the outlet pressure, as displayed by the gauge. When the pressure is correct,

press the cap back to lock and retain the setting.

With use the filter will become sufficiently blocked that the air throughput can

become severely diminished. It should be removed and cleaned as follows:

1. Shut off the air compressor and vent any remaining air from the airline.

2. Unscrew the lower seat (9) from the filter body (5) using a 3/4”(19 mm)

spanner, and remove the filter (7). If this is found to be tight, remove the

filter/regulator from the installation & grip the regulator body securely in a

vice.

3. Gently clean the filter using dishwashing liquid and allow to dry. Clean out

the air holes in both the delivery stud (8) and the regulator body (2).

4. Re-install the filter in the body and replace the lower seat, taking care not

to overtighten. The seat should only be tightened until the sealing rings (4)

are compressed and an airtight seal is achieved.

Caution: Over tightening will permanantly damage the sealing rings.

5. Finally, re-install the unit into the airline.

oN noitpircseD

1bonKrotalugeR

2rotalugeR

3evlaVteltuO

4gniRgnilaeS

5ydoBretliF

6pilCcitsalP

7retliF

8dutSyrevileD

9taeSrew

01eguaGerusserP

11tekcarBgnitnuoM

21gniRgnixiF

31)ylno2RF(recudeR

41)ylno1RF(tuNkcoL

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de filtración de agua de Clarke

Clarke

Clarke MF2 Manual de usuario

Clarke

Clarke CAT197 Manual de instalación y operación

Clarke

Clarke CAT182 Instrucciones de instalación y funcionamiento

Clarke

Clarke CAT161 Manual

Clarke

Clarke CAT152 Instrucciones de uso

Clarke

Clarke CAT186 Manual de instalación y operación

Clarke

Clarke Air CAT159 Instrucciones de instalación y funcionamiento

Clarke

Clarke CAT193 Manual de instalación y operación

Clarke

Clarke CHT254 Manual de usuario

Clarke

Clarke CMF2 Manual de instalación y operación

Clarke

Clarke CAT192 Manual de instalación y operación

Clarke

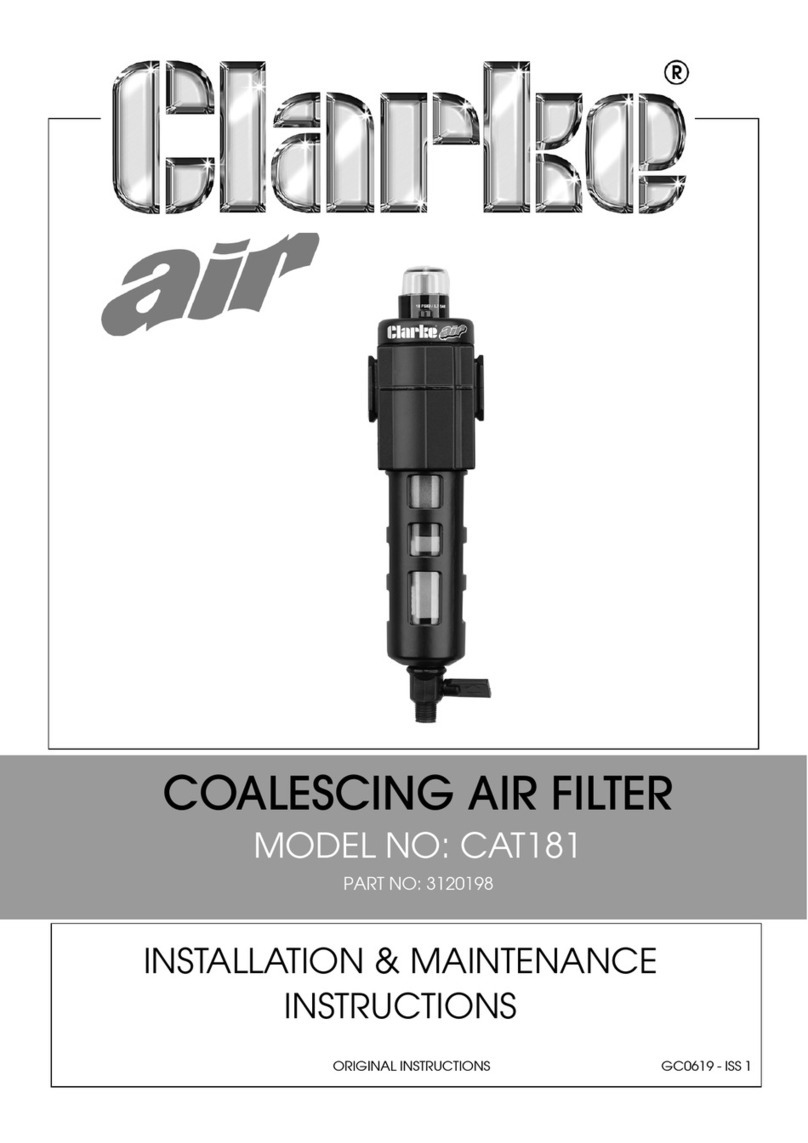

Clarke CAT181 Instrucciones de instalación y funcionamiento
