Clarke PLS360 Manual de instrucciones
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL 0121 REV 1
PETROL POWER WASHER
MODEL NO: PLS360
PART NO: 7330375
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Petrol Power Washer.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
UNPACKING
Unpack your power washer and check to ensure the following items are
present. Contact your CLARKE dealer immediately if any parts are missing or
damaged.
1 x Petrol Power Washer 1 x Hose/Lance Storage Bracket
1 x Delivery Hose c/w Fittings 1 x Spark Plug Box Spanner
1 x Suction Hose c/w Pump Fittings 1 x Tommy Bar
1 x Detergent Hose c/w Fittings 1 x Engine Manual
1 x Lance/Nozzle Assembly 1 x Gun Assembly
4 x Wheel Axles 1 x Pressure Washer Hose
4 x Wheel/Pneumatic Tyres
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY RULES
1. DO NOT point the spray at other people, animals, electrical equipment or
the machine itself.
2. DO NOT hold your finger over the high pressure nozzle.
3. DO NOT let children or untrained personnel use this machine.
4. DO NOT operate the machine with any of the covers removed.
5. DO NOT try to repair this machine. Always refer to your CLARKE service
department for all repairs.
6. DO NOT supply any liquid other than water to the water inlet.
7. DO NOT use the detergent pickup facility to introduce flammable liquids/
solvents, e.g. paint thinners, petrol, oil as there is a risk of explosion.
8. ALWAYS release the remaining pressure in the system; turn off the water
supply and operate the trigger before you remove hoses or accessories.
9. ALWAYS keep the machine dry and away from the water spray.
10. ALWAYS use protective clothing and safety glasses. Loose particles and
other items can be propelled at high speed by the water spray.
11. ALWAYS hold the gun securely & expect it to ‘kick’ when you pull the trigger.
12. ALWAYS respect the requirements of the local water company. Pressure
washers may only be connected to the mains water supply if a system
separator (also known as a backflow preventer) is installed in the supply
hose.
13. ALWAYS disconnect from the water supply, and make sure that you drain
the system when not in use. Keep in a cool dry location.
14. ONLY use detergents that are suitable for pressure washers, we recommend
that you use CLARKE Traffic Film Remover or CLARKE Wash and Wax
(available from your dealer).
15. WARNING High pressure water jets can be dangerous, the jet must not be
directed at a person or anything that they are wearing.
16. WARNING High pressure hoses, fittings and couplings are important for the
safety of the machine. Use only hoses, fittings and couplings recommended
by the manufacturer.
17. WARNING Water that passes through a system separator (also known as a
backflow preventer) is not safe to drink.
18. DO NOT use the pressure washer if there is damage to the inlet/outlet hose
or the machine.
WARNING: WATER AT HIGH PRESSURE CAN BE DANGEROUS AND CAN
CAUSE DAMAGE TO PERSONS OR PROPERTY IF THE OPERATOR IS
CARELESS. NEVER ALLOW ANYONE TO OPERATE THIS EQUIPMENT UNLESS
THEY ARE THOROUGHLY RELIABLE, AND FAMILIAR WITH THE SAFETY
PRECAUTIONS.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY SYMBOLS
ALWAYS: Read this manual and make sure that all warnings and
instructions are clear before you use this pressure washer.
DANGER: Risk of fire or explosion. Stop the engine before you
refuel the pressure washer. Keep flammable materials away
from the work area. Do not spray flammable liquids.
DANGER: Risk to breathing. Engine exhaust fumes can
kill. For outdoor use only. Work in a well ventilated area.
WARNING: Risk of injection or severe injury. DO NOT directly
discharge stream at persons or animals. Keep clear of
nozzle. This machine should only be used by qualified
operators.
WARNING: Risk of spray injury. Spray can propel objects.
Always wear ANSI approved Z87.1 Safety Glasses.
WARNING: Risk of chemical burn. NEVER spray acids,
corrosive or toxic chemicals. Use only cleaners formulated for
power washers.
WARNING: Risk of electrocution. NEVER direct the spray
toward any electrical device or electrical outlet.
WARNING: Risk of unsafe operation. Keep children
away from this equipment. Gun kicks back. Hold with both
hands.
WARNING: Risk of hot surfaces. Avoid contact with hot
engine exhaust components. Don't allow hoses to contact
the engine muffler during or after use.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SPECIFICATIONS
Model PLS360
Engine
Engine Model G390FD
Power (HP) 13hp/8.2kW/3600rpm
Engine type Petrol (unleaded)
Starting system Key
Battery 12V, 20AH
Fuel Tank Capacity (L) 6.5
Water supply
Max. feed temperature 30oC
Min. feed volume (l/min.) 17
Water Inlet Pressure 3-6 Bar
Water Pump
Maximum pressure 248 Bar/3600 Psi
Working pressure 228 Bar/3300 Psi
Max. water flow (l/min.) 17 (Mains supply)
15.3 (Barrel supply)
Measured sound power level LWA dB 99.25
Guaranteed sound power level LWA dB 100
Vibration - Main Handle 2.073m/s2
Dimensions
Length/Width/Height - Handle Raised (mm) 920/1095/695
Weight (kg) 66.6
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
OVERVIEW
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

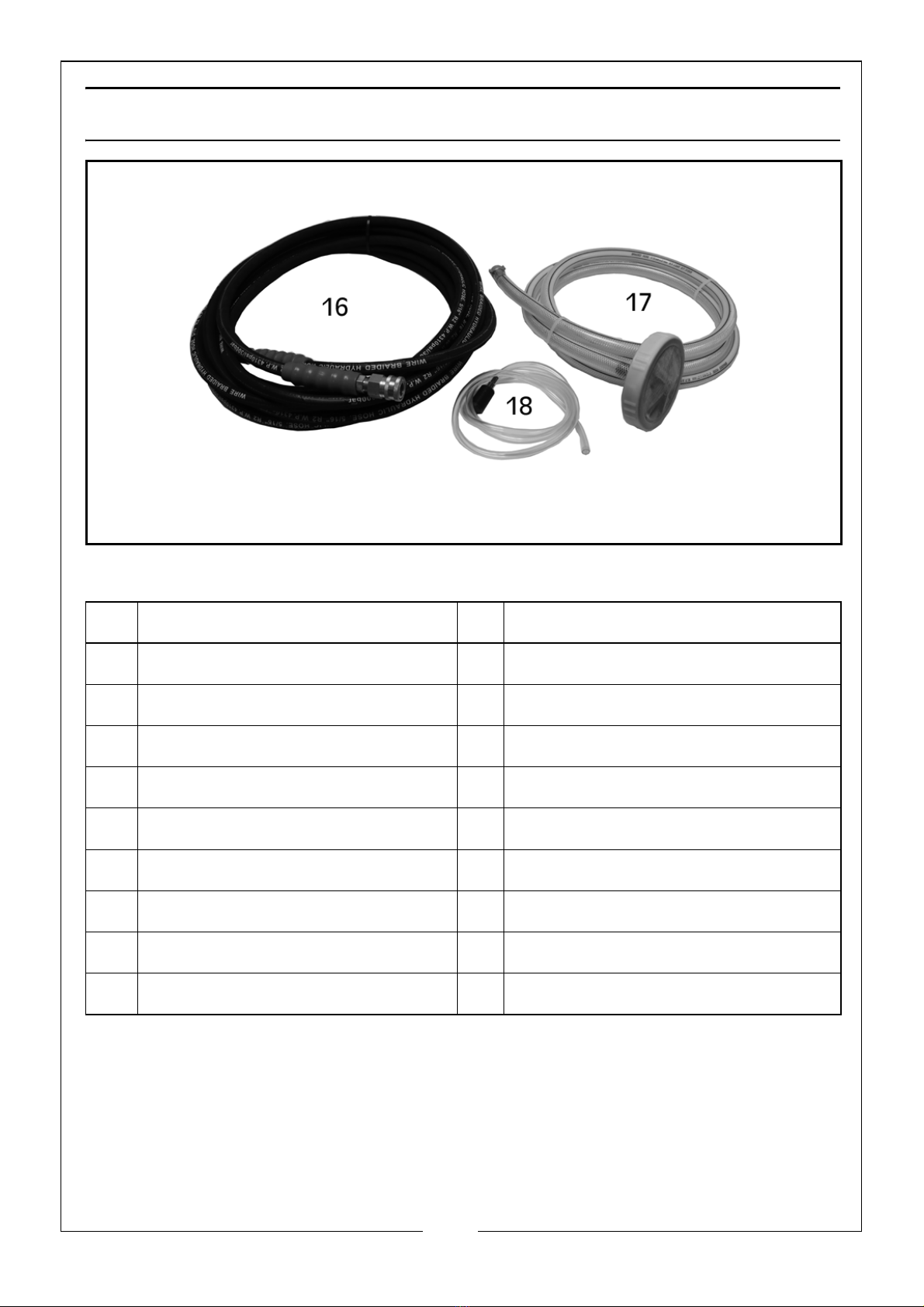

OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Foldable Handle 10 Pressure Regulator
2 Gun 11 Chemical Detergent Inlet
3 Wand/Lance & Hose Bracket 12 Water Outlet
4Wheels 13WaterInlet
5 Engine 14 Suction Valve
6 Pump 15 Thermal Relief Valve
7 Adjustable Nozzle 16 10m High Pressure Hose
8 Spray Wand/Lance 17 Water Inlet Hose with Filter
9 Petrol Tank 18 Detergent Hose
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ASSEMBLY
FITTING THE WHEELS
1. Insert the axle as shown.
• Rotate the axle so that the
spring loaded pin pops through
the hole on the frame.
2. Fit the wheels to the axles and
secure with the locking nuts
supplied.
NOTE: DO NOT overtighten the
nuts, the wheels must be
able to rotate freely.
ASSEMBLE THE LANCE
1. Connect the spray wand to the
lance and tighten securely.
FOLDING HANDLE
1. Lift the handle into the raised
open position.
2. Secure in place using the handle
locking knobs shown.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
THE HIGH PRESSURE HOSE
CONNECT THE HOSE TO THE GUN
1. Slide the connector on the hose
backwards.
2. Push the gun into the connector.
3. Release the connector.
NOTE: Make sure the connection is
secure.
CONNECT THE HOSE TO THE POWER WASHER
1. Slide the connector on the power
washer towards the machine.
2. Push the hose into the connector.
3. Release the connector.
NOTE: Make sure the connection is
secure.
CONNECT WATER INLET HOSE
1. Remove the travel cap if fitted.
2. Fit the hose adaptor as shown.
3. Connect the water supply hose to
the hose adaptor.
NOTE: The water source must
provide a minimum of 17
litres per minute @ 20 PSI.
NOTE: Make sure the water inlet
hose is screwed on tightly.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
LANCE & HOSE STORAGE BRACKET
1. Fit the bracket into the position
shown and secure using the
washers and nuts supplied.
REMOVE THE TRAVEL PLUGS BEFORE USE.
1. Use a 17mm spanner to remove
the red travel plugs.
2. Inside the small bag attached are
oil breather plugs which need to
be fitted in its place.
• The oil breather plug must only
be inserted finger tight.
CONNECTING THE BATTERY
NOTE: The power washer comes with
the battery disconnected. The
battery is mounted on the rear
of the frame in its own chassis
1. Unscrew the blue negative ‘-’
terminal and attach the blue
negative cable, reconnect and
tighten the terminal.
2. Unscrew the red positive ‘+’
terminal and attach the red
positive cable, reconnect and tighten the terminal.
