Clarke CHT403 Manual de usuario

OPERATING & MAINTENANCE

INSTRUCTIONS GC02/12

CARPET KNEE KICKER

Model:CHT403

Part No: 1801403

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

Please read these instructions carefully before using the tool

Thank you for purchasing this CLARKE Carpet Knee Kicker

Before using the device, please read this manual thoroughly and carefully

follow all instructions given. This is for your own safety and that of others

around you, and is also to help you achieve long and trouble free service

from your new tool.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not affect your statutory rights.

SPECIFICATIONS

Model: CHT403

Part No: 1801403

Overall Length: 470 - 545mm

FEATURES

• Teeth Depth Adjustment

• Overall length Adjustment

This Carpet Kicker allows you to manoeuvre the carpet into its final position

and ‘knee-kick’ the edge onto the gripper rail with ease and precision.

It is suitable for use with carpets that are intended to be fitted by means of a

gripper rail. You should check to ensure that your carpet may be fitted using

a carpet kicker.

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

SAFETY PRECAUTIONS

IMPORTANT

Failure to follow these precautions could result in personal injury, and/or damage to

property.

SAFETY PRECAUTIONS

Important;- Failure to follow these precautions could result in personal injury,

and/or damage to property.

1. Take care handling the kicker. The head has sharp blades and teeth.

2. Never leave the kicker with the gripper pad and teeth facing upwards

when the safety cover is not fitted.

3. ALWAYS concentrate on the job in hand, no matter how trivial it may

seem. Be aware that accidents are caused by carelessness due to

familiarity.

PREPARATION FOR USE

The Carpet Kicker is used for the final fitting of a carpet, and the following

conditions are therefore assumed to be in effect.

1. The gripper rail has been correctly positioned around the edges of the

room and properly secured to the floor.

2. The underlay has been laid and secured to the floor in the area bounded

by the gripper rail.

3. The carpet has been cut oversize according to the required room shape.

4. The carpet has been correctly orientated and placed approximately in

position in the room where it is to be laid.

5. The carpet has been spread out in the room so that it is flat to the

underlay.

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

The length of the kicker can be adjusted to best suit the user’s preference

and working space.

The teeth can be set to protrude to a depth to best suit the thickness of the

carpet to be fitted.

The protection cover should always be fitted when the kicker is not in use and

should be left in place whilst adjusting the kickers’ length. The teeth must be

retracted (setting 0) for the cover to be fitted. Keep the cover handy for re-

use during the job.

To remove the cover, grip it and pull it away from the kicker head.

LENGTH ADJUSTMENT

The telescopic steel tube is locked by means of

spring pins. The captive pins lock the tubes in

position through holes in the tubes. There are

two locking pins. These allow the kicker to be

adjusted in length from 470 mm to 545 mm (18½

to 21½ inches).

To adjust the length:

1. Press the two pins inwards and hold them in

this position whilst rotating one tube so the

pins are out of alignment so they remain

depressed.

2. Adjust to the required length by moving the

ends of the kicker closer together or further

apart, as required, then rotate the tubes

until the holes and pins are realigned. The

pins will spring out and lock the tubes in position.

TEETH DEPTH ADJUSTMENT

The teeth depth may be adjusted by means of the rotary depth control knob.

There are eight settings, 0 to 7. The lowest setting is ‘0’ for thin pile carpets. The

maximum setting is ‘7’ for deep pile carpets.

Determine the teeth depth required for the carpet

to be laid.

To do this, test on an off-cut of carpet to ensure

teeth depth selection is correct.

The teeth should be adjusted to grip the base

material of the carpet and not to pierce it, as this

could damage the underlay.

Rotate the adjuster knob to raise or lower the

teeth.

Parts & Service: 020 8988 7400/E-mail:Part[email protected] or [email protected]

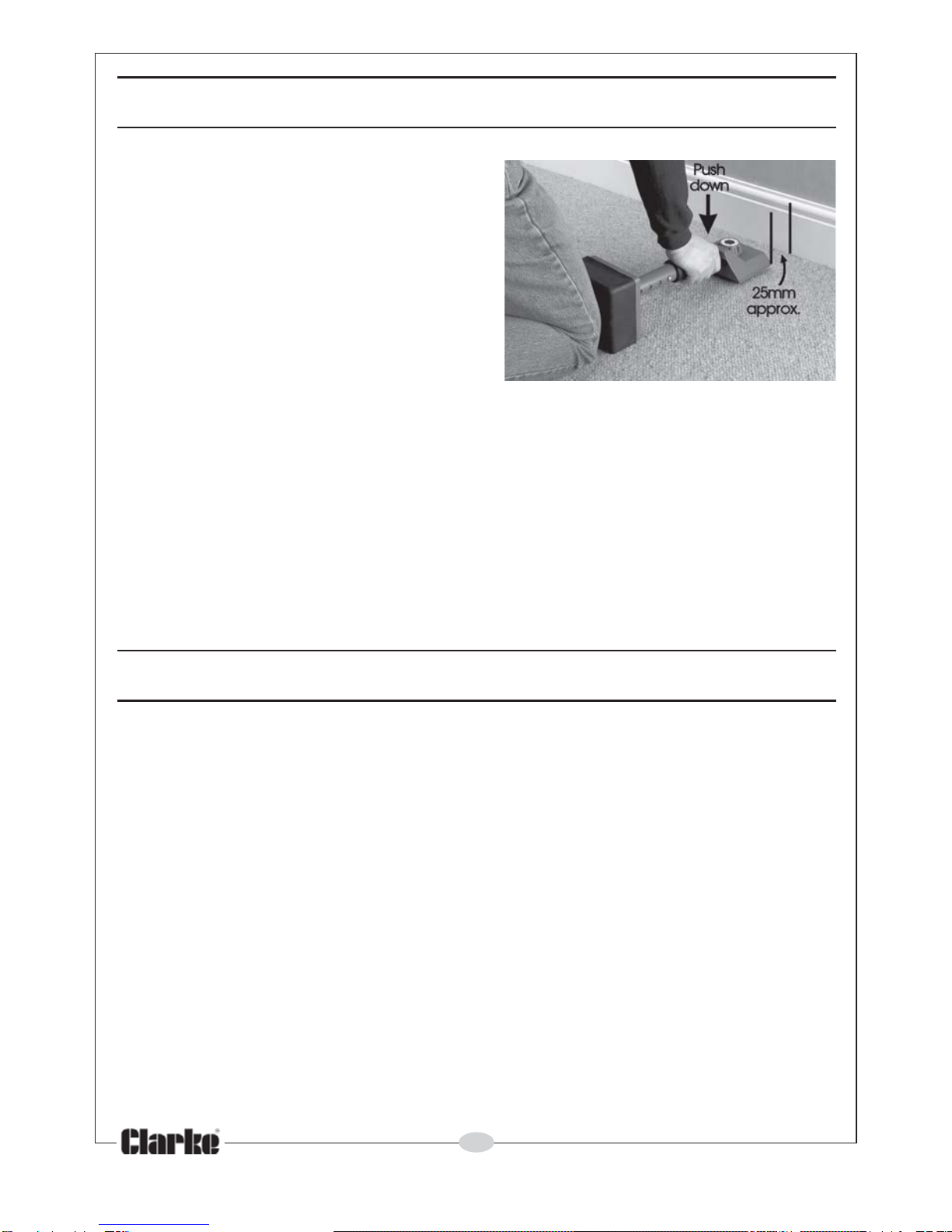

METHOD OF USE

1. Set the teeth to a depth to suit the

carpet thickness, as described

previously.

2. Kneel close to one corner of the

longest edge of the carpet and

place the kicker about 25 mm from

the edge of the gripper rail and

facing the skirting board.

3. Sink the teeth into the carpet and

apply reasonable downward

pressure on the handle-grip.

4. Use your knee to ‘kick’ the padded end of the kicker so as to jog the

carpet forward, whilst pushing down on the edge of the carpet so that it is

held by the carpet gripper

5. Work your way along this edge repeating the operation, then cut and

tuck the carpet edge between the gripper rail and skirting board.

6. Repeat along the opposite edge of the carpet other edges as required.

7. If in doubt about the fitting procedure please contact an experienced

fitter.

MAINTENANCE

The only maintenance required is to ensure that after use, any carpet pile

that may have attached itself to the gripper pad is completely removed, and

the Kicker is stored with the grippers teeth protection cover in place.

Gripper teeth and Gripper Blade pad assemblies are available from your

CLARKE dealer - please see ‘SPARE PARTS’ for details.

RENEWING A GRIPPER PAD ASSEMBLY

Two gripper blade pad assemblies are each secured in place with two

screws.

Firstly, remove each Gripper Blade Pad assembly as follows:

1. Turn the teeth setting knob fully clockwise so that the teeth are fully

retracted.

2. Undo the two screws using a cross-head screwdriver.

3. Lift off the assembly.

Parts & Service: 020 8988 7400/E-mail:[email protected] or [email protected]

Replace the pads, ensuring the blade

points face away from the padded end

and is fully and properly seated in the

recess.

Refit the screws and tighten using a cross-

head screwdriver.

REMOVING THE TEETH BLOCK

To remove the Teeth Block, firstly remove the

gripper pads as described previously, then,

using a protective glove or similar to hold the

teeth block, rotate the teeth setting adjuster

knob anticlockwise until it becomes fully

disengaged from the adjuster assembly, then

lift it free.

Replace in reverse order, screwing the adjuster

knob clockwise fully, until the ‘0’ on the knob

dial aligns with the marker on the body.

Finally, refit the gripper pads as described

above.

SPARE PARTS

The following parts are available:

• Teeth Assembly Part No: CHT40101

• Gripper Blade Pad Assembly Part No: CHT40102

• Gripper Blade fixing screws (x2) Part No: CHT40103
