Clarke CHB1500 Manual de usuario

OPERATING & MAINTENANCE

INSTRUCTIONS

WOODEN WORKBENCH

MODEL: CHB1500

Part No. 6500126

ASSEMBLY INSTRUCTIONS

02/07

211

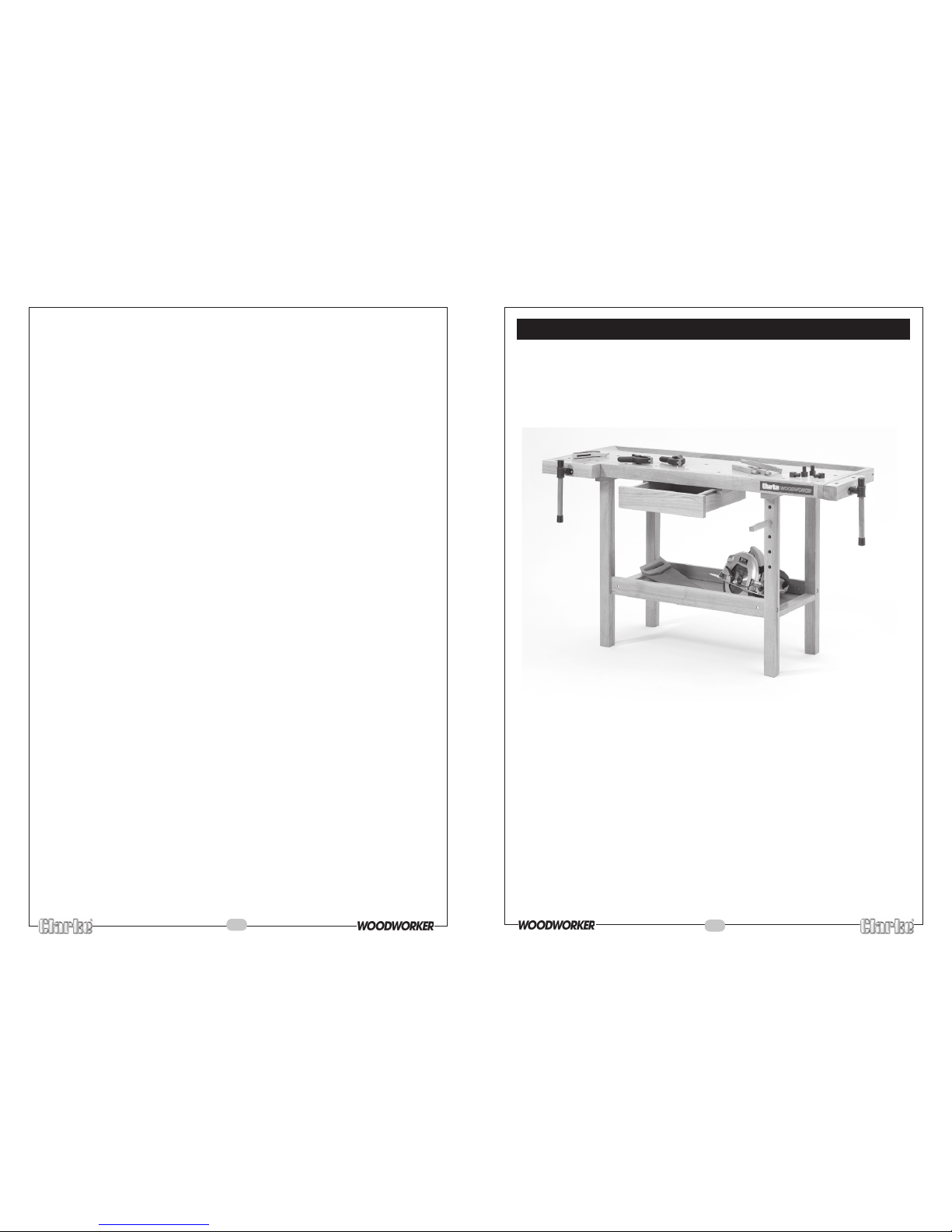

The Completed Workbench

ASSEMBLY

INTRODUCTION

Thank you for purchasing this CLARKE Wooden Workbench.

Please read these instructions carefully in order to ensure that the workbench is

assembled correctly, thereby ensuring that it provides you with long and satisfactory

service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months

from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in

any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned

to us without prior permission.

This guarantee does not effect your statutory rights.

ASSEMBLY

Fit the pins and dogs as

required.

Fit the drawer and clamps

as shown.

PACK CONTENTS

Side pieces

Left leg frame

Right leg frame

Shelf base

Drawer Holder

Workbench

Drawer Front

Drawer Side

DRAWER ASSEMBLY

1. Fit the rear of the drawer (J) to one of

the drawer sides (H) and fix into

position using the hinge and screws

provided.

2. Fit the other side (H) as shown.

3. Rotate the drawer and slide the

drawer base (I) into position.

4. Fix the drawer front (G) as shown

above.

The drawer is now complete.

PACK CONTENTS

P Q

Drawer base

Drawer rear

Clamp

Workbench dog

Workbench pin

Shelf nut and bolt

Wood Bolt

Washer

ASSEMBLY

5. Lay the workbench (F)

on it’s top.

6. Place the Legs into

position and secure in

place using Bolts (O)

and Washers (Q).

At this stage the frame

should look like this.

7. Fix the drawer holders

(E) into place using the

four long wood screws

(P) supplied.

Make sure that the dowel

pins on the drawer holders

are positioned towards the

front of the workbench.

ASSEMBLY

1. Insert the nuts from

part (N) into the side

pieces (A).

2. Use the Bolts (N) and

Washers (Q) to secure

both leg frames (B and

C) to one of the side

pieces.

At this stage the frame

should look like this.

ASSEMBLY

3. Slide the shelf base (D)

into the grooves as

shown.

At this stage the frame

should look like this.

4. Secure the second

side piece to the two

leg frames using Bolts

(N) and Washers (Q).
