Clarke Woodworker CBS1-5 Manual de instrucciones

OPERATION & MAINTENANCE

INSTRUCTIONS

GC0414

BELT/DISC SANDER

MODEL NO: CBS1-5

PART NO: 6500403

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Belt and Disc Sander, which is designed

for hobby, DIY and light workshop use for sanding wood and wood products.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

GENERAL SAFETY RULES

GENERAL SAFETY IN THE WORKPLACE

1. ALWAYS ensure that air can circulate around the machine and that the air

vents are unobstructed.

2. ALWAYS keep work area clean & tidy. Cluttered work areas and benches

invite accidents.

3. NEVER over-reach. Keep proper footing and balance at all times.

4. NEVER store equipment in a wet/damp environment or expose to rain.

WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS

SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK AND PERSONAL INJURY INCLUDING THE FOLLOWING. READ ALL

THESE INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT

AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

5. KEEP other persons away. Do not let persons, especially children, not

involved in the work, touch the tool or extension cable and keep them

away from the work area.

6. NEVER operate a machine when under the influence of alcohol, drugs or

medication.

7. ALWAYS ensure the workplace is well lit. Ensure that lighting is placed so that

you will not be working in your own shadow.

8. Do not use tools in the presence of flammable liquids or gasses.

9. Stay alert, watch what you are doing, use common sense and do not

operate the tool when you are tired.

CARE OF POWER TOOLS

1. Read this manual carefully. Learn the machines applications and

limitations, as well as the specific potential hazards peculiar to it.

2. ALWAYS keep guards in place and in working order. A guard or other part

that is damaged should be properly repaired or replaced by an authorised

service centre, unless otherwise indicated in this instruction manual.

3. Don’t force the machine and use the correct tool. It will do the job better

and safer, at the rate for which it was intended.

4. ALWAYS disconnect the machine from the power supply before carrying

out any servicing or changing of accessories.

5. Before further use of the tool, it should be carefully checked to determine

that it will operate properly and perform its intended function. Check for

alignment of moving parts, binding of moving parts, breakage of parts,

mounting or other condition that may affect its operation.

6. Have defective switches repaired by an authorised service centre. Do not

use a tool if the switch does not turn it on and off.

7. ALWAYS check for any damage or any condition that could affect the

operation of the machine. Damaged parts should be properly repaired.

8. Have your tool repaired by a qualified person. This tool complies with the

relevant safety rules. Repairs should only be carried out by qualified

persons using original spare parts, otherwise this may result in considerable

danger to the user.

9. NEVER use this product for any other purpose than that described in this

booklet.

10. NEVER abuse the power cable by yanking the cable to disconnect it from

the socket. Keep the cable away from heat, oil or sharp edges.

11. Guard against electric shock. Avoid body contact with earthed or

grounded surfaces.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

12. If the machine should be used outdoors, use only extension cables

intended for outdoor use and marked accordingly.

13. Avoid accidental starting by making sure the power switch is off before

plugging in the power cable.

ADDITIONAL PRECAUTIONS FOR BELT & DISC SANDERS

1. ALWAYS wear ear protectors/defenders when using this machine.

2. ALWAYS wear a dust mask when using this machine. Be aware of harmful or

toxic dust produced when sanding some woods, paint, etc.

3. ALWAYS use the sanding belt support or table to support the workpiece.

4. Always check to ensure that the table, belt support and attachments are

secure before starting.

5. ALWAYS maintain a clearance of 1.5-2mm between the table and the

sanding belt or disc.

6. ALWAYS hold the workpiece firmly so that it cannot be pulled from your

hands.

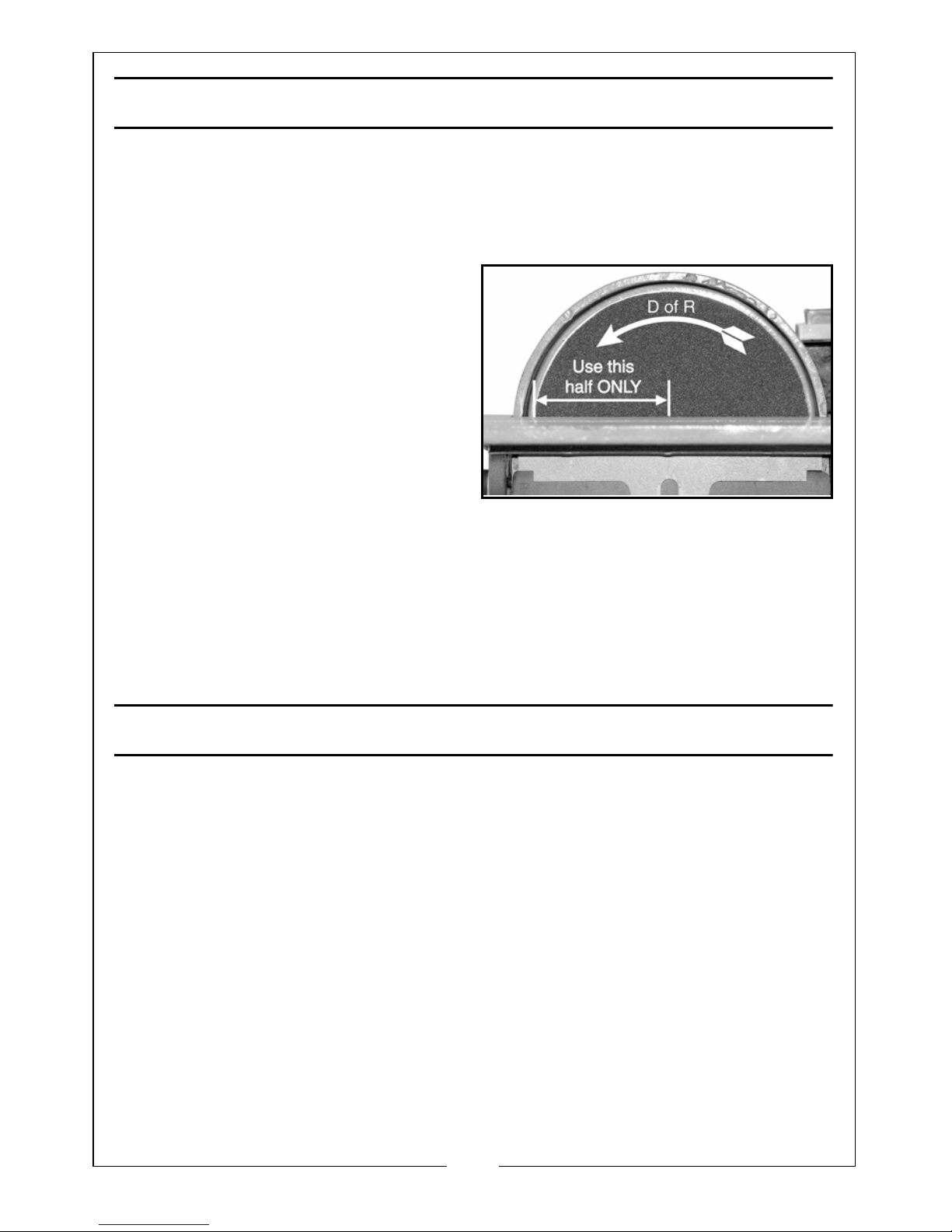

7. ALWAYS feed the workpiece against the direction of rotation of the disc. i.e

the LEFT side of the disc.

8. ALWAYS keep the mains cable well away from the machine and ensure an

adequate electrical supply is close at hand so that the operation is not

restricted by the length of the cable.

9. ALWAYS use a dust extraction device, properly connected to the dust

extraction port.

10. ALWAYS ensure that nails or any foreign objects have been removed from a

workpiece beforehand. Nails etc., will destroy the belt or disc.

11. NEVER allow the ventilation slots in the motor to become blocked.

12. NEVER sand pieces which cannot be held firmly by hand.

WARNING: USE ONLY FOR SANDING WOOD. DO NOT USE FOR MATERIALS

CONTAINING ASBESTOS, PAINTED SURFACES OR MATERIALS WHICH EMIT TOXIC

PARTICLES.

DUST EXTRACTION

The sander is provided with a dust extraction facility. Please note however,

that this does not preclude the user from wearing a face mask to prevent the

inhalation of dust particles.

It is an EEC requirement that a dust extraction facility be provided on power

tools, however, due to the nature of the sander, some of the dust produced

will be forced into the surrounding atmosphere and will not be collected.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity

supply is the same as that indicated on the rating plate. This product is

designed to operate on 230VAC 50Hz. Connecting it to any other power

source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable

replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

• The wire which is coloured Blue must be connected to the terminal

which is marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked Lor coloured Red.

• The wire which is coloured Yellow and Green must be connected to

the terminal which is marked E ( ) or coloured Green.

WE STRONGLY RECOMMEND THAT THIS MACHINE IS CONNECTED TO THE MAINS

SUPPLY VIA A RESIDUAL CURRENT DEVICE (RCD).

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs

yourself.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING! The wires in the power cable of this product are

coloured in accordance with the following code:

Blue = Neutral Brown = Live Yellow and Green = Earth

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue) Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PRODUCT OVERVIEW

WARNING: THE USE OF ANY ACCESSORY/ATTACHMENT OTHER THAN THOSE

RECOMMENDED IN THIS INSTRUCTION MANUAL MAY PRESENT A RISK OF

PERSONAL INJURY.

NO DESCRIPTION NO DESCRIPTION

A Disc Sanding Table F Vertical Table Locking Levers

B Belt Sanding Table G Flat Washers (for use with E & F)

C Mitre Gauge H Rubber Feet

D Disc Cover/Dust Extract Point J Allen Keys

E Disc Sanding Table Locking Levers

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

BELT TABLE

1. Gently ease the table into place

with the belt support entering the

slot in the table.

2. Screw the Table Locking Lever into

place, ensuring a flat washer is

used on the levers’ threads.

DISC TABLE

1. Slide the table pegs into the slots

in the Upper Disc Cover to the

extent that the Locking Levers

can be screwed in as shown

overleaf, ensuring flat washers are

used on the locking lever threads.

2. With the table secured, position

the Disc Cover/Dust Extraction

Port as shown, with the locating

pin on the cover ‘A’, engaged in

the slot in the hinged cover ‘B’.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

3. Secure with four screws (arrowed).

FEET

The four feet may be very gently eased into the holes at the base of the

machine. Alternatively, the machine may be mounted on a workbench or a

wooden base, using the four holes in the base as mounting holes. In order to

maintain complete stability when in use, the wooden base should be secured

to a workbench using ‘G’ clamps.

ADJUSTMENTS BEFORE USE

BELT TABLE ADJUSTMENT

1. With the belt correctly tensioned

(See Maintenance), adjust the

Belt Support so that it is square

and bears very lightly on the back

of the Sanding Belt.

2. Ensure the two hex socket head

securing screws (arrowed) are

tight. A hex. socket wrench is

provided.

3. Slacken the Table Locking Lever

and position the table so that a

gap of 1.5 - 2 mm exists between

the slot in the table and the belt, then lightly secure the table using the

locking lever.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

4. Place an engineers square on the

table so that it butts up against

the belt, then unlock the adjuster

by unscrewing the locknut at B.

5. Screw the adjuster A, clockwise or

anticlockwise whilst bearing down

on the table at a point adjacent

to screw A, until the square

indicates that the table is at right

angles.

6. Lock the adjuster, ensuring the nut is tight, then, maintaining pressure on

the table, finally secure the table using the locking lever. by turning

anticlockwise.

7. Finally, check to ensure the gap between the table and belt is between 1.5

- 2 mm.

8. It is possible to set the table to any angle up to 45 degrees, simply by

slackening the locking lever and positioning the table using a protractor or

angle setter, then retightening the locking lever.

DISC TABLE ADJUSTMENT

1. Place an engineers square on the

table and slacken the locking

levers slightly.

2. Adjust the table so it is at right

angles to the disc, using the

square, then tighten the levers.

3. If necessary, adjust the pointer,

adjacent to the angle indicator

beneath the table, so that it

registers zero.

4. Slacken the upper disc cover securing screws (A on page 8) using the

wrench supplied, and adjust so that a gap of 2-3mm exists between the

disc and the table and the table is square. Tighten the securing screws.

5. It is possible to set the table to any angle up to 45 degrees, simply by

slackening the locking levers and positioning the table using the angle

indicator, then retightening the locking levers. If the angle is critical, a

protractor or angle setter should be used.

6. If required, slide the quadrant into its groove in the table.

NOTE: The quadrant may be used to hold a workpiece at any desired

angle for sanding that angle with accuracy.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

IMPORTANT: Ensure that ALL components are secure, ALL correct

adjustments have been carried out, and ALL safety precautions have been

observed BEFORE plugging the machine into the mains supply, and

switching ON.

1. Attach a vacuum cleaner or

other dust extraction device to

the relevant extraction port

(depending upon the medium to

be used) and switch it ON.

2. Switch the machine ON by

pressing the Green ON button.

3. If using the belt, check to ensure it

is tracking properly...adjust if

necessary.

4. Holding the workpiece firmly, place it on the table and gently slide it into

contact with the belt or disc. Do not force it, only a light pressure is

required.

IMPORTANT: When using the sanding disc, ALWAYS use the left half of the

disc ONLY, i.e. that, side where the direction of rotation of the disc is down

towards the table.

MAINTENANCE

Always inspect the sander before use and ensure it is in top condition.

Ensure all air vents are clear. (Use compressed air to clean the machine where

possible).

Check the power cable to ensure it is sound and free from damage. Avoid

using solvents when cleaning plastic parts, (most plastics are susceptible to

damage from the various types of commercial solvents).

All bearings in this tool are lubricated with sufficient high grade lubricant for

the machine’s lifetime under normal operating conditions, therefore no further

lubrication is required.

Otros manuales para Woodworker CBS1-5

Tabla de contenidos

Otros manuales de Lijadora de Clarke

Clarke

Clarke DWS225LR Manual de instrucciones

Clarke

Clarke CROS1 Manual de instrucciones

Clarke

Clarke Woodworker CBS1-5 Manual de instrucciones

Clarke

Clarke C2K-1600HD Manual de usuario

Clarke

Clarke EZ-8 Manual de instalación y funcionamiento

Clarke

Clarke CAT70 Manual de instalación y operación

Clarke

Clarke Super 7R Edger 07013A Manual de usuario

Clarke

Clarke Woodworker CS4-6C Manual de instrucciones

Clarke

Clarke WOODWORKER CDS1 Manual de instalación y operación

Clarke

Clarke 07012A Manual de usuario

Clarke

Clarke 6462021 Manual de instalación y operación

Clarke

Clarke CROS3 Manual de instrucciones

Clarke

Clarke Super 7R Manual de usuario

Clarke

Clarke Air CAT176 Manual de instalación y operación

Clarke

Clarke METALWORKER CBB250 Manual de instrucciones

Clarke

Clarke air CAT54 Manual de instalación y operación

Clarke

Clarke air CAT25B Manual de instalación y operación

Clarke

Clarke CS4-6E Manual de instrucciones

Clarke

Clarke X-Pro CAT136 Manual de instalación y operación

Clarke

Clarke EZ Sand Guía de instalación y uso

Clarke

Clarke OBS-18DC Manual de usuario

Clarke

Clarke 07057A Manual de usuario

Clarke

Clarke Woodworker CDS300 Manual de instalación y operación

Clarke

Clarke CFP-2000DS Manual de usuario

Manuales populares de Lijadora de otras marcas

Oliver

Oliver 6305 Manual de usuario

Jet

Jet 22-44 Pro-3 Manual de servicio

Makita

Makita M9204 Manual

Makita

Makita M9204 Manual de usuario

Craftsman

Craftsman 351.215131 Manual de usuario

Chicago Pneumatic

Chicago Pneumatic CP9778 Manual de usuario

Nitto Kohki

Nitto Kohki BB-20 Manual de usuario

Ferm

Ferm FEOS-135 Manual de usuario

Unior

Unior 1510 Manual de usuario

stayer

stayer ls1200 Manual de usuario

Jet

Jet JSG-96 Manual de servicio

Parkside

Parkside PDS 290 B2 Manual de usuario

Status

Status XPA Series Manual de usuario

Craftsman

Craftsman 113.22521 Manual de usuario

Craftsman

Craftsman 113.225831 Manual de usuario

CLAS

CLAS OP 1429 Manual de usuario

Parkside

Parkside PEXS 270 Al Manual de usuario

Makita

Makita 9207SPB Manual de usuario
