Clarity C35 Manual de usuario

User Guide

Ampliﬁed Telephone

C35™

TABLE OF CONTENTS

Introduction........................................................................................ 3

Parts Checklist .................................................................................. 4

Quick Reference Guide .................................................................. 5

Connecting the phone ................................................................. 7

Introduction to Clarity Power.................................................... 8

Clarity Power Boost..................................................................... 8

Getting Started

Installing backup batteries ...........................................................9

Desktop and Wall Mount Installations ...................................10

Placing and receiving calls..........................................................13

Features

Memory Storage..........................................................................13

Adding a memory location........................................................13

Notiﬁcation Options .....................................................................15

Troubleshooting..............................................................................17

Technical Speciﬁcations .............................................................19

Safety Instructions.........................................................................20

FCC Requirements and Regulations.......................................22

Warranty and Service ..................................................................25

Thank you for purchasing the Clarity C35 AmpliﬁedTelephone.

Operating Instructions and the associated Quick Reference

Guide will provide you with the information you need to

use your C35 effectively, easily and safely. Read this manual

thoroughly before using your telephone.

Keep the manual near the telephone for easy reference.

INTRODUCTION

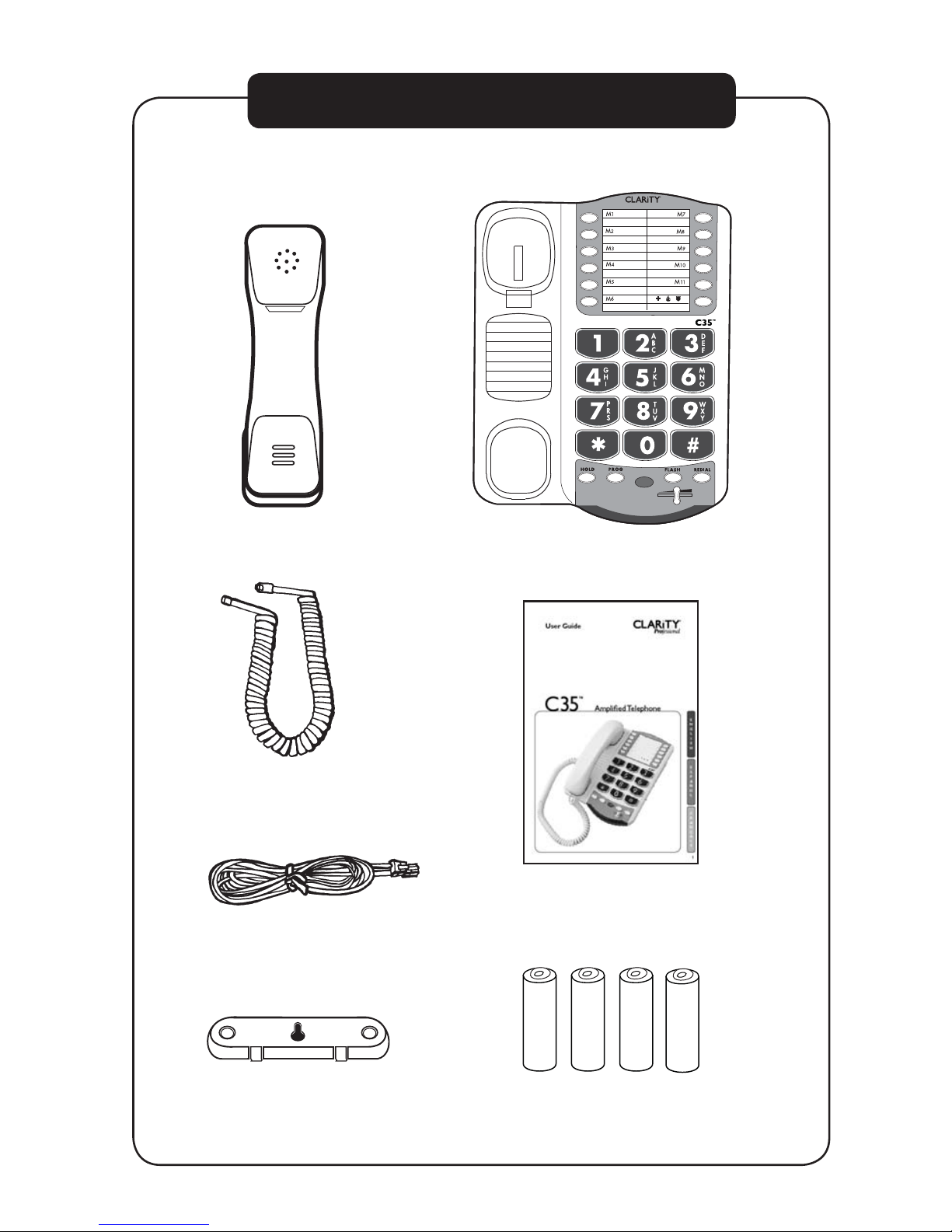

CONTENTS & PARTS CHECKLIST

Mounting bracket

Telephone line cord

Handset coil cord

Handset Base unit

BOOST

VOLUME

User guide

4 AA batteries

C35 Quick Reference Guide

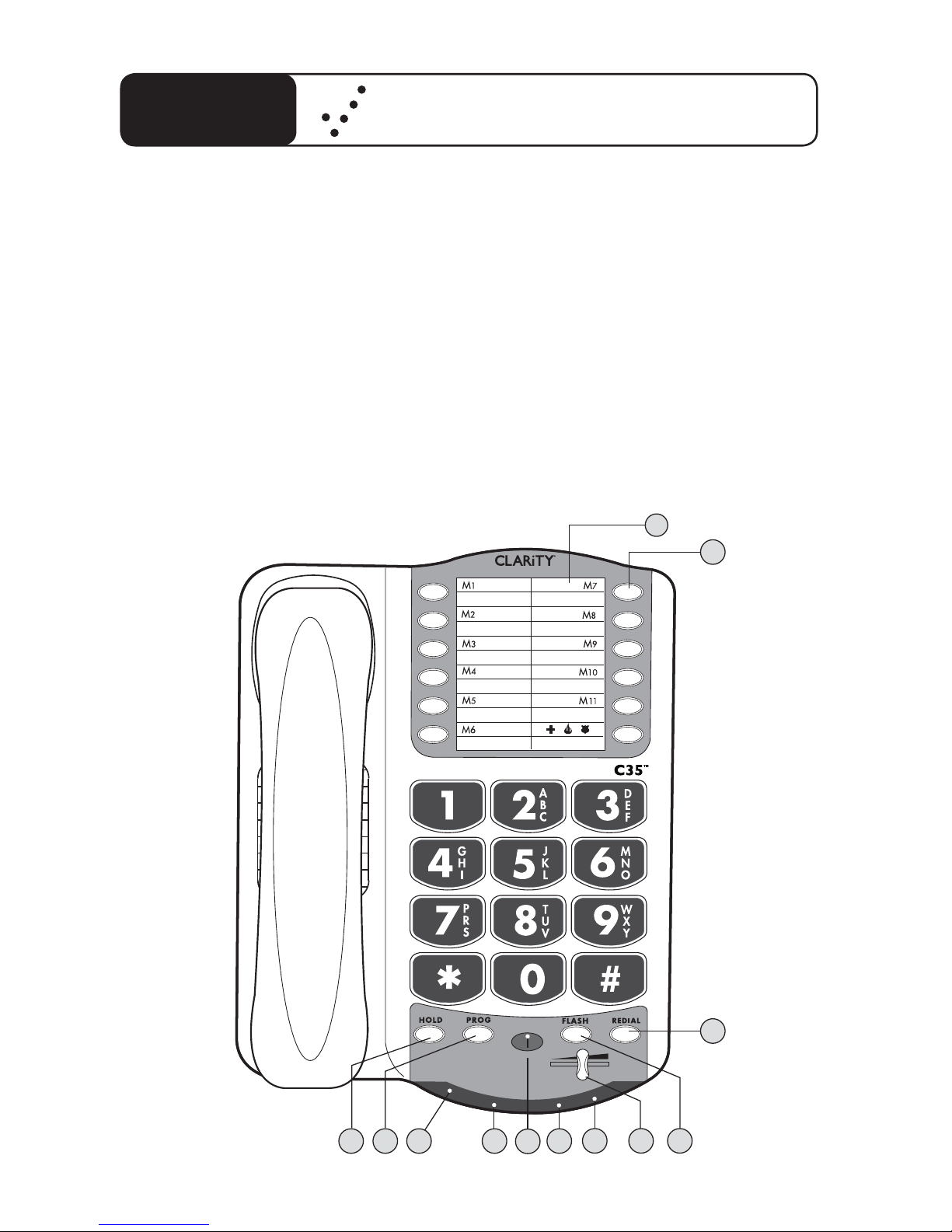

FEATURES

1Phone Number Directory

2Memory Button

3Redial Button

4Flash Button

5Volume Slider

6Low Battery Indicator

7Visual Ringer

8Boost Button

9BOOST Indicator

10 Hold Indicator

11 Program Button

12 Hold Button

BOOST

VOLUME

7910 45

1112

DIAL

Off Lo

C35 Quick Reference Guide

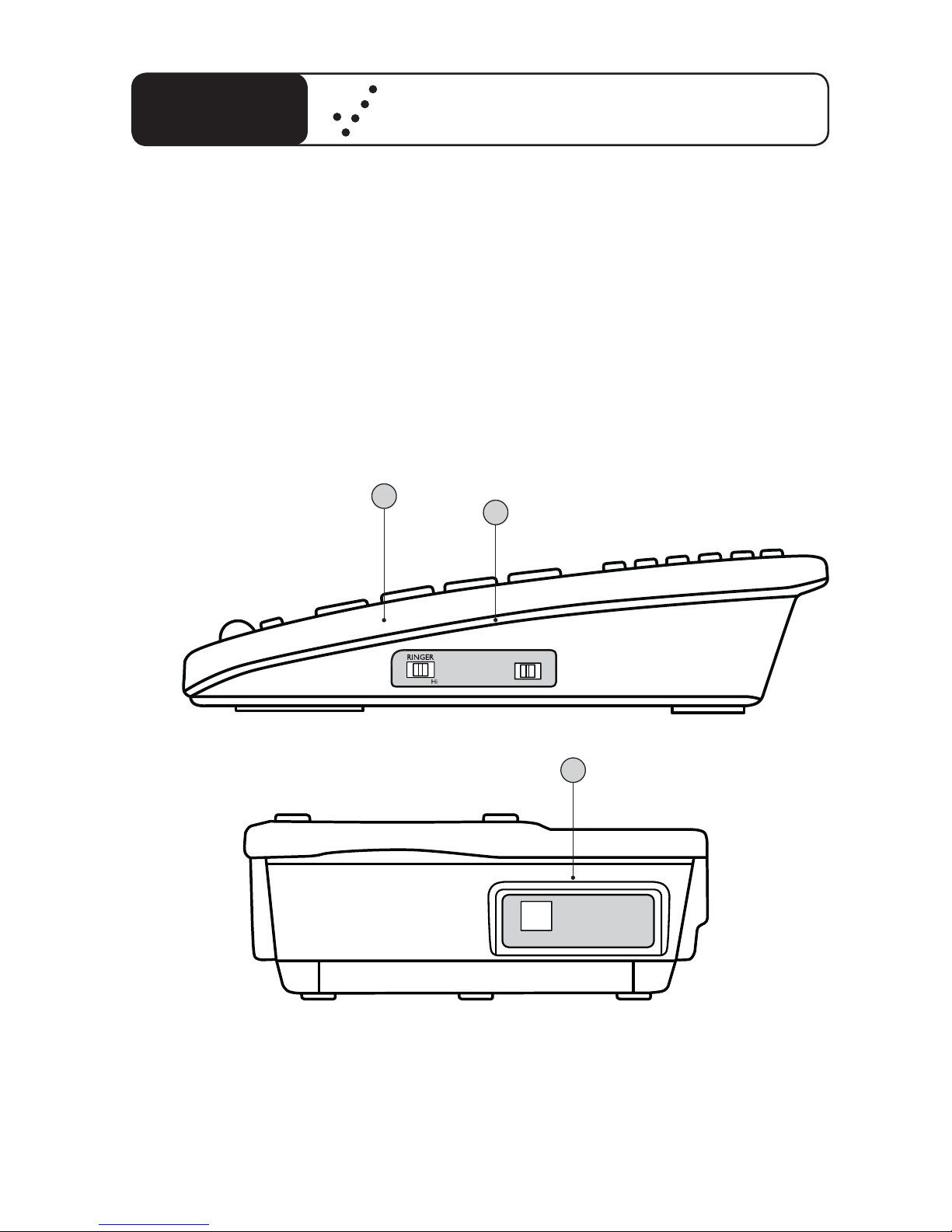

FEATURES

1RingerVolume Switch

2Pulse/Tone Switch

3Phone Line Connection

LINE

SIDE VIEW

BACK VIEW

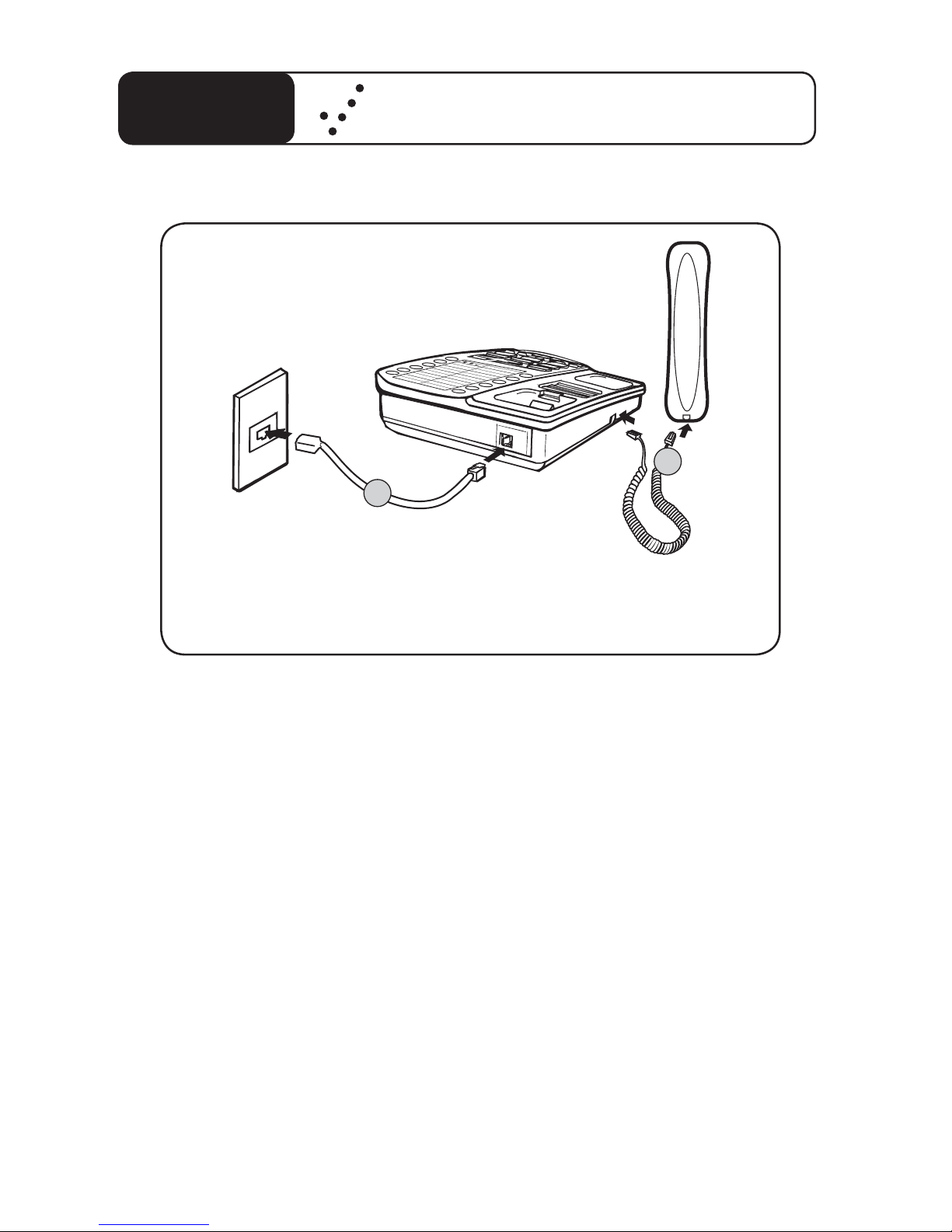

HOW TO CONNECT THE C35 PHONE FOR DESKTOP USE

C35 Quick Reference Guide

1. Install the 4 AA batteries.

2. Connect one end of the telephone line cord to the “Line” jack on the

back of the C35 and the other end to the phone outlet on your wall.

3. Connect the handset cord to the telephone as shown above.

4. Lift the handset and listen for a dial tone.The phone is ready to use.

The C35 phone may also be used as a wall mounted phone.

(Please see page 12 of this guide for instructions.)

BOOST

VOLUME

Figure A

INTRODUCTION TO CLARITY POWER

Clarity Power™Technology

Clarity Power not only makes calls louder, but also easier to

understand. The patented Clarity Power technology ampliﬁes and

shapes high frequencies to enhance communications for the millions

of people who experience high frequency hearing loss, the most

common type of hearing loss.

The Clarity C35 has a maximum ampliﬁcation level of 40dB louder

than a regular telephone when the included batteries are inserted.

This combined with Clarity Power enhances the sounds being heard

through the telephone line, resulting in comfortable and enjoyable

conversations.

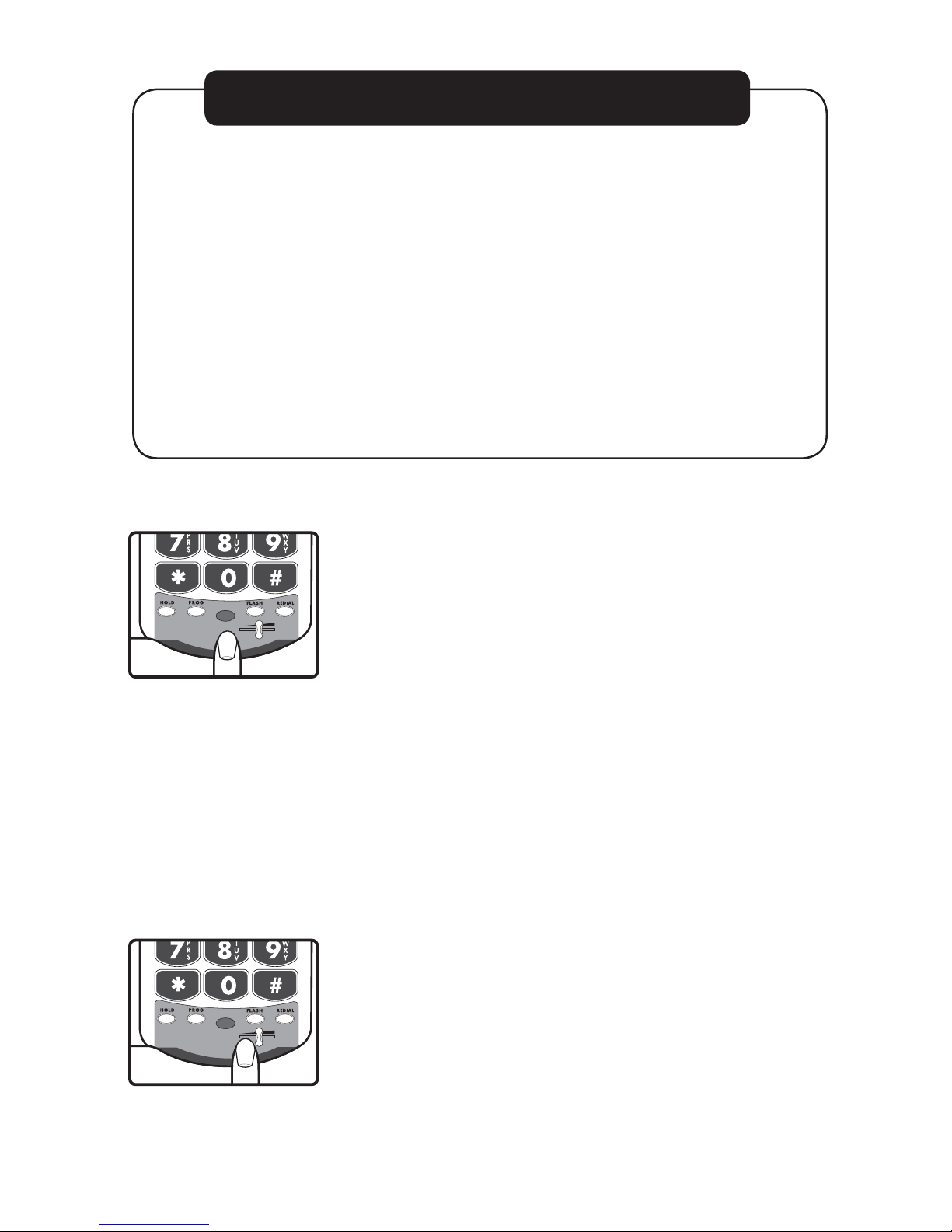

Clarity Power BOOST Button

The C35 has a BOOST button that controls the loud-

ness of the receiver. See Figure A. Once the BOOST

button is pressed, an extra level of ampliﬁcation is added

over the entire range of theVolume Control. During a

call, the BOOST button can toggle the Clarity Power

function on or off according to the user’s needs.The

BOOST button will reset automatically every time the

phone is hung up for at least 5 seconds.The BOOST light

will illuminate while the BOOST function is activated.

See Page 13.

Warning: Volume may be at a high level. To protect

hearing, lower the Clarity PowerVolume Control before

using the phone.

Clarity PowerVolume Control

The Clarity PowerVolume Control adjusts the level of

volume the handset both in Boost or non-Boost modes.

The volume dial provides up to 15dB of volume before

the BOOST button is activated. Once the BOOST but-

ton is pressed, the C35 will provide up to 40dB of gain

when the batteries are inserted. See Figure B.

BOOST

VOLUME

Figure B

GETTING STARTED

There are four initial steps involved in setting up

your C35

1. Insert four AA alkaline batteries for maximum ampliﬁ-

cation. See below.

2. Decide if you want the phone to sit on a desk or hang

on the wall.

3. Connect the telephone components. Pages 11-12.

4. Program up to twelve (12) telephone numbers to call

with the press of a memory button. See Page 13.

To install new batteries:

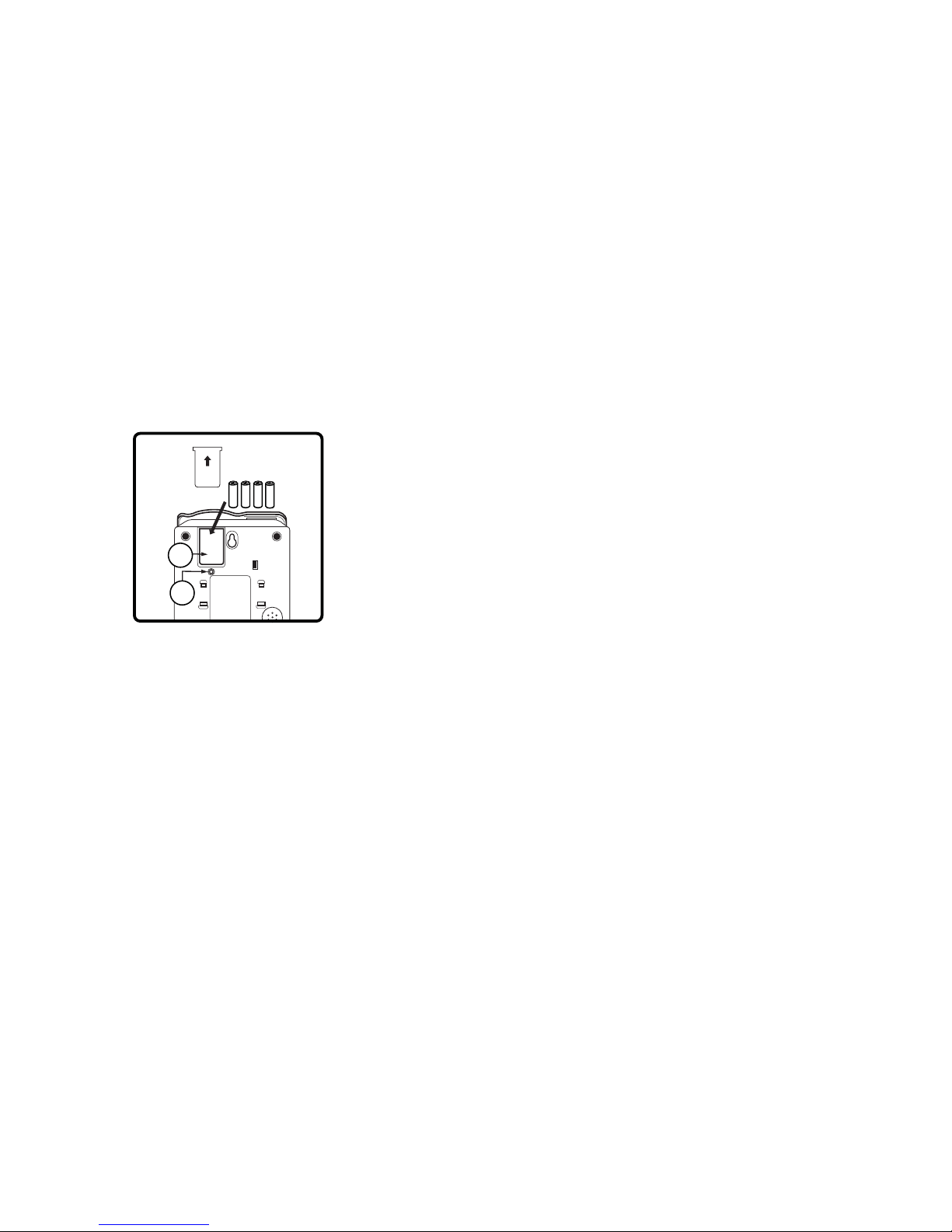

1. Slide open the battery compartment cover on the

bottom of the telephone.This opening is pointed out

with the #2 in Figure 1.To open the battery compart-

ment, use a pen or similar ﬁne point instrument to

press into small opening below the compartment door.

2. Install four fresh batteries. Be sure to observe battery

polarity as imprinted on the base of the compartment.

The battery indicator on the top panel will light up if the

batteries are running low.

The batteries are required to reach the maximum

ampliﬁcation and to fully operate certain functions on the

phone. If the low battery indicator appears, please replace

with new batteries.

Figure 1

Connecting your Telephone

1. Carefully remove your telephone from its box. If there

is any visible damage, do not attempt to operate this

equipment. Return it to the place of purchase.

2. Check to be sure that you have all items that come

with your C35 telephone.You should have a Hand-

set, Base Unit, Mounting Bracket, Handset Line Cord,

and Telephone Line Cord, User Guide and 4 AA batter-

ies.

Choosing a Location

• The C35 requires a modular phone jack

• The unit should be located in an area where it is easy

to see the lighted ringer.

• Choose a location that is out of the way of

normal activities.

• The unit can be used as a desk top phone or wall

mount phone.

Desk Mounting Instructions

Follow these instructions to place the phone on a desk or

table top using the supplied bracket.

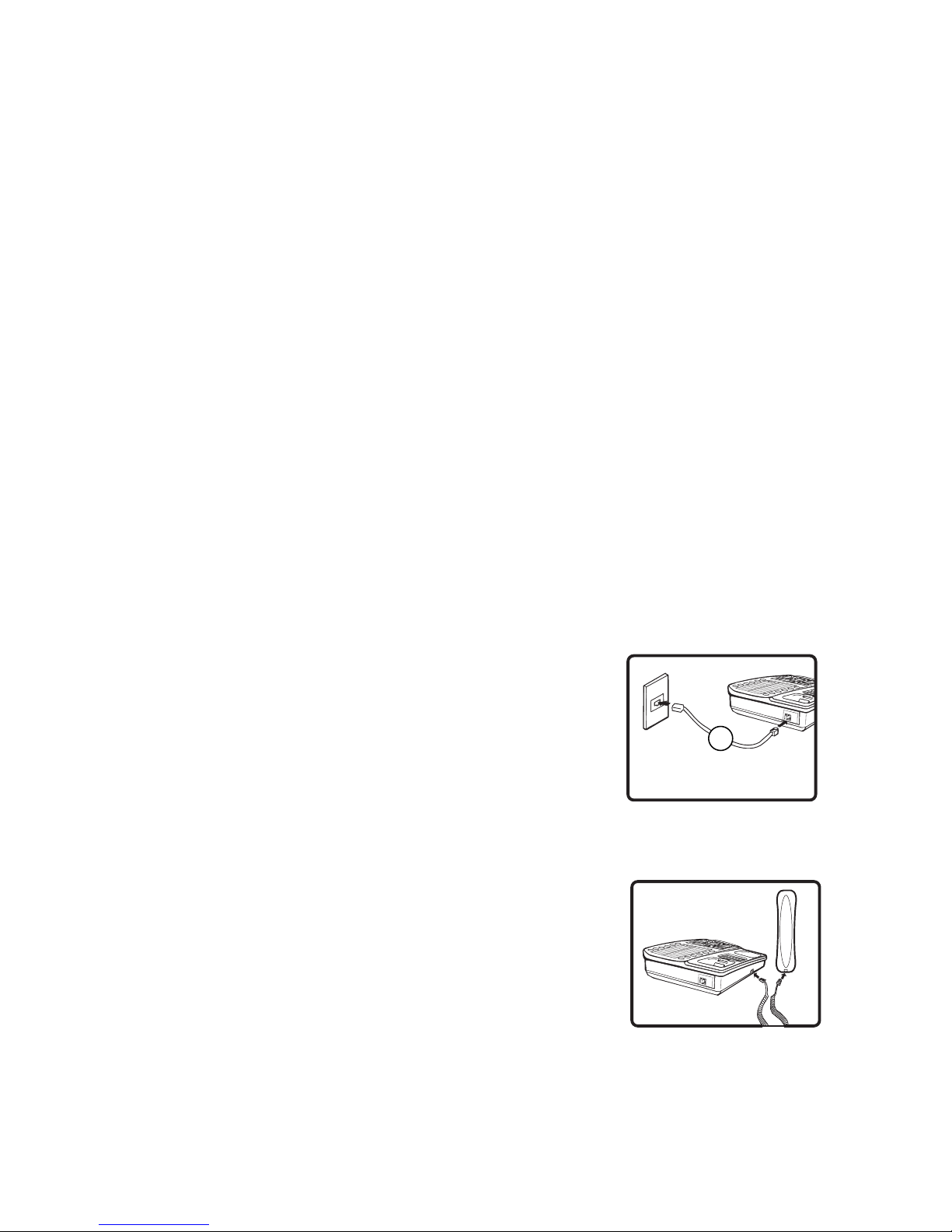

1. Plug one end of the long ﬂat telephone line cord into

the jack marked LINE located on the back of the

telephone. Plug the other end into the telephone wall

jack. See Figure 2

2. Plug one end of the modular coiled handset cord into

the handset. Plug the other end into the jack located

on the left side of the telephone. Place the handset in

the cradle. See Figure 3.

GETTING STARTED

Figure 2

Figure 3
