Installation and Wire

connection manual

VRX935VD

Installation andWire connection manual

■Contents

1. BEFORE STARTING ............................................................... 65

2. PACKAGE CONTENTS ........................................................... 65

3. GENERAL CAUTIONS ............................................................ 66

4. CAUTIONS ON INSTALLATION .............................................. 66

5. INSTALLING THE MAIN UNIT ................................................. 67

6. REMOVING THE MAIN UNIT .................................................. 69

7. CAUTIONS ON WIRING .......................................................... 69

8. WIRE CONNECTION .............................................................. 70

9. SAMPLE SYSTEMS ................................................................ 73

1. BEFORE STARTING

2. PACKAGE CONTENTS

1. This set is exclusively for use in cars with a

negative ground 12 V power supply.

2. Read these instructions carefully.

3. Be sure to disconnect the battery “v” termi-

nal before starting.This is to prevent short

circuits during installation. (Figure 1)

Car battery

Figure 1

1Main unit

2Tuner Amp unit

3Manuals

Owner’s manual & Installation manual

Warranty card

Guide label for SIRIUS radio

4Power supply lead (For the main unit)

5Power supply lead (For the tuner amp

unit)

Connection cord (Main unit ↔Tuner amp unit)

7Antenna extension cord

Bag for accessories of the main unit (No. 1)

Flat head screw (M5 ×8) ............................ 4

Sems hexagonal bolt (M5×8) ..................... 5

Electro tap

Machine screw (M4×3)............................... 4

Bag for accessories of the main unit (No.2)

Hook plate................................................... 2

Cord clamp

Rubber cap

Special screw

0Bag for accessories of tuner amp unit

Maunting bracket......................................... 2

Canoe clip ................................................... 4

Machine screw (M4 ×8).............................. 4

!Universal mounting bracket

@Remote control unit

#Battery

(for remote control unit)

$Outer Escutcheon

%DCP Case

66 VRX935VD

English

Installation and Wire

connection manual

3. GENERAL CAUTIONS

4. CAUTIONS ON INSTALLATION

1. Do not open the case.There are no user ser-

viceable parts inside. If you drop anything

into the unit during installation, consult your

dealer or an authorized CLARION service

centre.

2. Use a soft, dry cloth to clean the case. Never

use a rough cloth, thinner, benzine, or alco-

hol, etc. For tough dirt, apply a little cold or

warm water to a soft cloth and wipe off the

dirt gently.

1. Prepare all articles necessary for installing

the main unit before starting.

2. This model is used with the LCD panel slid

forwards (shell loading system).On some

types of cars, the LCD panel may touch the

dashboard or shift lever, in which case it can-

not be installed. Check that the set will not

hamper operation of the shift lever before

choosing the place of installation.(Figure 2)

5. Use the enclosed screws for installation.Us-

ing other screws can cause damage.(Figure

3. Install the unit within 30°of the horizontal

plane. (Figure 3)

4. If you have to do any work on the car body,

such as drilling holes, consult your car dealer

beforehand.

6. The source unit has mounting screw holes

for NISSAN (N marks) and TOYOTA (T

marks) vehicles.

Dashboard

Shift lever

(check that it does not

touch the LCD.)

Figure 2

Max. 30˚

Figure 3

Chassis Chassis

Damage

Max. 8 mm (M5 screw)

Figure 4

Figure 5

NNT

VRX935VD 67

English

Installation and Wire

connection manual

5. INSTALLINGTHE MAIN UNIT

■Universal Mount

1. Place the universal mounting bracket into the

instrument panel, use a screwdriver to bend

each stopper of the universal mounting

bracket inward, then secure the stopper as

shown in Figure 6.

2. Wire as shown in Section 8.

3. Insert the main unit into the universal mount-

ing bracket until it locks.

4. Mount the outer escutcheon so that all the

hooks are locked.

Notes:

1) Some car models require special mounting kits

for proper installation. Consult your Clarion

dealer for details.

2) Fasten the front stopper securely to prevent the

main unit from coming loose.

Figure 6

• Console opening dimensions

Hole

Main unit

7-3/16" (182 mm)

2-1/16" (53 mm)

Screwdriver

Stoppers

Hole

Rear fastening hole (of vehicle)

Instrument panel

Rubber cap

Universal mounting bracket

Stoppers

2-Spring

Outer escutcheon

Note: Set the outer escutch-

eon so that its metallic

part on the back side

fits the upper edge of

the main unit.

Special Screw

68 VRX935VD

English

Installation and Wire

connection manual

This unit is designed for fixed installation in the

dashboard.

If the vehicle is equipped with a factory-installed

radio, install the main unit with the parts and

screws marked (∗). (Figure 8)

If the vehicle is not equipped with a factory-in-

stalled radio, obtain an installation kit to install

the main unit in the following procedure.

1. Remove the screws from both side of the

main unit.Then, at either side, lift the leaf

spring until the engaging claws are released

from the holes, and slide the spring to the di-

■Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)

rection of arrow to remove it. Repeat the

same for the other side to remove the

springs from the both sides.(Figure 7)

2. Secure the mounting brackets to the chassis

as shown in Figure 8.Holes are pre-tapped

for TOYOTA and NISSAN vehicles; modifica-

tion, such as drilling new holes, of the mount-

ing brackets may be required for other mod-

els.

3. Wire as shown in Section 8.

4. Secure the unit in the dashboard, and then

reassemble the dashboard and the centre

panel.

Note 1:

In some cases, the centre panel may require

some modification (trimming, filling, etc.).

Note 2: If a hook on the installation bracket inter-

feres with the unit, bend and flatten it with

a nipper or a similar tool.

2-Screw

2-Spring

4-Hexagonal screw ∗(M5 ×8)

Main Unit

Figure 7

Main Unit

Screwdriver

Engagin claw

Mounting bracket

(1 pair for the left and right sides)

Pocket

Centre Panel (Note 1) Note 2

Figure 8

∗: The screws with this mark are

enclosed in this set.

★:The parts and screws with this mark

are used to install radio or included in

the installation kit.

VRX935VD 69

English

Installation and Wire

connection manual

7. CAUTIONS ON WIRING

1. Be sure to turn the power off before wiring.

2. Be particularly careful where you route the

wires.

Keep them well away from the engine, and

exhaust pipe, etc.Heat may damage the

wires.

3. If the fuse should blow, check to see if the

wiring is correct.

If it is, replace the fuse with a new one with

the same amperage rating as the original.

4. To replace the fuse, remove the old fuse of

the power supply lead and insert the new

one.(Figure10)

∗Power supply lead for the tuner amp unit : 15A

FUSE

∗Power supply lead for the main unit : 3A FUSE

After the connection, fix the lead by a clamp or

insulation tape for protection.

CAUTION

Figure 10

1. When the rear of the main unit has been se-

cured with the method shown in Figure 6 un-

fasten the special screw.

2. Remove the outer escutcheon.

3. Insert the hook plate between the spring and

the universal mounting bracket, fit tab Bof

the spring into hole Aof the hook plate, then

6. REMOVINGTHE MAIN UNIT

pull the main unit out by the hook plate. (In-

sert both the right and left edges of the hook

plate.) (Figure 9)

Note:

Keep the hook plate.You cannot remove the

main unit without disengaging the hook plate.

Universal mounting bracket

2-Hook plate

Outer escutcheon

Instrument panel

Spring

Main

Unit

Figure 9

Fuse

Fuse holder

Note:

There are various types of fuse holder.Do not

let the battery side touch other metal parts.

70 VRX935VD

English

Installation and Wire

connection manual

∗2$%

∗6

Securely connect to the

metal part of the car with a

screw, etc.

CeNET cable (Sold separately)

Reset switch

Front audio output (input) terminal L+R (RCA) ∗4

Non Fader output terminal L+R (RCA)

VISUAL 1 video input (RCA)/

DVD changer input (RCA)

TV TUNER input (RCA)

Top view of the

tuner amp unit

VIDEO output (RCA) ∗5

VISUAL 1 audio input

terminal L+R (RCA)

Rear audio output (input) terminal L+R (RCA) ∗4

Power supply lead

Choke coil Main power supply cord

Black

Yellow

Fuse

5.1ch surround decoder select switch ∗3

Connection cord

(provided with this unit)

Main unit

8. WIRE CONNECTION

VRX935VD 71

English

Installation and Wire

connection manual

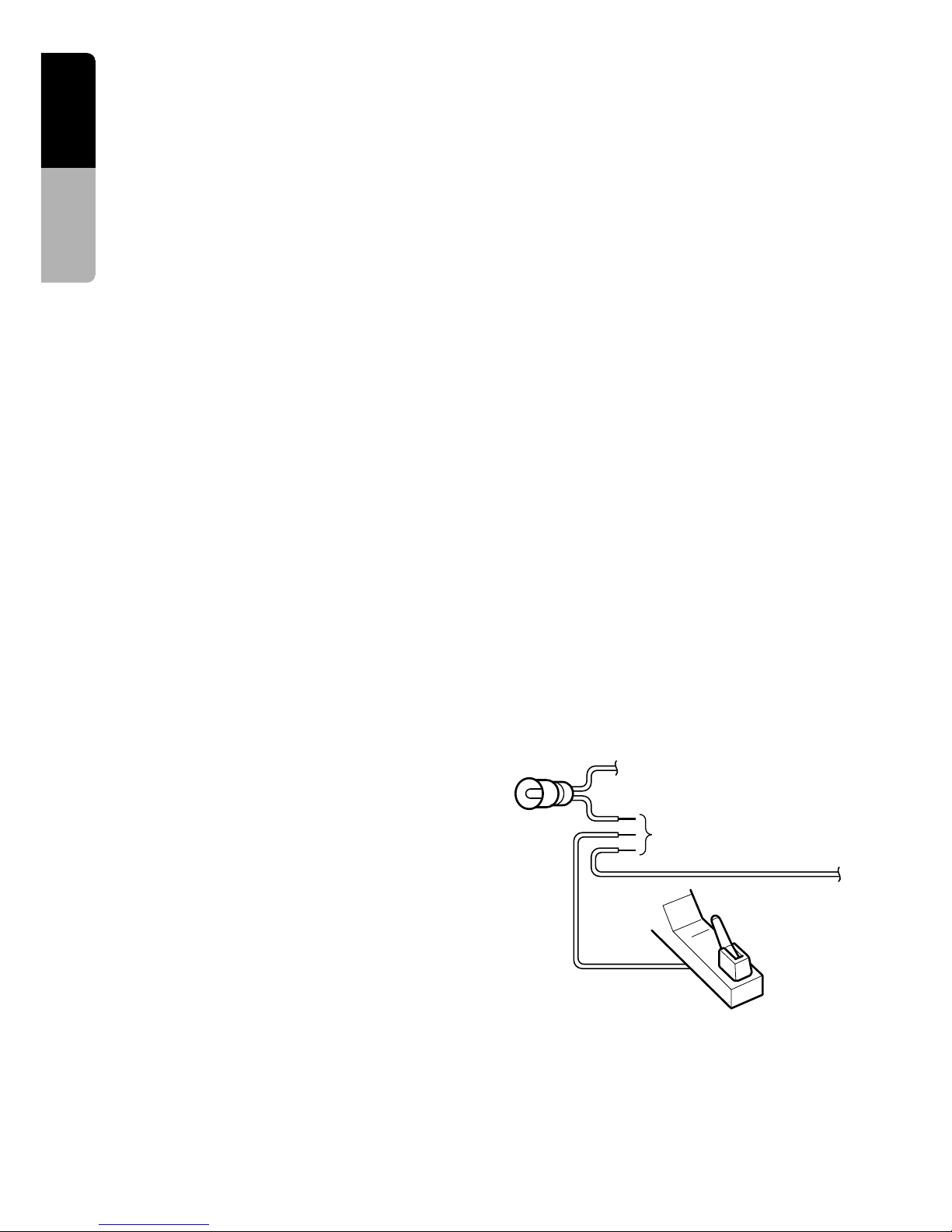

∗1: Connecting the PHONE MUTE Terminal

The lead included with the unit must be connected to the specified position of the vehicle’s

connector in order to use the “triggered audio mute for cellular telephones”function.

∗2: Use the attached extension lead when necessary. (Provided with this unit)

Note : Before making any installation, disconnect the car battery - (negative) cable.

∗3: If a 5.1ch surround decoder (DVH920, sold separately) is connected and the amp of this unit is

used, set the select switch to “LINE IN”.Then the AUDIO OUT (IN) terminal of the Tuner Amp

Unit is only available for audio input, not outputting the audio.

∗4: Connect to a separately sold external amplifier with a separately sold RCA cord (L, R).

Note : When the 5.1ch surround decoder is connected, these terminals are only available for audio input.

∗5: Connect to a Rear View Monitor (sold separately) for the rear seat.

∗6: Connect to separately sold VTR equipment with a separately sold connection cord.

(LINE IN) D N (LINE OUT)

No. Description

1REAR RIGHTB

2REAR RIGHTv

3FRONT RIGHTB

4FRONT RIGHTv

5FRONT LEFTB

6FRONT LEFTv

7REAR LEFTB

8REAR LEFTv

9+12 V MAIN POWER

0Amplifier turn-on lead

!ILLUMINATION

@+12 V ACCESSORY

#GROUND

$CCD camera

%VISUAL 2 terminal

¥Radio antenna jack (∗2)

&CeNET terminal

*Phone mute (Brown) (∗1)

(Spare terminal (Yellow)

)Parking brake (Grass-Green)

¡AUTO ANTENNA

Black

White

Yellow

Red

White/Black

Orange/White

Glay/Black

Grass-green

Glay

Brawn

Green

Blue/White

Green/Black

Purple/Black

Purple

Blue

*∗1

)

(

72 VRX935VD

English

Installation and Wire

connection manual

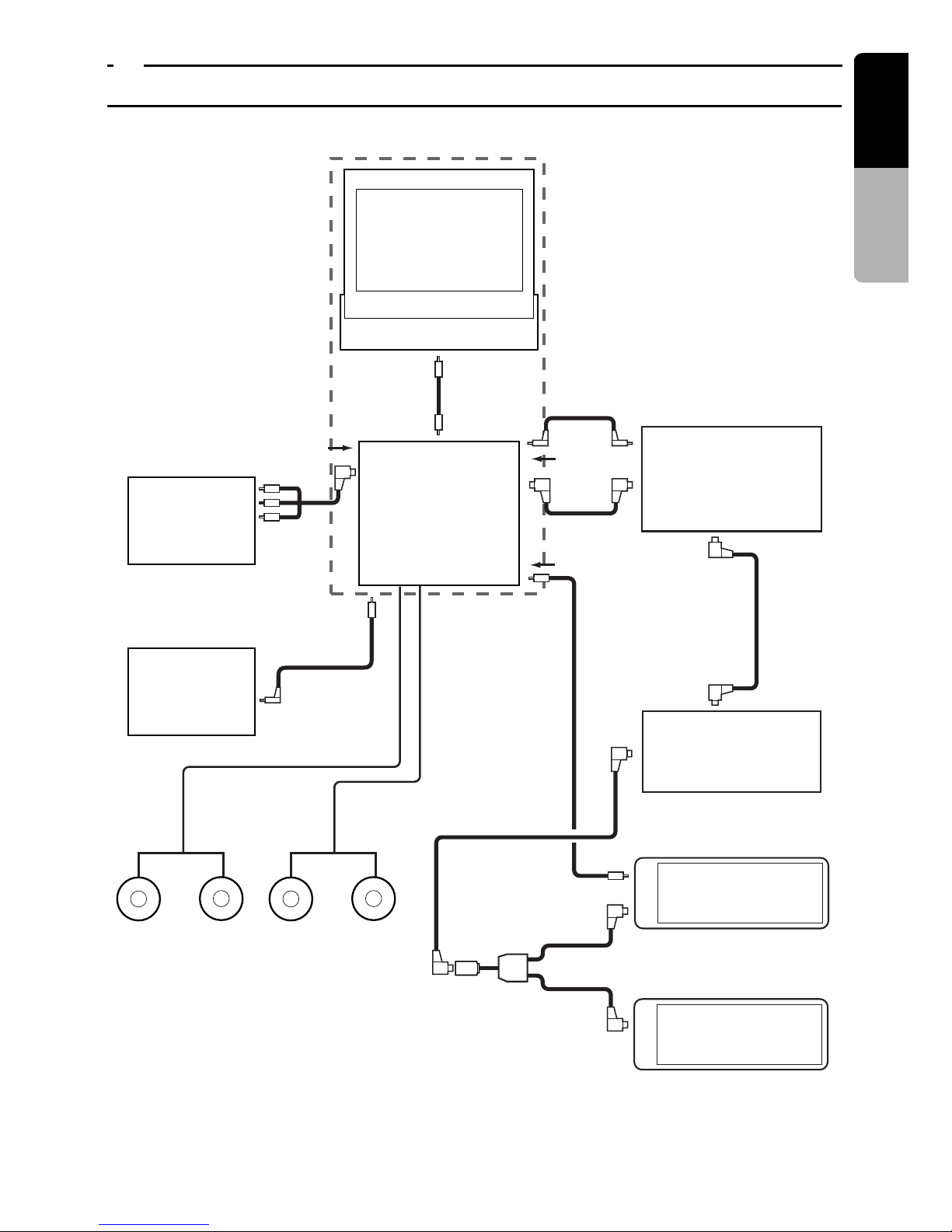

■Connecting the Accessories

•Connection to the external amplifier

The external amplifier can be connected unless the 5.1ch Surround Decoder is connected. For

detailed information, refer to the instruction manual of the 5.1ch Surround Decoder.

•Connection to the CCD camera for vehicle

The CCD camera for vehicle can be connected to CCD terminal on the tuner amp unit.For detailed

information, refer to the instruction sheet or manual for the CCD camera.

Notes:

• A power supply box (sold separately) is required for connection of the main unit and the CCD camera.

• The power supply box for camera CAA147 cannot be used. Please use the CAA188 instead.

•If the specified lead of the cellular phone is connected to the phone mute

lead of the source unit, the audio mute is available when the cellular

telephone is used.

•SIRIUS Satellite Radio

When the SIRIUS is to be connected, use the CeNET connector. For detailed information, refer to

the instruction manual of the SIRIUS.

•TVTunner

When the TV TUNER is to be connected, connect the CeNET connector and RCA PIN (yellow). For

detailed information, refer to the instruction manual of the TV TUNER.

■Connectingthe parkingbrake lead

Connect the lead to parking brake lamp earth

in the meter panel.

Notes:

• Connecting the parking brake lead to lamp earth

allows you to watch TV/VTR/DVD video/video

CD when the parking brake is engaged.

• When the parking brake lead is not connected,

the monitor will stay off.

Parking brake

Parking brake lamp +lead to battery

Connect these three leads.

-cord

parking

brake signal

lead Parking brake lead

(bright green)

VRX935VD 73

English

Installation and Wire

connection manual

9. SAMPLE SYSTEMS

CCA-519-500

(SIRIUS TUNER)

DSH920S

(CeNET TV TUNER)

TTX7501z

Rear view

monitor

VTR

(DVD CHANGER)

CeNET Mode*

VCZ625

(CD CHANGER)

DCZ625

MAIN UNIT

VRX935VD

CCA-389

CeNET

RCA Cable

(Visual)

RCA Cable (Visual)

RCA Cable

(Visual)

VISUAL 2 IN

VISUAL 1 IN

Tuner IN

TUNER AMP

UNIT

*Switch the MODE switch

to the CeNET mode.

Front Speaker Rear Speaker

■Sample System 1

74 VRX935VD

English

Installation and Wire

connection manual

■Sample System 2

TUNER AMP

UNIT

(5.1ch surround

decoder)

CeNET Mode

∗

DVH920

(CeNET TV TUNER)

TTX7501z

Rear view

monitor

VTR

(DVD CHANGER)

CeNET Mode∗

VCZ625

MAIN UNIT

VRX935VD

CCA-389

CeNET

(included the VCZ625)

CeNET (included

the DVH920)

CeNET

RCA Cable

(Visual)

RCA Cable

(Visual)

RCA Cable

(Visual)

VISUAL 2 IN

VISUAL 1 IN

Tuner IN

Center Speaker

(Powered Sub

Woofer)

SRV303

Front Speaker Rear Speaker

∗Switch the MODE switch

to the CeNET mode.

RCA Cable

(included the SRK601)

RCA Cable (sold separately)

Set the select switch to

"(LINE IN)D".

(LINE IN)D N(LINE OUT)

(Gray)

(Black)

Optical Digital Cable

(sold separately,

DCA-005/008)

(Gray)

Optical Digital Cable

(included the DVH920)

RCA Cable (Visual)

(included the VCZ625)

Otros manuales para VRX935VD

Tabla de contenidos

Otros manuales de Receptor de coche de Clarion

Clarion

Clarion DXZ946MP Manual de usuario

Clarion

Clarion VRX6570Rz Manual de reparación

Clarion

Clarion DXZ835MP DXZ835MP DXZ835MP Manual de usuario

Clarion

Clarion DXZ385US8 Manual de usuario

Clarion

Clarion NX403A Manual de usuario

Clarion

Clarion DB175MP Manual de usuario

Clarion

Clarion DB258R Manual de usuario

Clarion

Clarion ProAudio DXZ63SMP Manual de usuario

Clarion

Clarion ADX5655 Manual de usuario

Clarion

Clarion VZ409E Manual de usuario

Clarion

Clarion DXZ555MP Manual de usuario

Clarion

Clarion CX201 Manual de usuario

Clarion

Clarion VZ509A Manual de usuario

Clarion

Clarion PN-2955H-A Manual de usuario

Clarion

Clarion DB166 Manual de usuario

Clarion

Clarion CZ302 Guía de seguridad

Clarion

Clarion CZ505E Instrucciones de funcionamiento

Clarion

Clarion ProAudio DXZ855MP Manual de usuario

Clarion

Clarion DXZ585USB Manual de usuario

Clarion

Clarion VXZ758R VXZ758R VXZ758R Manual de usuario

Clarion

Clarion DXZ548RMP Manual de usuario

Clarion

Clarion FZ709 Manual de usuario

Clarion

Clarion M455 Manual de usuario

Clarion

Clarion DXZ576USB Manual de instrucciones

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
