CJB WEX-QM771 Manual de usuario
WEX-QM771 Intel QM77
User Manual Rev.01, Jun. 2013
2
All rights reserved. No part of this publication may be reproduced in any form or by
any means, without prior written permission of the publisher.
All trademarks are the properties of the respective owners.
All product specifications are subject to change without prior notice
□WEX-QM771
□Driver CD (Include user’s manual)
□1 x PS2 Y Cable(KB and Mouse)
□1 x 2 Port COM Cable with Bracket
□1 x 2 Port USB Cable with Bracket
□1 x SATA Cable
□1 x SATA Power Cable
□1 x RJ45 8P8C to COM Cable
Ordering Information
Packing List
Statement
3
Contents
Chapter 1 Product Information..........................................................................................5
1.1 Block Diagram.............................................................................................................5
1.2 Features........................................................................................................................6
1.3 PCB Layout..................................................................................................................8
1.4 Jumper Setting............................................................................................................9
1.5 Connector Function List.........................................................................................10
1.6 Internal Connector Pin Define...............................................................................11
Chapter 2 BIOS Setup...............................................................................................…….15
2.1 Main Menu..................................................................................................................15
2.2 Advanced Menu ........................................................................................................16
2.3 ACPI Setting...............................................................................................................17
2.4 CPU Configuration...................................................................................................18
2.5 SATA Configuration .................................................................................................19
2.6 AMT Configuration...................................................................................................20
2.7 USB Configuration...................................................................................................22
2.8 Super IO Configuration...........................................................................................24
2.9 Serial Port0 Configuration.....................................................................................25
2.10 Serial Port1 Configuration...................................................................................26
2.11 PC Health Setting...................................................................................................27
2.12 Smart Fan Mode Configuration..........................................................................28
2.13 Chipset......................................................................................................................29
2.14 LAN Setting ……………….................................................................................... 30
2.15 System Agent Configuration ............................................................................. 31
2.16 Graphics Configuration ........................................................................................32
2.17 Memory Information ……......................................................................................34
2.18 Boot Configuration ................................................................................................35
2.19 CSM Parameters ....................................................................................................37
2.20 Password Configuration ......................................................................................39
2.21 Save Changes and Exit .............................................................................……...40
Chapter 3 Drivers Installation..........................................................................................41
3.1 Intel Chipset Device Software...............................................................................41
3.2 Net Framework..........................................................................................................45
3.3 Intel Graphic Media Accelerator Driver ..............................................................45
3.4 LAN Driver.................................................................................... …………………..48
3.5 Audio Driver............................................................................................................... 51
4
Chapter 1 Product Information
This chapter introduces the product features, jumper and connector information.
1.1 Block Diagram
mSATA (Full)
CHA DDR3 DDR3 1333 SO-DIMM
FDI
SPI
rPGA988B Processor
Intel
DMI
LPC
QM77 PCH
Intel
DIOCOM2
SPI Flash ROM
Fintek
USB 3.0 (x2)
USB 3.0
DDPD
H/W Monitor
Super I/O F81866AD
Smart Fan
DDPC
LVDS
(24bit Dual Channel)
HDA_ALC662
HDA
USB 2.0 (x4)
USB 2.0
SATA 3.0
SATA 3.0 (x2)
PCI-E
LAN1 (82579)
VGA
VGA
LVDS
PCI-E
MINI-PCIE (Full)
COM1
DP stack connector
SATA 2.0
5
1.2 Features
System Processor/
Chipsets
Processor Intel® 3rd generation Core™ i7/ i5/ i3 processors
(Ivy Bridge)
Socket G2 (rPGA988B)
Chipset Intel® QM77
BIOS AMI
Memory
Technology DDR3 1333/1600 MHz SDRAM
Max.
Capacity Up to 8GB DDR3 DRAM
Socket 1x DDR3 SO-DIMM
Display
Chipset Intel QM77 integrated
VRAM Intel® Core™ integrated HD Graphics 4000
Shared system memory up to 2GB
Resolution Analog Display: Up to 2048 x 1536
LVDS 24bit, dual channel
LVDS
Resolution Digital LVDS: Up to 1920 x 1200
Dual Display CRT+LVDS, CRT+DP, DP+DP, DP+LVDS
Triple Display DP+DP+LVDS, DP+DP+CRT
Ethernet Interface 10/100/1000 Mbps
Controller Intel® 82579LM
Audio Interface High Definition Audio
Controller Realtek ALC662 HD CODEC
SATA
Max. Data
Transfer
Rates SATA III 600MB/s
Port 2 x SATA III
Expansion Slot mini PCIe 1
m-SATA 1; full size
Onboard
Pin-Header
USB 2.0 4
SATA III 2
6
LVDS 24bit 1
COM 1 x RS232
Audio 1(Line In, Line out, Mic in)
Front Panel 1
DIO 8 bit programmable digital input/output
Rear I/O
VGA 1
COM 1
LAN 1 x RJ45
DP 2
USB 3.0 2
Power DC 12V Input 1
Watchdog Timer Interval Programmable 1~255 sec./min.
Output System reset
Environment
*Note1
Operating
Temp. -5°C~60°C (23°F~140°F)
Storage
Temp. -20°C~80°C (-68°F~176°F)
Relative
Humidity 0%~ 95% (non-condensing)
Form Factor Dimension
(L*W) 146mm x 102mm (5.75” x 4.01”)
7

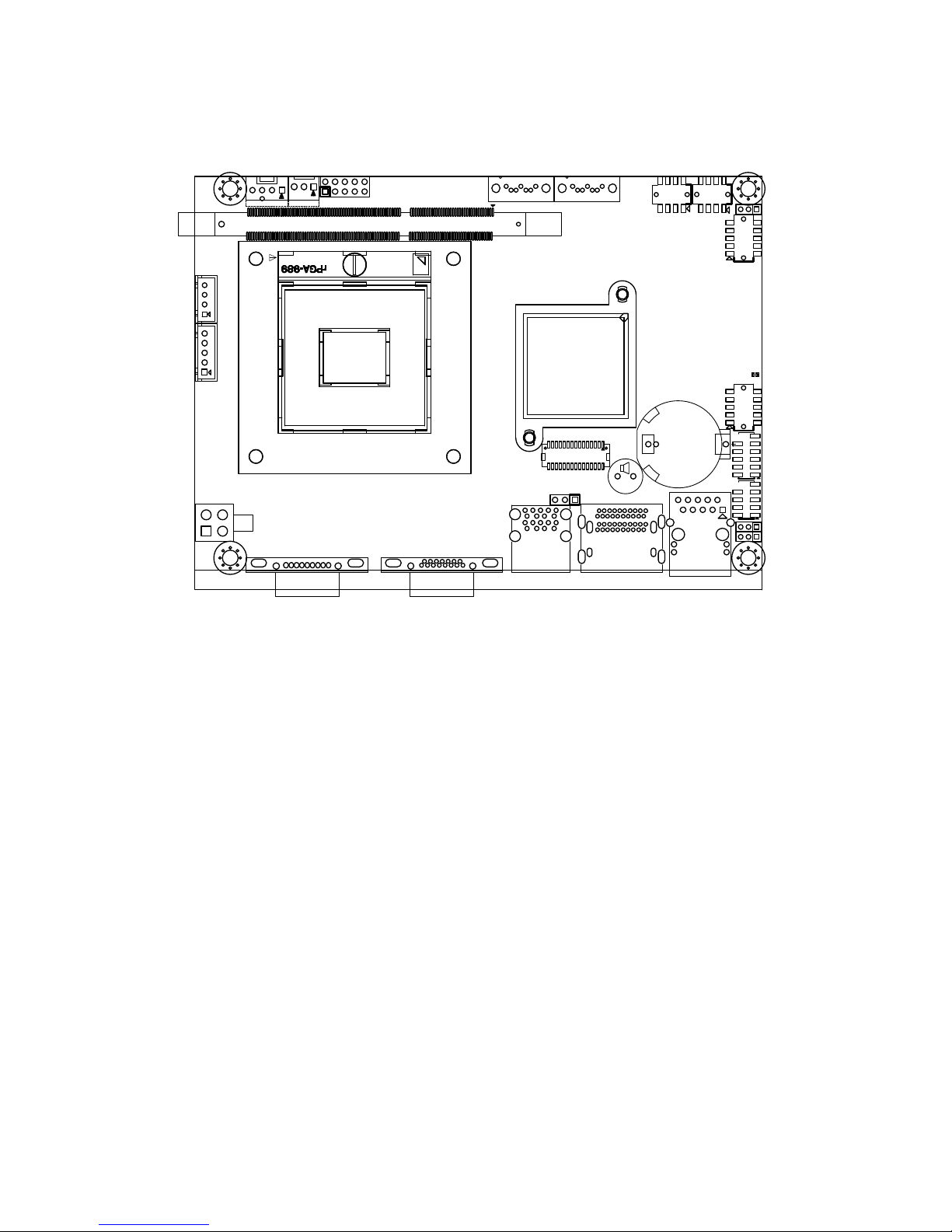

1.3 PCB Layout
JCMOS
JPWR SEL
PWR1
INV
SATA_PWR
JME
COM2
DIO
JLPC
CPUFAN SYSFAN JFRONT
CHA-DIMM
SATA2 SATA1 USB2 USB1
JSMB
AUDIO
LAN1DP
USB30-1
JLVDS
LCD
VGACOM1
8
Bottom View
MSATA
MINI-PCIE
9
1.4 Jumper Setting
JCMOS: CMOS Clear
Pin No. 1-2 2-3
Function Normal Operation (Default) Clear CMOS Contents
Jumper
Setting
3 2 13 2 1
3 2 13 2 1
JLVDS: LCD Power (+3.3V/+5V) Select
Pin No. 1-2 2-3
Function LCD Power +3.3V (Default) LCD Power +5V
Jumper
Setting
3 2 13 2 1
3 2 13 2 1
JME: ME Clear
PAD PAD Open PAD Short
Function Normal Operation (Default) Clear ME Contents
Setting
JPWR_SEL: AT/ATX Mode Select
Pin No. 1-2 2-3
Function AT Mode ATX Mode (Default)
Jumper
Setting
3 2 13 2 1
3 2 13 2 1
10
1.5 Connector Function List
Connector Function Note
AUDIO Line-In/MIC-In/Line-Out with Pin-header
CHA-DIMM DDR3 SO-DIMM connector
COM1 Serial port connector
COM2 Serial port connector with pin-header
CPUFAN CPUFAN 4-pin connector
DIO Digital input/output with pin-header
DP Display port connector
INV LCD inverter with box-header
JFRONT Front panel with pin-header
JLPC Reserved for debug
JSMB SMBUS with Pin-header
LAN1 RJ45 connector
LCD LVDS connector
MINI-PCIE Mini PCI express connector (Full)
MSATA mSATA connector (Full)
PWR1 ATX 2x2 connector
SATA1,2 SATA3.0 connector
SATA_PWR SATA power with box-header
SYSFAN System FAN connector
USB1,2 USB2.0 with pin-header
USB30-1 USB3.0 connector
VGA VGA connector
