Citizen C32604HD Manual de usuario
C32604HD
32 Inch LCD Television
•High Resolution 1366 x 768
•"U-VM" Detection & Recovery
•Di²-E Technology
•HDMI (High-Definition Multimedia Interface)
USER MANUAL
www.citizen-electronics.ca
1
Explanation of WARNING Symbols
Dangerous Voltage: The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence of dangerous
voltage within the inside of the product that may be of sufficient level to
constitute a risk of electric shock.
Instruction: The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and servicing
instructions in the literature accompanying this product.
Safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this LCD TV near water.
6) Clean only with a dry cloth. Do not use liquid, alcohol, or aerosol cleaners.
7) Do not block any ventilation openings. Install your LCD TV in a well ventilated area.
8) Keep your LCD TV away from moisture, excessive dust and any heat sources,
such as radiators, heat registers, stoves, or any other apparatus (including
amplifiers) that produce heat.
9) Do not remove the back cover. There are no user-serviceable parts inside.
10) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
11) Protect the power cord from being walked on or pinched particularly at plugs,
receptacles, and the point where they exit from the LCD TV.
12) Never rest objects on the power cord or place it in high traffic areas.
13) Only use attachments/accessories specified by the
manufacturer.
14) Use only with stand, tripod, bracket, or table specified by the
manufacturer, or sold with the LCD TV. When a cart is used,
use caution to avoid injury from tip-over.
15) Unplug this LCD TV during lightening storms or when unused
for long periods of time.
16) Refer all servicing to qualified service personnel-- Servicing
may be required if the LCD TV has been damaged in any way,
such as power-supply cord or plug damage, liquid has been spilled or objects have
fallen into the LCD TV, the LCD TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
2
17) Do not expose your LCD TV to dripping or splashing, and do not place objects
filled with liquids on it.
18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the
back panel of the unit.
19) This product is only to perform the useful function of entertainment and visual
display tasks are excluded.
20) Wall or ceiling mounting: When mounting the product on a wall or ceiling, be sure
to install the product according to the method recommended by the manufacturer.
Use only the mounting hardware recommended by the manufacturer. This is a
safety feature.
21) The readily operable appliance coupler will serve as the disconnect device of this
apparatus.
22) The apparatus must be connected to a mains socket outlet with a protected
grounding connection.
CAUTION: Any damage caused by incorrectly attempting to mount
this LCD TV is not covered under the terms of the manufacturers
warranty.
WARNING: To reduce the risk of fire or electric shock, do not expose
this LCD TV to rain or moisture.
This product may contain parts which are hazardous to the environment. Please
contact your local waste disposal facility to arrange for proper disposal/recycling.
3
4
Content
ACCESSORIES................................................................................................................. 1
FRONT PANEL BUTTONS ................................................................................................ 2
BACK PANEL BUTTONS................................................................................................... 3
REMOTE CONTROL......................................................................................................... 4
INSTALLATION.................................................................................................................. 6
Connecting RF antenna or Cable TV Wire ................................................................. 6
Connecting to External Stereo System to Listen to LCD TV Sound............................ 6
Connecting to DVD/ Set Top Box................................................................................ 6
Connecting to a computer........................................................................................... 8
Connecting to a computer with HDMI-DVI cable ........................................................ 8
Connecting with the power cord ................................................................................. 8
BASIC OPERATION .......................................................................................................... 9
Turning on the LCD TV ............................................................................................... 9
Power On/Off.............................................................................................................. 9
Selecting input source ................................................................................................ 9
Volume Adjust ............................................................................................................. 9
Channel Select ........................................................................................................... 9
Sleep Time Setting...................................................................................................... 9
Sound ......................................................................................................................... 9
Video .......................................................................................................................... 9
Using OSD Menu...................................................................................................... 10
ADVANCED OPERATION—OSD MENU/ REMOTE CONTROL......................................11
Picture Menu .............................................................................................................11
Sound Menu ..............................................................................................................11
Setup Menu .............................................................................................................. 12
TV-Channel Menu..................................................................................................... 15
PC Menu................................................................................................................... 16
TECHNICAL SPECIFICATION ........................................................................................ 17
SAFETY PRECAUTIONS ................................................................................................ 18
CARE AND MAINTENANCE ........................................................................................... 19
TROUBLESHOOTING..................................................................................................... 19
CITIZEN WARRANTY ..................................................................................................... 20
1
ACCESSORIES
Thank you for purchasing this LCD-TV.
This LCD-TV package comes with:
zLCD TV
zUser’s Guide book
zRemote control
zBattery AAA x 2
zPower Cord
zHDMI Cable
zRCA A/V Cable

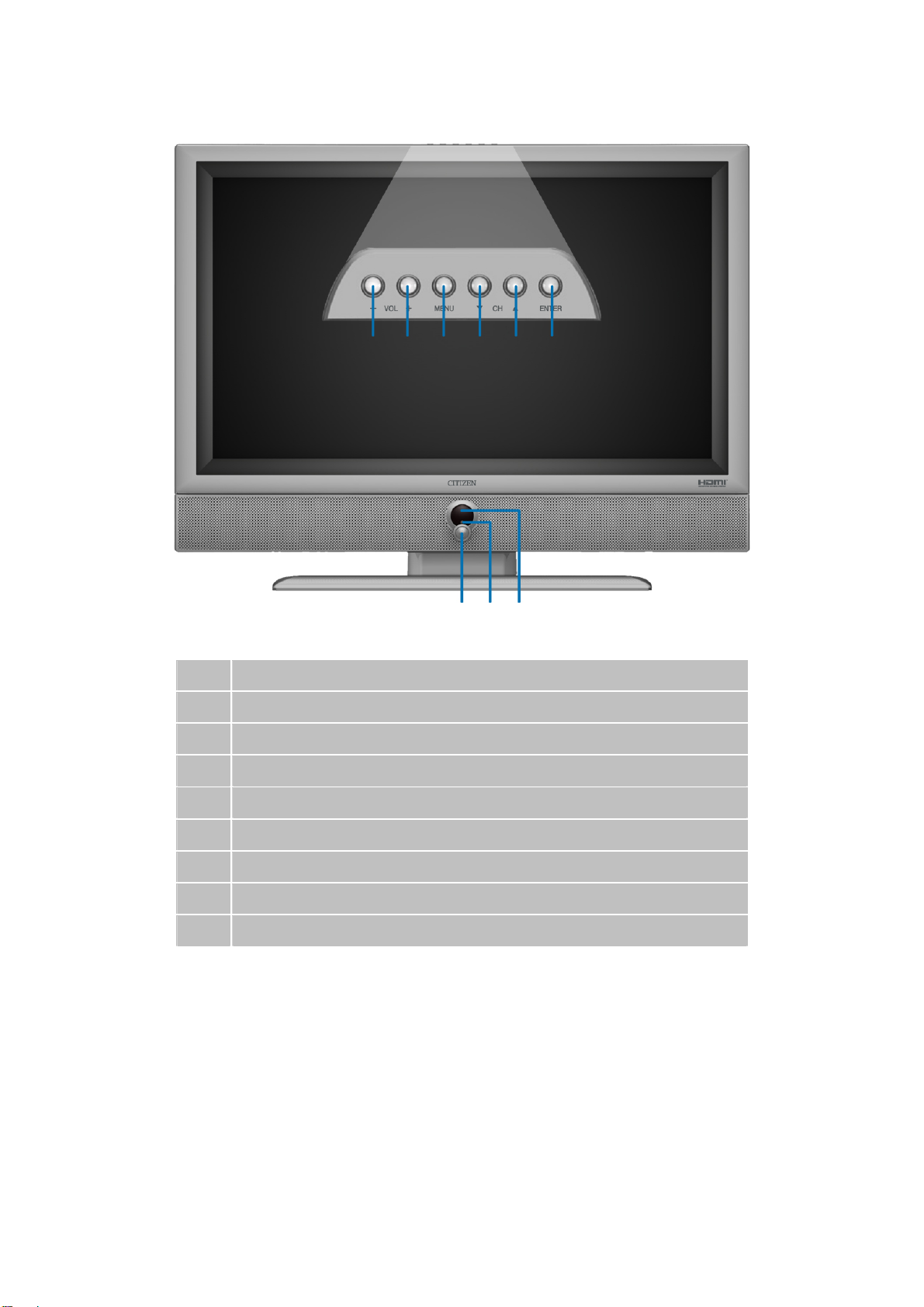

FRONT PANEL BUTTONS
XYZ[\]
^ _ `
1 Volume Down (decrease volume)
2 Volume Up (increase volume)
3 On Screen Display Menu On/Off
4 Scroll Down (Channel down)
5 Scroll Up (Channel Up)
6 Enter
7 Power ON/OFF
8 Remote Control Receiver
9 Power LED Indicator
2
BACK PANEL BUTTONS
A B C D EFGHIJ K
A Power Input (AC Input)
B HDMI Input Terminal (19 pin)
C VGA (15 pin) Signal Input from Computer
D YPbPr / HD Component Video Input
E S-Video Input
F Composite Video input
G Audio Input for VGA (PC Sound Card)
H Audio Input for YPbPr or HD Component (left/ right)
I Audio Input for AV or S-Video (left/right)
J Audio Output (left/right)
K RF Antenna / Cable TV Input
3
REMOTE CONTROL
4
5
Remote control button function as follows:
1 POWER Power ON/OFF
2 MTS MTS (Multi-Channel TV Sound) select
3 INFO Display the current information
4 SOUND Select situation mode for sound
5 SLEEP Set TV Sleep timer
6 FREEZE Freeze picture
7 0~9 NUMBER Select channel numbers below 100
8 100 Select channel numbers 100 and above
9 + VOL - Adjust volume up or down
10 UP / DOWN / LEFT /
RIGHT / ENTER UP/ DOWN/ LEFT/ RIGHT: Select or adjust the function of the
OSD
ENTER: 1) Enter the OSD top menu (in OSD menu)
2) Switch the input source (when not in OSD menu)
3) Confirm the selected input source
11 INPUT Input source select
12 MUTE Volume mute ON/OFF
13 TV Direct to TV source
14 PICTURE Select situation mode for picture
15 WIDE Change aspect ratio
16 RETURN Return to the previous channel
17 ▲CH▼Select program up/down
18 MENU OSD menu ON/OFF
INSTALLATION
Connecting RF antenna or Cable TV Wire
Make sure the power is OFF before installing your LCD TV. Connect the LCD TV to a TV antenna
wire or cable/satellite box with 75-ohm coaxial cable.
Preset the TV channels into memory with AUTO SCAN function (see page 14) when using an
antenna or cable TV system without a cable connecter box.
RF Cable or Adapter
(not supplied)
Connecting to External Stereo System to Listen to LCD TV Sound
Connect the audio output terminal of the LCD TV to the audio in terminal of the stereo system
(stereo system sold separately).
Audio in Cable
(not supplied)
Stereo system
Connecting to DVD / Set Top Box
Connect Video/Audio cables from a compatible device into the back panel of the LCD TV.
1) With RCAA/V cable:
RCA A/V Cable
VCD or DVD Player
6
