Citizen cx-77iv Manual de usuario
File name: HP5_Cover.doc DATE: 2005/4/1
PRINTING
CALCULATOR
CX-77IV
Instruction Manual
Manual de Instrucciones
Manual de Instrução
Anweisungshandbuch
Mode d'emploi
Instruzioni d'uso
Gebruiksaanwijzing
Manual
Инстpyкция по зксплуатации
Instrnkcja Obsługi
指導說明書
Peraturan pemakaian
تادﺎﺷرﻹا ﻞﻴﻟد
Εγχειρίδιο χρήσης
-E1-
File name: HP5_English.doc DATE: 2005/4/1
1. HOW TO LOAD THE PAPER-ROLL
1) Push the paper holder (1) backwards.
2) Install the paper roll (2) into to the paper holder (1).
3) Cut the edge of the paper roll (2) straight with scissors and insert the
edge of the paper roll into the paper slot (3).
4) Press [
ON
CE C
] to turn the calculator on. Press the paper feed key [©]
until the paper end comes out from the paper cutter.
2. HOW TO CHANGE THE INK ROLLER
The printer in this model uses a disposable ink roller (IR-30) (cartridge
type). If impressions are too light or illegible, replace the ink roller with a
new one.
1) Press [OFF] to turn the calculator off.
2) Slide the printer cover (4).
3) Remove the ink roller (5) by pulling it up.
4) Install a new ink roller (5) into the holder in the proper position.
5) Replace the printer cover (4) to the original position.
Note:
Never fill the ink roller with fluid ink as it may run or clog the printer. Use
only ink cartridge (IR-30).
-E2-
File name: HP5_English.doc DATE: 2005/4/1
3. TO REPLACE BATTERIES
1) Open the battery compartment cover.
2) Remove the exhausted batteries.
3) Insert new batteries (UM-3 / AA BATTERY x 4) with polarity in correct
directions
4) Replace the cover.
4. TO USE AC ADAPTER
1) Turn the power off.
2) Connect the AC adapter (6V / 300mA , ) to the plug.
5. RESET:
Electromagnetic interference or electrostatic discharge may cause the
display to malfunction or the contents of the memory to be lost or altered.
If it occurs, use the tip of a ball point pen (or similar sharp object) to press
the [RESET
{
] button at the bottom of the battery case..
RESET
-E3-
File name: HP5_English.doc DATE: 2005/4/1

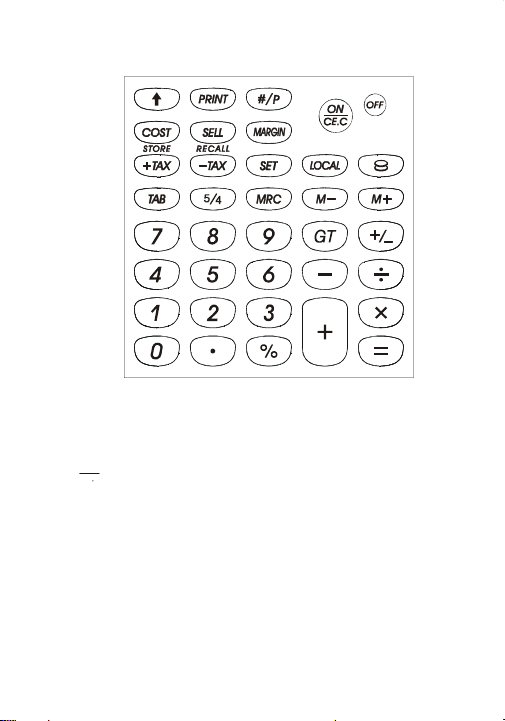

KEYS AND SWITCHES DESCRIPTION
[0]~[9] Number Keys
Set the entered numbers.
[ • ] Decimal Point Key
Set the decimal point.
[
ON
CE C
]Power On / Clear Entry / Clear Key
ON : Turns the calculator on.
CE : Press to clear the last entered number (displayed
number) before any function key is depressed.
C: Press to clear all except memory contents.
[OFF] Power Off
Turns the calculator off.
[+] [–] Arithmetic Keys
[×] [÷] Performs addition, subtraction, multiplication and
division respectively.
-E4-
File name: HP5_English.doc DATE: 2005/4/1
[ = ] Equal Key
Obtains the result.
[%] Percentage Key
Converts percentage to the decimal value. Also, converts
for add-on and discount calculation.
[+/–] Sign Change Key
Uses to change the algebraic sign of a display
number/operand.
[TAB] Decimal Point Selector
F: Floating decimal mode.
0 2 3 : Fixed decimal mode.
A: ADD Mode -- Addition and subtraction calculations
are preformed with an automatic 2-digit decimal so that
decimal point entry is not required.
[5/4] Rounding Selector Key
Used for round-up (S), round-off (5/4), or round-down (T)
to the pre-selected decimal digits in the result.
[GT] Grand Total Key
Obtains grand total value of a series of calculations.
[ ©] Paper Feed Key
Advance the paper roll.
[#/P] Data printout key
Used for printing out displayed content but it does not
affect calculation such as dates and serial numbers.
Figures are printed on the left-hand side of the paper.
[PRINT] Print Mode Selector
Entries and results will appear on the display and will be
printed out.
[M+] Memory Plus Key
Accumulates the displayed number or calculated result
directly into the memory.
[M−] Memory Minus Key
Subtracts the displayed number or calculated result from
the memory storage.
-E5-
File name: HP5_English.doc DATE: 2005/4/1
[MRC] Memory Recall Key / Memory Clear Key
Recalls the content of the memory to the display and/or
the printing paper.
Clears the content of the memory after recalling its
contents to the display and/or to printing paper.
[] [LOCAL] Currency Exchange Key
: Convert Local currency into Universal currency.
LOCAL : Convert Universal currency into Local currency.
[SET] Exchange Rate Setting Key / Tax Rate Setting Key
[
STORE
+TAX
]Add tax key
Used for adding the tax amount to the displayed figure.
[
RECALL
-TAX
] Deduct Tax key
Used for deducting the tax amount from the displayed
figure.
[SELL] Selling Price/ Cost / Margin Key
[COST] Used for calculating the cost, selling price and profit
[MARGIN] margin amount. Enter the value of any 2 items to
obtain the balance item.
-E6-
File name: HP5_English.doc DATE: 2005/4/1
THE SIGNS OF THE DISPLAY MEAN THE FOLLOWING
M : Memory – : Minus ( or negative)
GT : Grand total E : Overflow-error
COST : Cost SELL : Selling price
MARGIN% : Margin percentage
SET : Exchange rate or Tax rate setting
% : Tax rate stored TAX : Amount of tax
+TAX : Price including tax -TAX : Price excluding tax
LOCAL : Local currency : Universal currency
PRINTED SYMBOLS
Various symbols mean the following:
½Total (result) Print ON/Off
T
Recall Grand Total value M
¨Add to memory
T
½Clear Grand Total value M
–Subtract from memory
= Equals M
Memory recall
# Non−add or date M
½Memory clear
% Percentage CCost
M
M Local currency S Sell price
C
C Universal currency M
%Margin
...... Overflow-error
-S1-
File name: HP5_Spanish.doc DATE: 2005/4/1
1. CÓMO CARGAR EL ROLLO DE PAPEL
1) Empujar hacia atrás el portapapel (1).
2) Instale el rollo de papel (2) al agarradero de papel (1).
3) Corte el filo del rollo de papel con unas tijeras e inserte el filo del rollo
de papel dentro de la ranura
4) Pulse [
ON
CE C
] para encender la calculadora. Pulse la tecla de
alimentación de papel [©] hasta que la punta del papel salga del
cortador de papel.
2. CÓMO CAMBIAR EL RODILLO DE TINTA
La impresora de este modelo utiliza un rodillo de tinta desechable (IR-30)
(tipo cartucho). Si las impresiones son demasiado claras o ilegibles,
reemplace el rodillo de tinta por uno nuevo.
1) Pulse [OFF] para apagar la calculadora.
2) Deslice la tapa de la impresora (4).
3) Remueva el cilindro de tinta tirándolo hacia arriba (5).
4) Instale un nuevo rodillo de tinta (5) en el sostén en la posición apropiada.
5) Coloque nuevamente la tapa de la impresora (4) en su posición
original.
Nota:
No rellene el rodillo de tinta con tinta líquida, ya que esta puede chorrear
o bloquear la impresora. Use sólo un cartucho de tinta (IR-30).
-S2-
File name: HP5_Spanish.doc DATE: 2005/4/1
3. PARA CAMBIAR LAS BATERÍAS
1) Abra la tapa del compartimiento de la batería.
2) Saque las baterías agotadas.
3) Inserte baterías nuevas (4 BATERÍAS UM-3 / AA) con la polaridad en
la dirección correcta
4) Coloque nuevamente la tapa.
4. PARA USAR EL ADAPTADOR DE CORRIENTE ALTERNA
1) Apague la alimentación.
2) Conecte el adaptador de AC (6V / 300mA , ) al enchufe.
5. RESETEO:
La interferencia electromagnética o la descarga electrostática pueden
causar que la pantalla funcione incorrectamente o que los contenidos de
la memoria se pierdan o alteren. Si esto ocurre, use la punta de un
bolígrafo (o de un objeto puntiagudo similar) para pulsar el botón
[RESET
{
] en la parte inferior de la caja de la batería.
RESET
-S3-
File name: HP5_Spanish.doc DATE: 2005/4/1
DESCRIPCIÓN DE LAS TECLAS E INTERRUPTORES
[0]~[9] Teclas de los Números
Determina el número que se introduce.
[ • ] Tecla Coma decimal
Determina la coma decimal.
[
ON
CE C
]Tecla de encendido / Borrar / Tecla de borrar entrada
ON : Enciende la calculadora.
CE : Pulsarla para borrar el último número introducido
(visualizados) antes de volver a pulsar cualquier otra
tecla de función.
C: Borra todos los cálculos excepto los almacenados en
memoria.
[OFF] Apagado
Apaga la calculadora.
[+] [–] [×] [÷] Teclas Operaciones aritméticas
Realizan la suma, resta, multiplicaión y división,
respectivamente.
