Cisco Small Business RV315W Manual de usuario

Quick Start Guide

Cisco RV315W Broadband Wireless VPN Router

Package Contents

•Cisco RV315W Broadband Wireless VPN Router

•Power Adapter and Power Cord

•Quick Start Guide

•Ethernet Cable

•Pointer Card with Product Warranty

•Technical Support Contacts

2 Cisco RV315W Broadband Wireless VPN Router Quick Start Guide

Welcome

Thank you for choosing the Cisco RV315W Broadband Wireless VPN

Router. The RV315W provides routing, switching, security, wireless, 3G,

Virtual Private Network (VPN), quality of service (QoS), and flow control

capabilities for small businesses.

This guide describes how to physically install your RV315W and launch

web-based Configuration Utility to configure and manage your RV315W.

Before You Begin

Installation Requirements

Before you begin the installation, make sure that you have the following:

•An active Internet account.

•RJ-45 Ethernet cables (Category 5E or higher) for connecting

computers, WAN and LAN interfaces, or other devices.

•PC with Microsoft Internet Explorer 6.0 (or higher) or Mozilla Firefox 3.0

(or higher) for using web-based Configuration Utility.

•(Optional) Tools for attaching the RV315W to the wall. Instructions are

provided for wall-mounting, but the wall-mounting hardware is

user-supplied.

Default Settings

These are the default settings used when configuring your RV315W for the

first time:

NOTE Press and hold the RESET button for more than 5 seconds with a

paper clip or a pencil tip to reboot the unit and restore the factory

defaults. Changes that you have previously made to the RV315W

settings are lost.

Parameter Default Value

Username cisco

Password cisco

LAN IP 192.168.1.1

DHCP Range 192.168.1.100 to 192.168.1.200

Cisco RV315W Broadband Wireless VPN Router Quick Start Guide 3

RV315W Features

Front Panel

POWER •Solid green when the RV315W is powered on and is

operating normally.

•Off when the RV315W is powered off or the power has

problems.

SYS •Solid green when the RV315W is connected to the

Internet through your cable or DSL modem.

•Flashes green when the RV315W is attempting to

connect to the Internet, the RV315W cannot connect to

the Internet, or the system is upgrading the firmware.

•Solid red when the system has problems.

•Flashes red when the system is overloaded, such as the

CPU utilization or the memory utilization exceeds the

limitation.

•Off when there is no Internet connection.

WAN0 •Solid green when the RV315W is connected to the

Internet through the WAN0 port, but there is no traffic

over this port.

•Flashes green when the RV315W is sending or

receiving data over the WAN0 port.

•Off when the WAN0 port has no connection.

4 Cisco RV315W Broadband Wireless VPN Router Quick Start Guide

WAN1 If the WAN1/LAN0 port on the back panel is set to a

secondary WAN interface (WAN1):

•Solid green when the RV315W is connected to the

Internet through the WAN1 port, but there is no traffic

over this port.

•Flashes green when the RV315W is sending or

receiving data over the WAN1 port.

•Off when the WAN1 port has no connection.

LAN0 If the WAN1/LAN0 port on the back panel is set to an

additional LAN interface (LAN0):

•Solid green when the RV315W is connected to a device

through the LAN0 port, but there is no traffic over this

port.

•Flashes green when the RV315W is sending or

receiving data over the LAN0 port.

•Off when the LAN0 port has no connection.

LAN1-8 The numbered lights correspond to the LAN ports on the

back panel of the RV315W.

•Solid green when the RV315W is connected to a device

through the corresponding port (LAN1 to 8), but there is

no traffic over that port.

•Flashes green when the RV315W is sending or

receiving data over the corresponding LAN port.

•Off when the corresponding LAN port has no

connection.

USB •Solid green when a USB device is detected, but has no

read and write operations.

•Flashes green when a USB device is detected and has

read and write operations.

•Off when the RV315W does not detect a USB device.

3G •Solid green when the RV315W is connected to a 3G

wireless network, but there is no traffic over the 3G USB

port.

•Flashes green when the RV315W is sending or

receiving data over the 3G USB port.

•Off when the RV315W does not connect to a 3G

wireless network.

Cisco RV315W Broadband Wireless VPN Router Quick Start Guide 5

WLAN •Solid green when the wireless module is enabled, but

there is no traffic over the wireless network.

•Flashes green when the RV315W is sending or

receiving data on the wireless module.

•Off when the wireless module is disabled.

VPN •Solid green when there are active VPN tunnels.

•Flashes green once per two seconds when the

RV315W is attempting to establish a VPN tunnel, or the

attempt of establishing a new VPN tunnel fails.

•Off when there is no VPN connection.

NMS •Solid green when the RV315W is connected to an

upper-level Network Management System (NMS) but

has no operations.

•Flashes green when the RV315W is connected to an

upper-level NMS and has operations.

•Off when the RV315W does not connect to an

upper-level NMS.

6 Cisco RV315W Broadband Wireless VPN Router Quick Start Guide

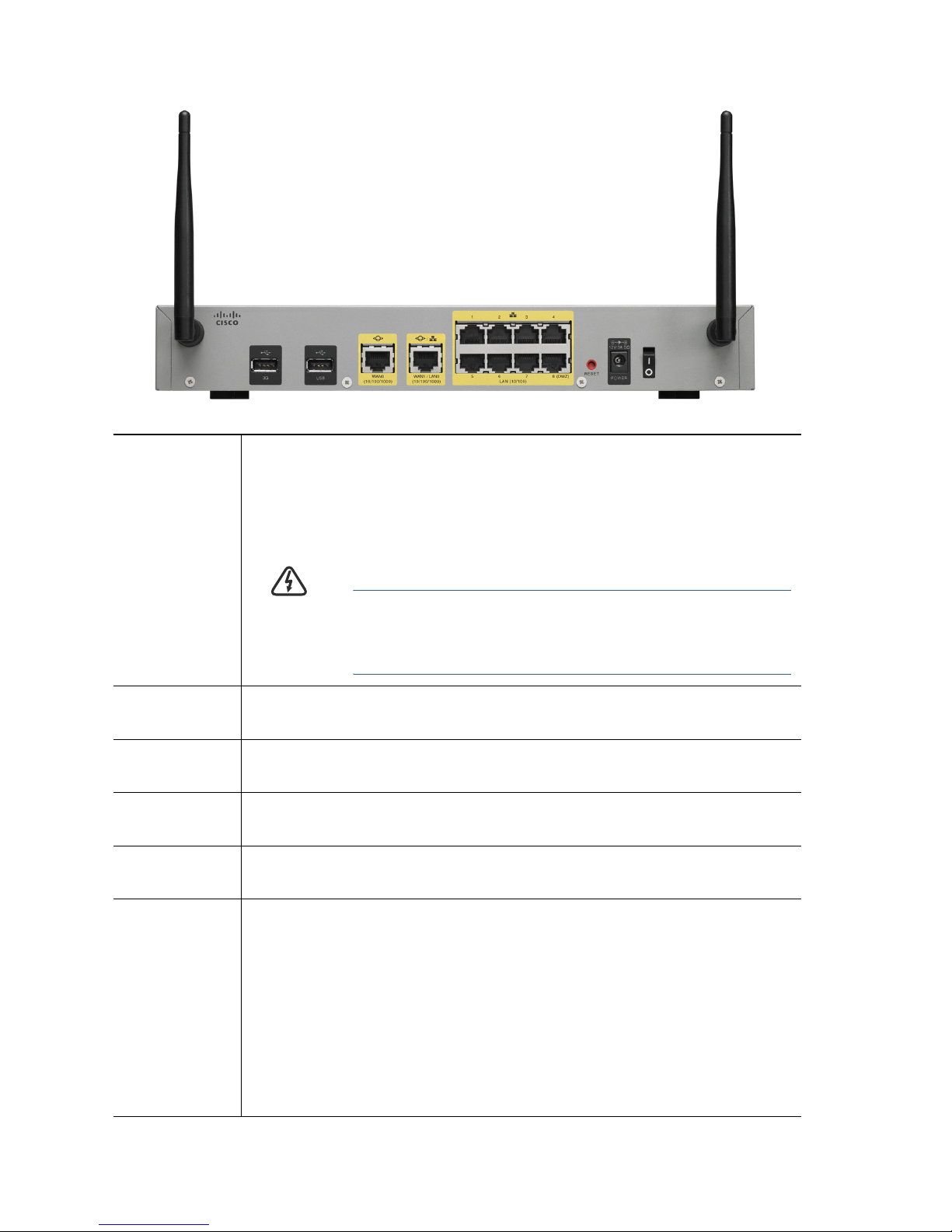

Back Panel

3G USB

Port Insert a 3G USB dongle into this port to connect your

RV315W to a 3G wireless network. To get the list of 3G

USB dongle models supported by the RV315W, go to

www.cisco.com/go/rv315w.

WARNING 33 cm minimum when the product is operated

with a plug-in 3G USB device which has

maximum of 7 W ERP output power.

USB Port Insert a USB storage device into this port to save syslog

messages.

WAN0 Port The WAN0 (Internet) port is connected to your Internet

device, such as a cable or DSL modem.

WAN1/

LAN0 Port

The WAN1/LAN0 port can be set to a secondary WAN

interface (WAN1) or an additional LAN interface (LAN0).

LAN1-8

Ports

These ports provide a LAN connection to network devices,

such as PCs, print servers, or switches.

RESET The RESET button has two functions:

•Reboot:Press the RESET button for at least 1, but no

more than 5 seconds with a paper clip or a pencil tip to

reboot the unit.

•RestoretoFactoryDefaults:Press and hold the

RESET button for more than 5 seconds to reboot the unit

and restore to factory defaults. Changes that you have

previously made to the RV315W settings are lost.

Cisco RV315W Broadband Wireless VPN Router Quick Start Guide 7

Mounting the RV315W

You can place your RV315W on a desktop or mount it on a wall.

Placement Tips

• Ambient Temperature—To prevent the RV315W from overheating, do

not operate it in an area that exceeds an ambient temperature of 104°F

(40°C).

•AirFlow—Be sure that there is adequate air flow around the RV315W.

• Mechanical Loading—Be sure that the RV315W is level and stable to

avoid any hazardous conditions.

Place the RV315W horizontally on a flat surface so that it sits on its four

rubber feet.

Wall Mounting

The RV315W can be wall-mounted. The wall-mounting hardware is

user-supplied. The ports on the back panel must face either upward or

downward when mounting the RV315W to the wall. The recommended

dimensions for the mount kit are as follows:

WARNING Insecure mounting might damage the device or cause injury.

Cisco is not responsible for damages incurred by insecure

wall-mounting.

POWER

(12VDC)

The POWER port is where you connect the supplied power

adapter (12 V/3 A).

Power

Switch

Powers the unit on or off.

18 mm/0.31 in 225 mm/0.98 in 36.5 mm/0.26 in 417.9 mm/0.7 in

196243

8 Cisco RV315W Broadband Wireless VPN Router Quick Start Guide

To mount the RV315W to the wall:

STEP 1Determine where you want to mount the RV315W. Verify that the

surface is smooth, flat, dry, and sturdy.

STEP 2Drill two pilot holes into the surface 5.9 inches (150 mm) apart.

STEP 3Insert a screw into each hole, leaving a gap between the surface

and the base of the screw head of at least 0.1 inches (3 mm).

STEP 4Place the RV315W wall-mount slots over the screws and slide the

RV315W down until the screws fit snugly into the wall-mount slots.

Connecting the RV315W

NOTE The wireless module of the RV315W is enabled by default. You can

connect one PC with an Ethernet cable or through a wireless connection

to perform the initial configuration. Use the default wireless network

name (SSID) and pre-shared key that are provided on the product label

at the bottom of the RV315W to connect the PC to your wireless network

for the first time.

STEP 1Power off all equipment, including the cable or DSL modem, the PC

that you will use to connect to the RV315W, and the RV315W.

STEP 2Connect one end of an Ethernet cable to your cable or DSL

modem. Connect the other end to the WAN0 port on the back

panel of the RV315W.

STEP 3Connect one end of a different Ethernet cable to one of the LAN

ports on the back panel. Connect the other end to an Ethernet port

on the PC that you will use to run web-based Configuration Utility.

NOTE Skip this step if you want to connect the PC to the RV315W

through a wireless connection.

STEP 4Connect the supplied power adapter to the POWER port on the

back panel. Plug the other end of the power adapter into an

electrical outlet. Make sure that the power switch is turned off.

CAUTION Use only the power adapter that is supplied with the unit.

Using a different power adapter could damage the unit.

STEP 5Power on all connected devices including the cable or DSL

modem and the PC and wait until the connections are active.

Cisco RV315W Broadband Wireless VPN Router Quick Start Guide 9

STEP 6Power on the RV315W.

STEP 7To connect the PC to your wireless network for the first time, you

can configure the wireless connection using the default SSID name

and pre-shared key that are provided on the product label.

A sample configuration is illustrated here.

Getting Started with the Configuration

Before you begin to use web-based Configuration Utility, make sure that

you have a PC with Internet Explorer 6.0 (or later) or Firefox 3.0 (or later).

To log in to the utility and launch the Setup Wizard to complete the initial

configuration:

STEP 1Connect a PC to an available LAN port of the RV315W. After you

power on the PC, your PC will become a DHCP client of the

RV315W and will receive an IP address in the 192.168.1.xxx range.

STEP 2Start a web browser. In the address bar, enter the default IP

address of the RV315W: 192.168.1.1.

STEP 3When the login page appears, choose the language that you prefer

to use in the utility and enter the username and password.

The default username is cisco. The default password is cisco. Both

usernames and passwords are case sensitive.

STEP 4Click Login. The Change Password page opens.

Power

Supply

Internet

Access

Devices Network

Devices

Wireless

Devices

10 Cisco RV315W Broadband Wireless VPN Router Quick Start Guide

For security purposes, change the password from its default

settings at your first login to prevent unauthorized access.

STEP 5Enter the old password.

STEP 6Enter the new password. Passwords should contain at least three

of these character classes: uppercase letters, lowercase letters,

digits, and special characters. Passwords must be at least eight

characters in length.

STEP 7Enter the new password again to confirm and click Save. You are

required to log in to the utility again with the new password.

STEP 8Go to the Setup Wizard page and follow the on-screen prompts to

complete the initial configuration.

After the initial configuration is complete, you can configure other

advanced features. See the help pages or the

Cisco RV315W

Broadband Wireless VPN Router Administration Guide

for more

information.

Otros manuales para Small Business RV315W

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco Catalyst IR1800 Rugged Series Manual de usuario

Cisco

Cisco ASR 900 Series Manual de usuario

Cisco

Cisco ASR 1000 Series Manual de usuario

Cisco

Cisco Catalyst IR1800 Rugged Series Manual

Cisco

Cisco 7600 Series Manual

Cisco

Cisco 8800 Series Manual

Cisco

Cisco 2811 - Voice Security Bundle Router Instrucciones de instalación

Cisco

Cisco ASR 900 Series Cómo utilizar

Cisco

Cisco 4430 Manual de usuario

Cisco

Cisco 1811W - Integrated Services Router Wireless Manual de usuario

Cisco

Cisco Small Business Pro SRP527W Manual de usuario

Cisco

Cisco 3600 Series Manual de usuario

Cisco

Cisco 2950 - Catalyst Switch Manual de usuario

Cisco

Cisco 7206VXR - VPN Bundle Router Manual

Cisco

Cisco ASR 5000 Series Manual de usuario

Cisco

Cisco OmniPeek NetFlow Analyzer s Manual de usuario

Cisco

Cisco MWR 1941-DC - 1941 Mobile Wireless Router Manual de usuario

Cisco

Cisco 7603 - Modular Expansion Base Manual de usuario

Cisco

Cisco uBR10012 Universal Broadband Router... Manual de usuario

Cisco

Cisco WS-SUP720-3B - Supervisor Engine 720 Manual de usuario

Cisco

Cisco ASR 9000 Series Manual de usuario

Cisco

Cisco 3640 Series Manual de usuario

Cisco

Cisco ASR 1013 Manual de usuario

Cisco

Cisco RV016 - Small Business - 10/100 VPN Router Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
