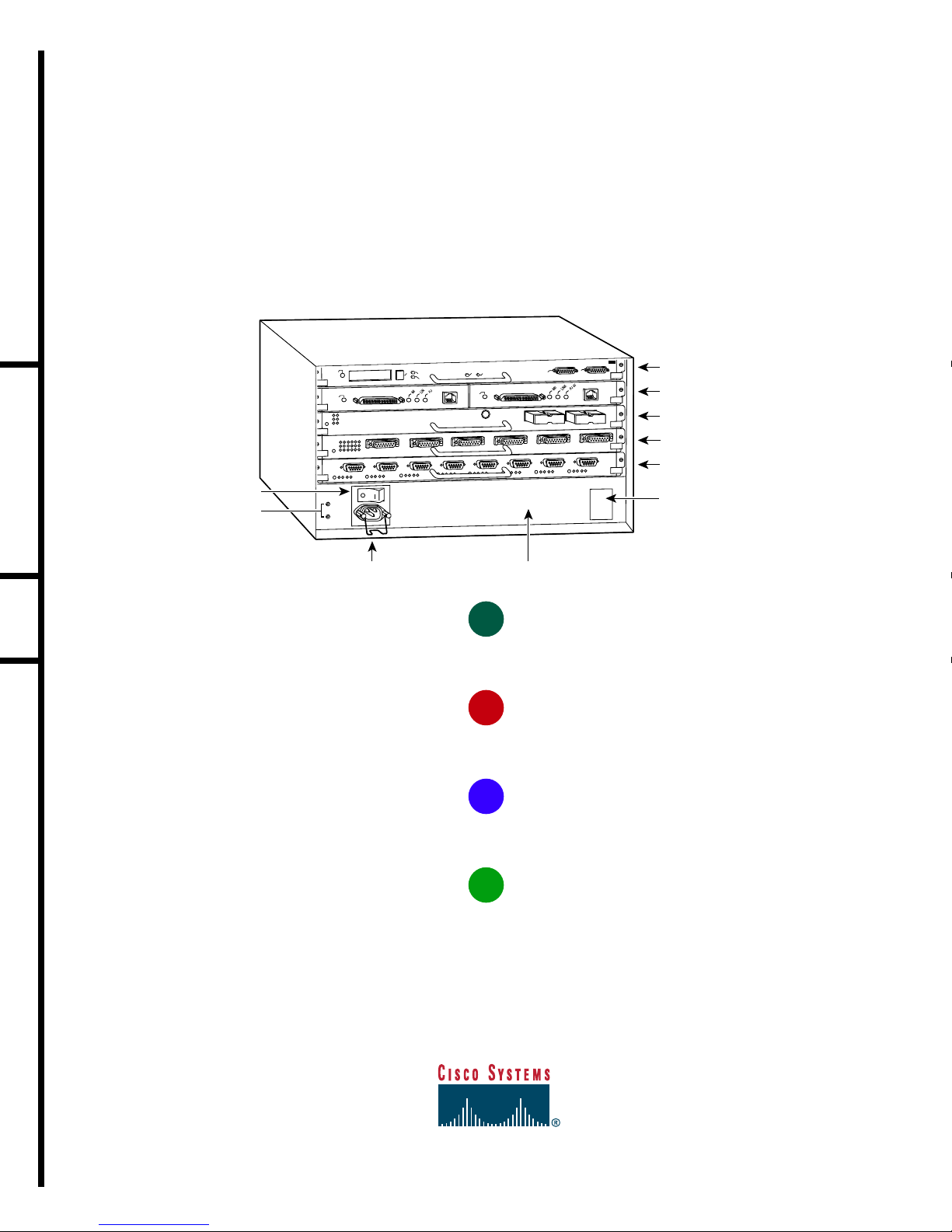

Cisco 7505 Manual de usuario

INSTALL THE HARDWARE

CONNECT THE RSP

START AND CONFIGURE THE SYSTEM

INSTALL FIELD REPLACEABLE UNITS (FRUS)

Quick Start Guide

Is Cisco documentation helpful? Click here or go to http://www.cisco.com/warp/public/732/docsurvey/rtg/ to

give us your feedback. CISCO 7505 ROUTER

H2761

RSP slot

DC OK LED

Power switch

Chassis

grounding

receptacles

Power receptacle AC-input power suppl

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

AUX.

CONSOLE

ROUTE SWITCH PROCESSOR

ENABLE

Interface processor slot 1

Interface processor slot 2

Interface processor slot 0

Interface processor slot 3

Install the Hardware

H2761

RSP slot

DC OK LED

Power switch

Chassis

grounding

receptacles

Power receptacle AC-input power supply

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

AUX.

CONSOLE

ROUTE SWITCH PROCESSOR

ENABLE

Interface processor slot 1

Interface processor slot 2

Interface processor slot 0

Interface processor slot 3

The Cisco 7505 has ﬁve slots: one slot for the Route

Switch Processor (RSP) and slots 0, 1, 2, and 3 for

the interface processors. The Cisco 7505 uses a

single power supply, with two models available: DC

input or AC input.

Packing List

• 1 Cisco 7505 router

• 1 Route Switch Processor (RSP)

• Y-Adapter cables, 1 auxiliary and 1 console

• 1 AC power supply

• 1 AC power supply cable

• 1 Power cord

• 1 Anti-static wrist strap and documentation

Prepare to Install the Router

Install the Hardware

Note For detailed hardware installation

instructions and safety guidelines, refer to the Cisco

7500 Series Router Installation and Conﬁguration

Guide, Site Preparation and Safety Guide, and the

Cisco 7500 Regulatory Compliance and Safety

Guide.

Warning Only trained and qualiﬁed

personnel should install, replace, or service

this equipment.

Step 1 Lift the router safely out of the packing

container.

Step 2 Ensure the power service at the site is

suitable for the router you are installing.

Step 3 Check the packing slip to ensure that all

the proper components are present.

Step 4 Conﬁrm that you have the required tools

and parts:

For rack-mounting (optional):

• Number 1 and Number 2 Phillips screwdrivers

• 1/4-inch and 3/16-inch ﬂat-blade screwdrivers

• Tape measure

• Level (optional)

• Two chassis ears (rack brackets included with

Cisco 7505)

• Four M4 x 10-mm Phillips ﬂathead screws to

secure the ears to the chassis (included)

• Eight 10-32 x 3/8-inch slotted binderhead

screws to secure the chassis ears to the mounting

strips (also called rails) in the rack

For cable-management brackets:

• Number 1 Phillips screwdriver

• Two cable-management brackets

• Six M3 x 8-mm Phillips panhead screws

For interface modules:

• Number 1 Phillips or 3/16-inch ﬂat-blade

screwdriver

For DC-Input Power Supply:

• Twin-lead, 10-AWG cable terminal block

connection

• Single 10-AWG wire for the ground connection

• 3/16-inch ﬂat-blade screwdriver

Rack-Mount the Router (Optional)

Install the Hardware

53373

18.312"

(46.51 cm)

hole centerline

to hole centerline

17.72" min.

(45 cm)

Ears (2) M4 x 10-mm

screws (4)

10-32 x 3/8-inch

screws (8)

Mounting strips

Step 1 Measure the space between the vertical

mounting strips on the rack. Conﬁrm that

the rack conforms to the measurements

shown in A.

Step 2 Use the four M4 x 10-mm screws

provided to attach the ears to the sides of

the chassis, as shown in B. (Use two

screws per ear.)

Warning To prevent injury, two people

are required to lift the chassis. Grasp the

chassis underneath the lower edge, and lift

with both hands. To prevent injury, keep

your back straight and lift with your legs,

not your back.

Step 3 Use the eight 10-32 x 3/8-inch screws

provided to attach the ears to the

mounting strips, as shown in C. Use four

screws per ear and mounting strip.

Step 4 Level the chassis as required. Provide

two inches of clearance on either side of

the chassis.

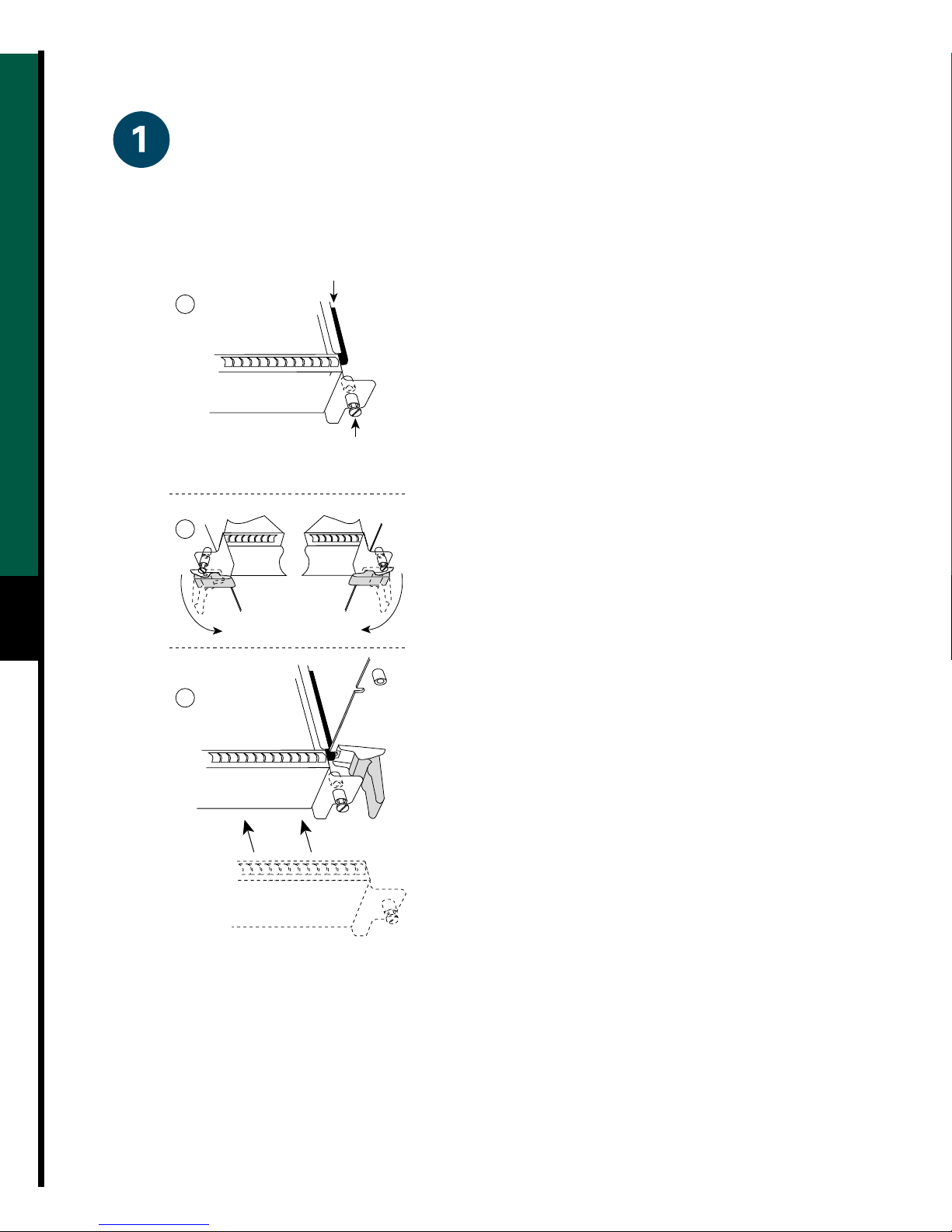

Install Interface Processors, Fillers, VIPs, and RSPs

Install the Hardware

Card carrier guide (black)

Captive

installation

screw

53375

TheRouteSwitchProcessor(RSP)comesuninstalled

withyourCisco7505router, but is a required system

component. Install the RSP in the RSP slot, and

install any interface processors, ﬁllers, or Versatile

Interface Processors (VIPs) in slots 0, 1, 2, and 3.

Step 1 Hold the interface processor, ﬁller, VIP, or

RSP with one hand, and place your other

hand under the carrier to support the card

and guide it into the slot. Avoid touching

the card.

Step 2 Place the interface processor, ﬁller, VIP, or

RSP in the slot and align the guide on the

carrier with the groove in the slot, as

shown in A.

Step 3 Carefully slide the interface processor,

ﬁller, VIP, or RSP into the slot until the

faceplate makes contact with the ejector

levers.

Step 4 Usethethumbandforeﬁngerofeachhand

to push the ejector levers ﬂat against the

interface processor, ﬁller, VIP, or RSP, as

shown in B.

Step 5 Use a screwdriver to tighten the captive

installation screws, as shown in C.

Step 6 RepeatStep 1throughStep 5toinstallthe

RSP or any additional interface

processors, ﬁllers, or VIPs.

Note Refer to the “Check the RSP Installation”

section on page 19 to check the RSP installation.

Refer to the “Check the Interface Processor or VIP

Installation” section on page 20 to check the

interface processor or VIP installation.

Attach the Cable-Management Brackets

Install the Hardware

Bracket (2)

M3 screw (6)

53372

EJECT

SLOT 0

SLOT 1

NORMAL

CPU HALT

RESET

CONSOLE

ROUTE SWITCH PROCESSOR

Step 1 Place the bracket on the rear of the

chassis, as shown.

Step 2 Insert three M3 x 8-mm Phillips screws,

and tighten slightly with your ﬁnger.

Step 3 Use a Phillips Number 1 screwdriver to

tighten all three screws.

Step 4 Repeat Step 1 through Step 3 for the

second bracket.

Step 5 Route the interface cables through the

brackets.

Connect the Power Supply

Install the Hardware

The Cisco 7505 router supports AC-input and DC-input power supplies. The power supply is already installed

in the router when you receive it. You connect the power to it.

Note The AC-input power supply is the shipped as the default if no power supply is speciﬁed at the time of

purchase.

Connect the AC-Input Power Supply

Step 1 Push the cable retention clip away from the power supply receptacle, and push the power cable in

until the cable retention clip snaps into place.

Step 2 Connect the opposite end of the power cable to an appropriate power source.

Connect the DC-Input Power Supply

Step 1 Turn off the power source. Locate the circuit breaker on the panel board that services the DC circuit,

and switch it off, then tape the switch handle of the circuit breaker in the off position.

AC receptacle

On/off switch

Cable retention

clip

DC OK LED

H1998

DC OK LED

Terminal block

(cover removed)

H9713

On/off switch

Install the Hardware

Caution: Do not strain the connection at the terminal block

53422

Terminal block

cover and

captive screws

-48/-60V

20/16A —

RTN -48

POWER SUPPLY

TERM. BLOCK COVER

- USE ONLY WITH

NEC CLASS 3

WIRING

- USE COPPER

CONDUCTORS

-48/-60V

20/16A —

RTN -48

-48/-60V

20/16A —

RTN -48

POWER SUPPLY

TERM. BLOCK COVER

- USE ONLY WITH

NEC CLASS 3

WIRING

- USE COPPER

CONDUCTORS

Cable strain relief

nylon cable tie

Ground

terminal

Step 2 Loosen the two captive screws that secure

the terminal block cover, as shown in A.

Step 3 Pull the terminal block cover away from

the terminal block, as shown in B.

Step 4 Feed the return (RTN) and –48V wires

through the large hole in the terminal

block cover, as shown in C.

Step 5 Attach a nylon cable tie to secure the

cables to the terminal block cover.

Step 6 Attach the RTN and –48 leads to the

terminal block, as shown in C.

Note Match the color coding at the DC source.

Typically, green or green/yellow is used for ground,

black is used for RTN, and red or white is used for

–48V.

Step 7 Attach the ground cable to the ground

terminal.

Step 8 Replace the terminal block cover, as

shown in B.

Step 9 Tightenthecaptivescrews on the terminal

block cover, as shown in A.

Connect the RSP

H3538

Modem

Console terminal

Auxiliary

port

Console

port

DB-25 female

DB-25 male

RSP

Connect the Console Port

The system console port on the RSP is a DB-25

receptacle DCE port for connecting a data terminal,

which allows you to conﬁgure and manage the

system. The console port is labeled Console.

Step 1 Connect the console cable from the

terminal to the console port on the RSP.

Step 2 Check your terminal’s documentation to

determine the baud rate of the terminal

you will be using.

Note The baud rate of the terminal you are using

must match the default baud rate (9600 baud).

Step 3 Setup the terminalas follows: 9600baud,

8 data bits, no parity, and 2 stop bits

(9600, 8N2).

Connect the Auxiliary Ports

The auxiliary port on the RSP is an ETA/TIA DTE

DB-25 plug to which you can attach external

equipment in order to access the router from the

network. The port is located next to the console port

on the RSP and is labeled AUX.

Step 1 Connect the cable from the auxiliary

device to the auxiliary port on the RSP.

Step 2 Check your terminal’s documentation to

determine the baud rate of the terminal.

Note The baud rate of the terminal must match the

default baud rate (9600 baud).

Step 3 Setup the terminalas follows: 9600baud,

8 data bits, no parity, and 2 stop bits

(9600, 8N2).

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco ASR-920-10SZ-PD Manual de instrucciones

Cisco

Cisco RVS4000 - Gigabit Security Router Manual de usuario

Cisco

Cisco Linksys X2000 Manual de usuario

Cisco

Cisco SGE2000 Manual de usuario

Cisco

Cisco UC 320W Manual de instrucciones

Cisco

Cisco MGX 8850 (PXM1E/PXM45) Manual de usuario

Cisco

Cisco 220 Series Smart Plus Manual de instrucciones

Cisco

Cisco 2821 Series Guía de inicio rápido

Cisco

Cisco CISCO7206 Instrucciones originales

Cisco

Cisco IR1101 Manual de usuario

Cisco

Cisco uBR900 Series Manual de usuario

Cisco

Cisco CCNA 2 Manual de usuario

Cisco

Cisco 891 Manual de usuario

Cisco

Cisco ASR 9000 Series Manual de funcionamiento

Cisco

Cisco IAD2801 Series Manual de usuario

Cisco

Cisco ASR 9000 Serie Manual de usuario

Cisco

Cisco 7204 - VXR Router Manual del operador

Cisco

Cisco RV260P Manual de usuario

Cisco

Cisco 3800 Series Manual de usuario

Cisco

Cisco 7206VXR - VPN Bundle Router Manual

Cisco

Cisco ASR 900 Series Manual de usuario

Cisco

Cisco XR 12000 Manual de instalación

Cisco

Cisco WRP500 Manual de instrucciones

Cisco

Cisco RV042 - Small Business Dual WAN VPN Router Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
