Cisco 4331 Manual de usuario

© 2017 AT&T Intellectual Property. All rights reserved. AT&T, Globe logo, Mobilizing Your World and DIRECTV are registered trademarks and

service marks of AT&T Intellectual Property and/or AT&T affiliated companies. All other marks are the property of their respective owners.

Date 05/01/2017

Equipment information and assembly guide for your

AT&T Service 4331-100 AT&T VPN Managed Router with

analog modem

Please ensure that you have set up the equipment before the date

scheduled with your AT&T Order Manager for Test and Turn Up of

your site

4331 AT&T VPN Managed Router Installation Guide with analog modem

2

What is In the Box

The following components are included in your router package:

Router power cable

Site Documentation Package

Cisco 4331Router RJ45 Cable

Labelled ISE-853

USRobotics V.Everything 56K

Analog Corporate Modem

Modem power cable

RJ11 modem cable

Labelled ISE644

Console Cable

4331 AT&T VPN Managed Router Installation Guide with analog modem

3

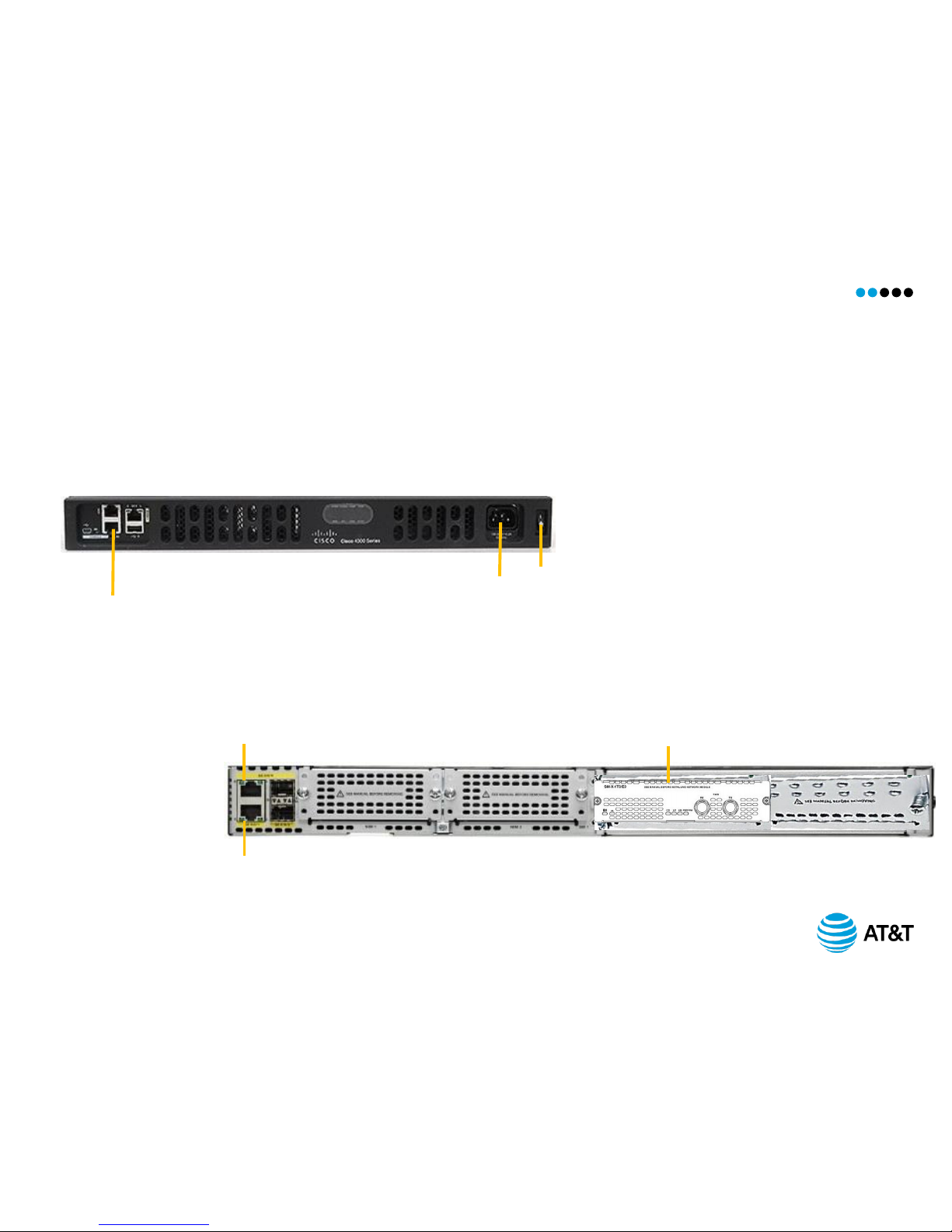

Understanding your router

Rear View of Cisco 4331

Front View of Cisco 4331

GE0/0/1

RJ-45 Console Port

Power

Socket

On/Off Switch

GE0/0/0 SM-X-1T3/E3 service-module

4331 AT&T VPN Managed Router Installation Guide with analog modem

4

Understanding your out-of-band modem

Front View of modem Rear View of modem

Power

Input

Power

on/off

RJ11

in/out use

port

marked

‘Jack’

RJ-45

Console Port

4331 AT&T VPN Managed Router Installation Guide with analog modem

5

Step 1: Set up router and connect the router to power outlet

To power outlet

4331 AT&T VPN Managed Router Installation Guide with analog modem

6

Step 2: Set up modem and connect to power outlet

To power outlet

4331 AT&T VPN Managed Router Installation Guide with analog modem

7

Step 3: Connect POTS to Modem and Connect Console Cable to Router

Console Cable

To wall jack

RJ11 modem cable

Labelled ISE644

Connect telephone line (analog POTS line)

from modem to wall jack using RJ11 cable

Connect console cable

to the blue-edged

console port in router

4331 AT&T VPN Managed Router Installation Guide with analog modem

8

Step 4: Connect Console Cable to Modem

Connect console cable to modem

If there are dual routers and a Call Director

refer to Service Director Assembly Guide for

alternate step 4

4331 AT&T VPN Managed Router Installation Guide with analog modem

9

Step 5: Connect the Router to WAN Access Circuits

RJ45 Cable

Labelled ISE-853

Connect the cable from the Smart Jack to the T3 service-module port or

per instructions in your Site Documentation Package.

4331 AT&T VPN Managed Router Installation Guide with analog modem

10

Step 6: Connect Router to your Local Area Network (LAN)

Customer-provided

LAN Cable

For LAN connection, plug your RJ-45 Ethernet cable into the GE0/0/1 port on the back of

the router (Lower left as shown) or per instructions in your Site Documentation Package.

The other end of the Ethernet cable can be plugged into a server, computer, private

network, etc. Power up installed equipment.
