Cisco 12010 series Manual de usuario

Corporate Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco 12010, Cisco 12410, and

Cisco 12810 Router Unpacking

Instructions

This document contains instructions for unpacking the Cisco 12010, Cisco 12410,

and Cisco 12810 routers. After you unpack the system, refer to the Cisco 12010,

Cisco 12410, and Cisco 12810 routers Installation and Configuration Guide for

more information.

This document includes the following topics:

•Before Unpacking the Router, page 2

•Tools and Equipment, page 3

•Unpacking the Router, page 3

•Repacking the Router, page 7

•Regulatory, Compliance, and Safety Information, page 8

•Obtaining Documentation, page 8

•Documentation Feedback, page 10

•Obtaining Technical Assistance, page 10

•Obtaining Additional Publications and Information, page 12

Before Unpacking the Router

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions 78-16075-02

Before Unpacking the Router

Figure 1 shows the router on a shipping pallet. A fully configured system can

weigh as much as 275 pounds (124.74 kg), not counting the additional weight of

the pallet and packaging materials. Before unpacking the system, you should

carefully plan the site location of the router and the method you will use to move

it into position.

Figure 1 Router on a Shipping Pallet

50835

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions

78-16075-02

Tools and Equipment

You need the following items and tools:

•3/16-inch flat-blade screwdriver

•1/4-inch flat-blade screwdriver

•9/16-inch (14-mm) wrench

•10-mm wrench (open-end or socket)

•Wire cutters

•Pliers

Unpacking the Router

This section explains how to unpack the router from the shipping pallet.

Figure 2 shows the main packing material and accessory kit container. The

accessory tray that fits on top of the cushioning contains:

•Front and midtrack-mount brackets and securing hardware

•Blower module frontcover (Original series only. Enhanced series routers ship

with the front door installed.)

•User documentation

•Cables

Note Save the packaging materials in case the router has to be repackaged to be

shipped again. Repackaging instructions are located in the Cisco 12010,

Cisco 12410, and Cisco 12810 routers Installation and Configuration

Guide.

Unpacking the Router

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions 78-16075-02

Figure 2 Router Package Components

50834

Front hold

down bracket

Top cushion cap

ccessory tray

Outer

tube

Cap

Rear hold

down bracket

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions

78-16075-02

Unpacking the Router

Step 1 Cut the straps securing the router to the pallet (see Figure 1).

Step 2 Refer to Figure 2 for the following steps:

a. Remove the top cap.

b. Lift off the outer shipping tube.

c. Remove the accessory tray.

d. Remove the top cushion cap.

Step 3 Remove the bolts securing the two front-side hold-down brackets to the pallet.

Step 4 Remove the bolts securing the rear hold-down bracket to the pallet.

If you are installing an enhanced version of the router, go to Step 5. For all other

models, go to Step 7.

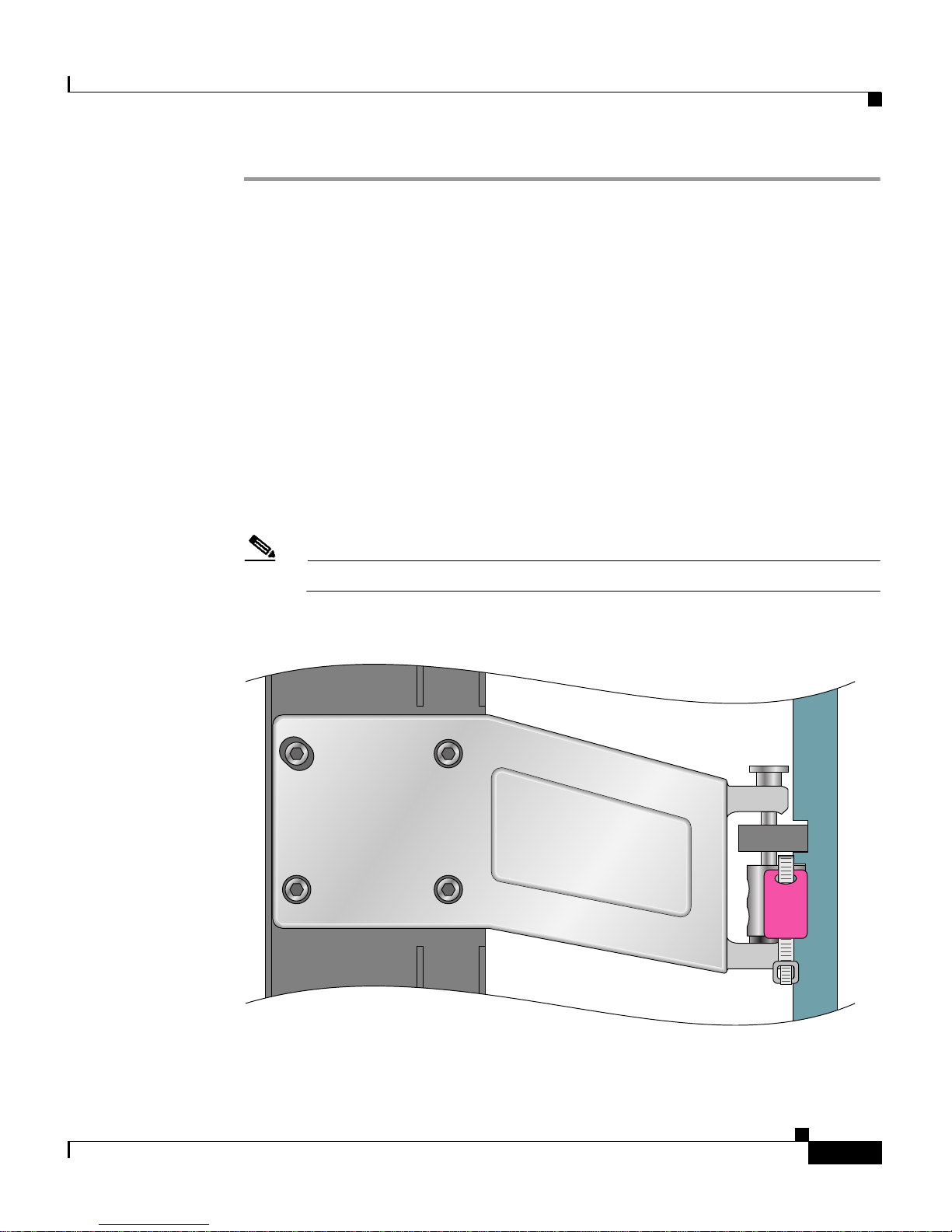

Step 5 Cut the plastic tie-wrapand remove it from the upper left hinge bracket (Figure 3).

Note The plastic tie-wrap secures the front door to the chassis during shipment.

Figure 3 Removing the Tie-Wrap and Label

149690

REMOVE

TIE WRAP

Unpacking the Router

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions 78-16075-02

Step 6 Open the front door and remove the labels (labeled REMOVE) that protect the

rubber bumpers during shipment (Figure 4).

Close the front door.

Figure 4 Removing the Rubber Bumper Shipping Label

Step 7 Your Cisco router is ready for installation. For installation instructions, see the

Cisco 12010, Cisco 12410, and Cisco 12810 routers Installation and

Configuration Guide (see Obtaining Documentation, page 8).

REMOVE

49691

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions

78-16075-02

Repacking the Router

This section describes how to repack your Cisco router into the shipping

container. This procedure assumes you have the pallet, packing material, and

hardware you saved when the chassis was unpacked.

Step 1 Place the router on a Cisco 12010 series shipping pallet.

Step 2 Secure the side and rear brackets to the pallet using the bolts and screws you saved

when the chassis was unpacked (see Figure 2).

Step 3 Tighten all of the captive screws on the power entry modules, power distribution

unit, and line cards so that they are secure.

Step 4 Refer to Figure 2 and:

a. Place the top cushion cap on the router.

b. Place the accessory tray on top of the router.

c. Place the cardboard outer tube over the router.

d. Place the top cap on the accessory tray.

Step 5 Secure the cardboard shipping container to the pallet using straps similar to the

ones used to ship the router to you.

Your router is ready for shipment.

Transporting the Router

The shipping package for the router is engineered to reduce the potential of

product damage during shipment. To minimize potential damage to the product,

transport the router in its Cisco specified packaging. Failure to do so may result

in damage to the router or degradation of its performance. Do not remove the

router from its shipping container until you are ready to install it. The router

should always be transported or stored in an upright position. Keep the router in

the shipping container until you have determined an installation site.

Regulatory, Compliance, and Safety Information

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions 78-16075-02

Regulatory, Compliance, and Safety Information

The complete list of translated safety warnings and agency approvals is available

in the Regulatory Compliance and Safety Information for Cisco 12000 Series

Internet Routers publication (Document Number 78-4347-xx).

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco

also provides several ways to obtain technical assistance and other technical

resources. These sections explain how to obtain technical information from

Cisco Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/techsupport

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Product Documentation DVD

Cisco documentation and additional literature are available in the Product

Documentation DVD package, which may have shipped with your product. The

Product Documentation DVD is updated regularly and may be more current than

printed documentation.

The Product Documentation DVD is a comprehensive library of technical product

documentation on portable media. The DVD enables you to access multiple

versions of hardware and software installation, configuration, and command

guides for Cisco products and to view technical documentation in HTML. With

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions

78-16075-02

Obtaining Documentation

the DVD, you have access to the same documentation that is found on the Cisco

website without being connected to the Internet. Certain products also have .pdf

versions of the documentation available.

The Product Documentation DVD is available as a single unit or as a subscription.

Registered Cisco.com users (Cisco direct customers) can order a Product

Documentation DVD (product number DOC-DOCDVD=) from the Ordering tool

or Cisco Marketplace.

Cisco Ordering tool:

http://www.cisco.com/en/US/partner/ordering/

Cisco Marketplace:

http://www.cisco.com/go/marketplace/

Ordering Documentation

Registered Cisco.com users may order Cisco documentation at the Product

Documentation Store in the Cisco Marketplace at this URL:

http://www.cisco.com/go/marketplace/

Cisco will continue to support documentation orders using the Ordering tool:

•Registered Cisco.com users (Cisco direct customers) can order

documentation from the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/

•Instructions for ordering documentation using the Ordering tool are at

this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

•Nonregistered Cisco.com users can order documentation through a local

account representative by calling Cisco Systems Corporate Headquarters

(California, USA) at 408 526-7208 or, elsewhere in North America, by

calling 1 800 553-NETS (6387).

Documentation Feedback

Cisco 12010, Cisco 12410, and Cisco 12810 Router Unpacking Instructions 78-16075-02

Documentation Feedback

You can rate and provide feedback about Cisco technical documents by

completing the online feedback form that appears with the technical documents

on Cisco.com.

You can send comments about Cisco documentation to b[email protected].

You can submit comments by using the response card (if present) behind the front

cover of your document or by writing to the following address:

Cisco Systems

Attn: Customer Document Ordering

170 West Tasman Drive

San Jose, CA 95134-9883

We appreciate your comments.

Obtaining Technical Assistance

Cisco Technical Support provides 24-hour-a-day award-winning technical

assistance. The Cisco Technical Support & Documentation website on Cisco.com

features extensive online support resources. In addition, if you have a valid Cisco

service contract, Cisco Technical Assistance Center (TAC) engineers provide

telephone support. If you do not have a valid Cisco service contract, contact your

reseller.

Cisco Technical Support & Documentation Website

The Cisco Technical Support & Documentation website provides online

documents and tools for troubleshooting and resolving technical issues with Cisco

products and technologies. The website is available 24 hours a day, at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support & Documentation website

requires a Cisco.com user ID and password. If you have a valid service contract

but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do
