Cisco Explorer 4642HD Manual de usuario
QUICK START
GUIDE
—
HD TERMINAL
4642
HD PERSONAL VIDEO
RECORDER 8642
ILLICO
DIGITAL TV
1
POWERSELECT
VOL+VOL-
CH+
CH-
SETTINGSEXITINFOGUIDE
Explorer 4642HD
91132145678 10
HD terminal 4642
1 VOL +, VOL - Increases and decreases the volume
2 CH+, CH - Scrolls up and down through the channels
3 Select Provides access to your on-screen selection
4 Display Displays the selected channel number and time of day. The display shows the following:
•Record() •Auto •1080i/1080P •MoCALink()
•Power() •Message() •720i/720P
•5.1 •HDTV •480i/480P
5 Guide
Provides access to on-screen services, such as the on-screen guide
6 Info Displays a description of the selected program. This button is available from the on-screen
guide and while viewing a program
7 Exit Exits menus, the on-screen guide, and program information
8 Settings Provides access to the Settings menu
9 IR Sensor Receivestheinfraredsignalfromtheremotecontrol
10 USB Port Connects to external USB equipment (reservedforfutureuse)
11 Power Turns the set-top box on and off
MCARD SN: PXCPRPSLV
MCARD MAC: 00 1BD73E17D9
MULTI-STREAM CABLE CARD
THIS DEVICE IS INTENDED TO BE ATTACHED TO A RECEIVER THAT
IS NOT USED TO RECEIVE OVER-THE-AIR-BROADCAST SIGNALS.
CONNECTION OF THIS DEVICE IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS AND IS IN
VIOLATION OF THE FCC RULES, PART 15.
120V~
60Hz 50W
120 V ~
60Hz 3A
CATV CONVERTER
MADE IN MEXICO
LISTED 36MW
VIDEO PRODUCT
CAUTION
RISK OFELECTRIC SHOCK
DO NOT OPEN
AVIS:
RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR
ETHERNET
USB
1394
eCM MAC: 01CEA05D679
STB SN: SABPQTMNWW
CABLE
OUT
CABLE
IN
S-VIDEO
OUT
OPTICAL
AUDIO OUT
IR
V
S
D
H
D
L R
Y Pb Pr
L R
DIGITAL
AUDIO
OUT
2
L AUDIO IN R VIDEO IN
POWER SELECT
VOL+VOL-
CH+
CH-
LISTEXITINFOGUIDE
Explorer 8642HD
1 5 6
3 127 8 9 10 11
2
4
HD PERSONAL VIDEO recorder 8642
1 Power Turns the set-top box on and off
2 VOL +, VOL - Decreases and increases the volume
3 USB 2.0
ConnectstoexternalUSBequipmentapprovedbyyourserviceprovider(reservedforfutureuse).
4 CH+, CH - Scrolls up and down through the channels
5 Select Provides access to your on-screen selection
6 IR Sensor Receivestheinfraredsignalfromtheremotecontrol
7 Guide
Provides access to on-screen services, such as the on-screen guide
8 Info Displays a description of the selected program. This button is available from the on-screen
menu and while viewing a program
9 Exit Exit menus, the on-screen menu, and program information
10 List Displays the recorded list
11 Display Displays the selected channel number and time of day. The display shows the following:
•Power() •MoCALink() •1080i/1080P •5.1
•Message() •HDTV •720i/720P
•Record() •Auto •480i/480P
12 Smart Card Allowssmartcardaccess(reservedforfutureuse)
MCARD SN: PXCPRPSLV
MCARD MAC: 00 1BD73E17D9
MULTI-STREAM CABLE CARD
CATV CONVERTER
MADE IN MEXICO
LISTED 14H1
VIDEO PRODUCT
AVIS: RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
S-VIDEO
OUT
OPTICAL
AUDIO
OUT
IR
DIGITAL
AUDIO
OUTPUT
R Pr R
L Pb L
YVIDEO
CABLE IN
120V~
60Hz 80W
120 VAC
60Hz 4.2A
500W
CABLE OUT
USB 2.0 eSATA
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
SCIENTIFIC-ATLANTA, INC.
eCM MAC: 001AC3F4F757
STB RF MAC: 001AC3F$F756
STB SN: SABPQBQGD
ETHERNET1394
3
HD TERMINAL OR HD PERSONAL VIDEO RECORDER + HD TV
This connection will allow you to:
A. Watchthechannelorserviceofyourchoice(inHD,whenavailable);
B. Recordprogramsontheharddrivewhiletheyareplaying,allowingtheuseoftheLiveTVcontrolfunctions
(inHD,whenavailable);
C. Watchaprogrampreviouslyrecordedontheharddrive(inHD,whenavailable);
D. Recordontheharddrivefromonechannelwhilewatchinganotherchannel(inHD,whenavailable);
E. Recordontheharddrivefromtwodifferentchannelswhilewatchingathird,previously
recordedprogram(inHD,whenavailable);
F. ProgramyourPVRtorecordoneprogramortwoprogramssimultaneouslyinyourabsence
(inHD,whenavailable).
Notes :
• Thebestpossibleconnectionwiththecablessuppliedisillustratedbythesolidlines.Thedottedlines
represent viable options, however.
•
Althoughtherearoftheterminaldependsonthemodel(socketsindifferentpositions),theconnection
is done in the same way.
•
You should turn the terminal volume all the way up and adjust the volume on the TV to your taste.
For explanations, see the “Volume adjustment” section of the User Guide.
CONNECTION
HD TERMINAL
or HD PVR
HD TV
Wall-mounted
cable outlet

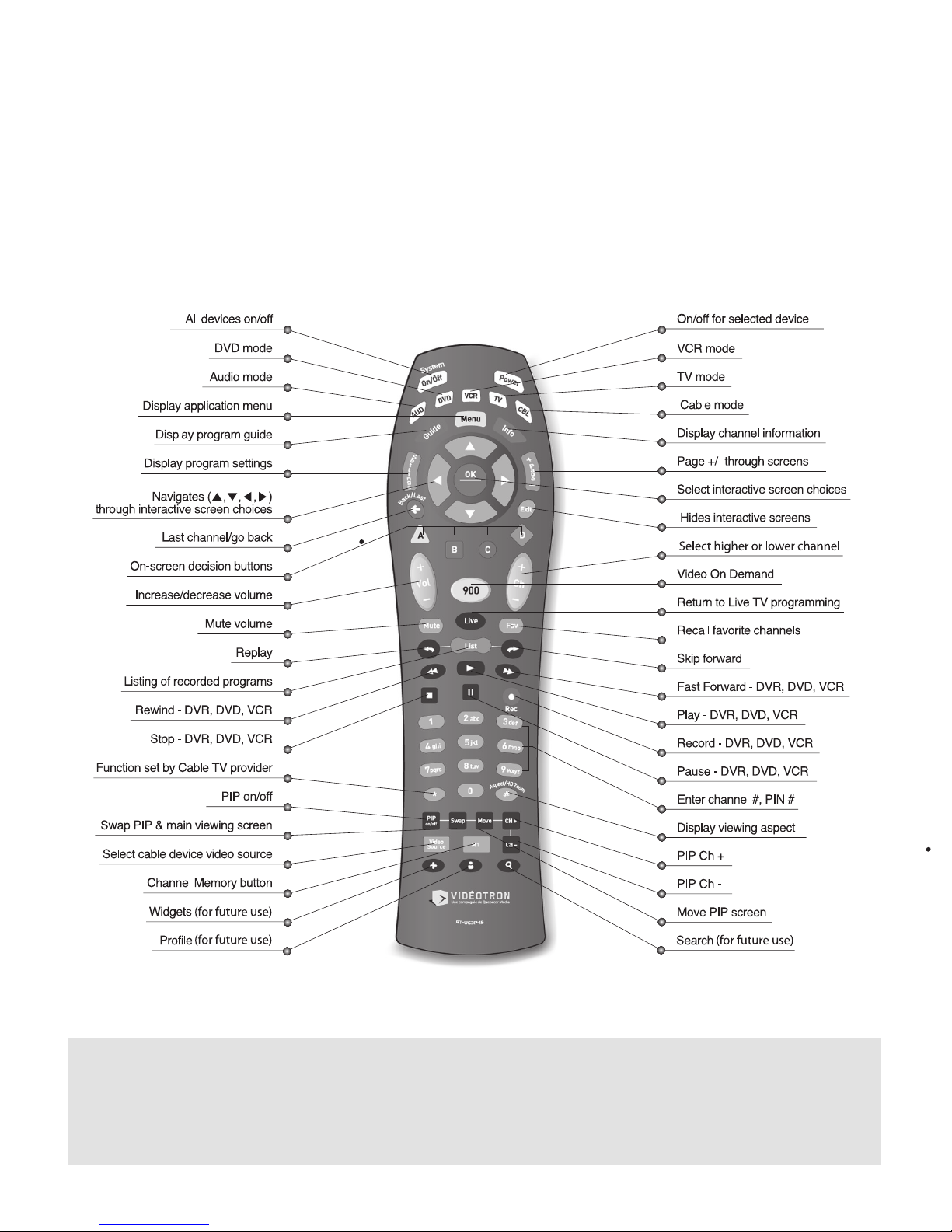

Remote CONTROL RT-U63P-15
Notes :
TheremotecontrolrequirestwoalkalineAAbatteries.Adiagraminsidethecompartementofthe
remotecontroleindicatesproperbatteryplacement.Replaceasneeded,whentheindicatorlight
becomes dim or no longer illuminates.
For more information on how to program your remote control, see the Programming And Operating Instructions
that came with your terminal.
4
5
CUSTOMER SERVICE
For more information, please consult the User guide or call the Customer Service Center. Our
agentsareavailablebetween10a.m.and9:30p.m.MondaythroughFriday,between8a.m.and
6p.m.onSaturdayandbetween9a.mand5:30p.m.onSunday.
Montréal514-281-1711
Québec418-847-4410
Saguenay418-545-1114
Outaouais819-771-7715
ElsewhereinQuebec1-88-VIDEOTRON
TECHNICAL SUPPORT
For problems of a technical nature, please contact Technical Support. Our technicians
areavailable24hoursaday,sevendaysaweek.
Montréal514-841-2611
Québec418-842-2611
Saguenay418-543-4611
Outaouais819-771-2611
ElsewhereinQuebec1-88-VIDEOTRON
Visit our Web site: videotron.com
Notes
CUSTOMER SERVICE
ILL-GRA-HD-001-1010
