Cisco SPA112 Manual de usuario

Quick Start Guide

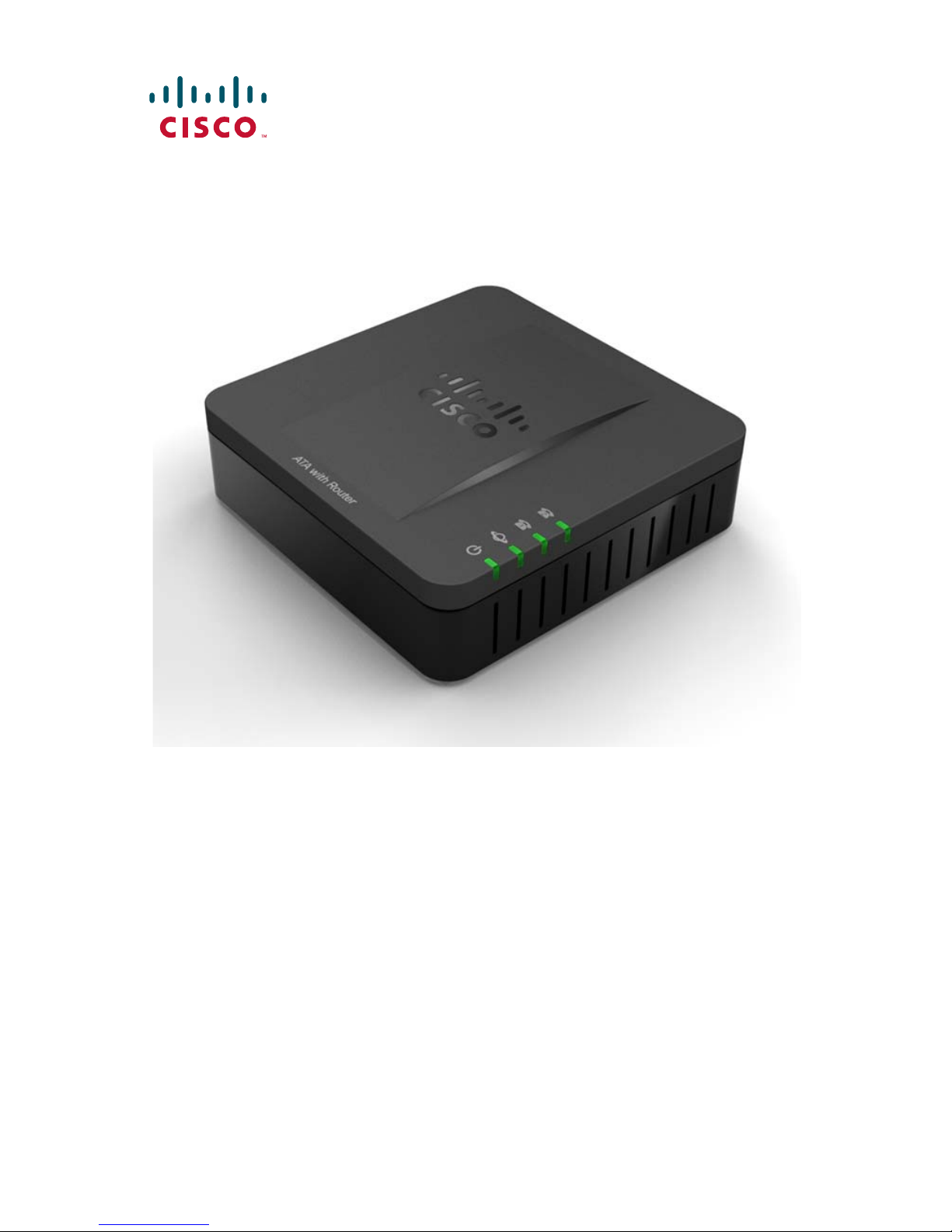

Cisco SPA100 Series Analog Telephone

Adapters

SPA112 Two Port Phone Adapter

SPA122 ATA with Router

Package Contents

•Analog Telephone Adapter

•Ethernet Cable

•Power Adapter

•Quick Start Guide

•Product CD-ROM

2 Cisco SPA100 Series Analog Telephone Adapters

Welcome

Thank you for choosing a Cisco SPA100 Series Analog Telephone Adapter.

This product family includes the following models:

• SPA112 Two-Port Phone Adapter: 2 FXS ports and 1 10/100 WAN

port.

• SPA122 ATA with Router: 2 FXS ports, 1 10/100 WAN port, 1 10/100

LAN port, and built-in router.

This guide describes how to physically install the equipment and how to

get started with the configuration.

Before You Begin

Before you begin the installation, make sure that you have the following

equipment and services:

•An active Internet account and Voice over IP account

•Ethernet cable to connect to your broadband network device

•Phone to connect to your SPA112/122

•Phone cable to connect your phone

•Optional: Uninterruptible Power Supply (UPS) to provide backup power

Product Features

Top Panel

Cisco SPA100 Series Analog Telephone Adapters 3

Back Panel

Feature Description

Phone 1

Phone 2

Steady green—On hook.

Slow flashing green—Off hook.

Off—Port not ready.

Internet

Flashing green—Transmitting or receiving data through

the WAN port.

Off—No link.

System

Steady green—System ready, IP address acquired.

Slow flashing green—Acquiring IP address. (By default,

uses DHCP.)

Fast flashing green—Upgrading firmware.

Off—No power or system can not boot up.

Feature Description

Reset Using a paperclip or similar object, press this button

briefly to restart the unit. Press and hold for 10

seconds to restore the factory default settings.

Phone 1,

Phone 2 (Gray)

Connect to an analog phone, using an RJ-11 phone

cable.

Ethernet (Yellow)

SPA122 Only

Can be used to connect to a device on your network,

such as a computer, using an Ethernet cable.

Internet (Blue) Connect to a broadband network device (DSL or

cable modem) or a network router, using an Ethernet

cable.

Power Connect to a power source, using the provided

power adapter.

4 Cisco SPA100 Series Analog Telephone Adapters

Connecting the Equipment

NOTE For wall-mounting instructions, see Mounting the ATA, page 9.

STEP 1Connect one end of the provided Ethernet cable to the Internet

(Blue) port. Connect the other end directly to your broadband

network deviceConnect one end of a phone cable to the Phone 1

(Gray) port. Connect the other end to your analog phone or fax

machine.

STEP 2Connect one end of another phone cable to another analog phone

or fax machine. Connect the other end to the Phone 2 (Gray) port.

STEP 3SPA122 Only: Optionally, connect one end of an Ethernet network

cable to the ETHERNET (Yellow) port of the ATA. Connect the other

end to a device on your network, such as a computer.

STEP 4Connect the provided power adapter to the Power port.

239795

WAN

Cisco SPA100 Series Analog Telephone Adapters 5

Configuration and Management of the ATA

You can use the web-based configuration utility to set up your ATA. You

also can use the built-in Interactive Voice Response (IVR) system.

Using the Web-Based Configuration Utility

STEP 1Connect your computer to the same subnet as the ATA. For

example, if the ATA is connected to a LAN port on your router, also

connect your computer to a LAN port on your router.

Note: On SPA122, you can connect your computer to the

ETHERNET (Yellow) port of the ATA.

STEP 2Power on your computer.

NOTE: Make sure your computer’s Ethernet adapter is set to obtain

an IP address automatically. For more information, refer to the Help

for your operating system.

STEP 3Start a web browser on your computer.

STEP 4In the Address bar, enter the IP address of the ATA.

• SPA112: Use the ATA’s IVR or your router’s configuration utility

to find the dynamically assigned IP address of the ATA. For

information about the IVR, see Using the IVR for

Administration, page 6.

• SPA122: In the Address bar, enter: 192.168.15.1

Note: 192.168.15.1 is the default local IP address of the ATA.

STEP 5To log in for the first time, enter the default username, admin, and

the default password, admin. The password is case sensitive.

STEP 6 Enter the Connection Type and settings required by your Internet

Service Provider. Types include DHCP (the default option),

Static IP, and PPPoE (required for most DSL service). After

entering these settings, click Submit to establish your

Internet connection.

STEP 7Use the menus to configure your settings, as needed. For more

information, see the ATA Administration Guide. (Documentation

links are provided in Where to Go From Here, page 11.)

6 Cisco SPA100 Series Analog Telephone Adapters

Using the IVR for Administration

An IVR system is available to help you to configure and manage your ATA.

You can use the telephone keypad to select options and to make your

entries.

To access the IVR menu:

STEP 1Connect an analog phone to the Phone port of the ATA.

STEP 2Press the star key four times: ****

STEP 3After the greeting plays, press the keys on the phone keypad to

select your options.

STEP 4Enter the code for the desired action. See the IVR Actions table for

details.

TIPS:

• Enter the numbers slowly, listening for the audio confirmation before

entering the next number.

• After you select an option, press the #(pound) key.

• To exit the menu, hang up the telephone or enter 3948# to exit.

• After entering a value, such as an IP address, press the #(pound) key to

indicate that you have finished your selection. To save the new setting,

press 1. To review the new setting, press 2. To re-enter the new setting,

press 3. To cancel your entry and return to the main menu, press *(star).

• While entering a value, you can cancel the changes by pressing the *

(star) key twice within half a second. Be sure to press the key quickly, or

the *will be treated as a decimal point entry.

• If the menu is inactive for more than one minute, the ATA times out. You

will need to re-enter the menu by pressing the star key four times: ****.

Your settings take effect after you hang up the telephone or exit the IVR.

The ATA may reboot at this time.

•To enter the decimal points in an IP address, press the *(star) key. For

example, to enter the IP address 191.168.1.105, perform the following

tasks:

–Pressthesekeys:191

*168*1*105.

–Pressthe#(pound) key to indicate that you have finished

entering the IP address.

–Press1to save the IP address or press the *(star) key to cancel

your entry and return to the main menu.

Cisco SPA100 Series Analog Telephone Adapters 7

IVR Actions

IVR Action Menu

Option

Choices and Instructions

Enter IVR Menu ****

Check Internet Connection

Type

100

Set Internet Connection Type 101 DHCP: 0

Static IP: 1

PPPoE: Press 2

PPPoE, DHCP: Press 3

DHCP, PPPoE: Press 4

Check Internet IP Address

(WAN port)

110

Set Static IP Address (WAN) 111 Enter the IP address by using

numbers on the telephone

key pad. Use the *(star) key

when entering a decimal

point.

Note: This option is available

only after you choose Static

IP as the Internet Connection

Type, through option 101.

Check Network Mask 120

Set Network Mask 121 To enter the value, press

numbers on the telephone

key pad. Press the *(star) key

to enter a decimal point.

Note: This option is available

only after you choose Static

IP as the Internet Connection

Type, through option 101.

Check Gateway IP Address 130

8 Cisco SPA100 Series Analog Telephone Adapters

Set Gateway IP Address 131 To enter the value, press

numbers on the telephone

key pad. Press the *(star) key

to enter a decimal point.

Note: This option is available

only after you choose Static

IP as the Internet Connection

Type, through option 101.

Check MAC Address 140

Check Firmware Version 150

Check Primary DNS Server

Setting

160

Set Primary DNS Server 161 To enter the value, press

numbers on the telephone

key pad. Press the *(star) key

to enter a decimal point.

Note: This option is available

only after you choose Static

IP as the Internet Connection

Type, through option 101.

Check Internet web server

port

170

SPA122 only: Check LAN IP

address (Ethernet port)

210

Announce Line 1 SIP

Transpor t

1910

Set Line 1 SIP Transport 1911 0: UDP

1: TCP

2: TLS

Check Line 2 SIP Transport 1920

Set Line 2 SIP Transport 1921 0: UDP

1: TCP

2: TLS

Exit IVR 3948

Allow or prevent WAN access

to the administration web

server

7932 1: Enable

0: Disable

IVR Action Menu

Option

Choices and Instructions

Cisco SPA100 Series Analog Telephone Adapters 9

Mounting the ATA

You can place the ATA on a desktop or mount it on a wall.

CAUTION To prevent the ATA from overheating, do not operate it in an

area that exceeds an ambient temperature of 104°F (40°C).

Desktop Placement

Place the ATA on a flat surface near an electrical outlet.

WARNING Do not place anything on top of the ATA; excessive weight

could damage it.

Wall Mounting

The ATA has two wall-mount slots on the bottom panel. To mount the ATA

on a wall, you need mounting hardware (not included). Suggested

hardware is illustrated (not true to scale).

Factory Reset of Unit

WARNING: All non-default

settings will be lost. This

includes network and service

provider data.

73738

RESET

When prompted, press 1 to

confirm, or press *(star) to

cancel. After you hear “Option

successful,” hang up the

phone. The ATA reboots.

Reboot of Voice System 732668

REBOOT

After you hear “Option

successful,” hang up the

phone. The ATA reboots.

User Factory Reset of Unit

WARNING: All user-

changeable non-default

settings will be lost. This may

include network and service

provider data.

877778 When prompted, press 1 to

confirm, or press *(star) to

cancel. After you hear “Option

successful,” hang up the

phone. The ATA reboots.

IVR Action Menu

Option

Choices and Instructions

10 Cisco SPA100 Series Analog Telephone Adapters

Recommended hardware (not included): Two number-six pan-head

tapping screws, 5/8-in. length, with anchors for sheet rock installation.

WARNING Insecure mounting might damage the ATA or cause injury. Cisco

is not responsible for damages incurred by insecure wall-

mounting.

To mount the unit to the wall:

STEP 1Determine where you want to mount the unit. Verify that the surface

is smooth, flat, dry, and sturdy.

STEP 2Drill two pilot holes into the surface 58 mm apart (about 2.28 in.).

STEP 3Insert a screw into each hole, leaving a gap of 5 mm (0.1968 in.)

between the underside of each screw head and the surface of the

wall.

STEP 4Place the unit wall-mount slots over the screws and slide the unit

down until the screws fit snugly into the wall-mount slots.

5/8 in. (15.8 mm)

Otros manuales para SPA112

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de Cisco

Cisco

Cisco PA-2CT1 Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco Linksys USB300M Manual de usuario

Cisco

Cisco Linksys WUSB600N Manual de usuario

Cisco

Cisco iDTA153 Manual de usuario

Cisco

Cisco LINKSYS PLK200 Manual de usuario

Cisco

Cisco Linksys PLEK400 Manual de usuario

Cisco

Cisco PA-POS-2OC3 Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco PA-5EFL= Manual del operador

Cisco

Cisco Linksys PLS300 Manual de usuario

Cisco

Cisco AIRONET CB21AG Manual del operador

Cisco

Cisco AIR-CB21AG-W-K9 Manual del operador

Cisco

Cisco PA-4E1G Series Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco AIR-CB21AG-W-K9 Manual de usuario

Cisco

Cisco WAE-INLN-4CG Series Manual de usuario

Cisco

Cisco LINKSYS WUSB54GC Manual de usuario

Cisco

Cisco LINKSYS AE3000 Manual de usuario

Cisco

Cisco WUSB100 Instrucciones de funcionamiento originales

Cisco

Cisco Aironet CB20A Manual de usuario

Cisco

Cisco WPC54G Instrucciones de funcionamiento originales

Cisco

Cisco PA-MC-T3 Manual de instrucciones

Cisco

Cisco PA-2E3 Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco AIRONET CB21AG Hoja de instrucciones

Cisco

Cisco Linksys WUSB600N Manual de usuario

Cisco

Cisco WUSB100 Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
