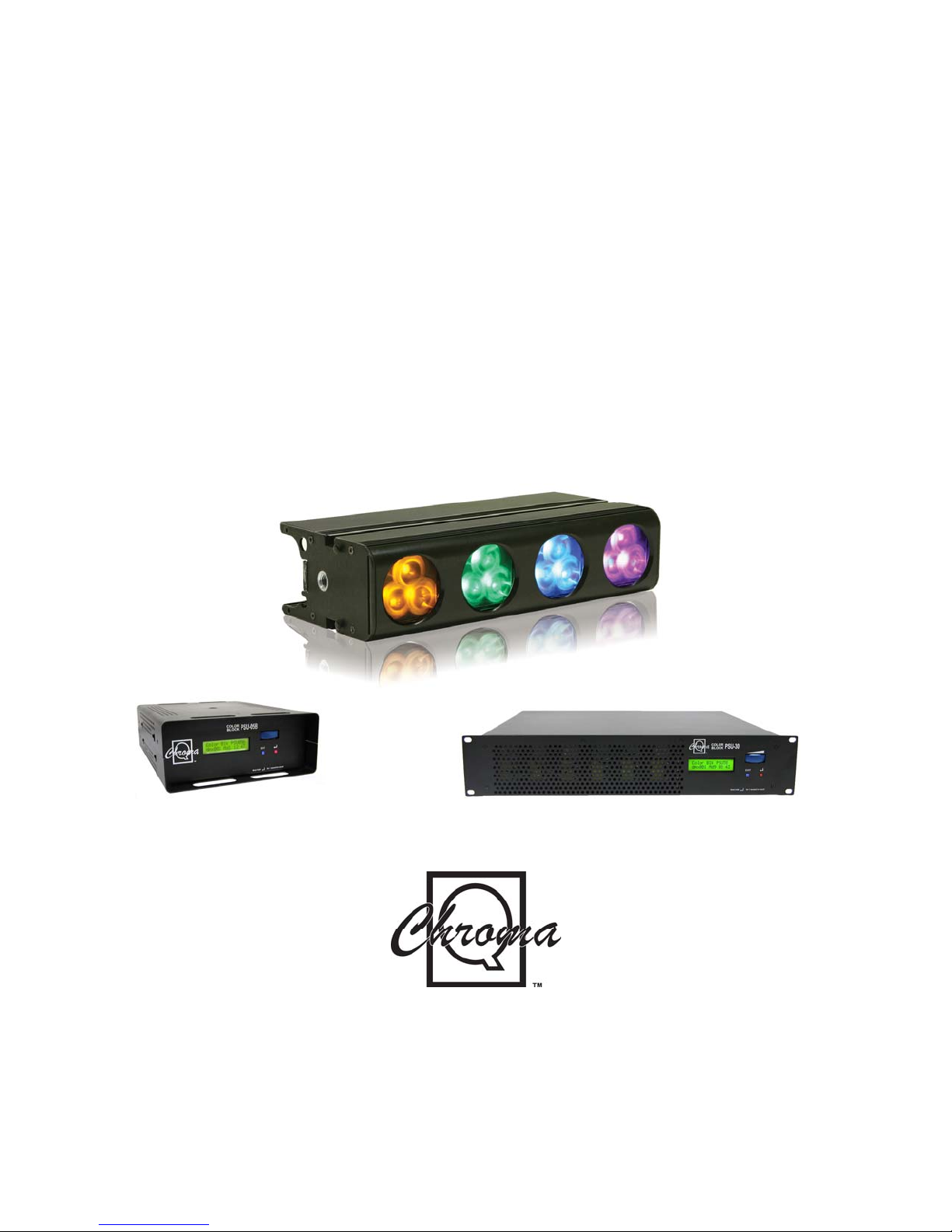

Chroma Color Block 2 Manual de usuario

Chroma-Q™

Color Block 2™ System

User Manual

Version 1.0 April 2009

Software Version 2.1

PN: 603-0500

Color Block 2 User Manual 1 V1.0 April 2009

Disclaimer

The information contained herein is offered in good faith and is believed to be accurate.

However, because conditions and methods of use of our products are beyond our control, this

information should not be used in substitution for customer's tests to ensure that A.C.

Entertainment Technologies Ltd. products are safe, effective, and fully satisfactory for the

intended end use. Suggestions of use shall not be taken as inducements to infringe any patent.

A.C. Entertainment Technologies Ltd. sole warranty is that the product will meet the sales

specifications in effect at the time of shipment. Your exclusive remedy for breach of such

warranty is limited to refund of purchase price or replacement of any product shown to be other

than as warranted.

A.C. Entertainment Technologies Ltd. reserves the right to change or make alteration to devices

and their functionality without notice due to our on going research and development.

The Chroma-Q Color Block 2 System has been designed specifically for the lighting industry.

Regular maintenance should be performed to ensure that the products perform well in the

entertainment environment.

If you experience any difficulties with any Chroma-Q products please contact your selling

dealer. If your selling dealer is unable to help please contact support@ac-et.com. If the selling

dealer is unable to satisfy your servicing needs, please contact the following, for full factory

service:

Outside North America: North America:

A.C. Entertainment Technologies Ltd. A.C. Lighting Inc.

Centauri House Unit #1

Hillbottom Road, 435 Horner Avenue,

High Wycombe, Toronto,

Buckinghamshire, ON.

HP12 4HQ. M8W 4W3

United Kingdom Canada

Tel: +44 (0)1494 446000 Tel: 416-255-9494

Fax: +44 (0)1494 461024 Fax: 416-255-3514

For further information please visit the A.C. Entertainment Technologies website at

www.ac-et.com.

Chroma-Q and Color Block 2 are trademarks of A.C. Entertainment Technologies Ltd.

The rights and ownership of all trademarks are recognised.

Color Block 2 User Manual 2 V1.0 April 2009

Table of Contents

1. Product overview..................................................................................................3

1.1 Chroma-Q Color Block 2 …………………………………………………….. 3

1.2 Chroma-Q Color Block Power Supply Units ……………………………… 3

2. Operation...............................................................................................................4

2.1 Unpacking the units ………………………………………………………….. 4

2.2 Cabling …………………………………………………………………………. 4

2.3 Fixings ………………………………………………………………………….. 7

2.4 Control 9

3. Troubleshooting..................................................................................................20

4. Specification........................................................................................................20

4.1 Technical specifications – Color Block 2 20

4.2 Technical specifications – Color Block Power Supply Units 21

4.3 Photometric Performance 22

4.4 Drawings 22

5. Maintenance........................................................................................................26

6. Battery Replacement ..........................................................................................26

7. Installation...........................................................................................................26

8. Wiring...................................................................................................................26

9. Accessories..........................................................................................................27

Color Block 2 User Manual 3 V1.0 April 2009

1. Product overview

1.1 Chroma-Q Color Block 2

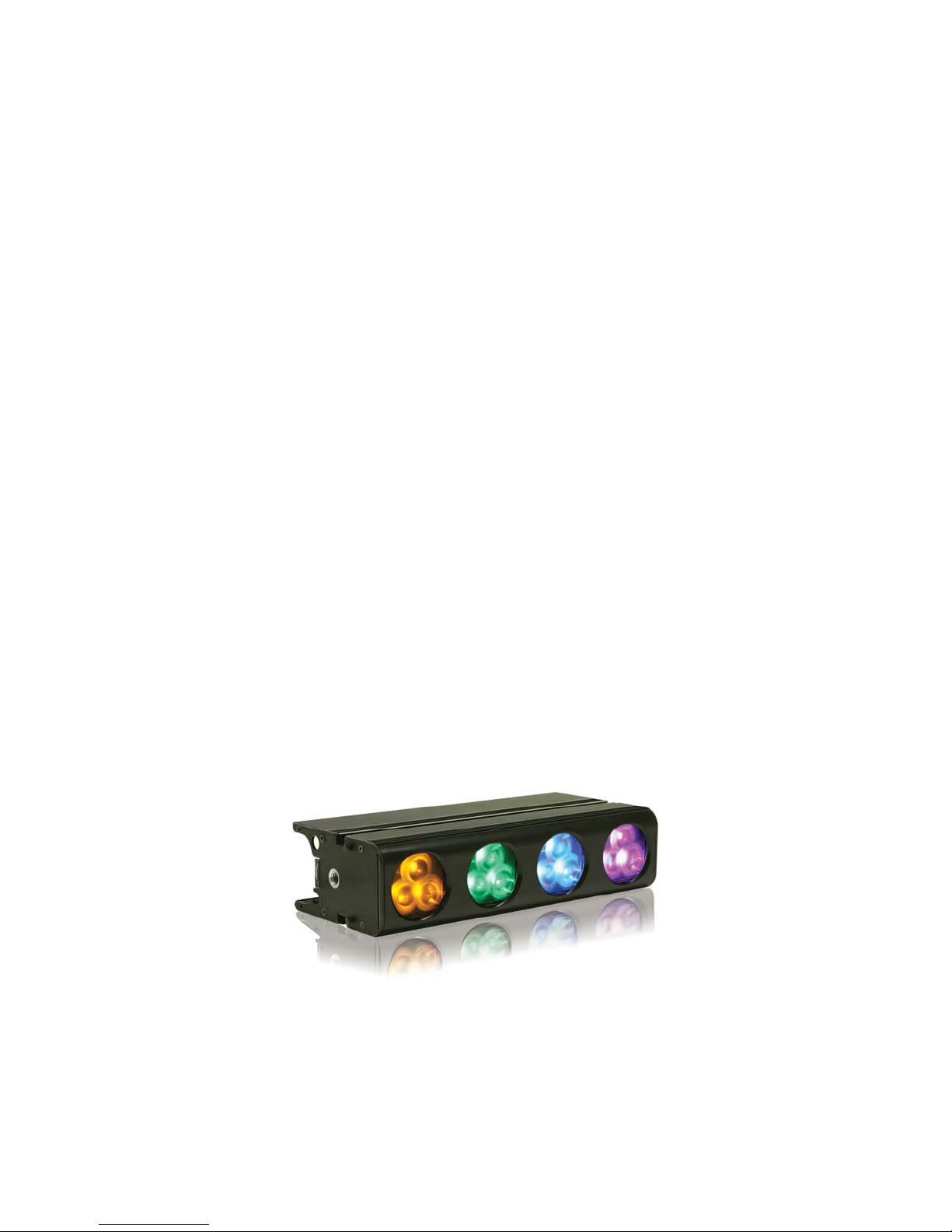

Following the enormous success of the Chroma-Q Color Block™ LED fixture with rental

companies and end users alike, the manufacturer has combined the product's core elements of

modularity and versatility with new single color RGBA optics, 530 lumens output (almost double

the original model) and theatrical grade dimming to create the exceptional feature set of the

Color Block 2 fixture.

With its radically increased color palette and high CRI of 90, the Color Block 2 fixture is a master

at creating vibrant bold colors and subtle theatrical hues. Combined with its built-in variable

color temperature capability, even flesh tones look natural, satisfying all but the most critical

eye.

The four large, camera-friendly LED cells offer performers less glare and mix beautifully for

single color output, virtually eliminating the frustrating color separation shadows normally

synonymous with LED lighting. The beam optics have a soft asymmetrical quality carefully

crafted to give an immediate perfect color blend for uplighting surfaces, yet retain a soft

Fresnel-like edge for direct illumination. At close to twice the output of its predecessor, the

Color Block 2 fixture is bright enough to uplight a 6m / 20 feet set and then some.

Each Color Block 2 fixture features 48 high output LED set into 12 single optic RGBA clusters

that are grouped into 4 cells which produce an intense, powerful light and vibrant colours

across the spectrum.

The control options incorporate a choice of HSI (Hue, Saturation and Intensity), RGBA (Red,

Green, Blue, Amber), RGB(A) (Red, Green, Blue, with *Magic Amber), RGBI (Red, Green, Blue

with *Magic Amber and Intensity) control modes, and a dynamic Variable Effects Engine

integrated in the software which gives the lighting designer full control over colour and effects

combinations.

The product's lightweight yet robust, heavy gauge aluminium extruded construction houses a

discreet cable management system and additional protection is built around the LED lenses for

a truly road proof fixture.

A range of DMX controlled power supplies are available to accommodate most applications.

Each Color Block Power Supply features XLR4 outputs with a maximum capacity of 5 Color

Block 2 fixtures daisy chained together. See separate PSU user manual for control details.

* Magic Amber is the term used for the unit's ability to bring in Amber when mixing colours that require it

1.2 Chroma-Q Color Block Power Supply Units

Two DMX controlled power supply models are available to accommodate most applications or

operate independently as a stand alone system. Each Color Block Power Supply features

outputs via XLR4. The unit can be controlled remotely via ANSI E1.11 USITT DMX 512-A (XLR-5

pin).

Color Block 2 User Manual 4 V1.0 April 2009

Color Block PSU-05B

The Color Block PSU-05B is a power supply suitable for up to 5 Color Block DB4 LED fixtures or

5 Color Block 2 LED fixtures. It can be controlled remotely via ANSI E1.11 DMX 512-A in a

variety of modes to accommodate most applications or can operate independently as a stand

alone system.

The Color Block PSU-05B delivers power and data via 1 XLR4 output. A maximum of five daisy-

chained Color Block 2 fixtures can be connected to the PSU-05B. Return lines are not required.

The total cable length of each chain must not exceed 60m/200ft. Two in/out ethernet RJ45

connectors are available for synchronisation.

Color Block PSU-30

The Color Block PSU-30 is a 2U 19” rack mounted power supply suitable for up to 30 Color

Block DB4 LED Fixtures or 30 Color Block 2 LED Fixtures. It can be controlled remotely via ANSI

E1.11 USITT DMX 512-A in a variety of modes to accommodate most applications or can

operate independently as a stand alone system.

The Color Block PSU-30 delivers power and data via 6 XLR4 outputs. A maximum of five daisy-

chained Color Block 2 fixtures can be connected to each XLR4 output. Return lines are not

required. The total cable length of each chain must not exceed 60m/200ft. Two in/out ethernet

RJ45 connectors are available for synchronisation.

2. Operation

2.1 Unpacking the units

The Color Block 2 package includes 1 unit Color Block 2 fixture and a Quick Start Guide. We

recommend that you keep the original packaging in case item needs to be returned.

The Color Block PSU-05B package includes 1 unit PSU-05B, IEC power cord and a Quick Start

Guide. The Color Block PSU-30 package includes 1 unit PSU-30 and a Quick Start Guide.

2.2 Cabling

DMX Input control data from an external control console is through an XLR 5-pin cable:

Pin# Function

1 Ground (Screen)

2 Data Minus

3 Data Plus

4 Spare Data Minus

5 Spare Data Plus

Color Block 2 User Manual 5 V1.0 April 2009

Power and control data outputs from the Color Block power supply to the fixture is through an

XLR 4-pin cable. The drain wire should be connected to the chassis of the XLR.

Pin # Function Minimum Cable size

1 Ground (-ve) 2.50mm²(14 AWG)

2 Control data minus (-) 0.35mm²(22 AWG)

3 Control data plus (+) 0.35mm²(22AWG)

4 24V DC (+ve) 2.50mm²(14 AWG)

Chassis Cable shield/drain wire 0.25mm²(24 AWG)

Only genuine Tourflex Datasafe cable is recommended for use with the Color Block 2 system.

Damage will occur if power connections short-circuit to data or ground shield connections.

When assembling XLR4-pin cables, heat shrink should be used on each individual data pin and

the drain wire to prevent short circuits.

The Color Block PSU-05B delivers power and data via 1 XLR4 output. A maximum of five daisy-

chained Color Block 2 fixtures can be connected to the PSU-05B. Return lines are not required.

The total cable length of each chain must not exceed 60m/200ft.

It is recommended that a maximum of 20m XLR4 cable length should separate adjacent fixture

units as to avoid signal deterioration.

Note: Maximum of 5 Color Block 2 fixtures per cable. No return cables required.

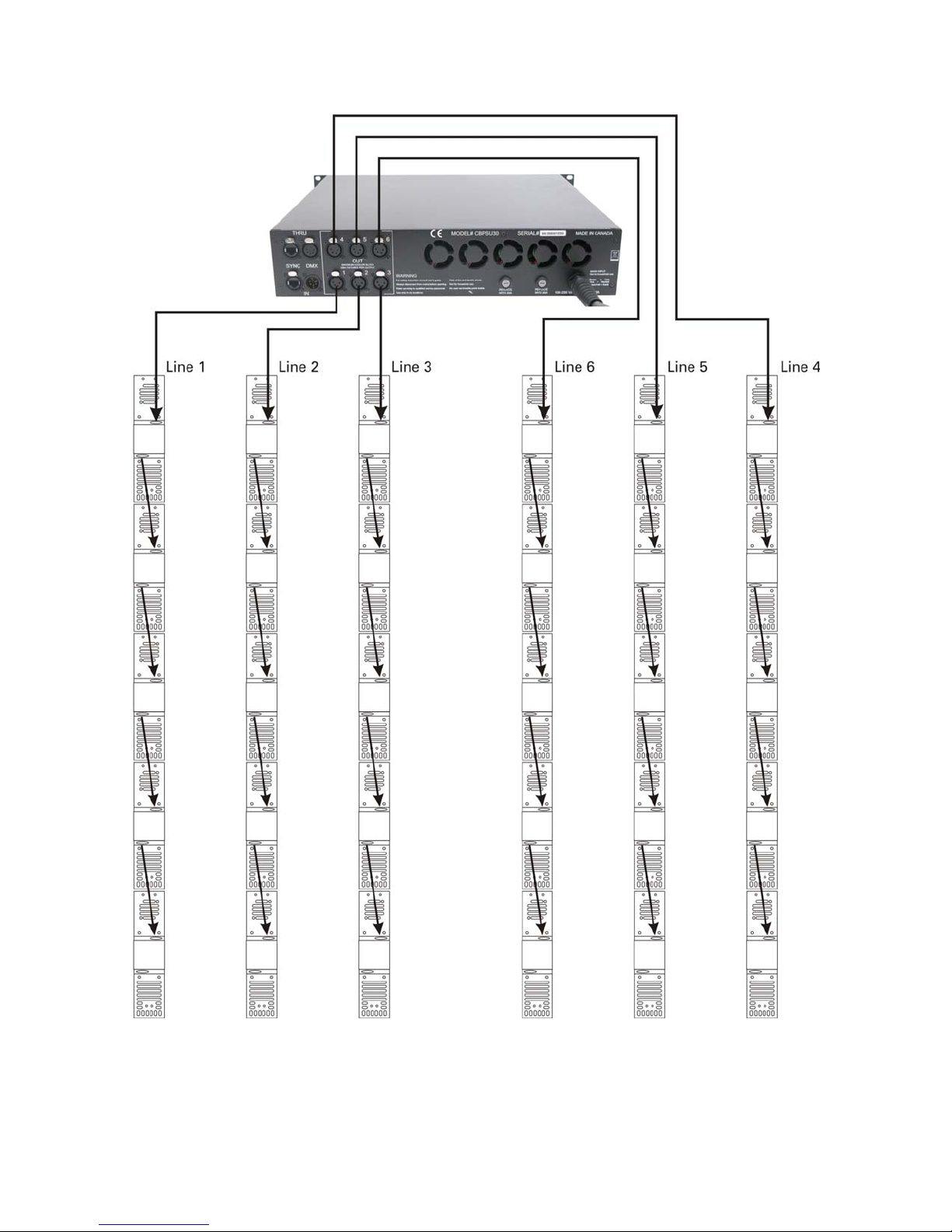

The Color Block PSU-30 delivers power and data via 6 XLR4 outputs. A maximum of five daisy-

chained Color Block 2 fixtures can be connected to each XLR4 output. Return lines are not

required. The total cable length of each chain must not exceed 60m/200ft.

It is recommended that a maximum of 20m XLR4 cable length should separate adjacent fixture

units to avoid signal deterioration.

Note: Due to the higher levels of leakage current of the PSU-30 it is important that the XLR4

cables used are manufactured only to the specification detailed above. It is also important that

the cables are not coupled or uncoupled whilst the PSU is powered and that the PSU is

correctly grounded.

Color Block 2 User Manual 6 V1.0 April 2009

Color Block 2 User Manual 7 V1.0 April 2009

2.3 Fixings

One of the strengths of the Color Block 2 fixture is its flexible fixing possibilities. The Color Block

2 fixture is supplied with an integral M10 clinch nuts at each end. These can be used to attach

the Color Block 2 fixture to a standard hook clamp or the wide range of Color Block accessories

listed below.

Note: Damage may occur if the bolt is too long (M10x16 maximum). In addition, both sides of

the fixture feature a fixing slot designed to accept an M6 bold head.

The Color Block 2 fixture also features an integral connection system to enable up to five units

to be locked together as a batten (see below).

Note: it is important to ensure that each fixture is also secured with a safety bond. The end

plate of each fixture has a fixing hold to facilitate secondary fixings.

a. Integrated connection system

One end of the Color Block 2 fixture features two protruding locating pins and a catch plate, the

other end has two keyhole slots and a butterfly latch.

1. To connect two fixtures together, firstly mate the two protruding pins from one fixture into

the keyhole slots of the other.

2. Then slide the fixtures together so that they are aligned correctly, taking care to get past the

extended catch plate.

Note: This will be stiff on new fixtures and a twisting action may ease assembly.

3. Finally use the butterfly latch to secure the fixtures together tightly (max 5 units together).

Note: It is important to ensure adequate ventilation to the rear of all Color Block fixtures. Never

place the fixtures directly on the floor pointing upwards when configured as a batten.

Color Block 2 User Manual 8 V1.0 April 2009

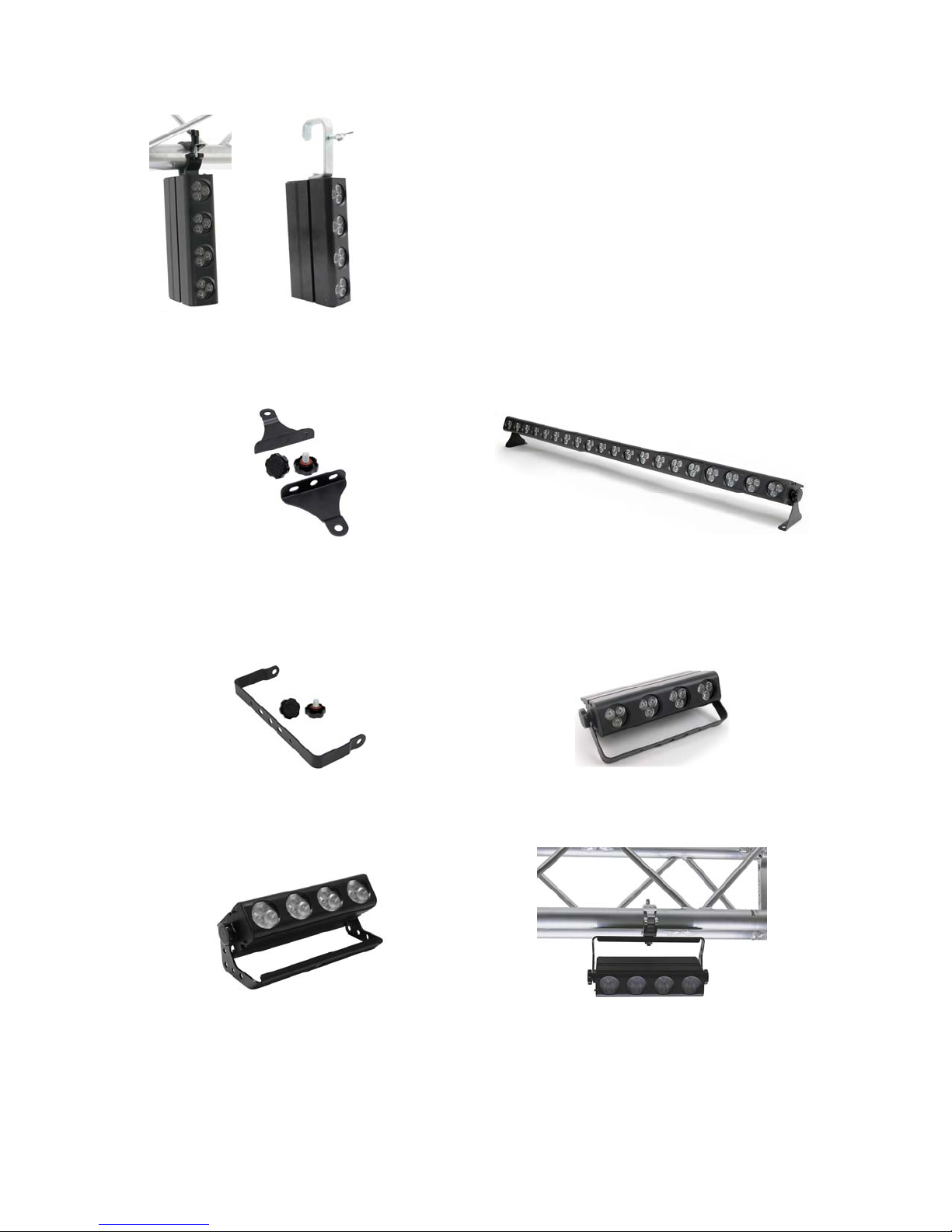

The Color Block 2 fixture is supplied with an integral M10

clinch nuts at each end. These can be used to attach the

Color Block 2 fixture to a standard hook clamp.

Note: damage may occur if the bolt is too long. (M10x16

maximum)

b. Batten bracket kit for up to five fixtures

The batten bracket set is supplied as a pair of brackets with fibre washers and thumb wheels.

The batten bracket set can be used for floor mounting (see photo), direct wall mounting and

truss mounting when used in conjunction with hook clamps or half couplers.

c. Yoke kit for single fixture

The yoke kit for single fixture is supplied as a yoke bracket with fibre washers and thumb

wheels.

The yoke kit can be used for floor mounting (see photo), direct wall mounting and truss

mounting when used in conjunction with hook clamps or half couplers.

d. Dual mode yoke kit for single fixture

The dual mode yoke kit for single fixture is supplied with fibre washers and thumb wheels. The

dual mode yoke combines the function of the single yoke and the batten bracket.

e. Blinder frame for four fixtures

The blinder frame is supplied as a yoke bracket, side plates, fibre washers, thumb wheels and

eight M10 bolts.

The blinder frame is designed to truss mount with the use of a half coupler.

Color Block 2 User Manual 9 V1.0 April 2009

The end plates feature two complete sets of fixture fixing holes. Set one hold the fixtures

closely together ensuring equal centres for all sixteen cells. Sets two are adjustable and allow

the Color Block 2 fixtures to be splayed out at varying angles.

f. Hinge kit

The hinge kit is supplied as one complete hinge with fibre washers and M10 bolts.

The hinge kit fits between two Color Block 2 fixtures and offers an angle adjustment of 180 deg.

If used in multiples, unique shapes can be achieved, such as hexagons, octagons etc.

g. Wall bracket for single fixture

The Wall bracket for single fixture is a discreet fixing suitable for fixing a single Color Block 2 to

a wall or set piece. Keyhole slots are provided to for vertical or horizontal fixing.

2.4 Control

The Chroma-Q Color Block 2 is controlled via two models of addressable ANSI E1.11 USITT

DMX512-A power supply units, the 5 way Color Block PSU-05B and the 30 way Color Block

PSU-30.

The Color Block PSU-05B and PSU-30 menu items are accessed via the LCD display and the

following controls:

• Right hand button (red) = Enter (hold for 2 seconds to save)

• Left hand button (blue) = Exit without saving

• Wheel = Adjusts values or scrolls through menu items

The LCD screens shown above are currently at the Home position and display: product name

and model, software version, current DMX address, current control mode and time.

Otros manuales para Color Block 2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de Chroma

Chroma

Chroma Color Block 2 Plus Nano Manual de usuario

Chroma

Chroma Daylight PAR Manual de usuario

Chroma

Chroma Sandi 1622 Manual de usuario

Chroma

Chroma Inspire XT Manual de usuario

Chroma

Chroma Studio Force D Phosphor Manual de usuario

Chroma

Chroma Space Force CQSPFVLR Manual de usuario

Chroma

Chroma Studio One 100 T Manual de usuario

Chroma

Chroma Cascade Manual de usuario

Chroma

Chroma Color One 100 638-1100 Manual de usuario

Chroma

Chroma Studio Force V12 Manual de usuario

Chroma

Chroma Space Force onebytwo LumenRadio Card Manual de usuario

Chroma

Chroma Color Span 2 Manual de usuario

Chroma

Chroma Color Split CHCS2 Manual de usuario

Chroma

Chroma Space Force Manual de usuario

Chroma

Chroma Color One 100 Manual de usuario

Chroma

Chroma Color One 100X Manual de usuario

Chroma

Chroma Space Force Manual de usuario

Chroma

Chroma Inspire CHINHLRGBW32A Manual de usuario

Chroma

Chroma Color Force Compact Manual de usuario

Chroma

Chroma Sandi 1518-1000 Manual de usuario

Chroma

Chroma Inspire 632-5010 Manual de usuario

Chroma

Chroma Color Force 72 Manual de usuario

Chroma

Chroma pace Force CHSFPV Manual de usuario

Chroma

Chroma Color Charge Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
