Christopher Ward C60 Apex Limited Edition Guía del usuario

C60 Apex Limited Edition

Owner’s Handbook

Time on your side

Your Christopher Ward watch has been designed in Britain

and engineered in Switzerland by highly talented craftspeople.

This ensures not only accurate and precise timekeeping, but also

brings a real pride of ownership that only watches of the highest

quality standards can hope to deliver.

You have made an investment, a good one, and the aim of this

manual is to help you make the most of that investment in what

we hope will be a lifetime of ownership.

Chris, Mike and Peter

(Co-founders)

2222

C60 Apex Limited Edition

On July 2, 2014, the Christopher Ward team descended upon London’s

Charlotte Street Hotel to unleash a development that would send

shockwaves rippling throughout the Swiss watch industry.

That development was Calibre SH21, CW’s in-house chronometer

complete with 120-hour power reserve. Not only a feat of engineering,

it doubled as proof that a small British watchmaker could innovate

just as much as brands far larger, older and wealthier. Five years

on from when CW’s three co-founders dropping that particular

horological depth charge, the new C60 Apex Limited Edition is the

ultimate celebration of Calibre SH21’s half-decade anniversary.

The second CW Apex release, this 100-piece Limited Edition marks the

rst time the series’ architectural aesthetic has appeared in dive form.

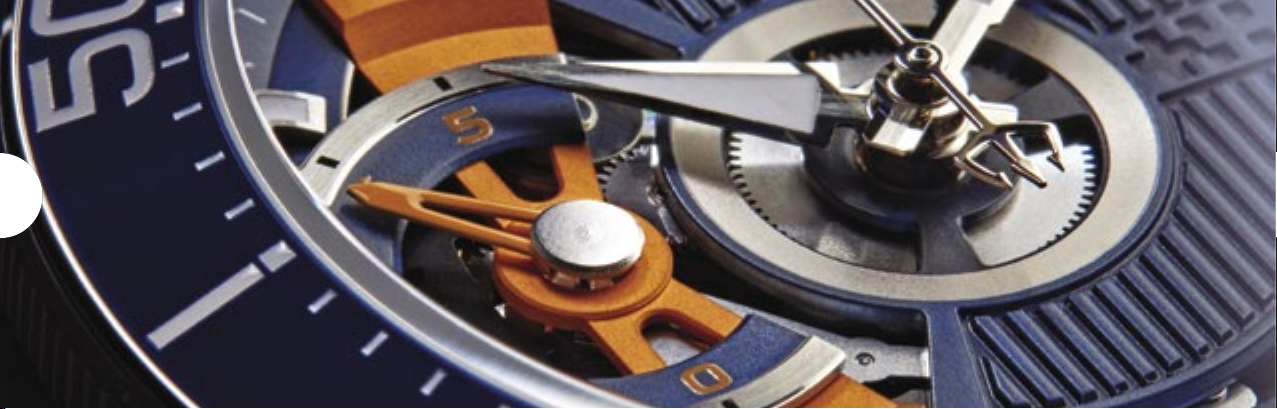

Thanks to our partners at Swiss skeletonised watch experts Armin

Strom, both its front and back have been stripped away to allow as

much of SH21 to be admired as possible; with an anodised orange

rotor and detailed bridge present, such engineering prowess means

the Apex also marks the debut of an exhibition caseback in a C60

(although it still remains water resistant to 300m). A power reserve

indicator on the Apex’s dial also enables its wearer to track what

remains of the 120 hours of power stored within SH21’s twin barrels

once fully wound.

A technical colossus, the C60 Apex Limited Edition shows just what

Christopher Ward’s Anglo-Swiss can accomplish when working

together to create the best watch possible at this level. But then

again for a model whose title refers to the pinnacle of achievement,

what else would you expect?

Features

• Swiss made

• Limited edition of 100 pieces

• 33 jewel self-winding chronometer

with power reserve complication

• 120 hour power reserve

• Hour, minute, central seconds, date

• Skeletonised bridge and decorated barrels,

with anodised aluminium and tungsten

rotor

• Brushed and polished marine-grade

stainless steel case

• Unidirectional ZrO2ceramic bezel

• Integrated automatic helium release valve

• Anti-reective at sapphire crystal

• Semi-open dial with circular brushed

Ruthenium ring, engraved Ruthenium plate

and orange anodised aluminium bridge

• Bevelled matte blue outer ring with white

minute markers

• Blue power reserve indicator ring with

orange numerals and circular brushed

rhodium outer ring

• Altimeter-inspired date wheel

• Super-LumiNova Grade®X1 GL C1 hands,

indexes and bezel

• Top-brushed indexes with diamond

polished facets

• Sandblasted and polished hands

• Signature Trident counterbalance on

seconds hand

• Exhibition backplate with unique engraved

serial number

Technical Information

Calibre SH21 – automatic with power reserve complication

Case 316L stainless steel

Diameter 42mm

Height 16.35mm

Lug to lug 54mm

Weight 99g

Water resistance 30 ATM (300 metres)

Vibrations 28,800 per hour (4Hz)

Timing tolerance -4/+6 seconds per day

Strap width 22mm

12 3

How to operate your C60 Apex Limited Edition

PLEASE NOTE: Date correction should not be carried out between 20.00 hr and 02.00 hr

as the watch gearing will already be aligning itself to change the date. The crown should

always be pushed in after adjustment, and it is best to do so from position 3to avoid

advancing beyond the desired date.

The crown should sit ush to the case (position 1) in order to maintain

water resistance.

• To re-power the watch after a period of non-use, simply wind the

crown in a clockwise direction. Take care not to overwind the crown

past the point of resistance as it will damage the movement.

• For rapid date correction pull gently into position 2and turn in

an anti-clockwise direction.

• For setting the time pull gently into position 3and turn

anti-clockwise to advance the time. For precise time setting it

is recommended to pass beyond the desired minute and to set

the hand backwards. Push the crown back to position 1.

Setting the time and date 1. Manual winding

2. Date setting

3.Time setting

777

Straps and bracelets

As you would expect, we place as much

emphasis on the quality of our straps and

bracelets as we do our watches. We only

use the nest materials in our straps,

with quick-release pins also included for

your convenience.

The following guidelines explain how easy

it is to use, adjust and replace your

Christopher Ward strap or bracelet.

How to operate your C65 Trident Diver SH21

1. Locate the quick-release pin (or pins)

on your strap (A) or bracelet (B).

Pull the pin(s) inwards to detach.

2. To reattach your strap (C) or bracelet (D),

pull the pin(s) inwards, and align the

spring bars so that they click securely into

the lug holes on each side.

Using the quick-release pins on your strap/bracelet

A B C D

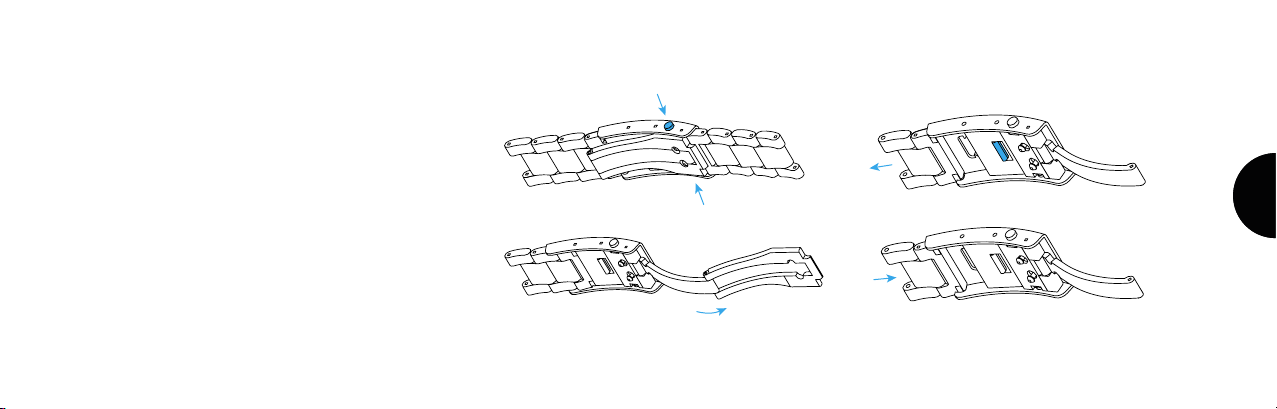

1. Press buttons to release

2. Pull open the clasp

3.There are ve micro adjustment positions,

which allows for a maximum extension of

8.4mm. To extend, pull the lever to unlock

and simultaneously pull on the bracelet

into the desired position.

4.To shorten, simply push the bracelet back

into the clasp.

How to use the micro adjustment on your braceletHow to use the micro adjustment on your bracelet
