Christie LW400 Manual de usuario
LW400
USER MANUAL - NETWORK GUIDE
020-000049-01
1
LW400 Usr Manual - Network GUID 020-000049-01 Rev.1 (04/08)
LW400
User Manual -Network Guide
Thank you for purchasing this projector.
This projector has the network function that brings you the following main features.
►Before using this product, be sure to read all manuals for this
product. After reading them, store them in a safe place for future reference.
WARNING
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
•The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
NOTE
Trademark acknowledgment
Web control
The projector can be controlled and monitored by a web browser software on
your PC, which can help you to setup and maintain the projector.
MY IMAGE (Still Image Transfer) Display
The projector can display still images that are transferred via the network.
This manual is only intended to explain Network function only.
For safety, operations or any other issues, refer to the Safety Guide and User
Manual - Concise and User Manual - Operating Guide.
•Microsoft and Internet Explorer, Windows, Windows NT, Windows Me, Windows
Vista are registered trademark of Microsoft Corporation.
•
PowerPC is a registered trademark of International Business Machines Corporation.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
•Apple and Macintosh, Mac, Mac OS are registered trademarks of Apple Inc.
• Pentium is a registered trademark of Intel Corporation.
• JavaScript is a registered trademark of Sun Microsystems, Inc.
• DVI is a trademark of Digital Display Working Group.
•HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
• is a trademark of SRS Labs, Inc. WOW technology is incorporated under
license from SRS Labs, Inc.
All other trademarks are the properties of their respective owners.
2
LW400 Usr Manual - Network GUID 020-000049-01 Rev.1 (04/08)
Content
Content
Content .......................................................................................... 2
1. Main functions ........................................................................... 3
1.1 Conguring and controlling via a web browser ........................................... 3
1.2 MY IMAGE (Still image Transfer) Display ................................................... 3
2. Equipment connection and network setting............................. 4
2.1 Required equipment preparation ................................................................ 4
2.2 Manual network connection setting............................................................. 5
2.2.1 Equipments connection......................................................................... 5
2.2.2 Network settings.................................................................................... 5
2.2.3 “Internet Option” setting......................................................................... 8
2.2.4 Check connection.................................................................................. 9
3. Management with Web browser software .............................. 10
3.1 Conguring and controlling the projector via a web browser .................... 11
3.1.1 Logon .................................................................................................. 13
3.1.2 Network Information ............................................................................ 14
3.1.3 Network Settings ................................................................................. 15
3.1.4 Port Settings........................................................................................ 16
3.1.5 Mail Settings........................................................................................ 17
3.1.6 Alert Settings ....................................................................................... 18
3.1.7 Schedule Settings ............................................................................... 20
3.1.8 Date/Time Settings.............................................................................. 22
3.1.9 Security Settings ................................................................................. 24
3.1.10 Projector Control ............................................................................... 26
3.1.11 Projector Status ................................................................................. 30
3.1.12 Network Restart................................................................................. 31
3.1.13 Logoff ................................................................................................ 31
3.2 E-mail Alerts.............................................................................................. 32
3.3 Projector Management using SNMP......................................................... 34
3.4 Event Scheduling...................................................................................... 35
3.5 MY IMAGE (Still Image Transfer) Display................................................. 38
3.6 Command Control via the Network........................................................... 40
3
LIT MAN USR LW400 NTWK GUID 020-000049-01 Rev.1 (04/08)
1. Main functions
1. Main functions
1.1 Conguring and controlling via a web browser
You can adjust or control the projector via a network from a web browser on a PC
that is connected to the same network.
Logon the network from the web browser and it offers the menus to congure the
network settings, monitor the projector and so on.
1.2 MY IMAGE (Still image Transfer) Display
Image les can be sent via the network, and up to 4 image data can be stored in
the projector and displayed on screen one by one. (38)
Transfer image data
Display image data (
1
-
4
)
4
LIT MAN USR LW400 NTWK GUID 020-000049-01 Rev.1 (04/08)
2. Equipment connection and network setting
2.1 Required equipment preparation
2. Equipment connection and network setting
The following equipments are required to connect the projector to your PC through
the network.
PC : 1) equipped with the network feature
2) installed a web browser software (11)
LAN cable : CAT-5 or greater
• The system for using the network function of the projector requires
communication environment conforming 100Base-TX or 10Base-T.
NOTE
5
LIT MAN USR LW400 NTWK GUID 020-000049-01 Rev.1 (04/08)
2. Equipment connection and network setting
2.2 Manual network connection setting
2.2.1 Equipments connection
Connect the projector and PC with a LAN cable.
* Before connecting with an existing network, contact the network administrator.
Next, please check the PC setting as explained below.
2.2.2 Network settings
This is the explanation of network connection settings for Windows XP and
Internet Explorer.
1) Log on to Windows XP as administrator authority. (*)
2) Open “Control Panel” from “Start” menu.
3) Open “Network and Internet Connections” in “Control Panel”. (Fig. 2.2.2.a)
* Administrator authority is the account, which can access to all functions.
4) Open “Network Connections”. (Fig.2.2.2.b)
Fig. 2.2.2.a “Network and Internet Connections” window
Fig. 2.2.2.b “Network Connections” window
6
LIT MAN USR LW400 NTWK GUID 020-000049-01 Rev.1 (04/08)
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)
7) Set IP address, subnet mask and default gateway for PC.
Fig. 2.2.2.d “Internet Protocol (TCP/IP) Properties” window
5) Open “Local Area Connection Properties” window you use for network device.
(Fig. 2.2.2.c)
6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties”
window.
Fig. 2.2.2.c “Local Area Connection Properties” window
7
LIT MAN USR LW400 NTWK GUID 020-000049-01 Rev.1 (04/08)
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)
[About IP address]
■ Setting manually
The Network address portion included in the IP address set into your PC should
be common with projector’s one. And the entire IP address in the PC should not
be overlapped with other equipments in the same network, including the projector.
The projector’s initial settings are as follows.
IP address: 192.168.1.10
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
Therefore, specify PC’s IP address as follows.
IP address: 192.168.1.xxx (xxx shows decimal number.)
Subnet mask: 255.255.255.0
(Network address: 192.168.1 in this case)
For example
Select from 1 to 254 for “xxx” not duplicating with any other equipments.
In this case, projector has “192.168.1.10” IP address, specify from 1 to 254
except 10 for PC.
• “0.0.0.0” cannot be set to the IP address.
• The projector’s IP address can be changed by using the conguration utility
via a web browser. (11)
• If the projector and PC exist in the same network (i.e. network address is
common), default gateway can be blank.
• When the projector and PC exist in different networks, default gateway setting
is necessary. Contact the network administrator in detail.
NOTE
■ Setting automatically
When DHCP server exists in network, it is possible to assign IP address to the
projector and PC automatically.
* DHCP is abbreviation for “Dynamic Host Conguration Protocol” and has the
function to provide necessary setting for network like IP address from server to
client. A server that has DHCP function is called DHCP server.
8
LIT MAN USR LW400 NTWK GUID 020-000049-01 Rev.1 (04/08)
2. Equipment connection and network setting
2.2 Manual network connection setting (continued)

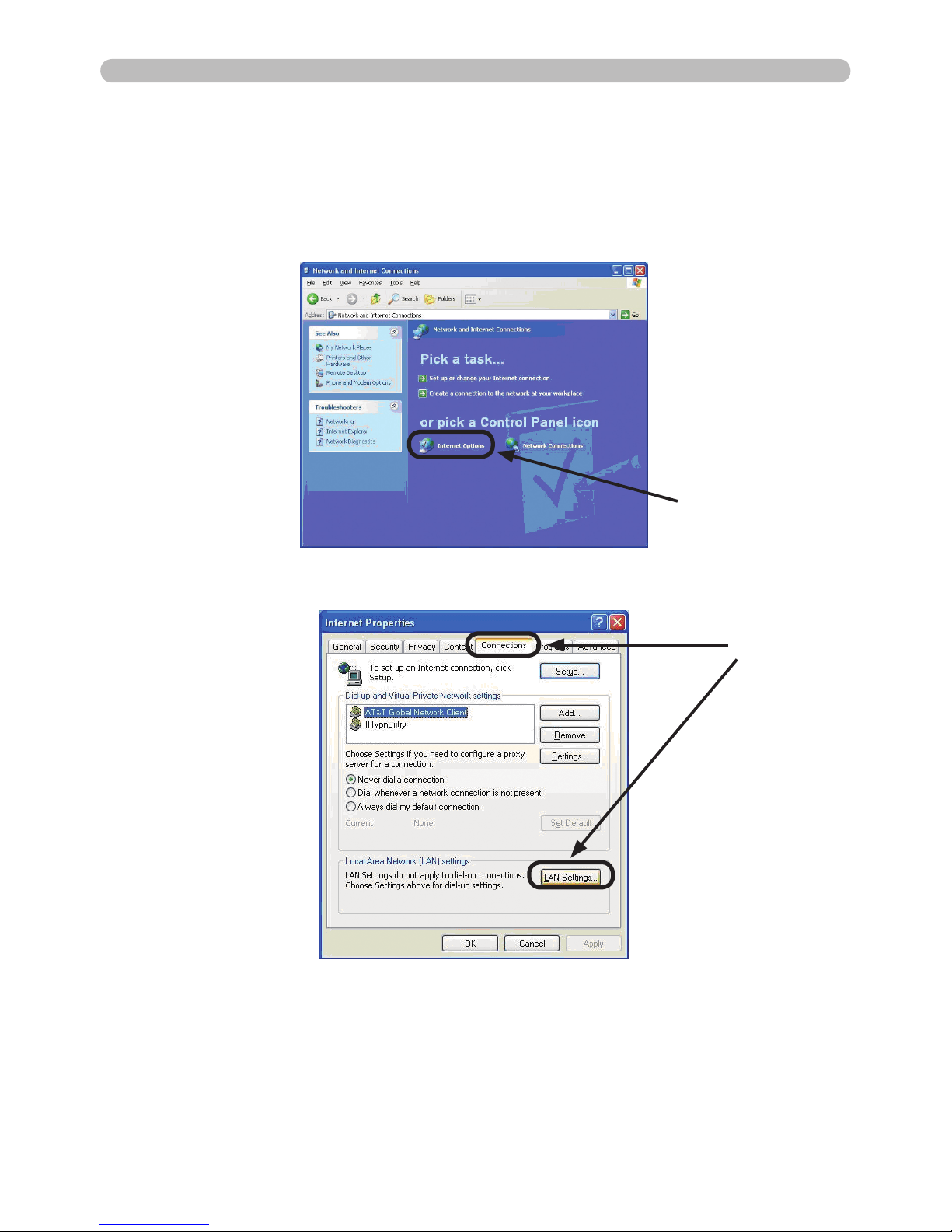

2) Click “Connections” tab and then click [LAN Settings] button to open “Local
Area Network (LAN) settings”. (Fig. 2.2.3.c)
Fig. 2.2.3.b “Internet Properties” window
2.2.3 “Internet Option” setting
1) Click “Internet Options” in “Network and Internet Connections” window
(Fig. 2.2.3.a) to open “Internet Properties” window. (Fig.2.2.3.b)
Fig. 2.2.3.a “Network and Internet Connections” window
Click
Click
