Christie 38-FP0001-01 Manual de usuario

MODEL 38-FP0001-01 (with Video Card)

38-FP0001-02 (without Video Card)

User's Manual

Table of contents

Precautions ............................................................................................... 2

Before First Use

Names and Functions (Monitor).......................................................... 3-4

Check Accessories................................................................................. 3

Outer Dimension.................................................................................. 5-6

Installation ........................................................................................... 7-8

Names and Functions (Remote Controller)....................................... 9-10

Preparation for remote control.............................................................. 11

LCD Monitor Instructions

Adjusting the Screen............................................................................. 12

Adjustment Items............................................................................. 12-13

Mode..................................................................................................... 14

Adjustment Procedure

Before Adjustment...................................................................... 15-17

Adjustment for computer screen

A. Picture Menu................................................................. 18-21

B. Advanced Menu............................................................ 22-23

C. Picture in picture Menu................................................. 24-28

D. Advanced picture in picture Menu ................................ 29-30

E. Options Menu................................................................ 31-33

F. Utilities Menu................................................................. 34-35

Additional Functions

Power Management System ........................................................... 36

Plug and Play .................................................................................. 36

Maintenance............................................................................................ 37

Troubleshooting

Fault Finding......................................................................................... 38

Screen Display...................................................................................... 38

Specifications

Table of Preset Data............................................................................. 39

Cable Pin Arrangement ........................................................................ 40

Monitor Specifications........................................................................... 41

Microsoft and Windows are registered trademarks of Microsoft Corporation in

the U.S.A. and other countries.

38-FP0001-02

Precautions

Important matters

• Plug the included AC Power Cord to the power supply and voltage as

mentioned in the rating label. IF NOT, DAMAGE TO THE AC POWER

CORD IS A SAFETY RISK AND CAN CAUSE A FIRE.

Placement precautions

• Avoid placing the unit in humid or dusty places, or where it will be exposed

to excessive heat (direct sunlight, heaters, etc.)

• Do not step on or set anything on the AC Power Cord. DAMAGE TO THE

AC POWER CORD IS A SAFETY RISK AND CAN CAUSE A FIRE.

• Install the unit only on a stable and smooth surface.

• Do not connect the unit to the same AC outlet with appliances that

generate large amounts of interference (such as heaters with thermostats,

appliances with motors, etc.). It is best to use a completely separate

electrical outlet.

• Keep the unit away from water or small objects. If they accidentally enters

the unit, unplug the AC power cord immediately. DO NOT PLUG IN THE

UNIT AGAIN.

• Never cover the rear ventilators with cloth or something.

Handling precautions

•"WARNING: The AC power cord and cables on this product contains

chemicals, including lead, known to the State of California to cause cancer,

and birth defects or other reproductive harm. Wash hands after handling."

• Avoid bending, kinking or damaging the AC Power Cord.

• Never insert or remove the power cord with wet hands. Also, be sure to

hold cord by the plug when removing it from the outlet.

• Do not remove any parts that are held in place with screws. (The unit does

not contain any user-serviceable items.)

• Maintain standard room temperature (5˚C to 35˚C, or 41˚F to 95˚F) during

use. Do not subject the unit to shock or vibration. Do not move the unit

while it is in use.

• A rapid increase in room temperature in cool weather can cause

condensation to form inside the unit. If this occurs, wait at least 15 minutes

after turning the unit on before attempting to operate it.

• Do not attempt to service this monitor yourself as opening unit may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified

service personnel.

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety

standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

Before First Use

Names and Functions (Monitor)

Display Screen

Front View

Check Accessories

Check that the main unit and all accessories are present.

¡¡AC Power Cord ( x1) ¡¡Remote Controller ( x1)

¡¡AA Batteries ( x2) ¡¡RGB Cable ( x1)

¡¡User's Manual ( x1)

¡When you move the LCD monitor, please unplug AC cables connected to AC-IN

and disconnect the cables connected to the external equipment.

¡When you carry the LCD monitor, please be careful not to shock it. To avoid

damaging the LCD panel, be sure not to touch the LCD panel when carrying the

monitor.

NOTE

38-FP0001-02

Power Switch ( )

Turns the power to the

monitor on and off.

External Control

Connector

( )

DVI Connector

RGB Connector

Ventilators

AC-IN

Ventilators

Rear View

Before First Use

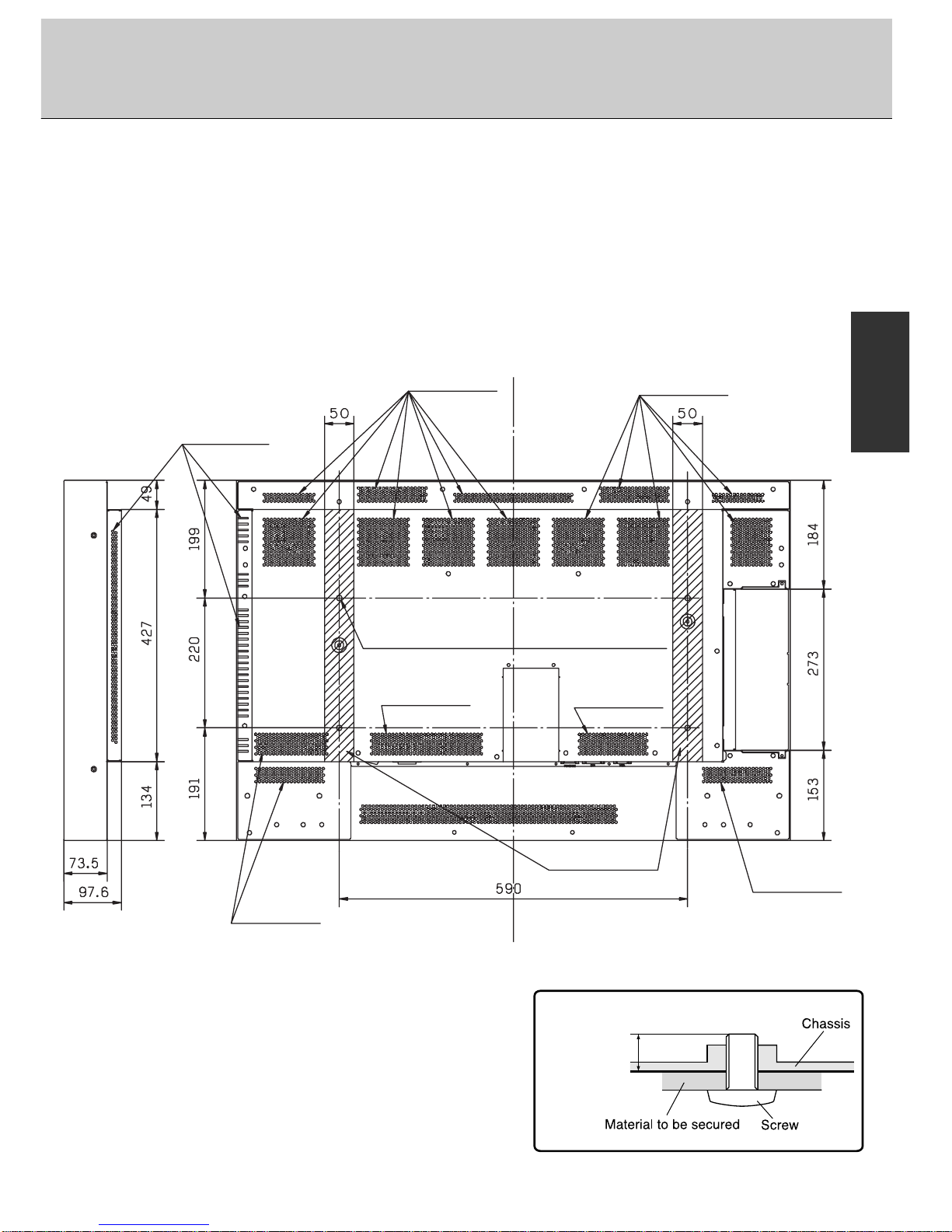

Outer Dimension

External Control

RGB DVI AC-IN

POWER

Ventilators

38-FP0001-02

Ventilators

Mounting Area

4-M6 (Depth : Min.12mm/Max.20mm)

Ventilators

L: 12mm(min.)

20mm(max.)

When you install the LCD Monitor, please

take care the following:

•Use the M6 screws only for installation.

•The maximum length of the screw put through a

hole is 20mm on the surface of a metal chassis

(as shown right). Use the screw with effective

length 12-20mm, if not it may damage to the LCD

monitor.

•When you install the LCD monitor, please check

the strength of material to be secured.

Before First Use

Installation

External OSD Connector

DVI Connector

RGB

Connector

DVI Cable

(not included)

RGB Cable

Connect to the

computer’s

connectors

Power Plug

AC Power

Cord

AC-IN

Connect the Computers

Before doing anything, make sure the Power Switch on the monitor and a computer is

turned off.

1 Plug the cable(s) into the connector on the monitor securely and fix

them in place with two screws (each).

2 Plug the other end of the cable(s) into the connector on a computer.

3 Plug the AC Power Cord into the AC-IN on the monitor.

4 Plug the Power Plug into an outlet.

5 Switch on the monitor before starting up a computer.

38-FP0001-02

How to secure the monitor on a wall

Note:The following figure is only recommended.

Never cover the rear ventilators with cloth or something.

Secure enough space more than 30mm from the rear part of the monitor.

Side view of the monitor Rear view of the monitor

M6 bolt (4 places)

Depth: Min. 12mm

Max. 20mm

Bracket

(not included)

Bracket

(not included)

Depth: Min. 12mm

Max. 20mm

Vertical

Horizontal

Caution

Before First Use

Names and Functions (Remote Controller)

Operating Range (when there is no obstacle)

Horizontal Vertical
