CHIEF FSBI2B Manual de usuario

INSTALLATION INSTRUCTIONS

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Custom iPad™ Interface Adapter

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

FSBIB/FSBI2B

FSBIB/FSBI2B Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is aregistered trademarkofMilestone AV Technologies.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

DIMENSIONS - FSBIB

.19

(7.7)

RELEASE TAB

(10.3)

(.8)

90°

SECTION A-A

SCALE 2 : 1

DETAIL B

SCALE 1 : 1

KEEPER TAB

Installation Instructions FSBIB/FSBI2B

DIMENSIONS - FSBI2B

TOOLS / PARTS FOR INSTALLATION

.19

9.7

RELEASE TAB

(.7)

(10.2)

100° .39

SECTION A-A

SCALE 2 : 1

DETAIL B

SCALE 1 : 1

KEEPER TAB

A (1)

[iPad™/iPad 2™

Adapter]

B (4)

C (4)

M4 x 20mm

D (4)

M4 x 12mm

FSBIB/FSBI2B Installation Instructions

ASSEMBLY AND INSTALLATION

NOTE: The FSBIB adapter is compatible with first generation

iPad™ alone, not mounted in a case. The FSBI2B

adapter is compatible with the second generation

iPad™ (iPad 2™) alone, not mounted in a case.

NOTE: Mounts directly to any 100mm x 100mm (maximum)

faceplate or can be mounted using mounting buttons.

Attach Directly to Faceplate

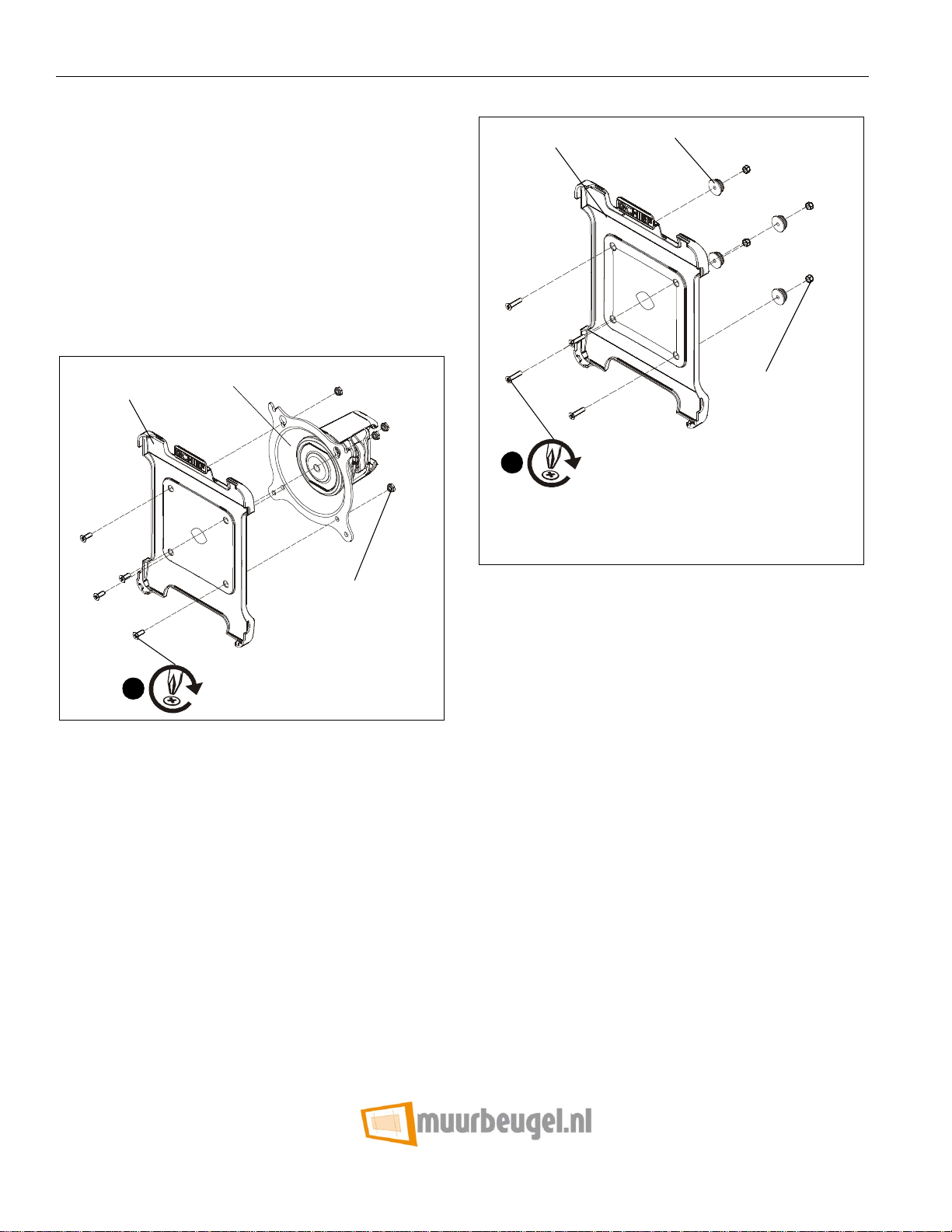

1. Secure iPad™ adapter (A) to mount by installing four

M4x12mm Phillips flat head screws (D) through four holes

on adapter (A), four mounting holes on mounting head and

into four M4 hex nuts (B). (See Figure 1)

Figure 1

Attach Using Mounting Buttons

1. Secure four mounting buttons (included with mount) to

iPad™ adapter (A) by installing four M4x20mm Phillips flat

head screws (C) through four holes on adapter (A), four

mountingbuttons and into four M4 hex nuts (B).(SeeFigure

Figure 2

2. Use mounting buttons to attach iPad™ adapter to mount

following the mount’s installation instructions.

(D) x 4

(A)

mounting head (example)

(B) x 4

(A) mounting buttons x 4

(B) x 4
