Chicco Fit 4 Manual de usuario

PMS 2747 and PMS 186

WARNING: Avoid serious injury or death to your child. Never

use your Fit 4 Child Restraint without the softgoods in place. You

must read and understand the Softgoods Removal instructions and

the instructions in the User Guide. If you do not understand these

instructions, DO NOT attempt to remove the softgoods, STOP

and call Chicco at 1-877-424-4226.

INSTRUCTIONS:

Fit 4 Softgoods Removal/Installation

IMPORTANT: Please also refer to the instructions that came with your product.

Completely loosen Harness by pressing Harness

Release Button on the front of the Child Restraint and

pulling out on both of the Harness Straps. Then unbuckle

the Chest Clip and Harness Buckle.

1Remove the Crotch Strap Pad by pulling the Crotch

Strap Pad up and off the Harness Buckle, as shown.

Remove the Stage 1 Positioner by pulling the

Shoulder Straps out through the side openings on the pad

and thread the Harness Buckle through the slot in the pad.

Remove the Stage 1 Positioner from the Child Restraint.

3If desired, Unhook the Hook and Loop Tab on the

outside of the Shoulder Pad to remove the pad. Repeat for

the other Shoulder Pad. Note: The Shoulder Pads may be

used in Stages 1, 2, and 3.

SS0020E_01

SOFTGOODS REMOVAL Stage 1:

If desired, Reattach the Crotch Strap Pad and

Shoulder Pads for Stage 2 use

. Pull the Harness Buckle

forward and insert the Crotch Strap Pad tongue down into

the same opening as the Harness Buckle. The Crotch Strap

Pad tongue will be behind the Harness Buckle. Thread the

Harness Buckle up into the Crotch Strap Pad.

Be sure to

adjust the Crotch Strap Pad so that the

Fabric Notches are positioned below the slot in the top layer

of padding. Note: The Crotch Strap Pad may be used in stages

1, 2, and 3.

Fabric

Notch

Fabric

Notch

Locate and undo both side snap buttons, as shown.

Thread the Shoulder Straps out through the side openings on the Stage 2 Positioner. Pull forward on the seat

fabric and Stage 2 Positioner, as shown. Then reach under the seat bottom fabric and undo both Snap Buttons attaching

the Stage 2 Positioner to the seat bottom fabric.

Locate and undo the top snap button on the Stage 2

Positioner side wing. Below the snap button, pull the

plastic tab from the pocket. Repeat for the other side.

Remove the Crotch Strap Pad by pulling the Crotch

Strap Pad up and off the Harness Buckle, as shown. Also

remove the Shoulder Pads, if desired.

Completely loosen Harness by pressing Harness

Release Button on the front of the Child Restraint and

pulling out on both of the Harness Straps. Then unbuckle

the Chest Clip and Harness Buckle.

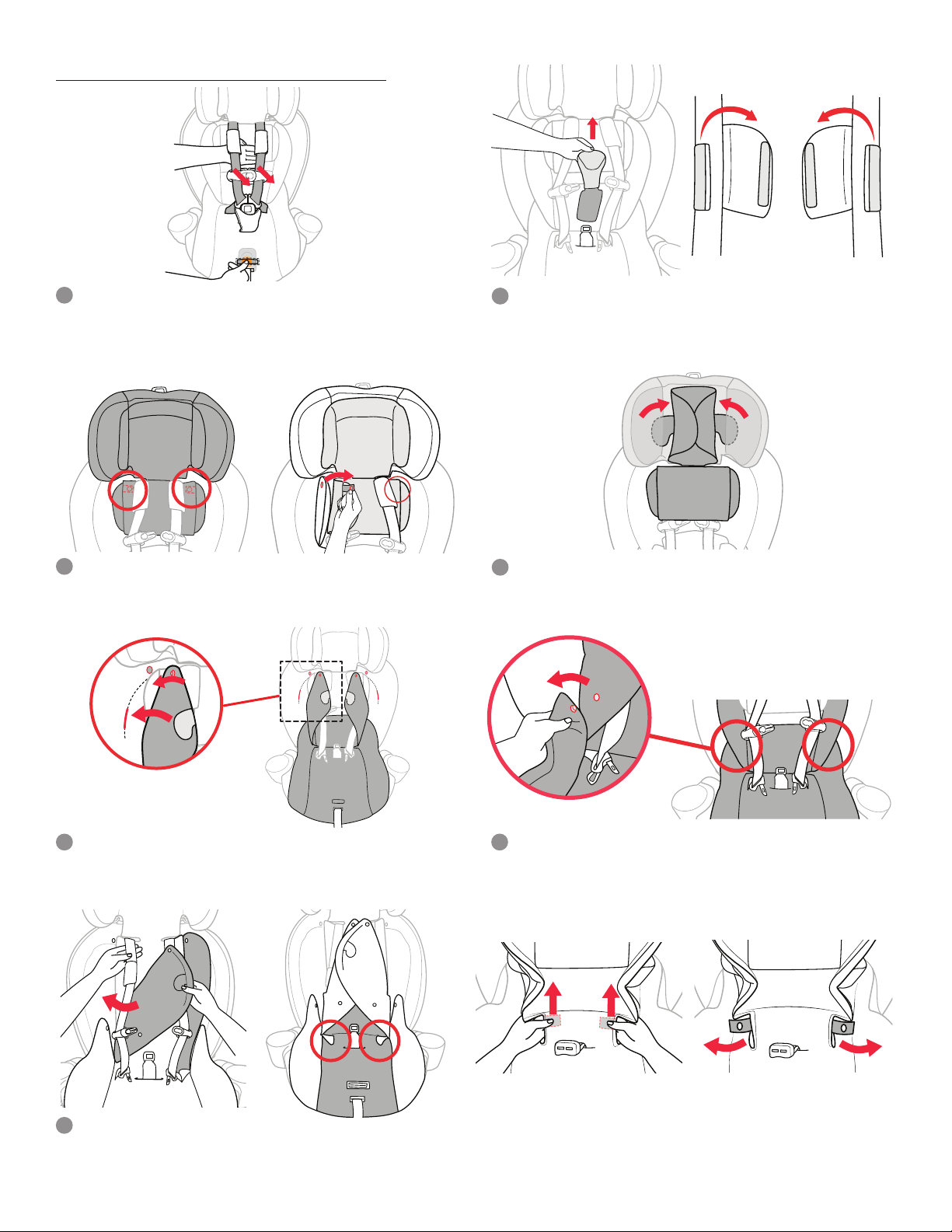

SOFTGOODS REMOVAL Stage 2:

Slide both Headrest Flaps from the side pockets on

the Headrest. Remove the Stage 1 & 2 Headrest Insert

from the Child Restraint.

Lift the Headrest to the highest position. Unsnap

both Snap Buttons located on the bottom section of the

Stage 1 & 2 Headrest insert, as shown.

Unhook the elastic loop below the front edge of the Child Restraint, and thread the Harness Buckle down through

the slot in the pad. Remove the Stage 2 Positioner from the Child Restraint. If desired, re-attach the Crotch Strap Pad

and Shoulder Pads for Stage 3 use

. Thread the Crotch Strap Pad tongue down into the same opening as the Harness Buckle

(See Step 5 and 6 in Softgoods Removal Stage 1).

Completely loosen Harness by pressing Harness

Release Button on the front of the Child Restraint and

pulling out on both of the Harness Straps. Then unbuckle

the Chest Clip and Harness Buckle.

Raise the headrest to the highest position and remove BOTH of the Cup Holders. Press the orange button located

on the bottom edge of the Cup Holder and lift up, repeat for the other side.

Remove the Crotch Strap Pad by pulling the Crotch

Strap Pad up and off the Harness Buckle, as shown. Also

remove the Shoulder Pads.

SOFTGOODS REMOVAL Stage 3 & 4:

At the top edge of the seat back, pull back gently

on both of the plastic tabs and lift up fabric. Remove the

fabric from the top edge of the seat back.

With the Child Restraint facing you, pull forward on

the fabric and guide it off of the Headrest frame. Undo

both snap buttons holding the headrest fabric in place at

the bottom of the Headrest frame, as shown.

With the Child Restraint facing you, pull forward on

the fabric. Guide it off of the Child Restraint Seat frame

and then around the Headrest frame.

Undo both snap buttons on the inside of the seat

pad, as shown. Then lower the Headrest to the lowest

position.

20 21

On one side of the Child Restraint open the LATCH

Storage compartment. Locate and unhook the elastic

loop, as shown. Pull the fabric edge out and around the

orange Lap Belt guide.

At the back of the Headrest, pull back gently on both

of the plastic tabs at the top of the Headrest and pull up

on the Headrest fabric.

18 19

Release both elastic straps located inside the cup

holder attachment cutout. Repeat steps 24 and 25 for the

other side.

Thread the Harness Buckle down through the slot in

the pad and pull the FABRIC up around the front and sides

of the seat frame. Then carefully pull fabric around the

Harness Adjuster Strap Cover and remove the Seat Bottom

Pad. The plastic Harness Adjuster Strap Cover is NOT

removable. Remove the Fabric.

Fabrics may be hand washed using mild soap and water, or machine washed in cold water on delicate cycle using mild

detergent. Hang to dry. DO NOT BLEACH. Please consult your product manual for additional care and maintenance

instructions.

DO NOT remove the Harness Straps. Contact Chicco Customer Service at 1-877-424-4226 for assistance or additional

information.

Cleaning Instructions:

Open the Crotch Strap Lock and fully recline the seat (Position 1). Tilt the Child Restraint back and locate the

crotch strap metal bar underneath the seat. Turn metal bar slightly and push the corner through the slot. Work the

metal bar through the slot while pulling Harness Buckle out on the other side.

NEVER use Child Restraint without the Crotch Strap installed.

CROTCH STRAP REMOVAL:

Pull the fabric down and around the front edge and

insert the headrest into the top opening in the fabric. Pull

the fabric around the back of the Seat Frame.

Guide one corner of the metal bar through slot in the Crotch Strap Lock compartment. With the seat fully

reclined (Position 1), pull the metal bar through the slot from underneath the seat. Make sure the metal bar lays ﬂat on

the bottom of the seat, as shown.

NEVER use Child Restraint without the Crotch Strap installed.

CROTCH STRAP INSTALLATION:

SOFTGOODS INSTALL Stage 3 & 4:

Make sure the Headrest is in the lowest position and open the LATCH storage compartments. Place the Seat Pad

onto the Child Restraint frame and thread the Harness Buckle up through the correct slot in the seat pad. Then carefully

guide the fabric around the Harness Adjuster Strap Cover.

At the front of the Child Restraint start tucking the

fabric edge into the outside groove following it up the side

to the Cup Holder attachment.

While pulling on the Front elastic strap, press in on

the fabric guiding it into the groove. Wrap the elastic

strap around the post inside the Cup Holder cutout. Tuck

the fabric edge around the outside Cup Holder frame,

making sure the grooves in the Cup Holder frame are not

covered by the fabric.

Pull on the other elastic strap while guiding the fabric

down and around the Cup Holder edge and into the notch.

Wrap the elastic strap around the post and repeat for the

other side.

Pull the Shoulder Harness Straps through the openings

in the fabric and attach the chest clip and the harness

buckle.

Press and push the fabric around the inside edge of

the orange Lap Belt Guide. If this becomes difﬁcult, the

blunt end of a pen or something similar may be used to help

tuck the fabric around the edge.

Locate the elastic strap near the back of the Lap Belt

Guide, pull on the strap and tuck the fabric around the

upper edge of the Lap Belt Guide. Wrap the elastic strap

around the post inside the LATCH belt compartment. Close

the compartment and repeat for the other side.

Tuck and press the fabric into both side edges of the

Child Restraint. At the top of edge of the Child Restraint,

locate the plastic tabs. Press both tabs into the top edge

until they stay in position under the tab cutouts.

Attach the Cup holders to the Child Restraint. Match the “R” and “L” Cup Holders to the Child Restraint, as shown.

Make sure the fabric is tucked in along the Child Restraint lip to allow the Cup Holder to be attached properly. Line up

the Cup Holder pin and the two guides with the openings on the Child Restraint, as shown. Push in and then push down

on the Cup Holder until it clicks into place. Repeat for the other side.

Guide

At the back edge of the Headrest locate the plastic

tabs. Press them into the headrest frame until they click

into position, as shown.

Attach both snap buttons on the Headrest fabric

to the Headrest frame, as shown. If setting up for use

in Stage 4, please reference pages 112 to 117 in your user

guide. If not, pull the Shoulder Harness straps around to lay

on top of the Headrest fabric.

Attach both snap buttons on the seat fabric, as shown. Pull the Headrest up to the highest position.

Slide the

Headrest fabric onto and around both sides of the Headrest frame. Tuck the fabric edges into the Headrest frame

edges, as shown.

If desired, attach the Crotch Strap Pad for Stage 3

& 4 use

.Thread the Crotch Strap Pad tongue down into the

same opening as the Harness Buckle (See Step 5 and 6 in

Softgoods Removal Stage 1).

SOFTGOODS INSTALL Stage 2:

Completely loosen Harness by pressing Harness

Release Button on the front of the Child Restraint and

pulling out on both of the Harness Straps. Then unbuckle

the Chest Clip and Harness Buckle.

Raise the headrest to the highest position and

remove Crotch Strap Pad.

If desired, attach both sides of the Hook and Loop

Tabs on the outside of the Shoulder Pad, as shown.

Repeat for the other Shoulder Pad.

Slide both Headrest Flaps into the side pockets on

the Headrest.

Slide Shoulder Straps into Headrest Slots, then

attach both snap buttons located on the bottom section

of the Stage 1 & 2 Headrest Insert, as shown.

Pull forward on the seat fabric and Stage 2 Positioner ,

as shown. Wrap both snap button straps down and under

the seat fabric. Using your ﬁngers, line up and attach both

snap buttons to the underside of the seat fabric.

Attach both side snap buttons, as shown.

Place the Stage 2 Positioner on the Child Restraint.

Thread the Harness Buckle up through the correct slot in

the seat pad and pull the Shoulder Straps over the Stage 2

Positioner and into the side openings in the seat pad.

Locate and pull the adjuster strap through the opening on the seat pad. Attach the elastic strap on the front of the

Stage 2 Positioner by pulling the elastic strap under the front edge of the seat bottom and loop it around both hooks. If

desired, re-attach the Crotch Strap Pad for Stage 2 use

Insert the plastic tab into the pocket crease, and

attach the top snap button on the Stage 2 Positioner side

wing. Repeat for the other side. Double check to make sure

the plastic tab is pushed all of the way down into the

pocket.

Otros manuales para Fit 4

Tabla de contenidos

Otros manuales de Asiento de coche de Chicco

Chicco

Chicco Auto-FIX Fast Manual de usuario

Chicco

Chicco Isofix Base Manual de usuario

Chicco

Chicco Oasys 0+ UP BebeCare Manual de usuario

Chicco

Chicco KEYFIT 30 Manual de usuario

Chicco

Chicco synthesis Manual de usuario

Chicco

Chicco KEYFIT STRADA BOOSTER Manual de usuario

Chicco

Chicco Seat Up 210 Manual de usuario

Chicco

Chicco Seat3 Fit i-Size Manual de usuario

Chicco

Chicco CosmoS Manual de usuario

Chicco

Chicco SCOOP - SIEGE-AUTO Manual de usuario

Chicco

Chicco Unico Manual de usuario

Chicco

Chicco Fit 4 Manual de usuario

Chicco

Chicco KEYFIT 30 Manual de usuario

Chicco

Chicco KEY 1 X-PLUS Manual de usuario

Chicco

Chicco KEYFIT Manual de usuario

Chicco

Chicco GRO-UP 123 Manual de usuario

Chicco

Chicco MyFit Harness+Booster Manual de usuario

Chicco

Chicco YOUniverse Fix Manual de usuario

Chicco

Chicco GRO-UP 123 Manual de usuario

Chicco

Chicco MyFit Manual de usuario

Chicco

Chicco Auto-FIX Fast Manual de usuario

Chicco

Chicco MyFit Harness+Booster Manual de usuario

Chicco

Chicco MoDe Manual de usuario

Chicco

Chicco Oasys 1 isofix Manual de usuario

Manuales populares de Asiento de coche de otras marcas

Britax

Britax PARKWAY SGL Manual de usuario

JANE

JANE nurse cruiser Manual de usuario

Digicom

Digicom Tippy Pad Manual de usuario

Fisher-Price

Fisher-Price Futura 20/60 Manual de usuario

Giordani

Giordani orion 012 Manual de usuario

BRIO

BRIO ZENTO Manual de usuario

Combi

Combi Zeus Turn 8815 Series Manual de usuario

Graco

Graco Car Booster Seat Manual de usuario

Coccolle

Coccolle Atira Manual de usuario

hifold

hifold HF01-GL Manual de usuario

CYBEX

CYBEX SOLUTION X2-FIX Manual de usuario

kiwy

kiwy SLF 123 Manual de usuario

Safety 1st

Safety 1st Summit ISO 30 Manual de usuario

Safety 1st

Safety 1st Grand 2-IN-1 Manual de usuario

Graco

Graco NAUTILUS Manual de usuario

Britax

Britax Multi-Tech BB0-702-00 Manual de usuario

Grammer

Grammer MSG45/421 Instrucciones de funcionamiento

Nuna

Nuna REBL PLUS Manual de usuario
